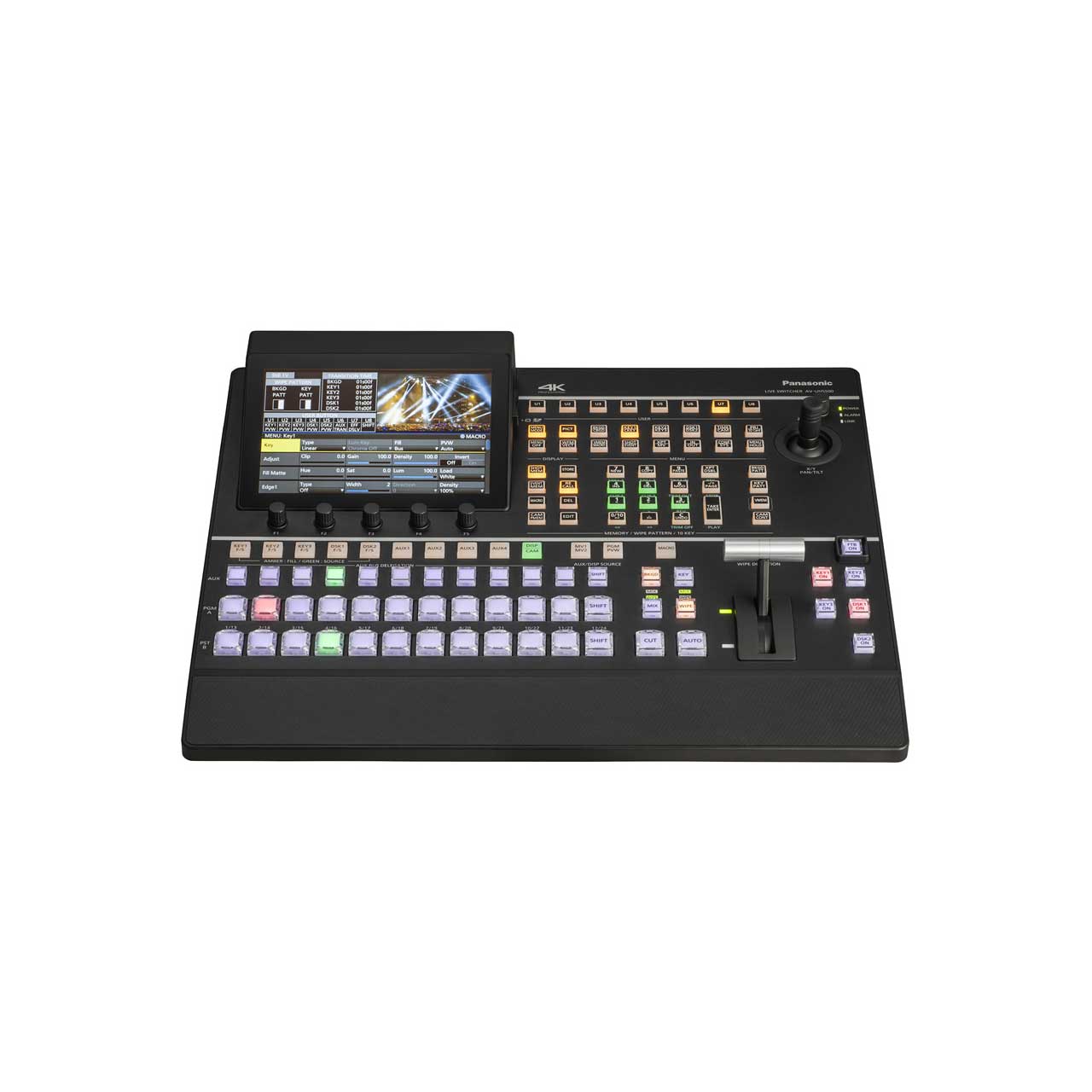

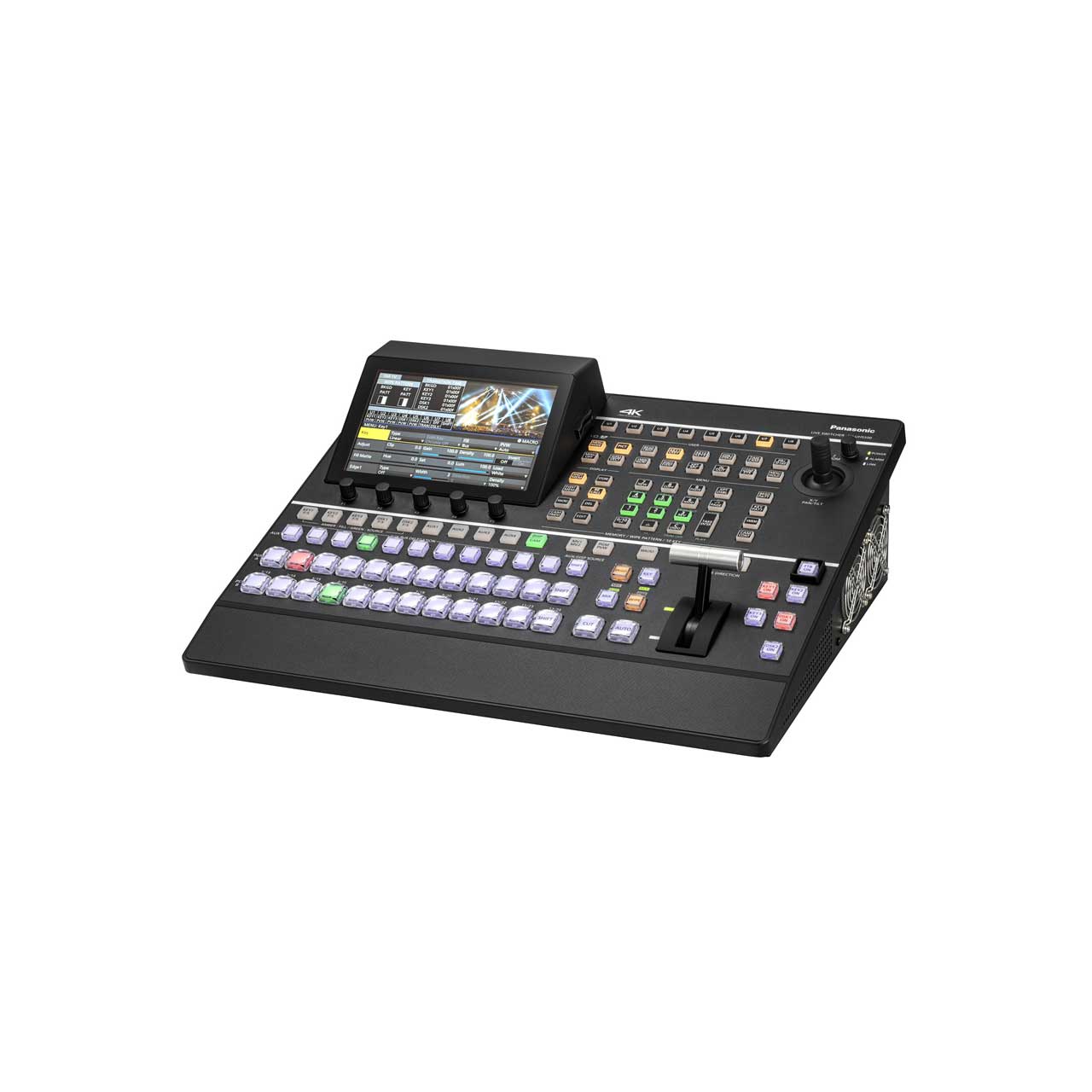

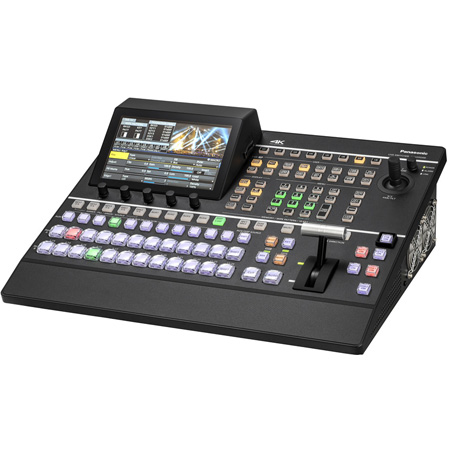

Panasonic AV-UHS500PJ 4K/12G-SDI Compatible Compact and Versatile Live Switcher

Name: Panasonic AV-UHS500PJ 4K/12G-SDI Compatible Compact and Versatile Live Switcher
Brand: Panasonic
SKU: PAN-AV-UHS500PJ
Price: 22008.75 USD
Availability: PreSale

ITEM #: PAN-AV-UHS500PJ MFG #: AV-UHS500PJ

Panasonic

List Price:

$22,050.00

Our Price:

$22,008.75

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

AV-UHS500PJ - Overview

This feature-rich, multi-format switcher for 4K and HD productions extends Panasonic's legacy of producing high-quality, reliable switchers.
With its compact, integrated body, this live switcher is equipped with many functions found in high end models and delivers 4K video production with the same operability as HD.
In addition to fixed installations such as university lecture halls and corporate conference rooms, the AV-UHS500PJ is well suited for remote production. Designed for easy portability and simple set up it should become a favorite tool for staging and other event production.

Features:
- Versatile 12G-SDI/3G-SDI/HDMI interface support
- UHD/HD multi-format support
- Expanded functions with two optional unit slots
- Standard number of inputs/outputs: 8 inputs / 7 outputs,
- Maximum number of inputs/outputs (with optional boards):
- Maximum 16 inputs / Maximum 15 outputs
- Five keyers for excellent image effects
- Up/down conversion function, HDR/SDR conversion function and ITU-R BT.2020/BT.709
- conversion function;
- Scaler function;
- Color correction function support
- Four AUX buses AUX 1 and 2 have MIX transition functions, DSK 1 and 2 can also be assigned
- Camera control for Panasonic Integrated PTZ Cameras
Specifications:
- Signal Processing: R: G: B 4: 4: 4 8 bit / 4: 2: 2 10 bit (Only for HDMI)
  Y: CB: CR 4: 2: 2 10 bit
- Current Consumption: 1.5 A
- ME Number: 1ME
- Video Delay Time: 1 line (H): When the frame synchronizer setting is [Off] and neither the up-converter
  nor the down-converter is operating 1 frame (F): When the frame synchronizer setting is [On] and the
  up-converter and down-converter are operating
- Tally/GPI
  Input: 8 inputs general-purpose, photocoupler sensing
  Output: 19 outputs; selected from R/G tally, general-purpose
  Alarm: 1 output, open collector output (negative logic)
- Ambient Operating Humidity: 10% to 90% (no condensation)
- Power Supply: AC 100 V to 240 V, 50 Hz/60 Hz
- REF Terminal:
  -In Genlock mode: Black burst or Tri-level Sync input signals (with loop-through)
  -Loop-through output is performed in external sync mode.
  -If loop-through output is not going to be used, provide a 75 O termination.
  -Connectors : BNC x 2
  -Same field frequencies as those of the system formats supported.
  -With the 24.00p format, Black Burst input signal is not supported.
  -With the 1080/23.98PsF format, black burst with 10 Field ID
  (SMPTE318M standard met) or Trilevel Sync signals supported.
  -BB signals are output from two connectors in the internal sync mode.
- LAN Terminal: Compatible with 1000BASE-TX and AUTO-MDIX (For IP control)
- Connecting Cable: LAN cable (CAT5E), max. 100 m (328 ft) STP (Shielded Twisted Pair)
  cable recommended
- Connectors: RJ-45
- Signal Formats
  2160/59.94p, 50p, 29.97p1, 25p1, 24p1, 23.98p1,
  1080/59.94p, 50p, 29.97PsF, 25PsF, 24PsF, 23.98PsF, 59.94i, 50i,
  720/59.94p, 50p
- Dimensions (WxHxD): 17-5/16 x 6-11/16 x 14-3/16 Inches
- Weight: Approx 15.4 Lbs
- Ambient Operating Temperature: 32°F to 104°F
- Storage Temperature: 32°F to 104°F
- Storage Humidity: 10% to 90% (no condensation)
GTIN:
0885170425521
