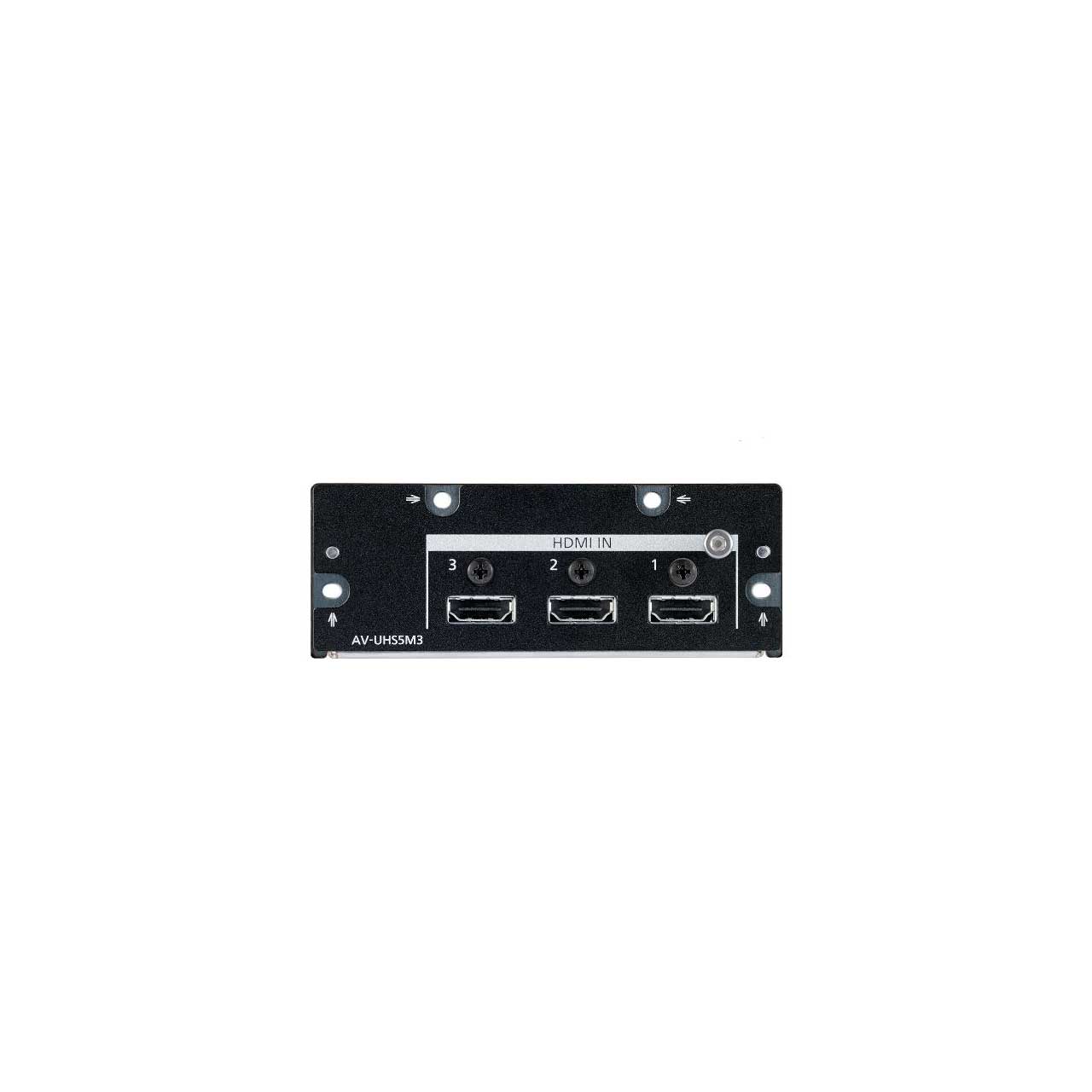

Panasonic AV-UHS5M3G HDMI 2.0 Input Expansion Card for the AV-UHS500 4K 12GSDI / HDMI Pro Live Video Production Switcher

AV-UHS5M3G - Overview

• Features:

  • HDMI 2.0 x 3 inputs
  • Scaler for each channel


• Specifications:

  • Weight: Approx. 353 g (Approx. 0.78 lbs.)
  • Dimensions (W x H x D): 112 mm x 42 mm x 166 mm (4-13/32 inches x 1-21/32 inches x 6-17/32 inches) (excluding protrusions)
  • Power consumption: 16 W 1.3 A
  • Storage Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Humidity: 10% to 90% (no condensation)
  • Ambient Operating Humidity: 10% to 90% (no condensation)
  • Power supply: DC 12 V Supplied by AV-UHS500
  • HDMI Input:
  • Mode: Full/Fit-H/Fit-V
  • Connectors: HDMI x 3
  • Frame synchronizer function: Color corrector fitted.
  • Scaler and Color space conversion function: This connector does not support the CPRM technologies.
  • HDMI Inputs: HDMI IN 1 to HDMI IN 3 Terminals - 3 lines
  • Video Format Inputs:
  • 720p/59.94 Hz, 720p/50 Hz, 1080i/59.94 Hz,
  • 1080i/50 Hz, 1080p/59.94 Hz, 1080p/50 Hz, 1080p/29.97 Hz, 1080p/25 Hz,
  • 1080p/24 Hz, 1080p/23.98 Hz, 2160p/59.94 Hz, 2160p/50 Hz,
  • 2160p/29.97 Hz, 2160p/25 Hz, 2160p/24 Hz, 2160p/23.98 Hz
  • PC Format Inputs:
  • 4K (3840 x 2160, 60 Hz), WQHD (2560 x 1440, 60 Hz),
  • WUXGA (1920 x 1200, 60 Hz), UXGA (1680 x 1200, 60 Hz),
  • WSXGA+ (1680 x 1050, 60 Hz), SXGA (1280 x 1024, 60 Hz),
  • WXGA (1280 x 768, 60 Hz), XGA (1024 x 768, 60 Hz)
  • Ambient Operating Temperature 0°C to 40°C (32°F to 104°F)
