AVMATRIX PKC3000 IP & Serial PTZ Camera Joystick Controller

PKC3000 - Overview

• Features:

  • Cross protocol mix control with IP/RS-422/RS-485/RS-232
  • Control protocol by VISCA, VISCA Ove r IP, Onvif and Pelco P&D
  • Control up to 255 IP cameras on one single network
  • Three camera quick call up keys, or three user-assignable keys
  • Tactile feel with professional rocker/seesaw switch for zoom controling
  • Auto search available IP cameras in one network and assign IP addresses easily
  • Multi color key illumination indicator directs operation to specific functions
  • Tally GPIO output for indicating the camera be currently controlled

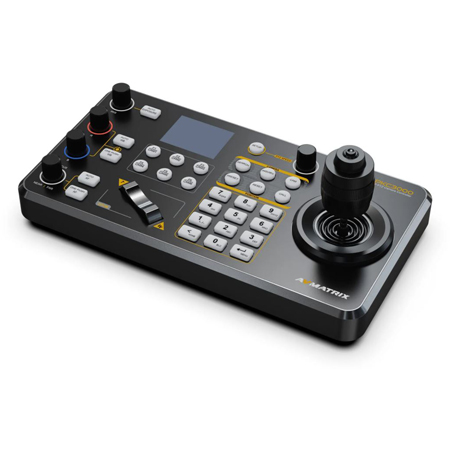

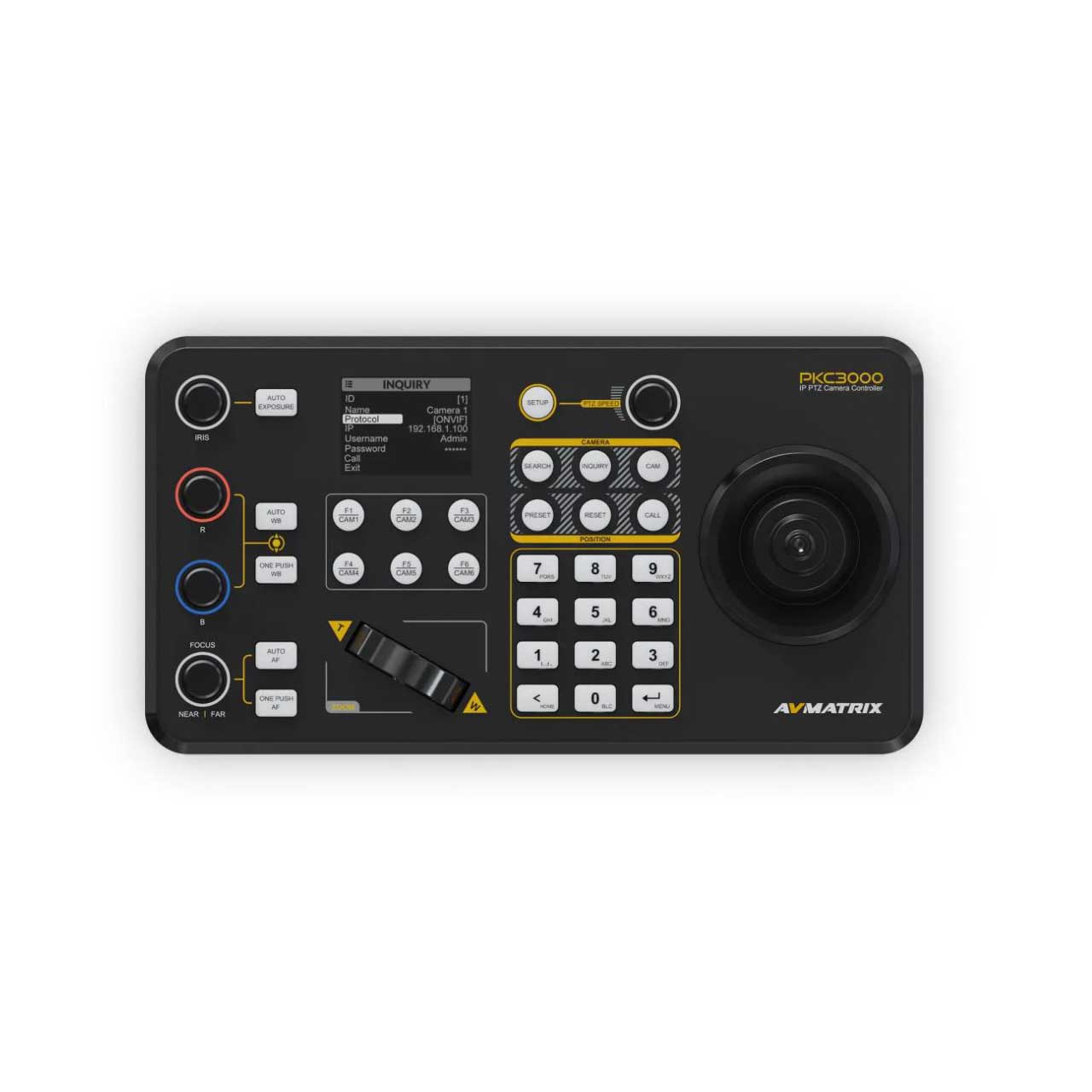

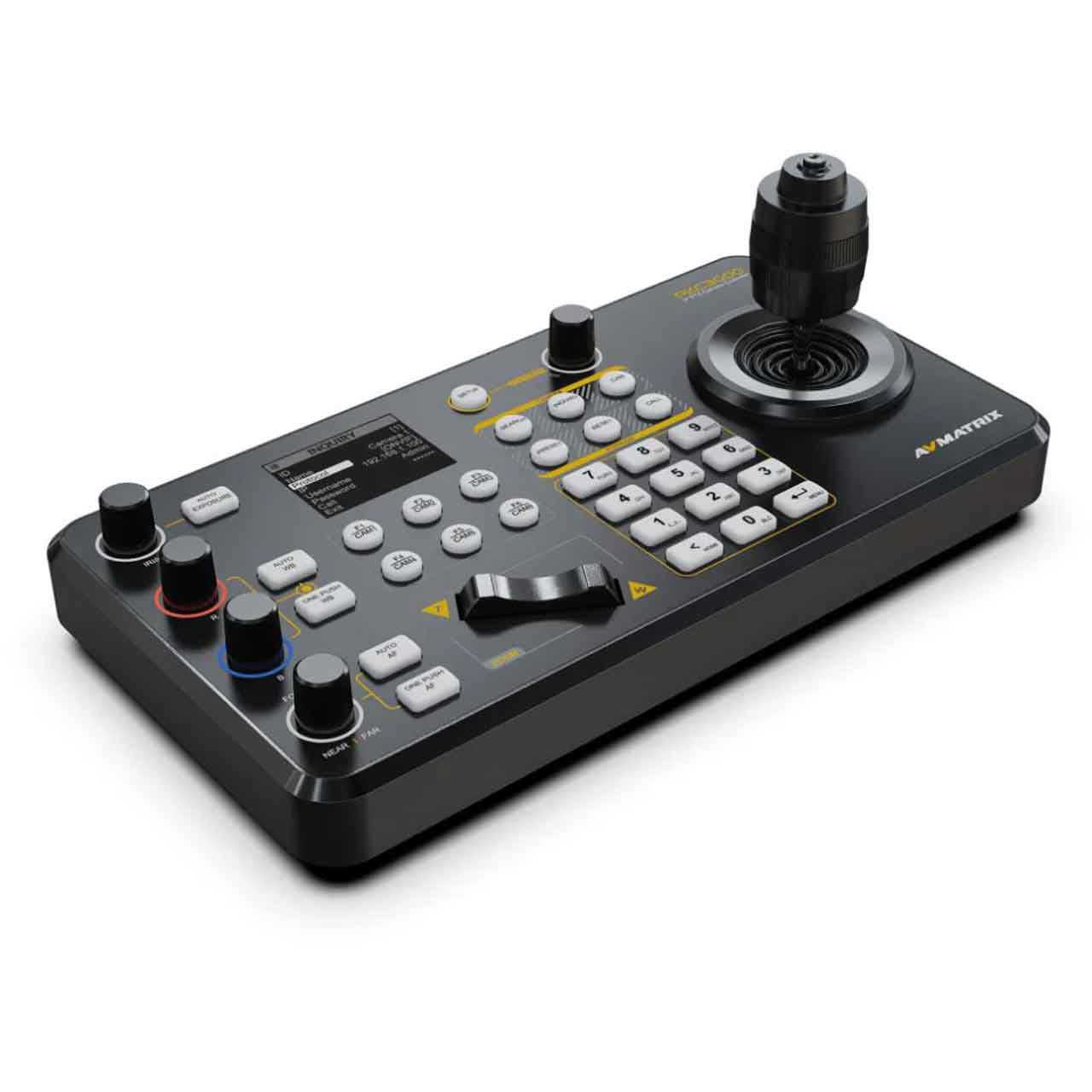

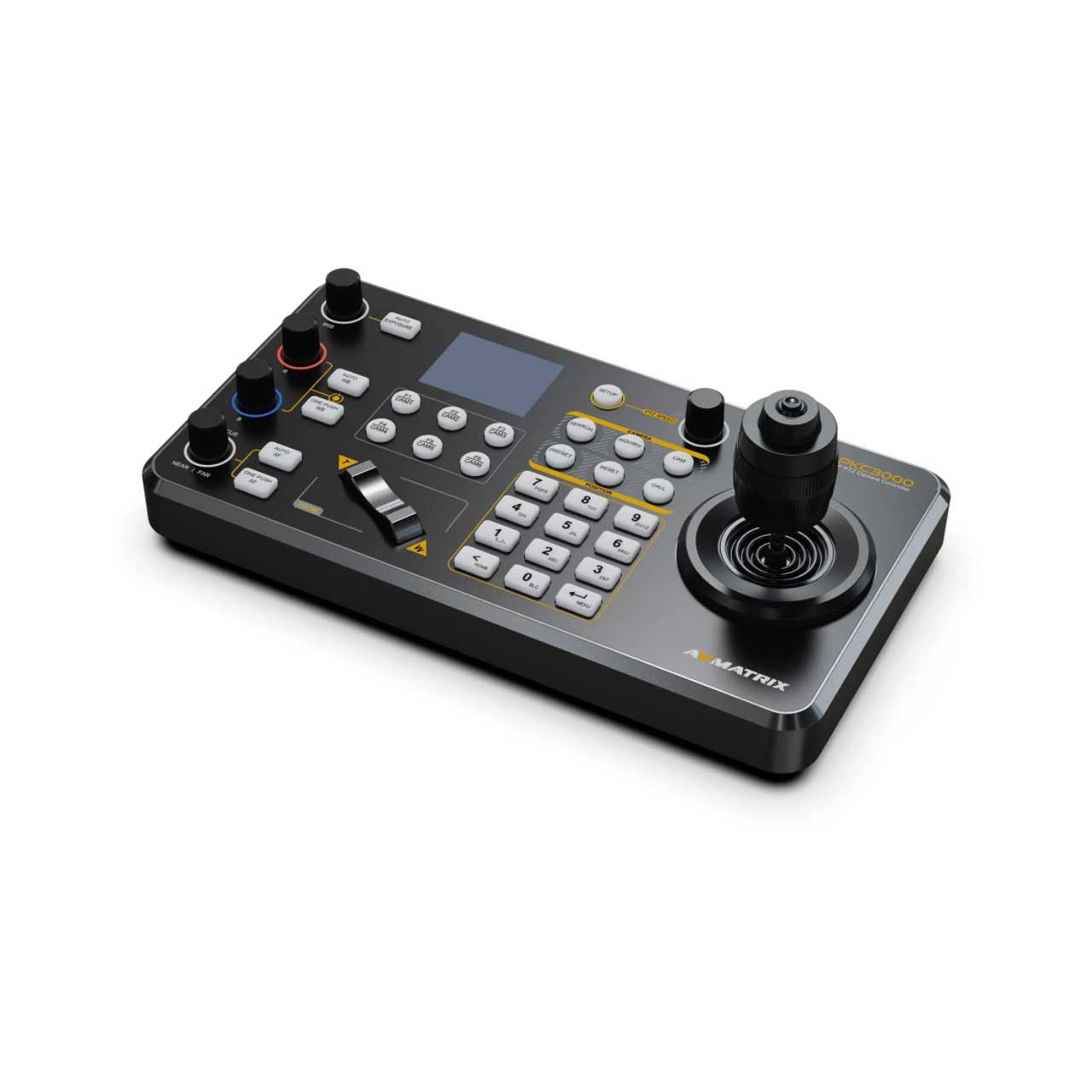

  • Aluminum alloy housing with 2.2 inch LCD display, joystick, 5 rotation button
  • Supports both PoE and 12V DC power supplies


• Specifications:

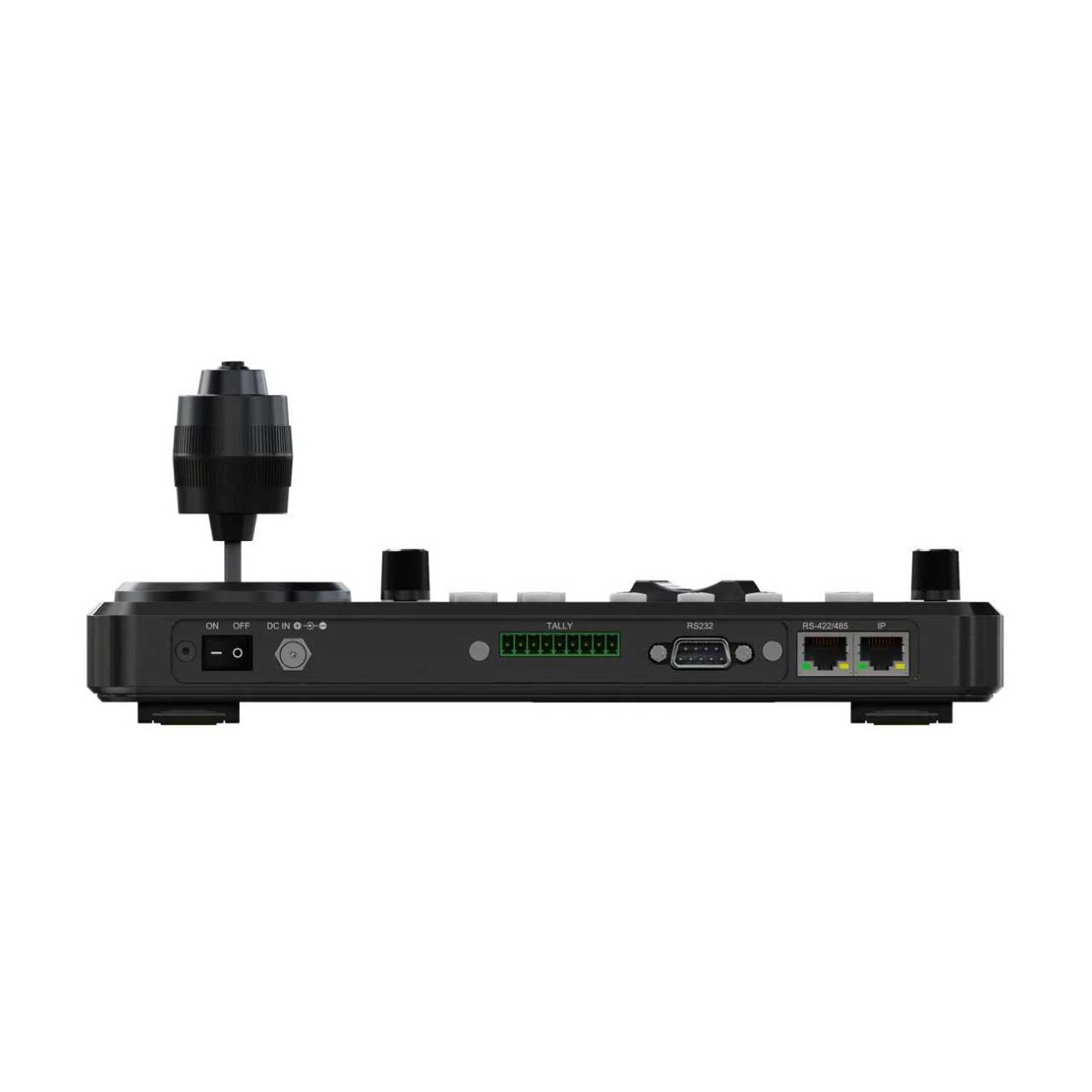

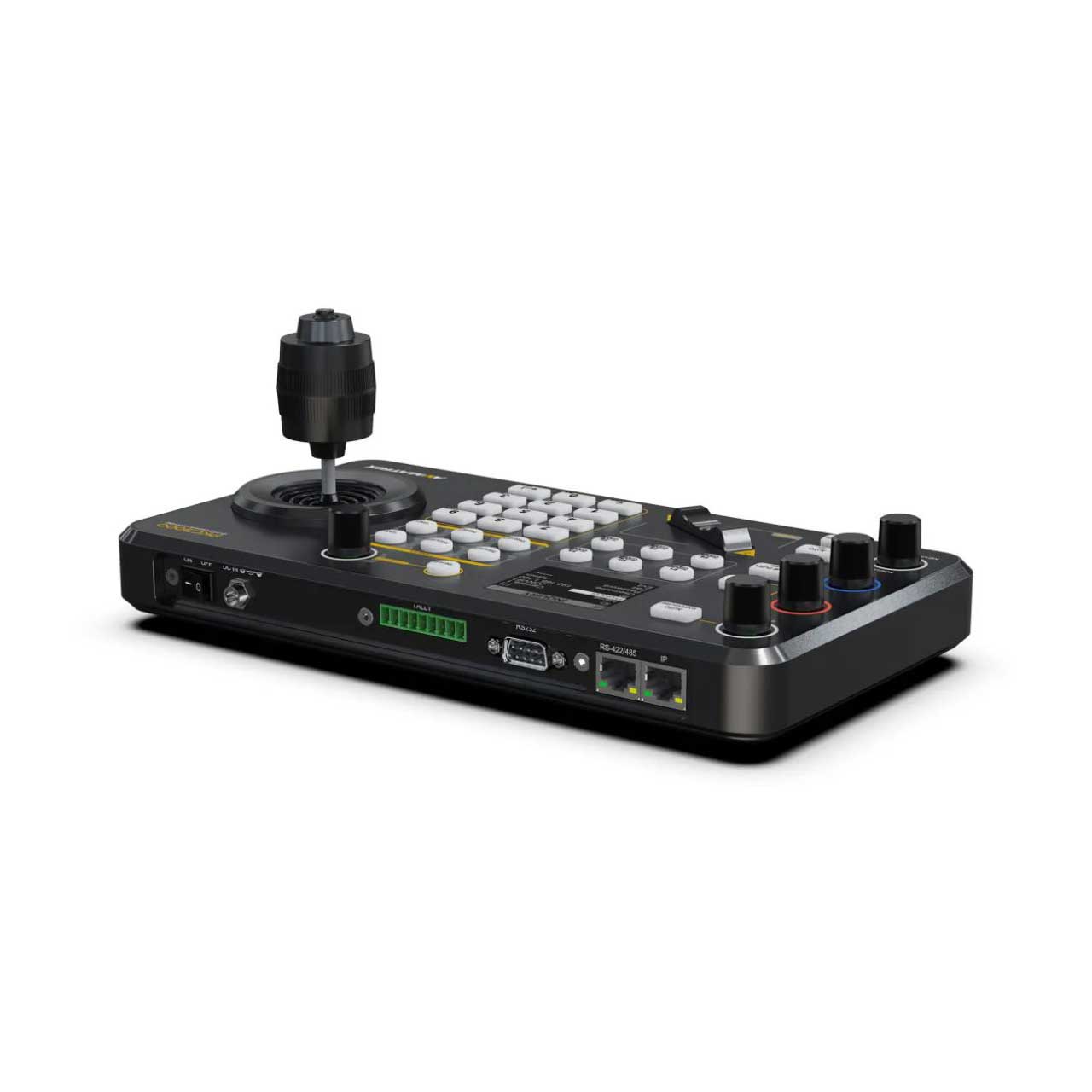

  • Interfaces: IP (RJ45), RS-232, RS-485/RS-422
  • Control Protocol: IP Protocol ONVIF, VISCA over IP, Serial Protocol Pelco-D, PELCO-P, VISCA
  • Serial Baud Rate: 2400, 4800, 9600, 19200, 38400 bps
  • Display: 2.2 inch LCD
  • Joystick: 4D joystick (Pan/Tilt/Zoom/Lock)
  • Camera Shortcut: 6-channel
  • Keyboard: User-assignable keys x6, rotation button x5, rocker x1, seesaw x1
  • Camera Address: Up to 255
  • Preset: Up to 255
  • Power: PoE/DC 12V
  • Power Consumption: PoE: 5W, DC: 5W
  • Working Temperature: -4°F - 140°F (-20°C - 60°C)
  • Storage Temperature: -40°F - 176°F (-40°C - 80°C)
  • Dimensions: 10.63" x 5.71" x 4.20" (270mm x 145mm x 106.6mm)(with joystick)
  • Weight: 2.60lbs (1.18kg)


• Item Includes:

  • 1x AVMATRIX PKC3000 IP & Serial PTZ Camera Joystick Controller


• GTIN:

  6971118001491
