ETS AV906WP-WH Dual Video Dual Audio - 4 RCA jacks to 110 Punch-Down - White

Name: ETS AV906WP-WH Dual Video Dual Audio - 4 RCA jacks to 110 Punch-Down - White
Brand: ETS
SKU: ETS-AV906WP-WH
Price: 100.67 USD
Availability: PreSale

ITEM #: ETS-AV906WP-WH MFG #: AV906WP-WH

ETS

Options:

Colors:

Options

Colors

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$125.95

Our Price:

$100.67

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

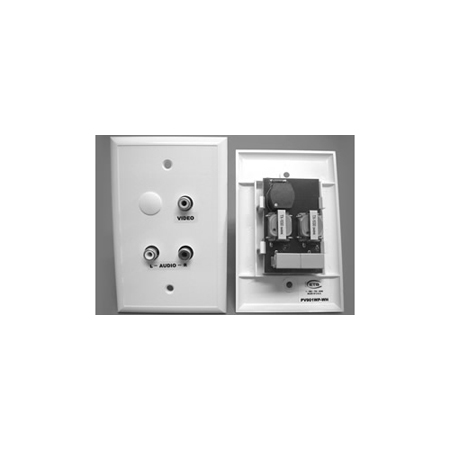

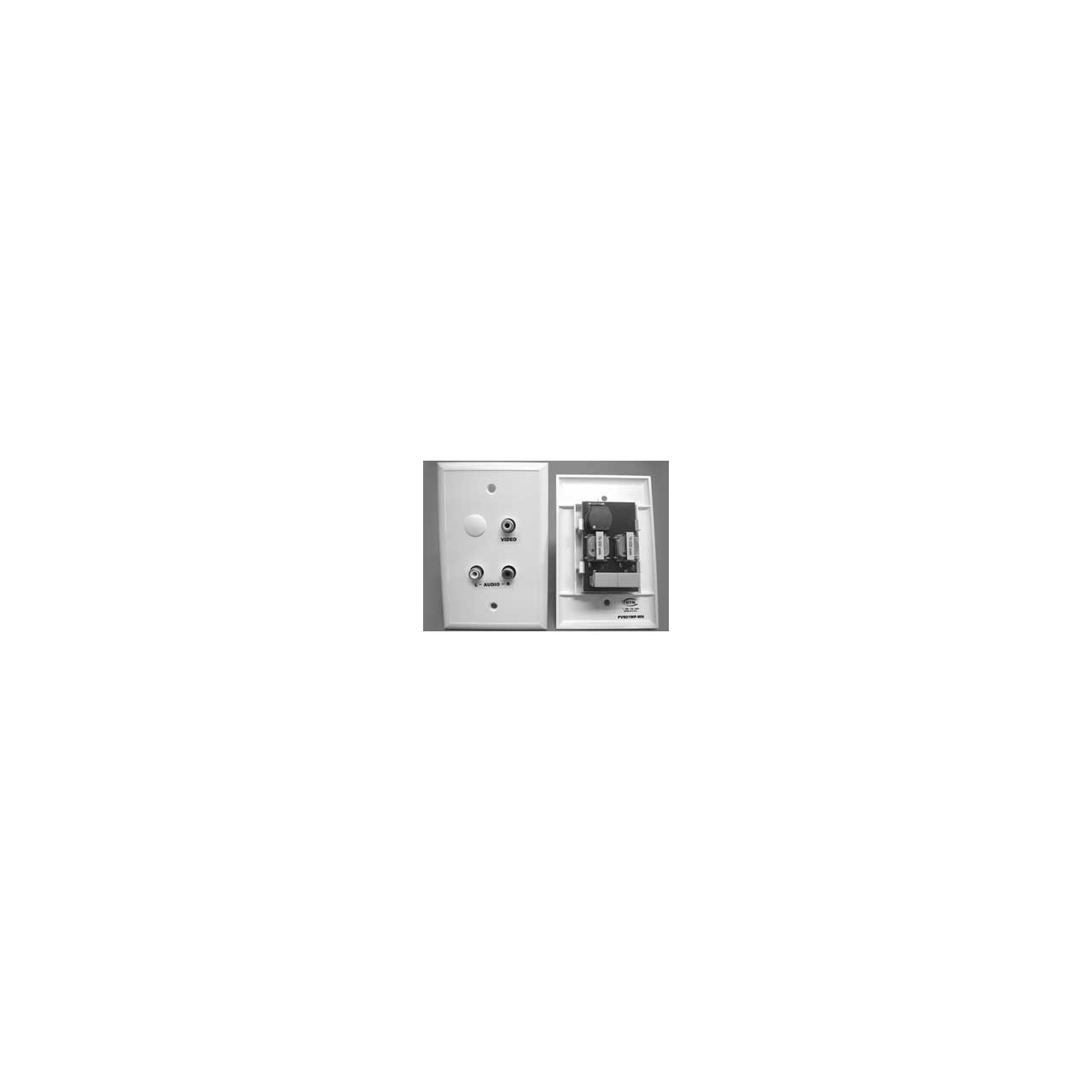

AV906WP-WH - Overview

The ETS AV906WP (with 4 RCA jacks for all inputs) allows you to send two channels each of baseband video and audio in any direction desired. This capability yields, for instance, a bi-directional video + mono audio link, or many other configurations.

The ETS AV906WP Baseband Video/Stereo Wall Plate are utilized for point-to-point replacement of coaxial (video) and shielded (high impedance audio) cables with UTP wiring, Category 5 or better.

Features:
- Decorator balun wall plates for a sleeker, cleaner professional installation
- Easy installation with punch down blocks
- Ports are pre-labeled and easily identified
- 1 or 2 baseband video channel and 2 line level audio channels on one run of Category 5 UTP
- Use for point to point replacement of coax and shielded cables
- 100% tested
- Made in USA
Specifications:
- Bandwidth: Flat to 60 MHz (video), 10Hz to 20kHz (audio)
- Connectors: RCA jack (video)+2 RCA jacks (audio) to 110 punch down type
- Common Mode: > 50dB (video)
- Rejection Impedance: 600:600 (audio)
- Isolation: 500 V (audio, per channel)
- Distance: Audio - 1000ft; Video - Color 1200ft, B/W 2500ft
- Dimensions: 3.11" x 4.84" x 1.57" (79mm x 123mm x 40mm)
- Net Weight: 2.82oz (0.08kg)
