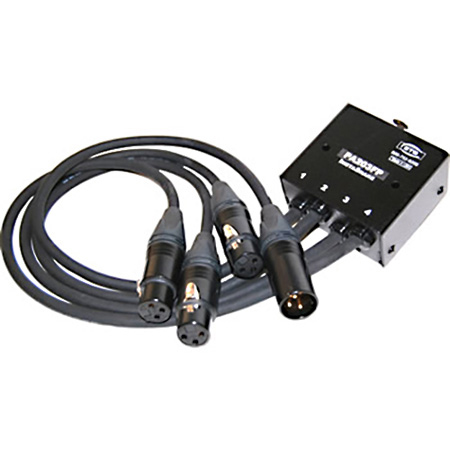

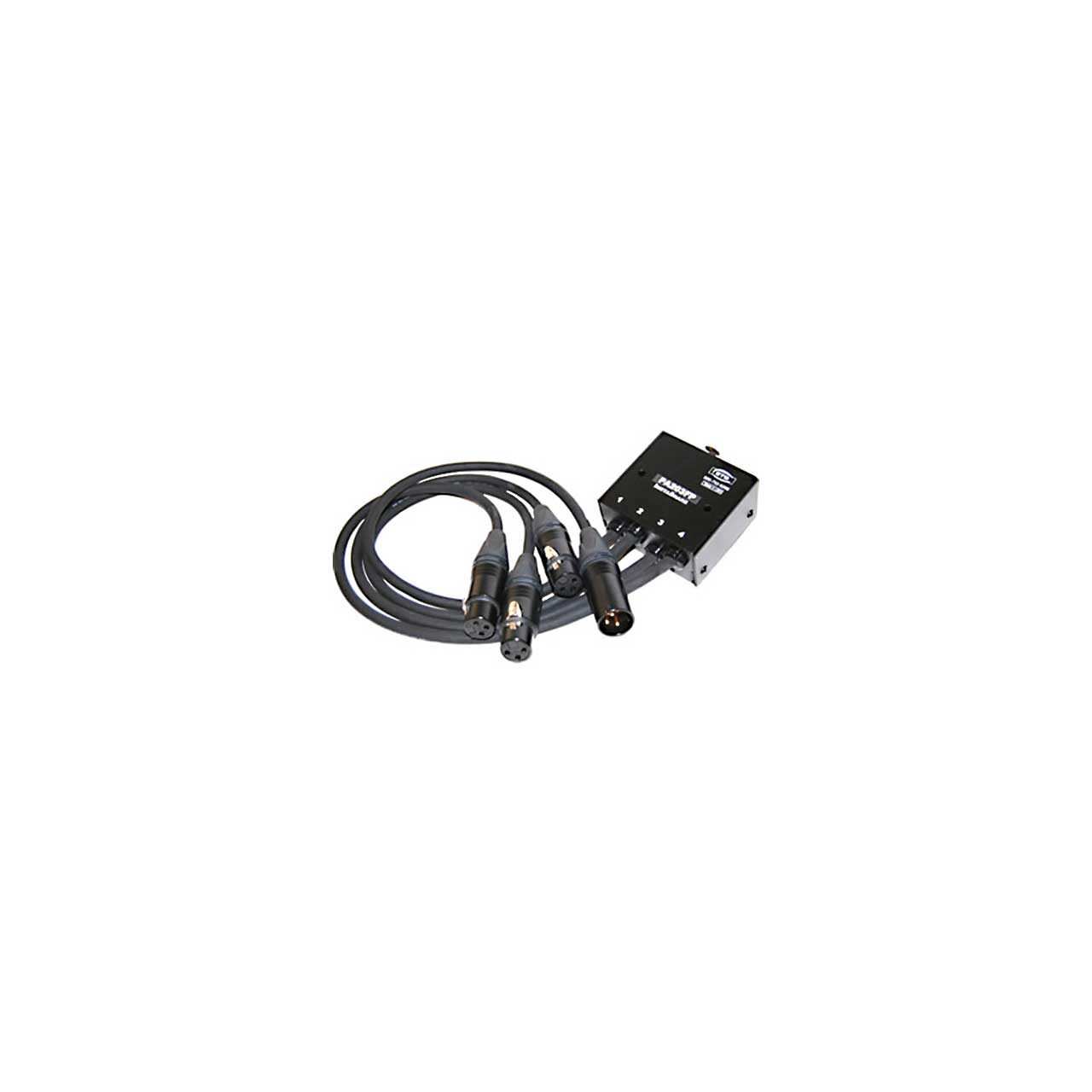

ETS PA203FP InstaSnake Send 3 Female XLR and 1 Male XLR 1.50 Foot with Pigtail to RJ45 Jack- All Pins

ITEM #: ETS-PA203FP MFG #: PA203FP

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$238.90

Our Price:

$191.07

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PA203FP - Overview

The ETS InstaSnake™ Series (PA200) is a compact, lightweight, versatile passive group of components allowing you to run audio signals over a single run of Cat 5, 5e, 6 or 6a data cables. With a roll of cable, these compact units are easily transported and/or stored solving dozens of live and/or recording sound problems. Designed to the highest professional standards the InstaSnake™ has a wide, flat frequency response, low THD and residual noise. The InstaSnake™ has been factory tested to 1900 feet over Cat 5 using balanced line low impedance dynamic microphones. Phantom power has been tested to 850 feet over shielded cable.

  • Features:

    • Easily transported
    • Low cost
    • No ground loops when unshielded Cat5 cable is used on PA202
    • 4 channels analog audio
    • 8 channels digital audio
    • May be used for analog or digital audio - mic or Line Level
    • Supports 48V phantom power when Shielded Cat5 cable is used
    • Rugged, 'road-ready' construction
    • RoHS compliant
    • USA Made - 100% tested

  • Specifications:

    • Distance: UTP - 1900 ft FTP or STP - 850 ft - phantom power only
    • Connectors: Female or Male XLR to Ethercon RJ45 jack
    • Dimensions (L x W x H): 69mm x 62mm (+pigtail) x 36mm (107mm x 70mm x 45mm - without pigtail)
