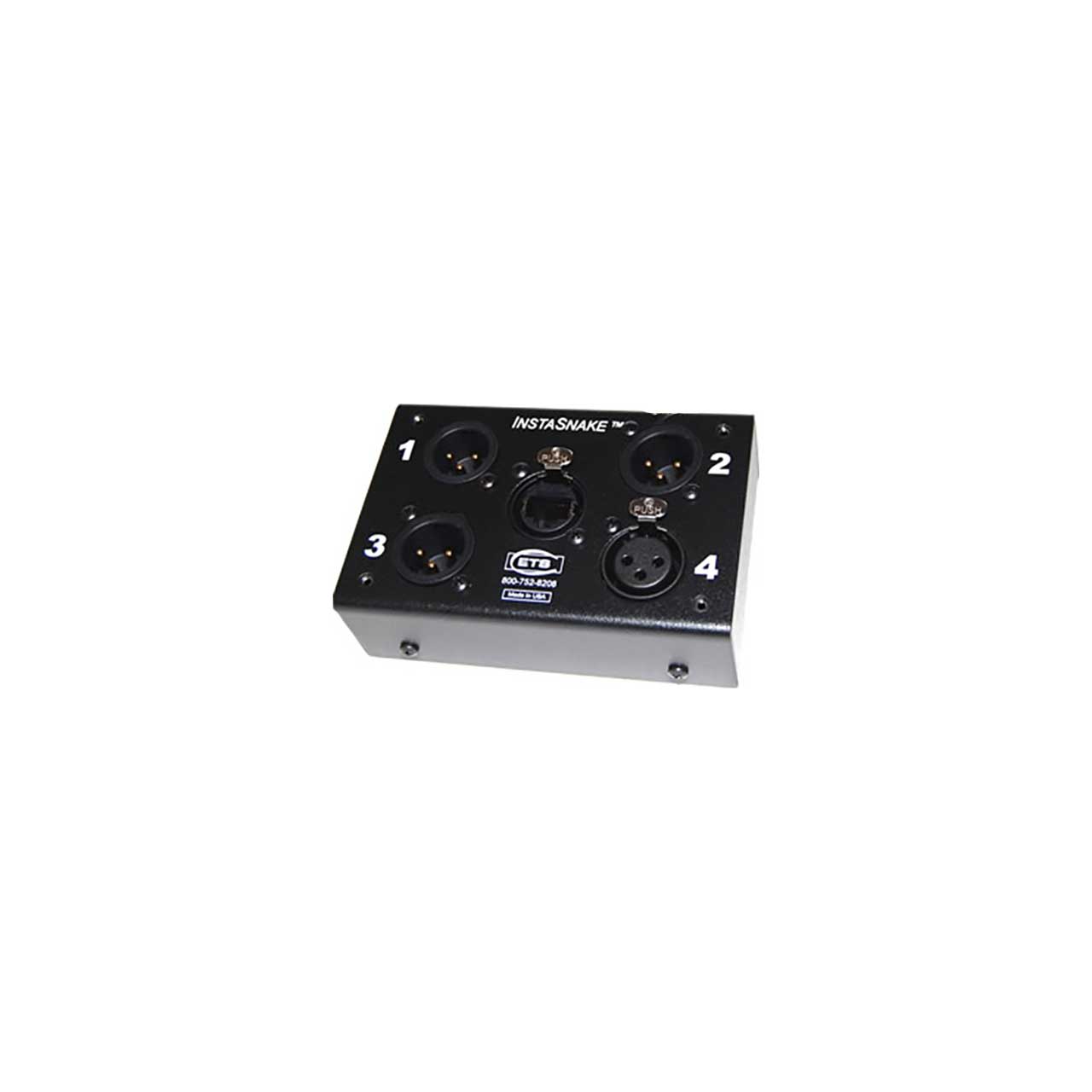

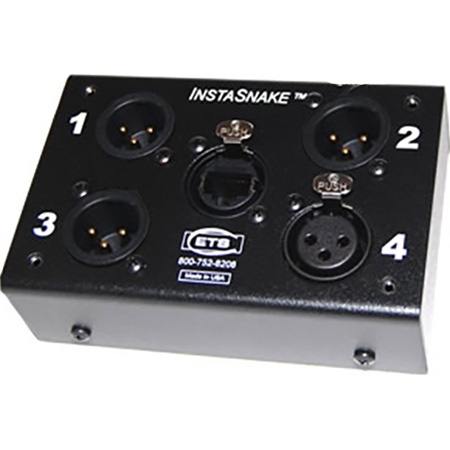

ETS PA203M Instasnake Adaptor - 3 MXLR 1 FXLR to RJ45 Jack All Pins

ITEM #: ETS-PA203M MFG #: PA203M

Primary Image
Free Shipping with $49 Minimum Order


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


PA203M - Overview

The ETS InstaSnake PA203 Series is configured for 3 sends and 1 return. Each passive send unit (PA203F) features 3 Female XLR and 1 Male XLR to RJ45 jack, all pins. Each passive receive unit (PA203M) features 3 Male XLR and 1 Female XLR to RJ45 jack, all pins. The ETS-PA203P adds the convenience or an 18" XLR Pigtail at the receive end. The basic units are a pair of passive units with bi-directional capability which can be input directly into analog or digital consoles. Designed to the highest professional standards the InstaSnake has a wide, flat frequency response, low THD and residual noise. The InstaSnake has been factory tested to 1900 feet over CAT5 using low Z dynamic microphones. Phantom power has been tested to 850 feet over shielded cable. PA205 will send phantom power over standard Cat5 or 6 cables. You can mix and match Mic/Line, Line or AES/EBU configurations making the InstaSnake a versatile high quality solution at very affordable prices.

  • Features:

    • Very easy transport Low cost No ground loops Add second unit to increase the number of channels May be used for analog or digital audio Supports 48V phantom power Rugged, `road-ready' construction RoHS compliant USA Made 100% tested
