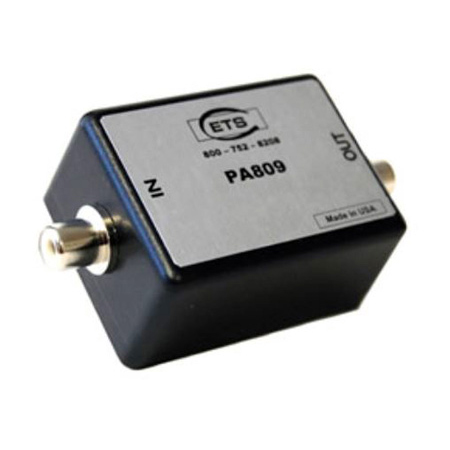

ETS PA809 Analog Audio Isolator RCA Jack to RCA Jack

ITEM #: ETS-PA809 MFG #: PA809

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$49.10

Our Price:

$45.23

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PA809 - Overview

Ground loops occur when the two ends of a cable are at different ground potential. This potential difference allows noise and hum to be carried on the ground connections and fed into the cable, and into the audio to which you are listening.

The ETS PA809 solves this common audio problem of extraneous noise. Installing the PA809 Analog Audio Isolator between the source and the receiver eliminates hum, vastly improving the listening experience.

The PA809 is conveniently equipped with RCA "pin-plug"- style female jacks at both input and output sides. Installing the PA809 is a ten-second operation-simply plug it in. No battery and no further maintenance are ever needed.

APPLICATIONS:
Home Theater Systems
Meeting Halls
Churches
Conference Rooms
Classrooms
Auditoriums
Broadway Theaters
Seasonal Venues

  • Features:

    • Eliminates ground loops
    • Passive Device (needs no power)
    • Rugged lightweight thermoplastic case
    • Made in USA
    • 100% tested
    • Small footprint

  • Specifications:

    • Bandwidth: 10 Hz to 20 kHz
    • Connectors: RCA jack to RCA jack
    • Impedance: 600 ohm input
    • Isolation: 500V
    • Signal level: 1.0V (nominal)
    • Dimensions: 70mm x 40mm x 26mm
    • Case; Thermplastic resin
    • Net Weight: 0.03 kg
