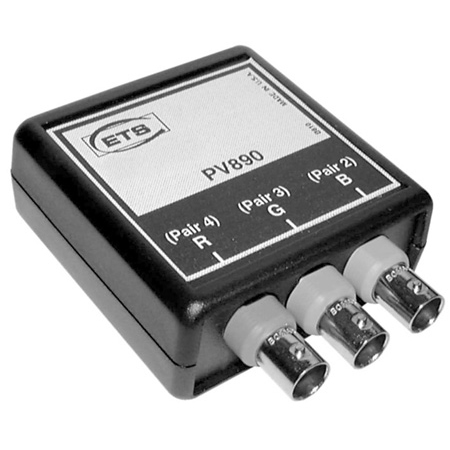

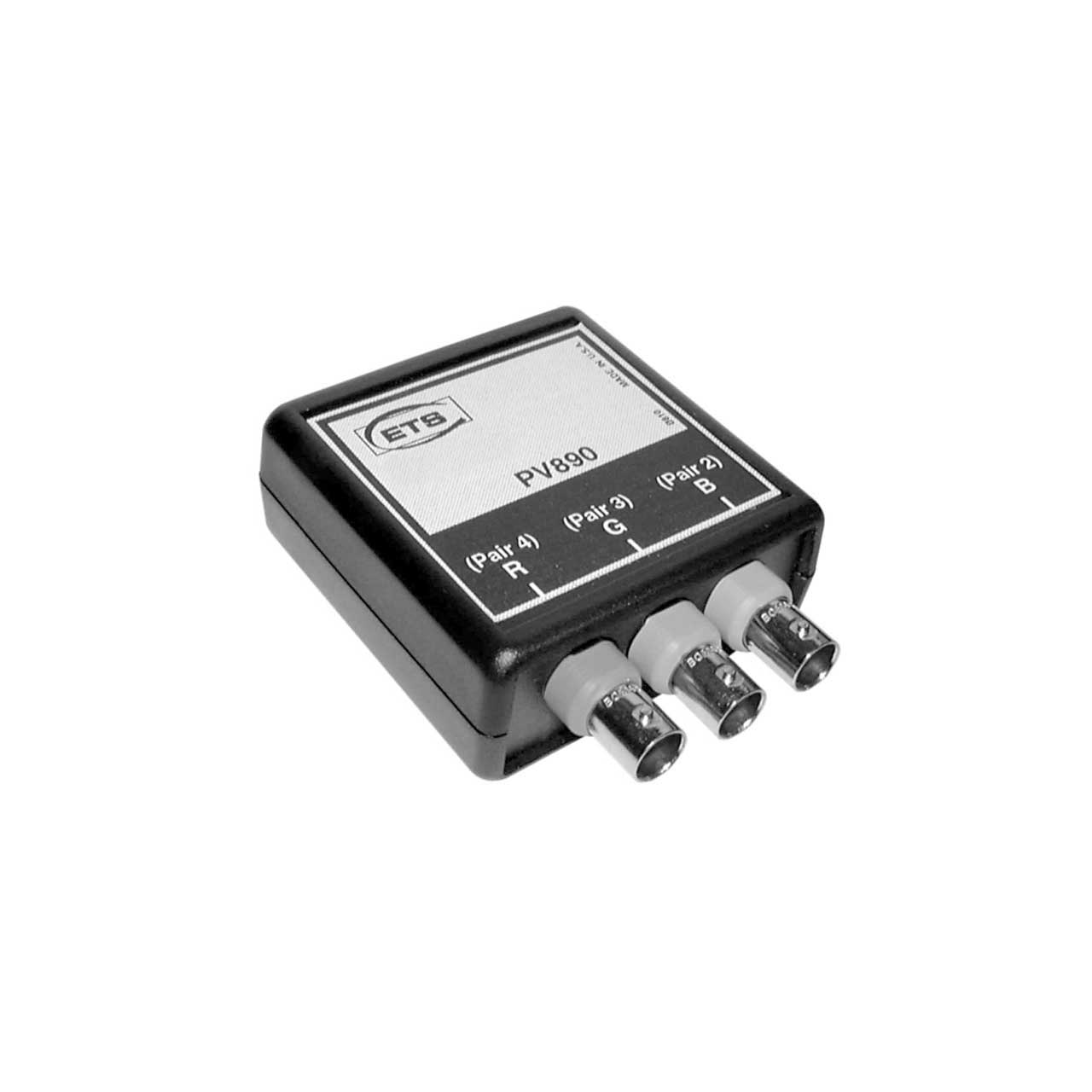

RGB Video Balun 3 FBNC to RJ45 Balun

ITEM #: ETS-PV890 MFG #: PV890

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$103.16

Our Price:

$88.36

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PV890 - Overview

The ETS PV890 Series of RGB Video Baluns provides you with the ability to send RGB video over standard telecom wiring (UTP), of Category 3 or better quality. The PV890 supports RGB with SOG (sync on green), using 3 pairs of UTP. The PV891 allows RGB with separate sync to be run using 4 pairs. Both baluns support monitors with resolutions up to 1024 x 768 pixels, at refresh rates of up to 75 Hz. The RGB Baluns allow the user or installer to take advantage of pre-installed telecom wiring, or to realize the cost advantage of wiring with UTP instead of coax. PV890 baluns optionally ship with 3 color-coded coax jumper cables to connect to your source and receiving equipment, order part number ETS-RGBJ3 for each set.

  • Specifications:

    • Bandwidth Flat to 60 MHz, each channel
    • Connectors 3 or 4 BNC female to RJ45
    • Distance 100 meters (TIA 568) minimum
    • Emissions Meets FCC Class A
    • Common Mode 50 dB
    • Rejection Media Category 3 or better Category 5 or better recommended
    • Dimensions : 66mm x 66mm x 28mm Net Weight 0.02 kg (0.1 kg PV845)
    • SOG and separate sync models available - call to inquire
    • Send RGB over UTP at distances of up to 600 meters (150 meters nominal using CAT3 cable)
    • Supports up to 1024 x 768 resolution at 75 Hz refresh
    • Meets FCC Class A
    • Superior signal balancing, lower crosstalk, less ingress and ghosting
    • May utilize existing telecom wiring
    • Sturdy compact plastic case
    • Made in USA. 100% QA.

  • Applications

    :

    • Remote Display Applications
    • Video Projection Systems
    • Conference Rooms
    • Schools
