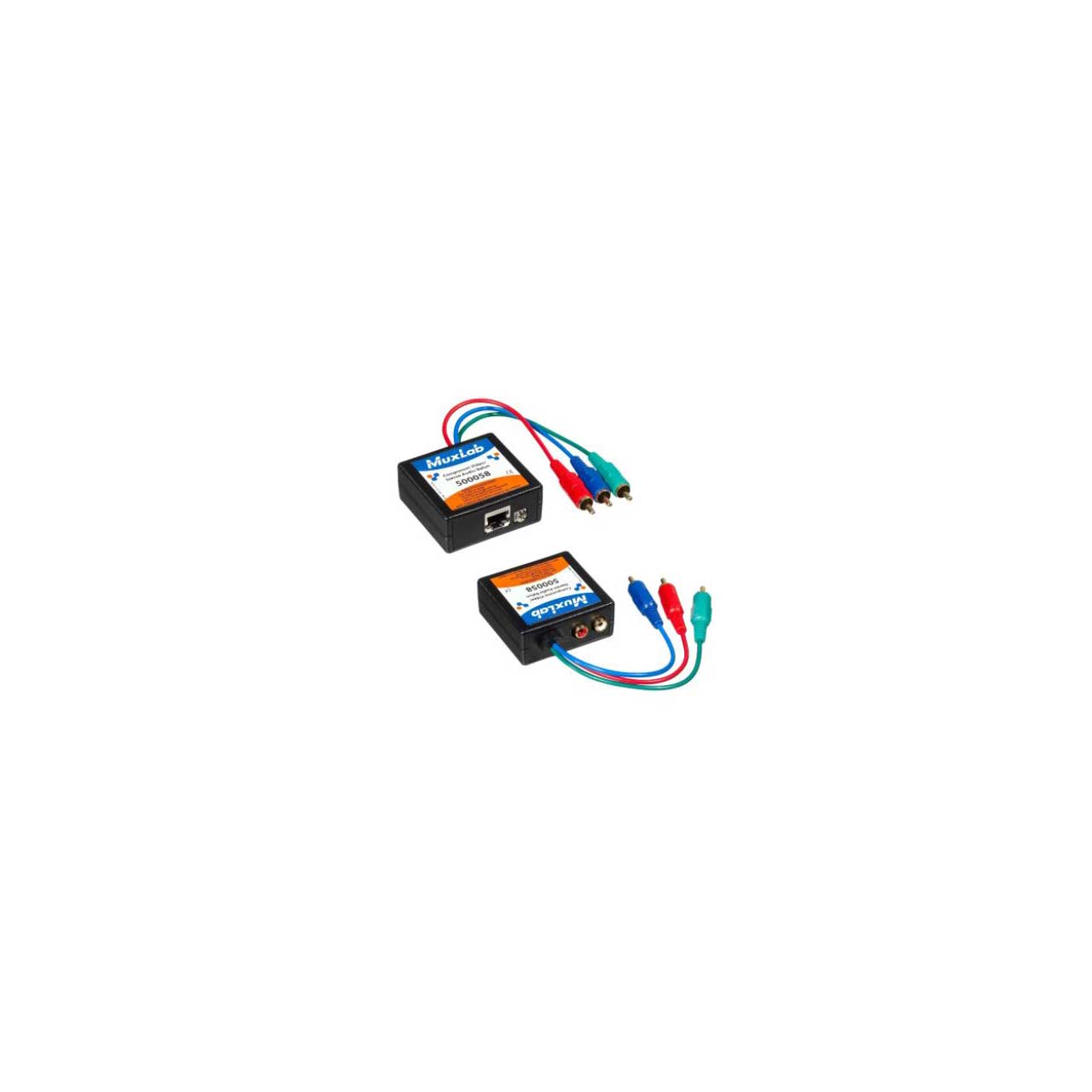

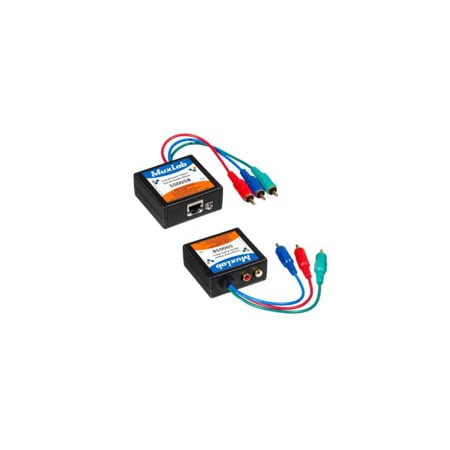

MuxLab 500058-2PK Component Video/Stereo Audio Balun - 2 Pack

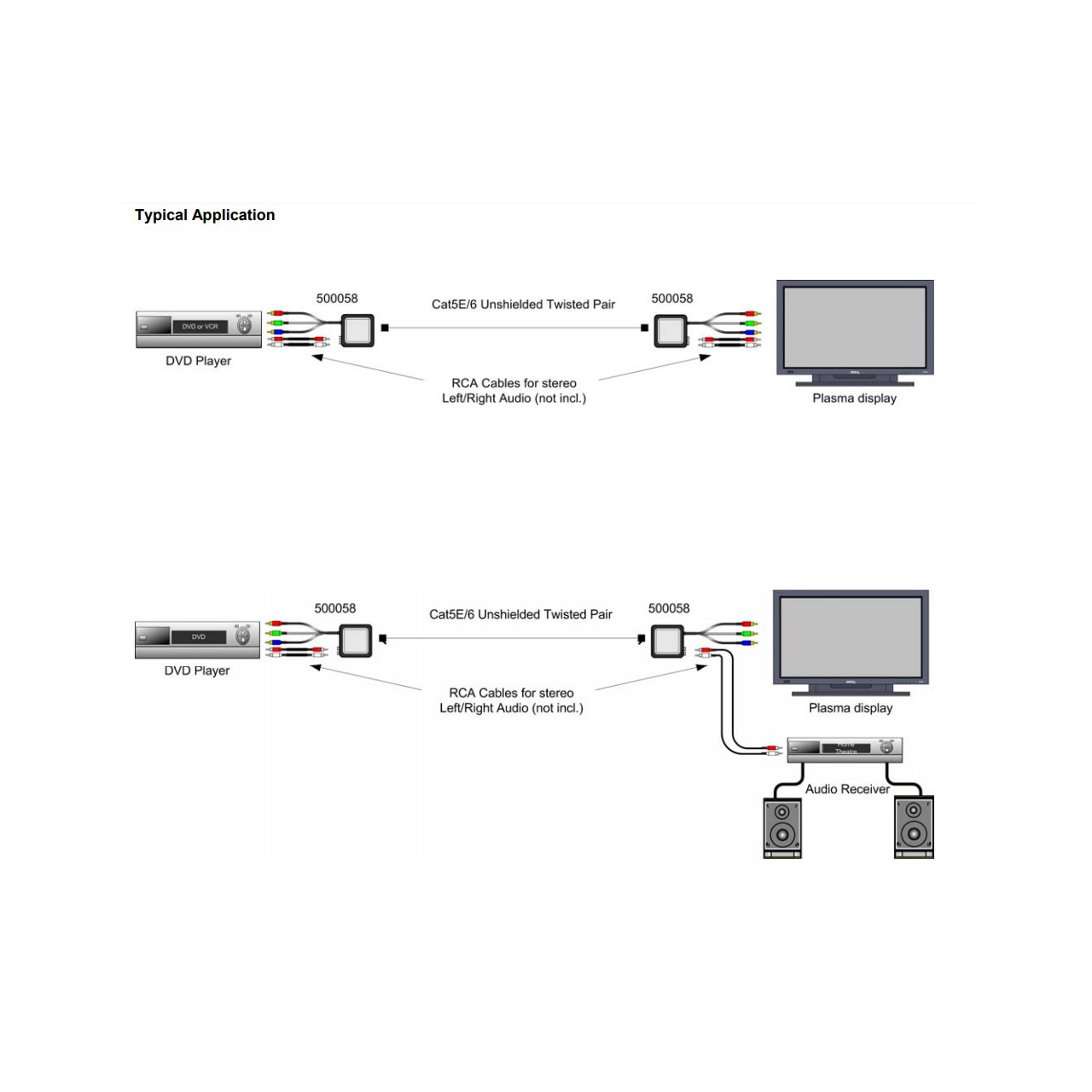

500058-2PK - Overview

• Features:

  • Supports 480i/p up to 1,000 ft (305m) via one Cat5/6*
  • Supports 720p/1080i/p up to 500 ft (152m) via Cat5/6*
  • Supports true Hi-Fi left/right analog stereo audio
  • Modular shielded RJ45 connector
  • Ground Loop Coupling (GLC) - US Patent pending
  • Includes 2 x model 500058


• Specifications:

  • Environment: Component Video (YPbPr), RGB Video (sync on green). 480i/p, 720p, 1080i/p. Stereo line level analog audio
  • Transmission: Transparent to the user
  • Bandwidth:
    - Video: DC-60 MHz, 3 dB roll off
    - Analog Audio: 20 Hz to 20 KHz
  • Maximum Input: 1.1Vp-p
  • Insertion Loss per Pair (Y channel): .1 dB for 0.1 MHz. Gradually increasing to 2.5 dB over the frequency range
  • Insertion Loss per Pair (audio): Less than 2 dB per pair over the frequency range
  • THD: Less than 0.007% @ 1KHz
  • Return Loss (Y channel): Greater than 15 dB over the frequency range
  • Common Mode Rejection (Y channel): -55 dB @ 0.1 MHz, Gradually increasing to -20 dB @ 60 MHz
  • Ground Loop Coupling (GLC): Proprietary technique helps eliminate hum bars
  • Max. Distance - Cat 5E/6 UTP/STP:
    - 480i/p: 1,000 ft (305m)
    - 720p and 1080i/p: 500 ft (152m)
    - Analog Stereo Audio: 3,250 ft (990m)
  • Cable - Cat5E/6 UTP/STP:
    - 24 gauge or lower solid copper twisted pair wire
    - Impedance: 100 ohms at 1 MHz.
    - Maximum capacitance: 20 pf/foot
    - Attenuation: 6.6 dB/1000 ft at 1 MHz
  • Cable - Coax:
    - Impedance: 75 ohms at 1 MHz
  • Connectors:
    - 3x RCA-M connectors: Green (Y), Blue (Pb), Red (Pr), 6" leads
    - 2x RCA-F connectors for left/right stereo audio
    - RJ45S for twisted pair
  • Temperature:
    - Operating: 32°F - 131°F (0°C - 55°C)
    - Storage: -4°F - 185°F (-20°C - 85°C)
    - Humidity: up to 95%
  • Enclosure: ABS fire retardant plastic
  • Dimensions: 2.40" x 2.25" x 1.0" (6.1cm x 5.7cm x 2.54cm) plus 6" (15.24cm) cable lead for video
  • Weight: 4.4oz (122g)


• Warranty:

  • Lifetime Warramty


• GTIN:

  0627699900581
