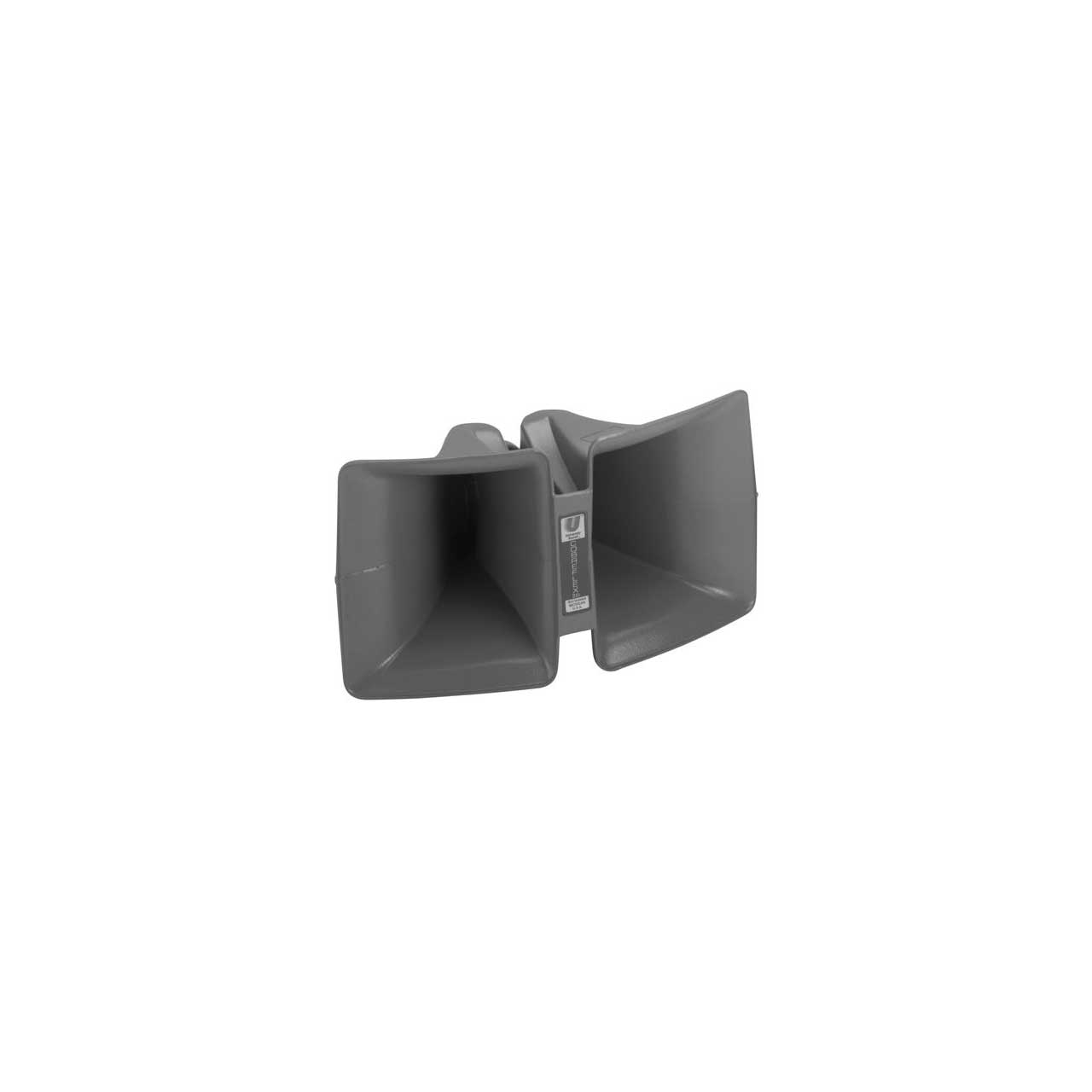

Electro-Voice CobreFlex IIB Indoor/Outdoor Horn

ITEM #: EV-COBIIB MFG #: COBREFLEX IIB

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$226.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


COBREFLEX IIB - Overview

The Cobreflex IIB is an exponentially flared, reflex design for use in public address, paging, and voice warning systems. This reflex construction results in both compactness and high efficiency when combined with appropriate compression drivers. The patented (patent # 2,751,996) folded design features two separate air columns in a single assembly that virtually eliminates high-frequency phase cancellation present in re-entrant designs. The 80-degree horizontal by 60-degree vertical dispersion pattern is beneficial in many applications requiring a wide coverage pattern. Furthermore, excellent loading is maintained to a low-frequency cutoff of 250 Hz. The Cobreflex IIB is constructed from a high-impact acrylonitrile butadiene styrene (ABS) with an ultraviolet inhibiting grey paint finish. A serrated positive-lock "U" mounting bracket is provided.

  • Features:

    • A folded sectoral horn for all driver models in the 1824S, 1828, 1829, ID30, ID60 series and 7110XC
    • Patented design eliminates high frequency phase cancellation and improves intelligibility
    • 80in x 60in dispersion with weather-resistant gray finish
    • Includes an integral mounting bracket
    • High efficiency and low cutoff frequency in a compact package
    • 9.3"H x 18.5"W x 10.3"D
    • 7 Lbs. each

  • Specifications:

    • Horizontal Beamwidth: 80° @ 2 kHz.
    • Vertical Beamwidth: 60° @ 2 kHz.
    • Directivity Factor RŠ (Q): 9.1 @ 2 kHz.
    • Usable Low-Frequency Limit: 250 Hz.
    • Construction: High impact acrylonitrile butadiene styrene (ABS) with
    • ultraviolet light inhibiting grey paint finish. Positive-lock painted steel U-bracket.
    • Mechanical Construction of Driver: Threaded metal throat insert to accommodate a screw-in driver with a throat opening of 0.7 inch to 1.0 inch diameter and a standard 1 3/8"-18 thread.
    • Dimensions:
    • Height: .......................................................... 23.5 cm (9.3 in.)
    • Width: ......................................................... 47.0 cm (18.5 in.)
    • Depth: ......................................................... 26.0 cm (10.3 in.)
    • Net Weight: ...................................................2.3 kg (5.1 lb)
    • Shipping Weight: ...........................................3.0 kg (6.7 lb)

  • GTIN:

    0800549430302
