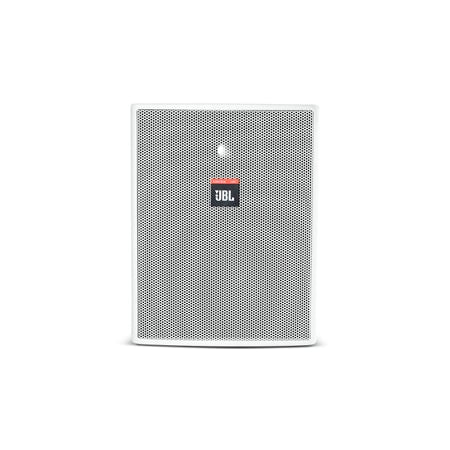

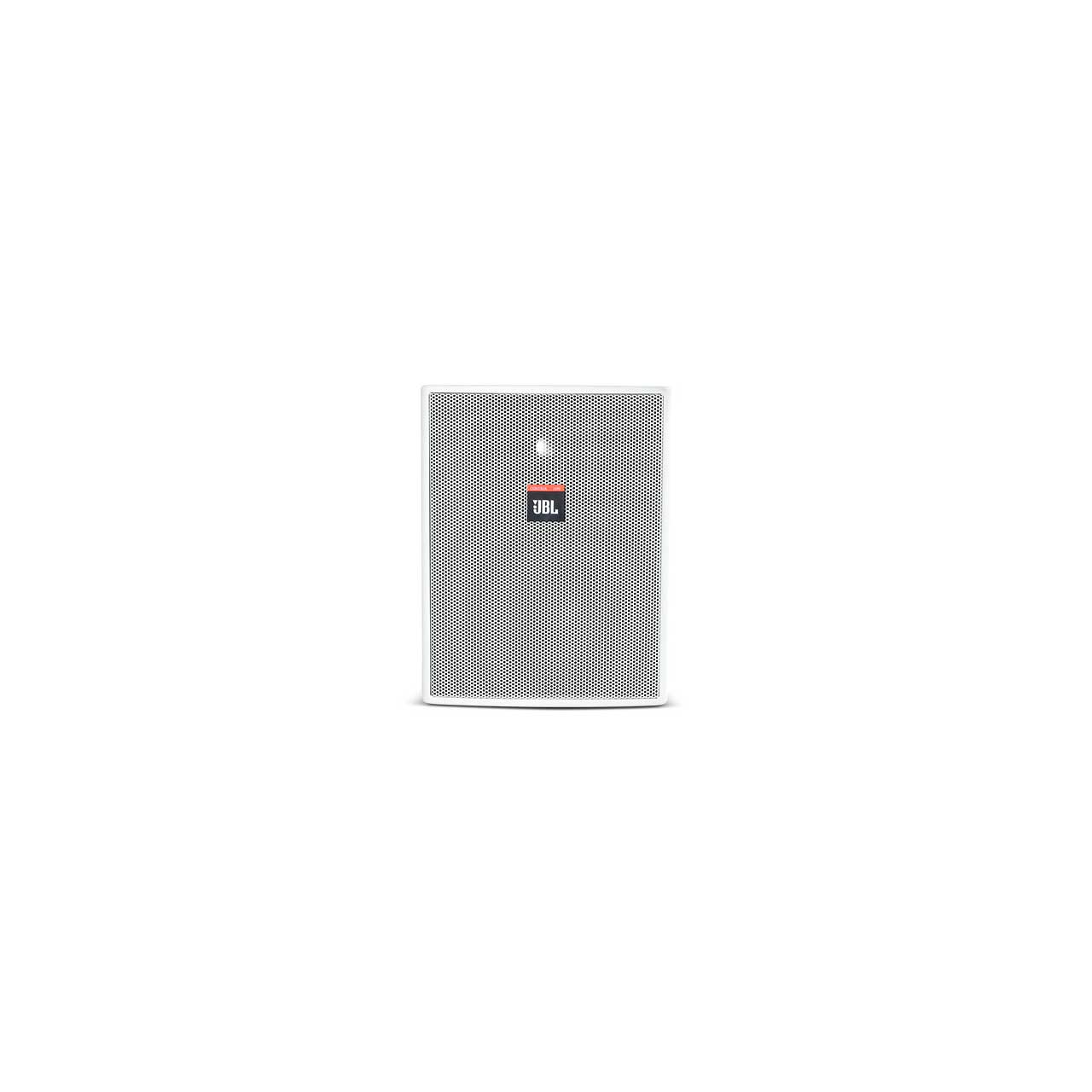

JBL Control 25 Indoor/Outdoor Background/Foreground Loudspeaker - White (PAIR)

CONTROL 25AV-WH - Overview

• Features:

  • Video shielded for use near video monitors.
  • Extremely smooth frequency response.
  • Stainless steel grill for harsh environments.
  • 60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
  • SonicGuardT overload protection.
  • 130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter.
  • Includes InvisiBallr mounting hardware and sealed input panel cover.
  • Screw-down input terminals.
  • 100° x 100° high frequency horn.


• Specifications:

  • Frequency Range 70 Hz - 23 kHz (-10 dB)
  • Power Capacity 200 W Continuous Program Power; 100 W Continuous Pink Noise
  • Transformer Taps 70V: 60 W, 30 W, 15 W, 7.5 W
  • 100V: 60 W, 30 W, 15 W
  • Nominal Sensitivity 87 dB SPL, 1 W @ 1 m (3.3 ft)
  • Midrange (±1.5 dB, typical) 130 Hz - 14 kHz
  • Nominal Coverage 100° x 100°
  • Maximum SPL @ 1m 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech
  • Directivity Factor (Q) 4.9 dB, averaged 500 Hz to 4 kHz
  • Directivity Index (DI) 6.9 dB, averaged 500 Hz to 4 kHz
  • Nominal Impedance 8 ohms
  • Minimum Impedance 6.7 ohms at 230 Hz
  • Crossover Network Second Order Low Pass, Second Order High Pass, Complex Optimization for Maximally Flat Response
  • Low Frequency 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
  • High-Frequency 20 mm (.75 in) titanium coated PEI
  • Enclosure Material High Impact polystyrene
  • Grille Painted stainless steel, black or white to match cabinet, paintable
  • Overload Protection Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition
  • Environmental Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating
  • Terminations Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG)
  • Safety Agency Rating Transformer is listed per UL1876
  • Colors Black or white (-WH)
  • Rotation Against wall on InvisiBall Base: 37° vertical 44° horizontal On bracket: 44°
  • all directions
  • Dimensions (H x W x D) 236 x 186 x 159 mm
  • (9.3 x 7.4 x 6.3 in)
  • Net Weight (ea) 4.0 kg (9 lb)
  • Shipping Weight (ea) 9.0 kg (20 lb) per pair
  • Included Accessories 1 Pr MTC-PC input panel cover, InvisiBall mounting base, 6 mm x 100 mm InvisiBall hex wrench
  • Optional Accessories MTC-25V: For vertical columnar orientation of up to 3 loudspeakers extension of the woofer surround that MTC-25/23H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array. MTC-28/25CM: Ceiling-mount adapter. MThe Control 25AV can be used full range or low frequencies can be further


• GTIN:

  0050036903318
