Electro-Voice ELX200-12 12 Inch - 2 Way Passive 1200 Watt Speaker - Each - Dual NL4 speakON Connectors

ITEM #: EV-ELX200-12 MFG #: ELX200-12

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$955.00

Our Price:

$549.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ELX200-12 - Overview

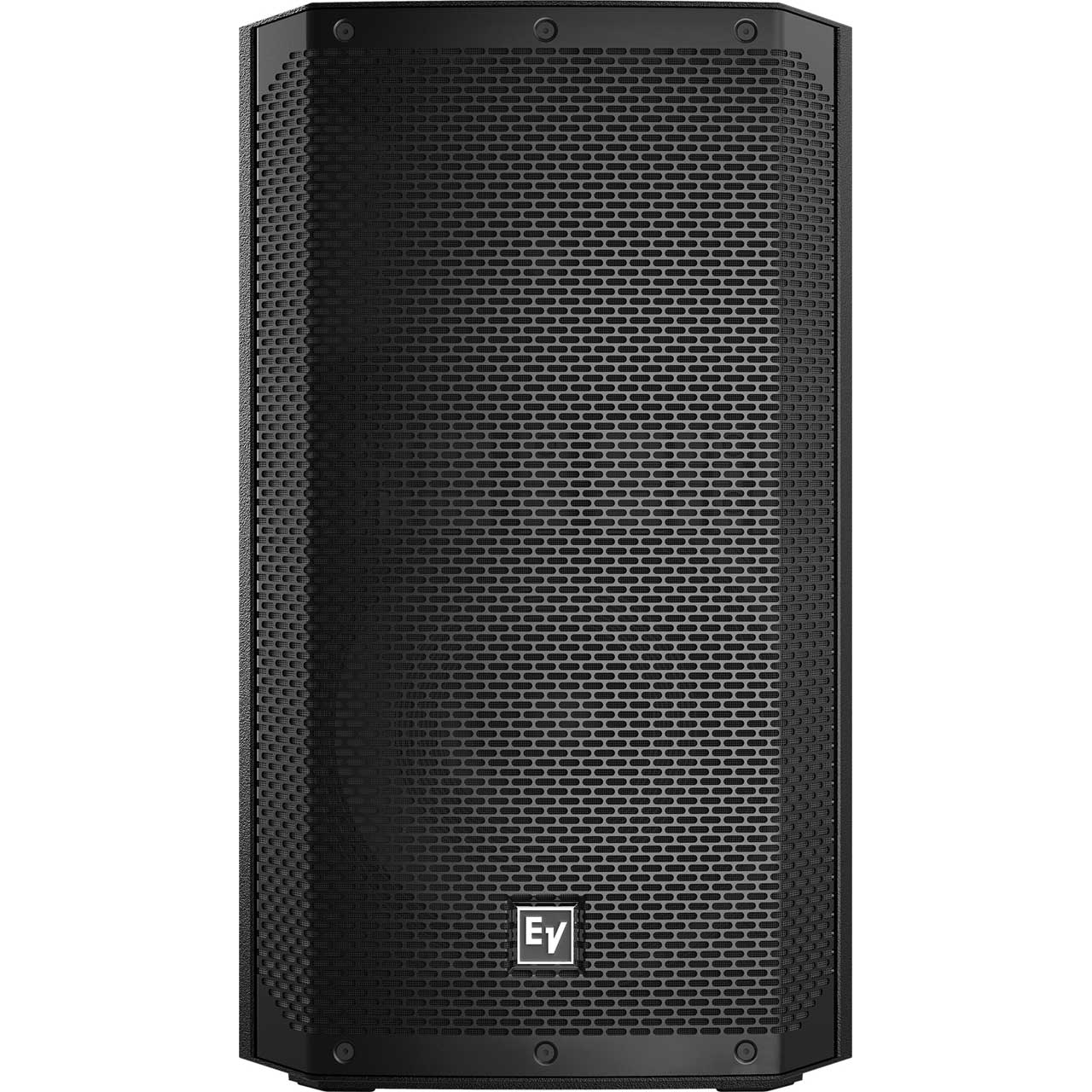

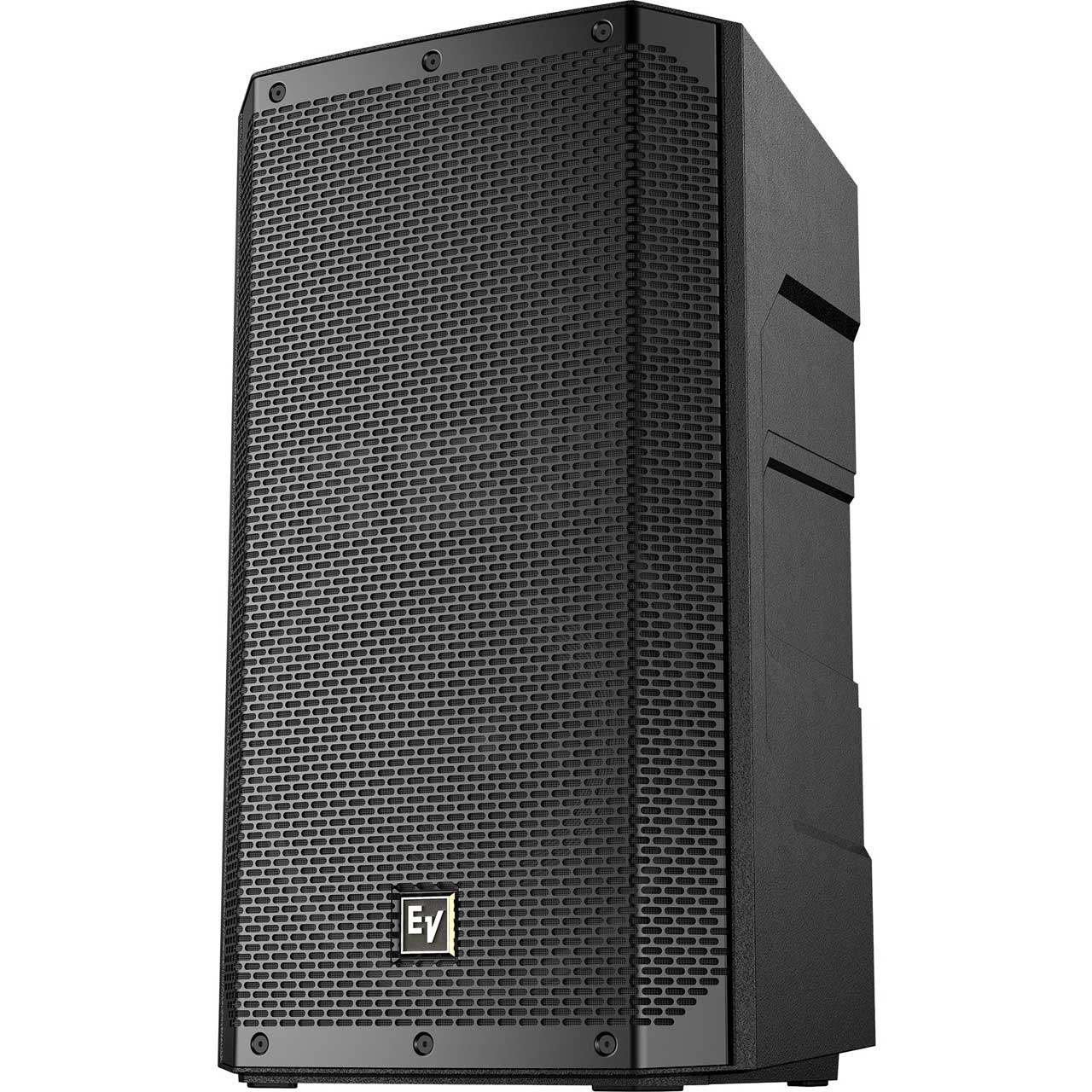

With the EV ELX200-12, you get a modern two-way speaker that is the passive counterpart to the EV ELX200-12P. The speaker can be seen as an all-rounder for DJs and solo entertainers, musicians, and bands as well as presenters and entertainers, and it also represents a solid investment for rental companies. Equipped with a 12" woofer, it is the mid-range model in the series and, with up to 1200 watts of peak power, slanted monitor, and tripod flange, it is ready for a variety of scenarios, from floor wedge to front-of-house PA.

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components--tested to levels far exceeding the industry norm--make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors' products in its category.

Every aspect of Electro-Voice ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system's highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.

  • Features:

    • 1200 W (peak), 128 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
    • 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response.
    • High-output EVS-12M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
    • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.

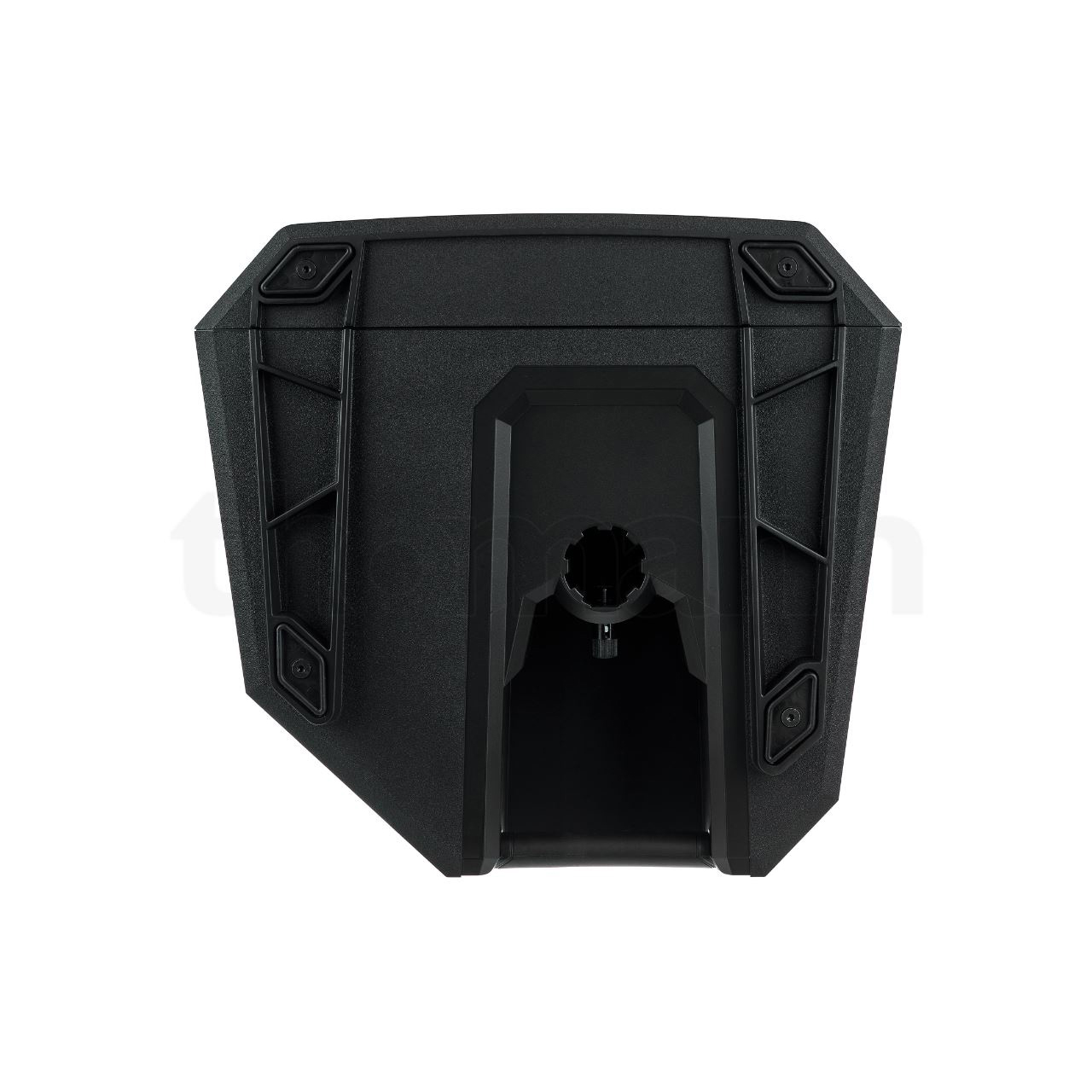

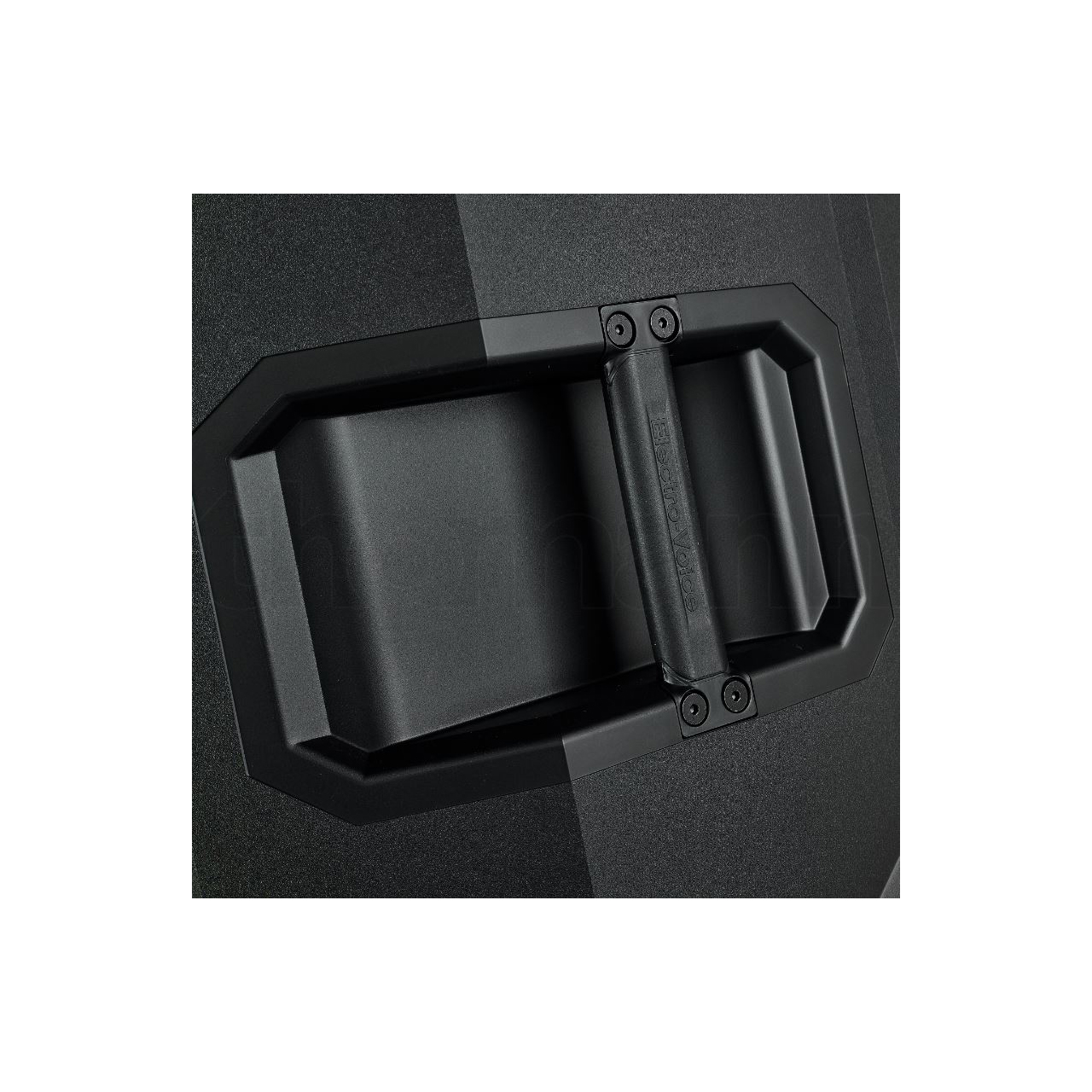

    • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.

  • Specifications:

    • Shipping Weight: 37.7lbs (17.1kg)
    • Weight Net: 33.51lbs (15.2kg)
    • Depth: 13.54" (344mm)
    • Width: 14.29" (363mm)
    • Height: 24.76" (629mm)
    • Suspension: (3) M10 suspension points
    • Grille: 18 AWG steel with powdercoat
    • Enclosure Material: Polypropylene composite

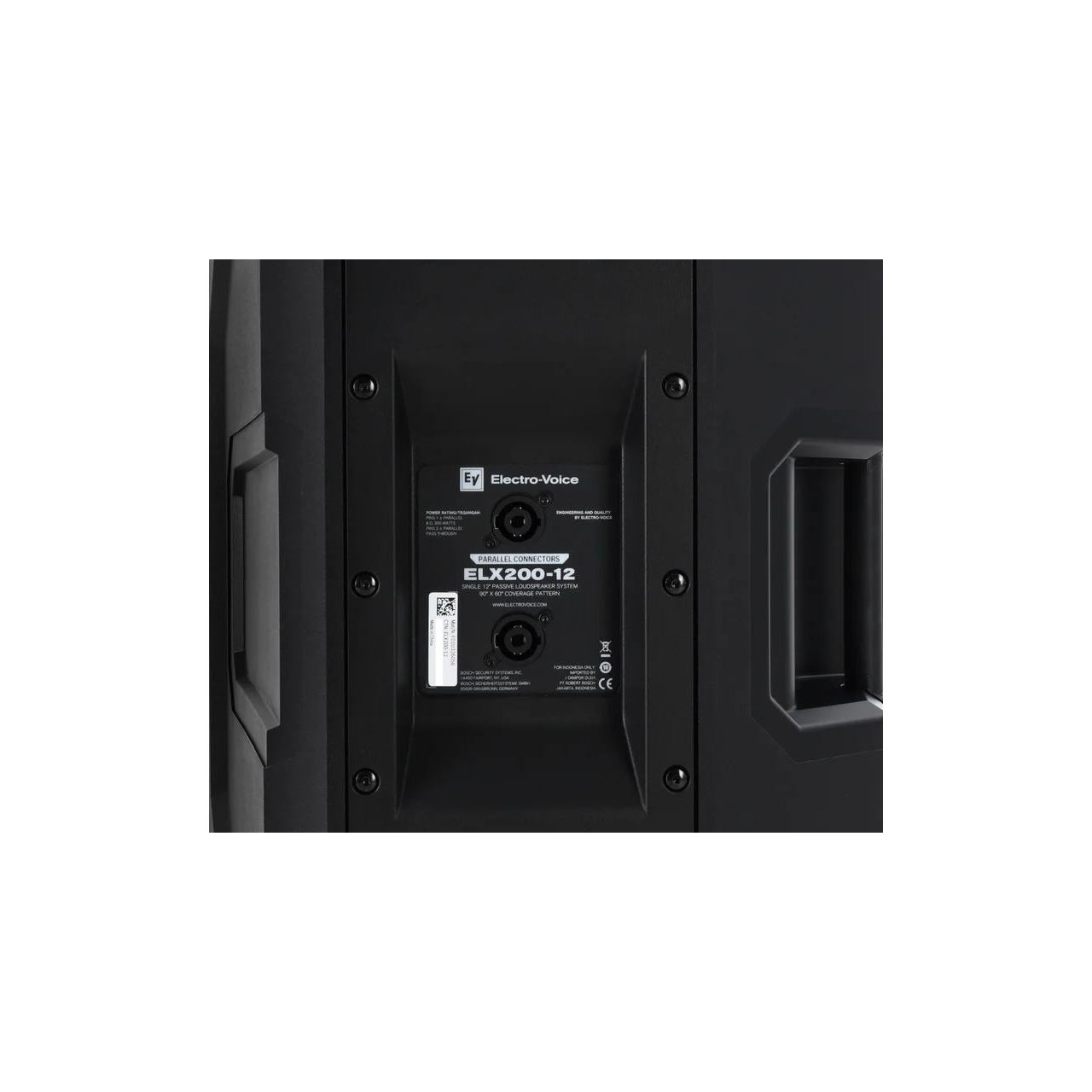

    • Connector Type: Dual NL4
    • Minimum Impedance: 7.5Ω
    • Crossover Frequency: 1.7 kHz
    • HF Transducer: DH-1C 1-inch titanium compression driver
    • LF Transducer: EVS-12M 300 (12 in)
    • Coverage (Nominal -6 dB) V: 60Ω
    • Coverage (Nominal -6 dB) H: 90Ω
    • Max. SPL/1m (calc): 128dB
    • Recommended High-Pass Frequency: 50 Hz
    • Frequency Response (-3 dB): 77 Hz - 17 kHz
    • Frequency Range (-10 dB): 51 Hz - 20 kHz
    • Power Handling (Continuous / Peak): 300W/1200W
    • Family: ELX200
    • Speaker Type: Full-Range
    • Available Color: Black or White
    • Nominal Impedance:
    • Axial Sensitivity (SPL, 1 W @ 1 m): 93dB
    • Power Rating: 1200W
    • Woofer Size: 12inch

  • Item Includes:

    • 1x Electro-Voice ELX200-12 12 Inch - 2 Way Passive 1200 Watt Speaker - Each

  • GTIN:

    0800549826853
