Electro-Voice EVF-1181S 18 Inch Front Loaded 400 Watt Subwoofer with 360 Degree Coverage - Black

ITEM #: EV-EVF1181SBK MFG #: EVF-1181S-BLK

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,385.00

Our Price:

$2,003.50

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.


EVF-1181S-BLK - Overview

The Electro-Voice EVF-1181S is a high power, front-loaded bass element that can be used in a variety of applications where high quality sound reinforcement is required in a lightweight package. The EVF-1181S utilizes the EVS18SB 18" woofer used FEA optimization for motor, suspension, and electrical design for very low distortion and maximum intelligibility at high SPL levels. The EVF-1181S features make it a professional loudspeaker for any fixed install application. The trapezoidal enclosure is constructed out of weather resistant birch, and coated with EVCoatTM for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series, with an assortment of Full-Range, Low Frequency and Subwoofer loudspeakers, it gives you the tools to maximize flexibility of system design, no matter what the application and budget. The innovativeinput panel provides choice of phoenix style connector (included in all standard models) or the ability to add; a dual NL4 type connector cover plate or gland nut cover plate (for weatherizing applications). An available 70.7/100 Volt transformer kit simply mounts to the input panel for use in distributed systems. All these features give you the flexibility to do a large range of venues with fewer items in inventory and quickly support your customer's requirements.

  • Features:

    • 18" Low Frequency front loaded bass element.
    • Very linear frequency response from 28Hz to 650Hz
    • 18mm / 13 ply birch plywood with internal reinforced steel rigging hardware top and bottom.
    • optional flying hardware

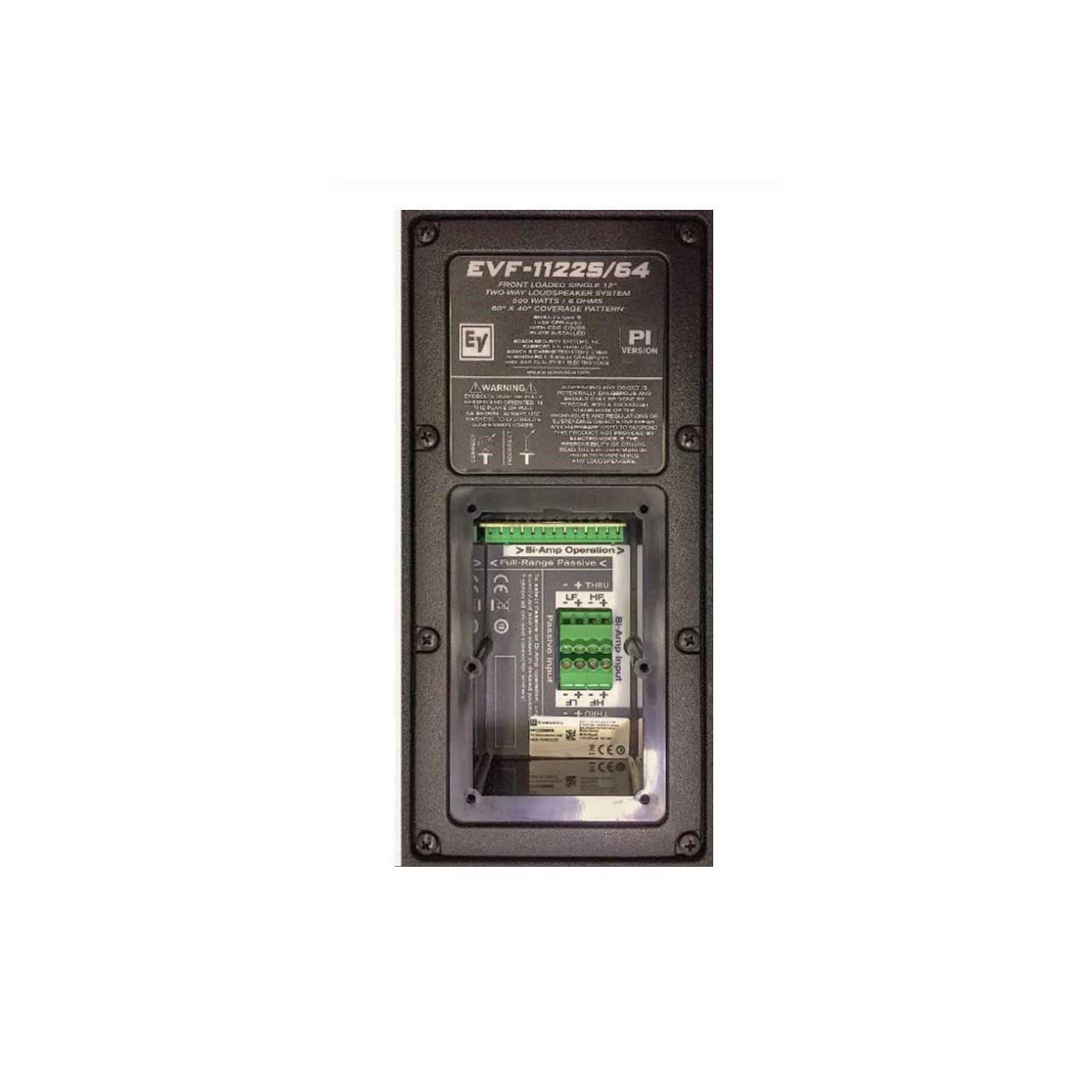

    • Input phoenix panel to handle up to 10AWG connector
    • 22 x 10M threaded suspension points
    • 150W- 100V/70V Line transformer optional
    • ANSI /IEC 60529 - IP44
    • Maximum sustained humidity <80%
    • Salt content of normal air <20%
    • Galvanneal grill with vinyl coated acoustic screen and stainless steel Fasteners
    • Black

  • Specifications:

    • Frequency response (-3dB): 35Hz - 100 Hz
    • Frequency response (-10dB): 28 Hz - 650 Hz
    • Axial Sensitivity (1W/1Mtr): 99 dB
    • Maximum Calc. SPL: 131 dB
    • Power Handling: 400 W Cont / 1600W Peak
    • Nominal impedance: - 8 Ohms
    • Minimum impedance: - 6 Ohms
    • Connectors: Phoenix 10 AWG terminals
    • Dimensions: 30.2 x 26.6 x 28.6 Inches
    • Weight: max. 101 lbs
    • LF Transducer: 18" EVS18SB driver
    • Enclosure Material: 13-ply weather-resistant birch
    • Coverage (Nominal -6 dB): Omnidirectional in normal operating range

  • Item Includes:

    • 1x EVF-1181S Subwoofer
    • 1x EVI-M10K eyebolt kit (4 eyebolts)

  • Warranty:

    • 5 Year Warranty
