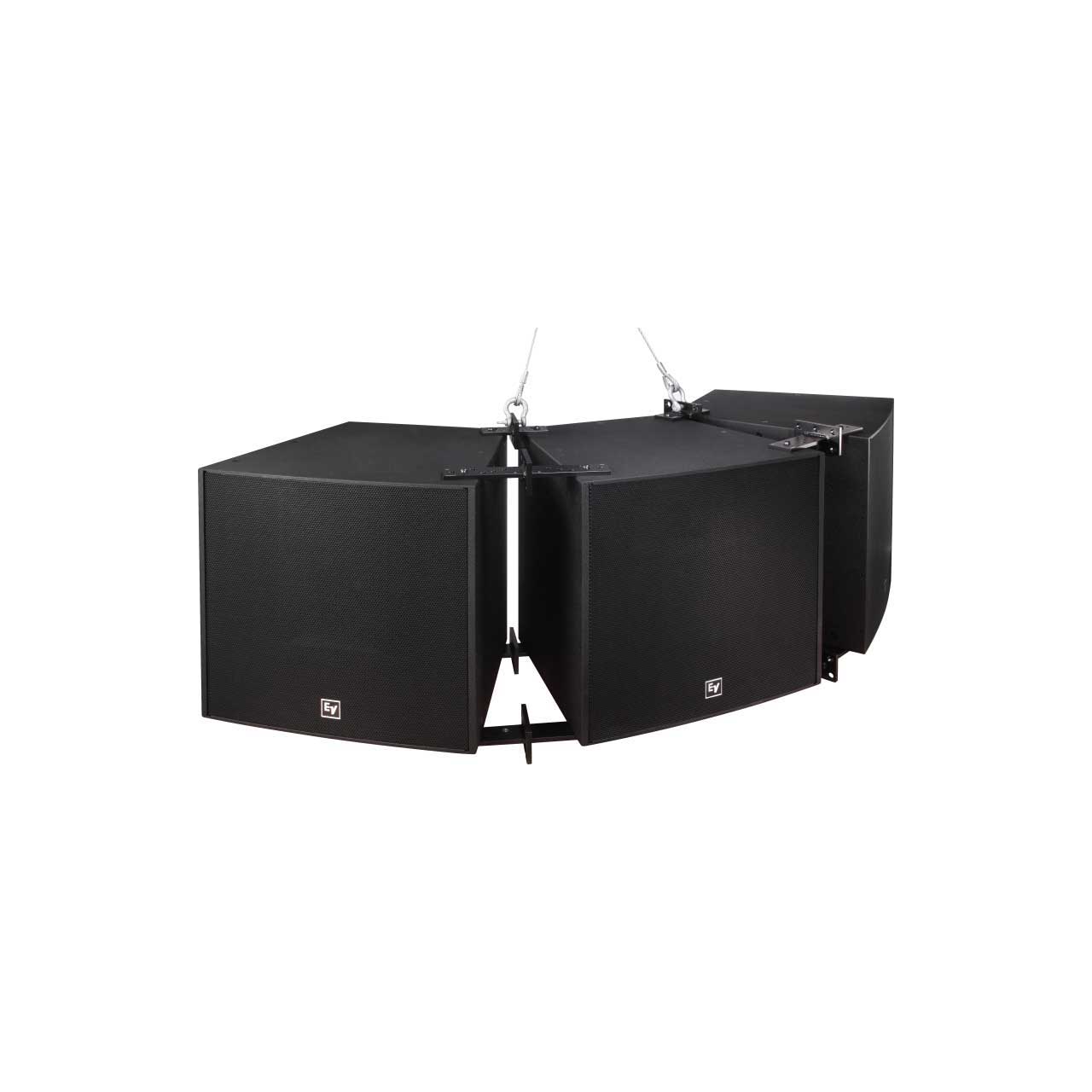

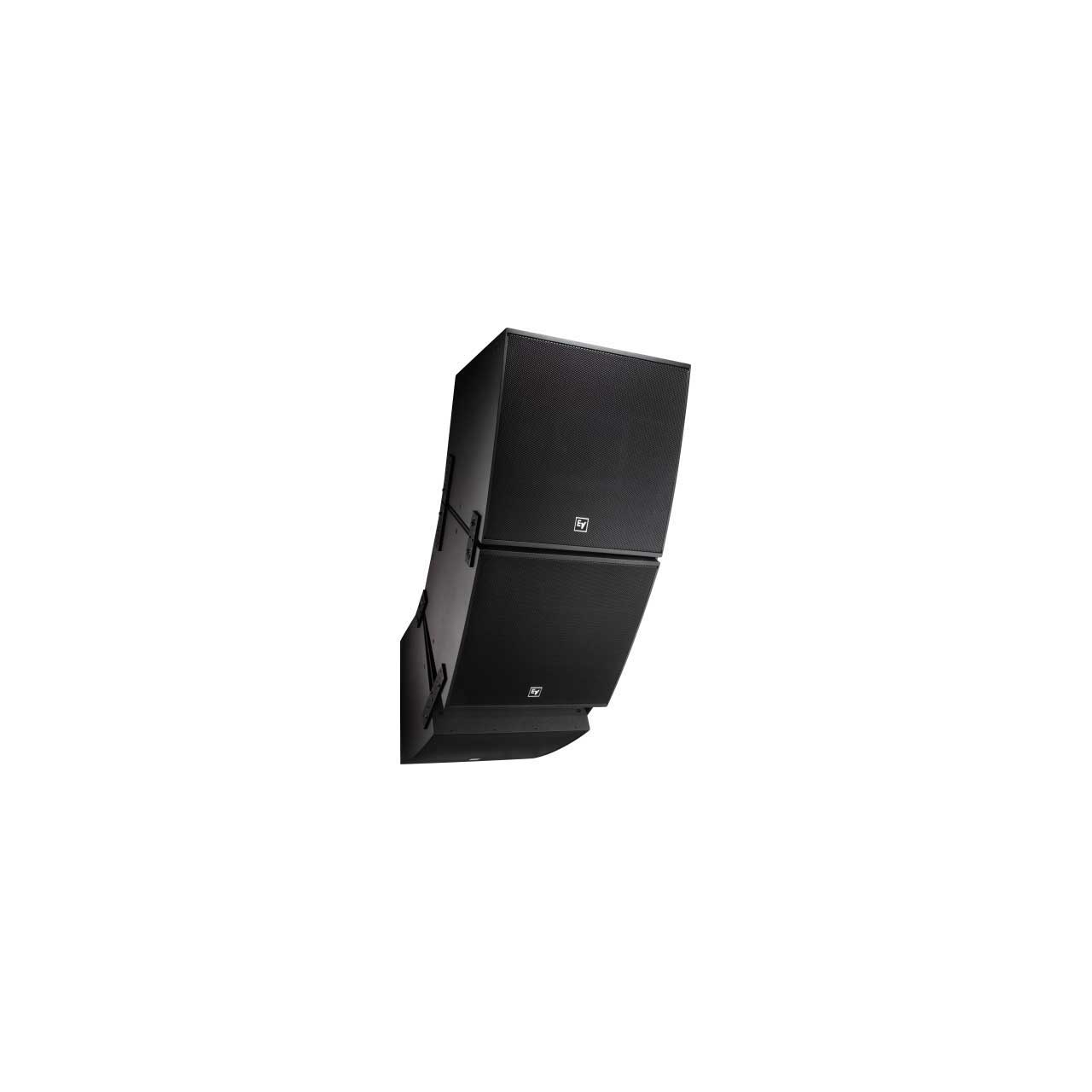

The global success of the FRX and FRX+ series affirms Electro-Voice's approach to coaxial horn-loaded loudspeakers for venues of all sizes. The EVH series condenses all this experience into a new, dedicated solution for installed sound applications. EVH represents a unique design concept: maintain directivity control all the way down to 500 Hz in a mid-sized, 15-inch two-way, coaxial horn-loaded configuration that offers exceptional value, while providing an unusually high degree of rigging flexibility.

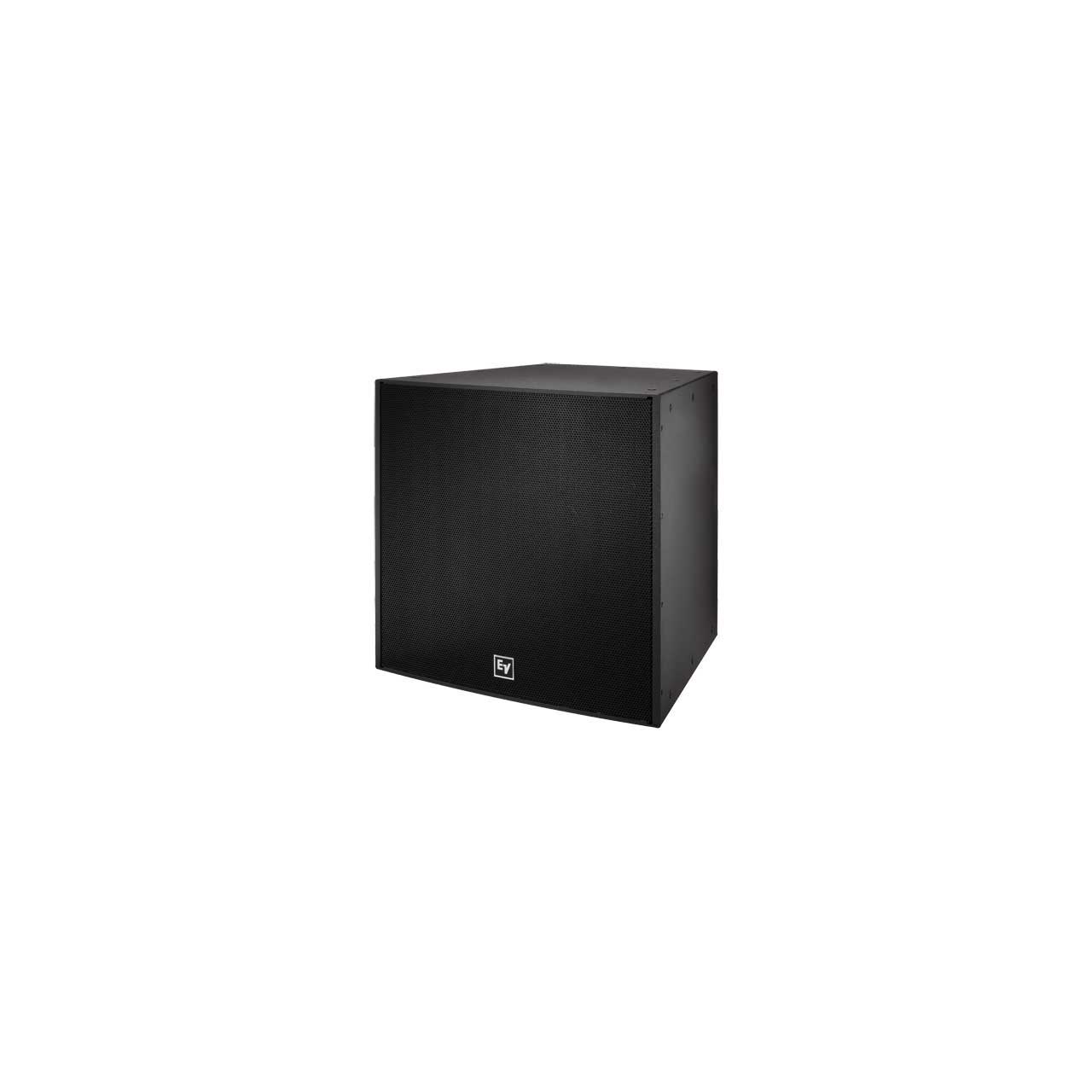

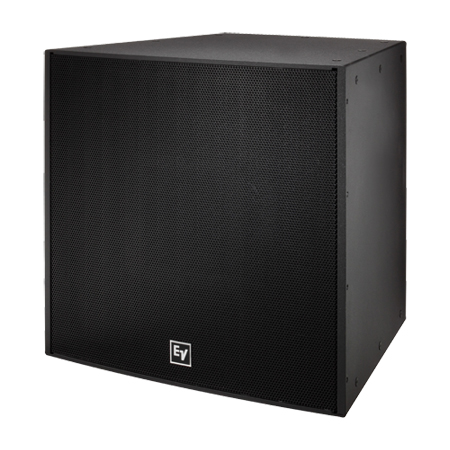

The Electro-Voice EVH-1152D/99-BLK utilizes the DH7N, a high-output 3" titanium compression driver, coupled to a Constant Directivity 90° x 90° waveguide. The SMX2151 15" woofer was developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability. This combination of technologies results in a smooth response to 20 kHz and excellent pattern control down to 500 Hz.
