Belden 1309A Direct Burial Hi-Conductivity Oxygen Free BC Flexible Outdoor Speaker Cable 14AWG - Black - 1000 Ft

ITEM #: BL-1309A-1000BK MFG #: 1309A 0101000

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,348.50

Our Price:

$999.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


1309A 0101000 - Overview

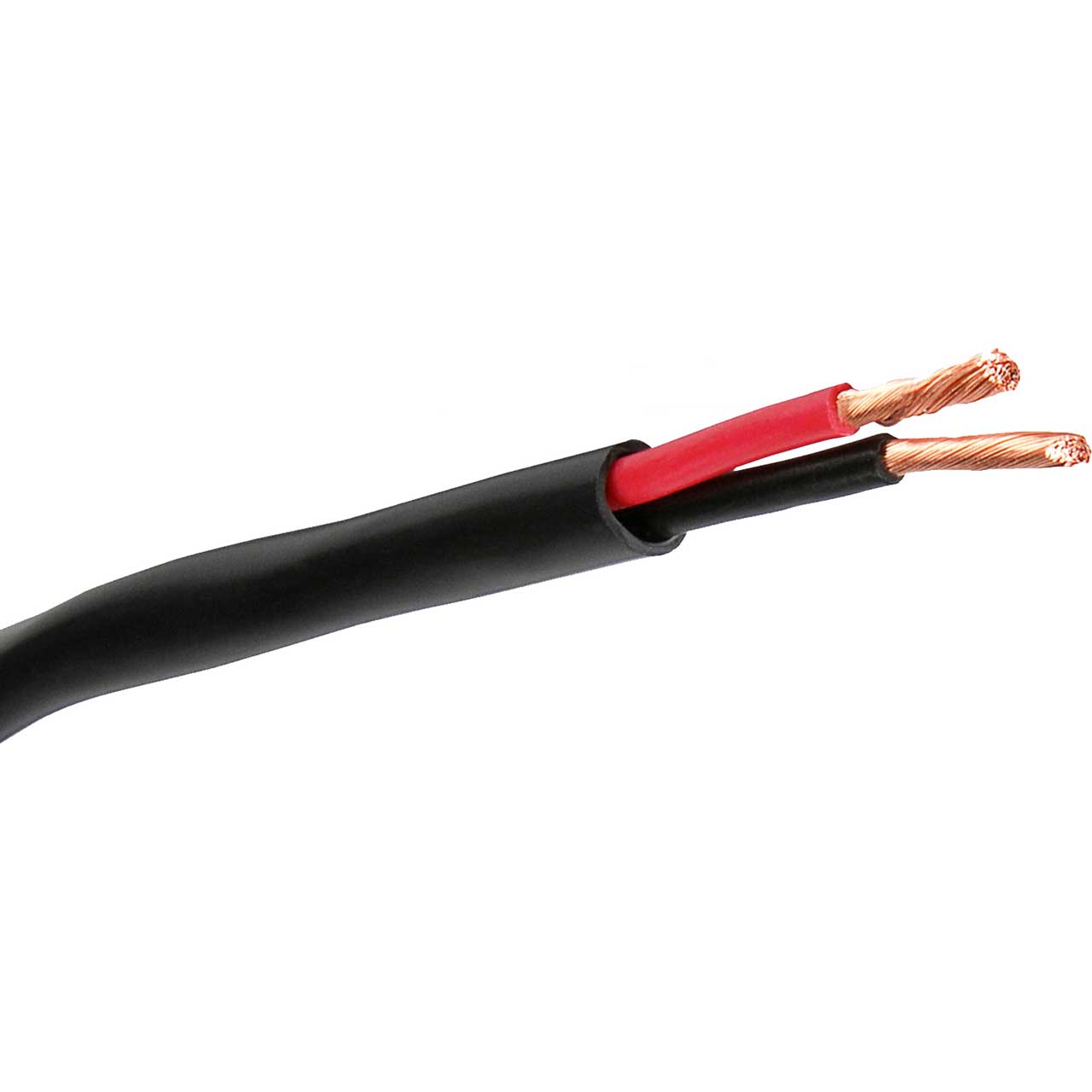

Belden 1309A is a CM rated, Direct Burial, High Conductivity, 2 Conductor, Flexible Speaker Cable. It's built with 14 AWG (105 x 34) Oxygen-Free Bare Copper with PE Insulation in a PVC Jacket. Belden's Direct Burial Speaker Cable is built with with ultra-high purity (99.995%) Copper, sometimes described as "oxygen-free" copper (OFC).

CM rated means it's "Communications Multipurpose" cable, which indicates that the cable is suitable for in-wall installation. Constructed almost as if it has its own, built-in conduit for crush resistance, direct-burial cable is thoroughly tested to pass the same mechanical stresses a typical conduit endures. Featuring a rugged jacket, the cable can survive being underground, stepped on, installed on top of rock or having long-term contact with water—without tearing or negative impact on the performance.

Applications
Speaker Cable
Direct Burial
Indoor/Outdoor Home Theater
In-Wall Speaker
Outdoor Speaker

  • Features:

    • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
    • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
    • Easy Identification: Cable jackets feature footage room and zone markings

  • Specifications:

    • Number of Conductors: 2
    • Total Number of Conductors: 2
    • Conductor AWG: 14
    • Conductor Stranding: 105x34
    • Conductor Material: High Conductivity BC - Bare Copper
    • Insulation Material: PE - Polyethylene
    • Insulation Thickness (in): 0.016
    • Insulation Color Code: Black, Red
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Thickness: 0.027 in
    • Outer Jacket Nom. Diameter: 0.264 in
    • Cable Diameter (Nominal): 0.264 in
    • Outer Shield Material: Unshielded
    • UL Rating: 75°C
    • Operating: -20°C To +75°C
    • Element: Conductor(s)
    • Nom. Conductor DCR: 2.5 Ohm/1000ft
    • Nom. Capacitance Cond-to-Cond: 20.5 pF/ft
    • Max. Current: 13 Amps per conductor @ 25°C
    • Stationary Min: 2.75 in
    • Installation Min: 2.6 in
    • Max. Pull Tension: 104 lbs
    • Plenum (Y/N): N
    • Plenum Number: 6100UE

  • Item Includes:

    • 1309A Direct Burial Speaker Cable 14AWG - Black - 1000 Ft

  • Warranty:

    • Limited 10 Year Warranty

  • GTIN:

    0612825111450
