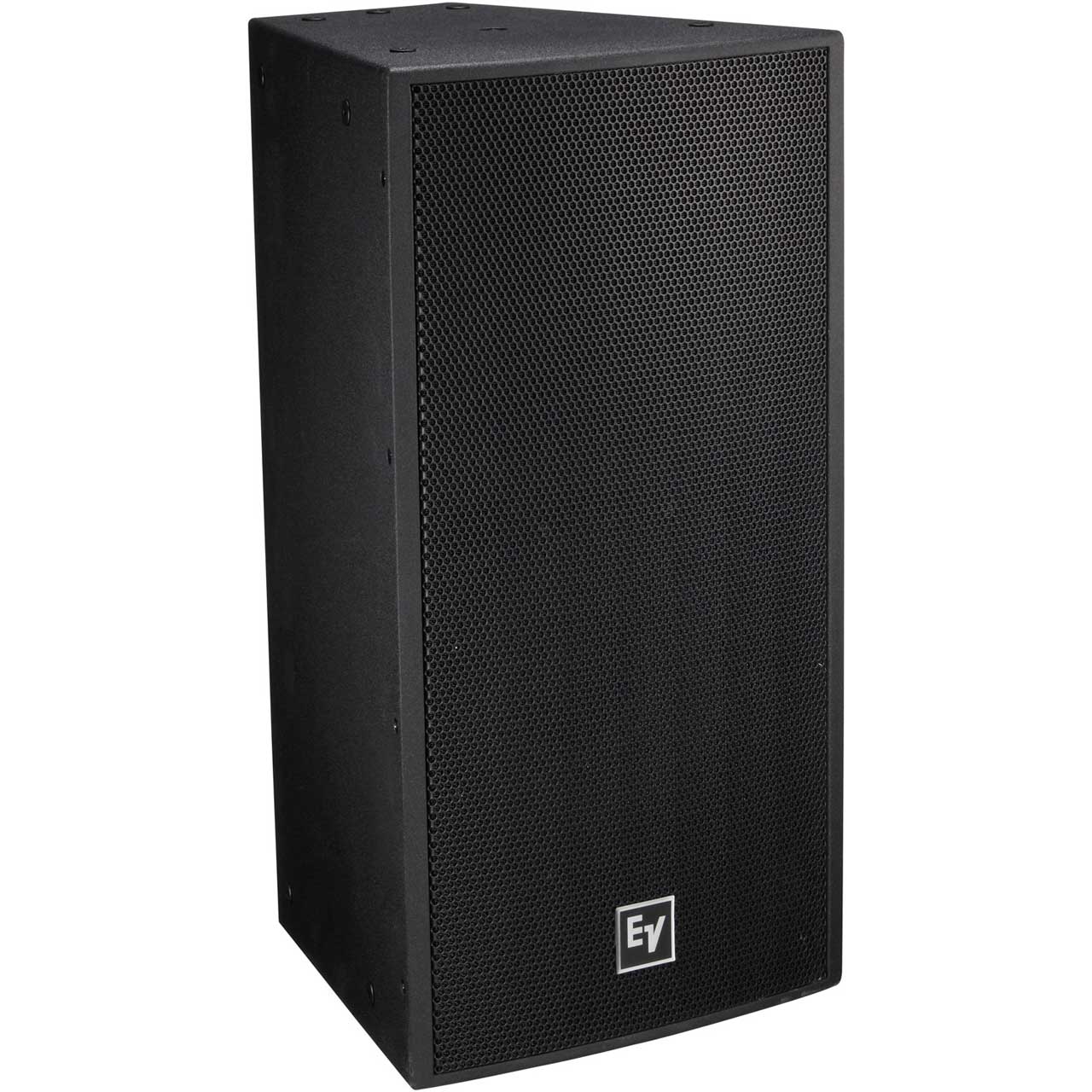

Electro-Voice EVF-1122S 64 Two-Way Full-Range Loudspeaker System

ITEM #: EVF-1122S-64 MFG #: EVF-1122S-64

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$2,537.00

Our Price:

$2,129.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EVF-1122S-64 - Overview

Every EVF trapezoidal enclosure is constructed out of weather-resistant birch, and coated with EVCoat for maximum protection from the elements. EVF`s unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget. EVF`s innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.

  • Features:

    • Designed for House of Worship, Performance & Sports Venues, Stadium Systems, and other applications.
    • ND2B 2" (51 mm) diaphragm, 1.4" (36 mm)-exit pure titanium compression driver
    • SMX2121 12" (305 mm) LF transducer with fully symmetric drive
    • Advanced fourth-order crossover network with HF protection
    • Coverage pattern: 60° x 40° Constant DirectivityT 12" rotatable waveguide
    • 98 dB sensitivity, 131 dB maximum SPL
    • System rating: 500 W continuous, (2000 W peak)
    • Active rating: LF 400 W / HF 40 W continuous (1600 W / 160 W peak)
    • (22) M10 threaded suspension points
    • PI version available with gland nut and stainless steel grille

  • GTIN:

    0800549698665
