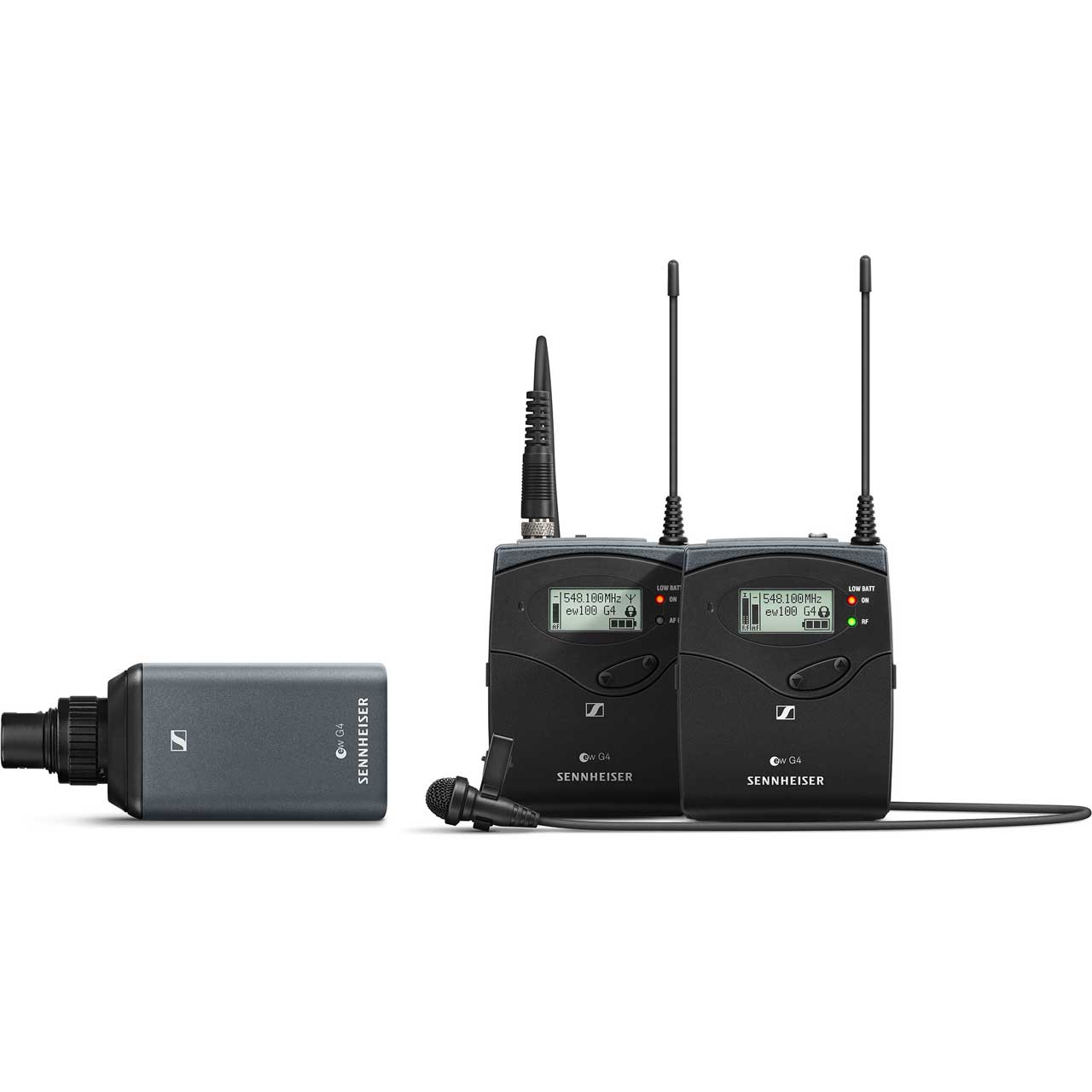

Sennheiser EW 100 ENG G4-A1 Portable Wireless Combo Set (470 - 516 Mhz)

ITEM #: EW-100-ENG-G4-A1 MFG #: EW 100 ENG G4-A1

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the EW-100-ENG-G4-A1

EW 100 ENG G4-A1 - Overview

The Evolution Wireless G4 retains all of G3's best features while simultaneously providing many system improvements. The Evolution Wireless G4 features more power than its predecessor. The 300, 500 and IEM series offer increased RF power, up to 50 mW, for greater transmission range. The portable Broadcast & Film sets benefit from 8 hours of battery power.

The G4 exceeds expectations with increased switching bandwidth of up to 88 MHz in the 300 and 500 series. G4 offers full flexibility for a wide range of possible applications: live sound, in-ear monitoring, portable solutions for ENG and professional film productions. It is mobile, always on air, and evolves with users and their demands.

G4's 100 series systems can be daisy chained for fast, coordinated setup via a new linking function. G4's intuitive LCD and OLED displays make the lives of engineers easier in any environment. The G4 keeps you connected. For mobile PA applications, the receivers slot directly into the LSP 500 wireless loudspeaker. Integrators adore G4's versatility when it comes to workflows and control software such as the WSM (Wireless Systems Manager) and the Sennheiser Control Cockpit.

When it comes to applications in hospitality, education and events, G4 is your mobile solution that fits into any room and perfectly integrates into existing workflows. Documentary filmmakers and video journalists know that G4 fits into any bag and provides powerful speech intelligibility for their interviews or reports. For years, evolution wireless G3 has been one of the best-selling wireless systems in the market. evolution wireless G4 takes this legacy one step further with more power, features and flexibility.

  • Features:

    • Rugged all-in-one wireless system with high flexibility for broadcast quality sound
    • Excellent sound and construction quality
    • Easy to use and fast setup time
    • Powerful and reliable wireless transmission
    • Range: up to 100 meters / 330 feet
    • Up to 8 hours of operation time

  • Specifications:

    • EK 100 G4
    • Frequency range: A1: 470 - 516 MHz
    • Dimensions: Approx. 82 x 64 x 24 mm
    • Compander: Sennheiser HDX
    • THD, total harmonic distortion: ≤ 0.9 %
    • Weight: (incl. batteries) approx. 160 g
    • Audio output: 3.5 mm jack socket: +12 dBu (mono, unbalanced)
    • Signal-to-noise ratio: ≥ 110 dBA
    • Switching bandwidth: up to 42 MHz
    • Peak deviation: ±48 kHz
    • Nominal deviation: ±24 kHz
    • Operating time: Typically 8 h
    • Modulation: Wideband FM
    • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack. Current consumption at nominal voltage: typ. 180 mA with receiver switched off: ≤ 25 æA
    • Adjacent channel rejection: ≥ 65 dB
    • Intermodulation attenuation: ≥ 65 dB
    • Powering: 3 V battery / 2.4 V rechargeable battery
    • Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
    • RF sensitivity: < 1.6 µV for 52 dBA eff S/N
    • Squelch: low: 5 dBæV middle: 15 dBæV high: 25 dBµV
    • Temperature Range: -10 °C to +55 °C
    • Receiver Principle: Adaptive diversity
    • Blocking: ≥ 70 dB

      SK 100 G4
    • Dimensions: Approx. 82 x 64 x 24 mm
    • Compander: Sennheiser HDX
    • THD, total harmonic distortion: ≤ 0.9 %
    • Weight: (incl. batteries) approx. 160 g
    • Signal-to-noise ratio: ≥ 110 dBA
    • RF output power: Max. 30 mW
    • Switching bandwidth: up to 42 MHz
    • Peak deviation: ±48 kHz
    • Nominal deviation: ±24 kHz
    • Operating time: Typically 8 h
    • Modulation: Wideband FM
    • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack. Current consumption at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 æA
    • Input impedance: 40 kΩ, unbalanced / 1 MΩ
    • Max. Input voltage: 3 Veff
    • Powering: 3 V battery / 2.4 V rechargeable battery
    • Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
    • AF frequency response: Mic: 80 - 18,000 Hz Line: 25 - 18,000 Hz
    • Temperature Range: -10 °C to +55 °C
    • Frequency stability: ≤ ±15 ppm

  • Item Includes:

    • 1x SK 100 G4 Bodypack
    • 1x ME 2-II lavalier microphone (omnidirectional, condenser)
    • 1x SKP 100 G4 plug-on for dynamic microphones
    • 1x EK 100 G4 portable receiver
    • 1x 1/8" output cable
    • 1x XLR unbalanced output cable
    • 1x camera mount

  • GTIN:

    0615104309630
