KanexPro EXT-HDBT3ARC-TX HDMI HDBaseT 3.0 Transmitter up to 328 Feet - Uncompressed 4K60 4:4:4 Video to HDBaseT

EXT-HDBT3ARC-TX - Overview

• Features:

  • HDMI 2.0b, HDCP 2.2 and HDBaseT 3.0 compliant
  • Uncompressed 4K@60Hz 4:4:4 up to 18Gbps video bandwidth
  • HDR, HDR10, HDR10+, Dolby Vision and HLG pass through
  • LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD pass through
  • Transmission distance up to 328ft/100 meters via a single CAT 6A/7 cable
  • Supports eARC/ARC function (the audio is returned to the HDMI IN port, HDMI OUT (AUDIO ONLY) port and SPDIF OUT port of the transmitter.)
  • Supports SPDIF audio reverse transmission
  • Bi-directional IR, RS-232 and 1G Ethernet signal pass through
  • Supports USB2.0 transmission, Host/Device is configurable
  • Bi-directional 24V POC function


• Specifications:

  Technical
  • HDMI Compliance: HDMI2.0b
  • HDCP Compliance: HDCP2.2
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4K @ 60Hz 4:4:4
  • HDBaseT Bandwidth: 16Gbps on main and 2Gbps on return link
  • HDR: HDR, HDR10, HDR10+, DolbyVision, HLG
  • Color Space: RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr4:2:0
  • Color Depth: 8/10/12-bit
  • Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD MasterAudio, DSD
  • L/R Audio Formats: PCM2.0
  • SPDIF Audio Formats: LPCM2.0, AC35.1, DTS5.1
  • IR Level: 12Vp-p
  • IR Bandwidth: 20K - 60KHz
  • USB Bandwidth: Up to 350Mbps
  • Ethernet: 1000Mbps
  • RS-232: Up to 921600bps
  • Transmission Distance: 328ft (100m)(via a single CAT6A/7cable)
  • ESD Protection: Humanbody model- ±8kV (Air-gapdischarge) & ±4kV (Contactdischarge)

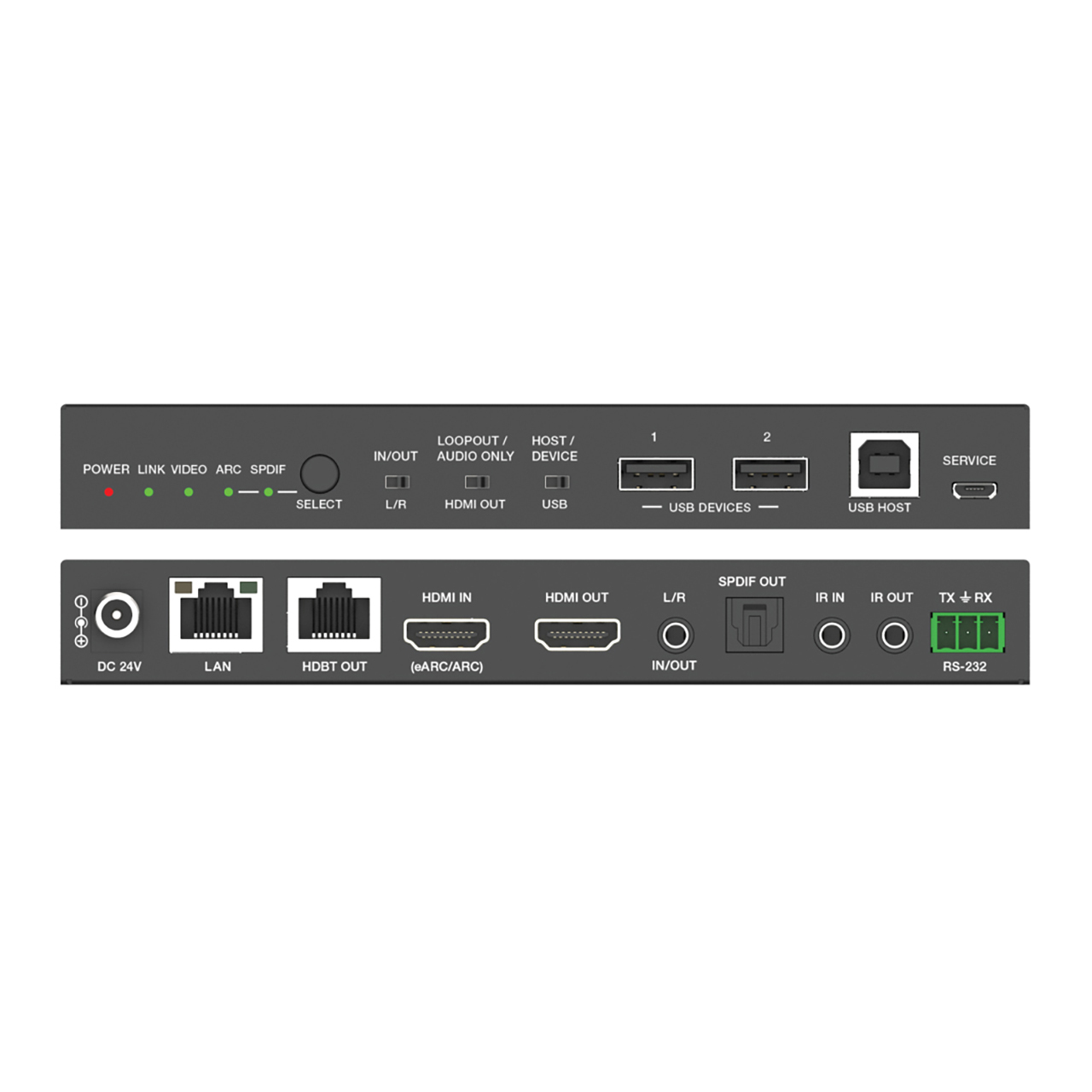

    Transmitter Connections
  • Input: 1x HDMI IN [Type A, 19-pin female]
  • Output:
    - 1x HDMI OUT [Type A, 19-pin female]
    - 1x HDBT OUT RJ45, 8-pin female]
    - 1x SPDIF OUT[S/PDIF]
    - 1x L/R OUT [3.5mm StereoMini-jack]
  • Control:
    - 1x IR IN [3.5mm Stereo Mini-jack]
    - 1x IR OUT [3.5mm Stereo Mini-jack]
    - 1x RS-232 [3pin-3.81mm Phoenix jack]
    - 1x SERVICE [Mini-USB, Update port]
    - 1x USB HOST[USB Type B]
    - 1x USB DEVICES [USB Type A]
    - 1x LAN [RJ45]

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions (HxWxD): 0.87" x 6.69" x 4.02" (22mm x 170mm x 102mm)
  • Weight: 0.94lbs (425g)
  • Power Supply:
    - Input: AC 100V - 240V 50/60Hz
    - Output: DC 24V/1A (US/EU standard, CE/FCC/ULcertified)
  • Power Consumption: 15.36W (POC)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • StorageTemperature: -4°F - 140°F (-20°C - 60°C)
  • RelativeHumidity: 20% - 90% RH (no condensation)

    HDMI In/Out Resolution/Cable Length
    - 4K60: 16ft (5m)
    - 4K30: 32ft (10m)
    - 1080p60: 50ft (15m)
    *The use of Premium HighSpeed HDMI cable is highly recommended.


• Item Includes:

  • 1x EXT-HDBT3ARC-TX HDBaseT 3.0 Extender (Transmitter)
  • 1x IR Blaster Cable (1.5 meters)
  • 1x IR Receiver Cable (1.5 meters)
  • 2x 3pin-3.81mm Phoenix Connectors
  • 4x Mounting Ears
  • 8x Machine Screws (KM3*4)
  • 1x 24V/1A Locking Power Supply
  • 1x User Manual


• GTIN:

  0813982023666
