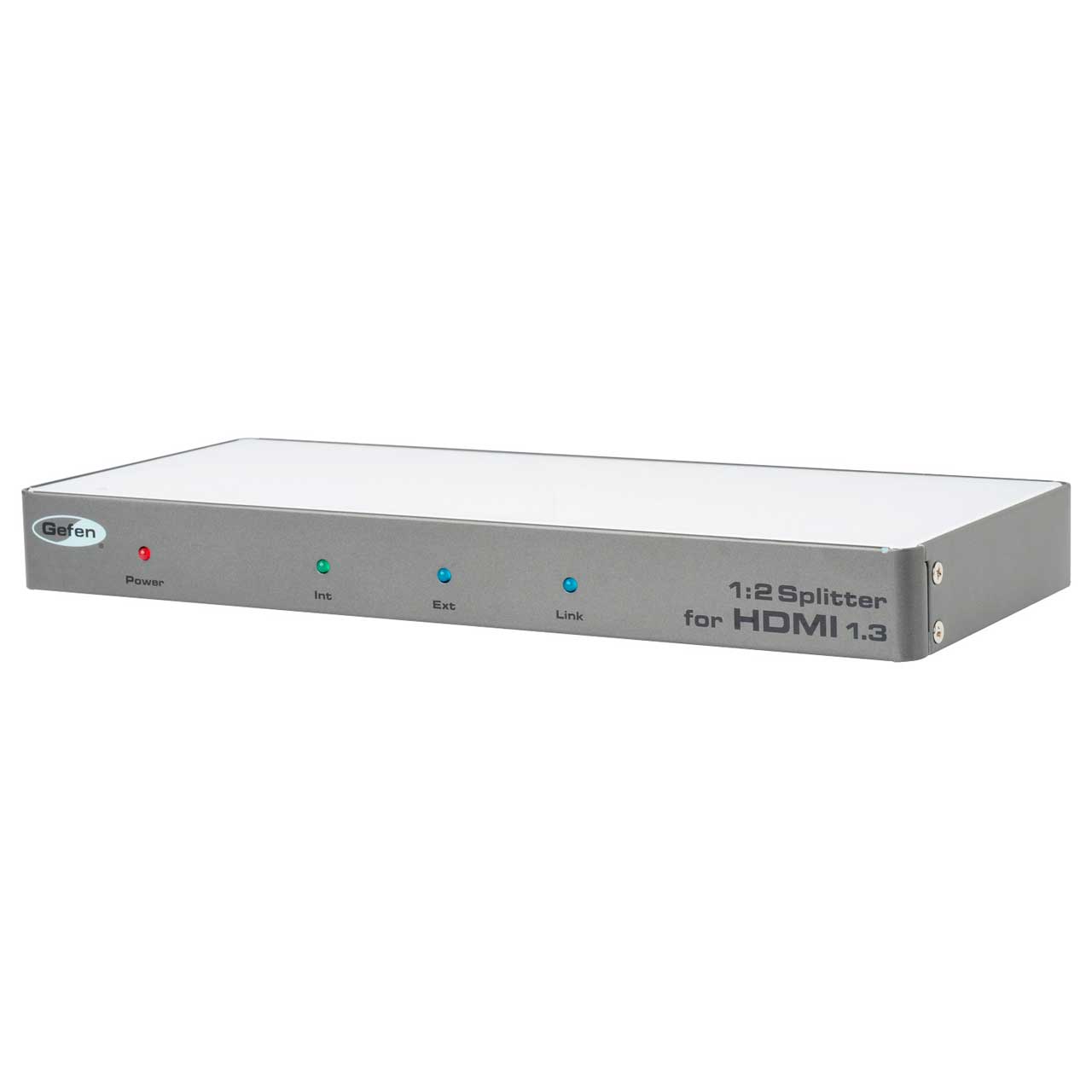

The 1:2 Splitter for HDMI 1.3 with Digital Audio sends a Hi-Def A/V source to up to 2 HDTV displays at the same time without losing quality or resolution. This product works with any Hi-Def source supporting resolutions up to 1080p Full HD with Deep Color, 3DTV pass-through, and lossless audio formats such as Dolby TrueHD and DTS-HD Master Audio. A TOSLINK output on the rear of the Splitter feeds digital audio to an external amplifier or receiver for additional installation flexibility.
How It Works

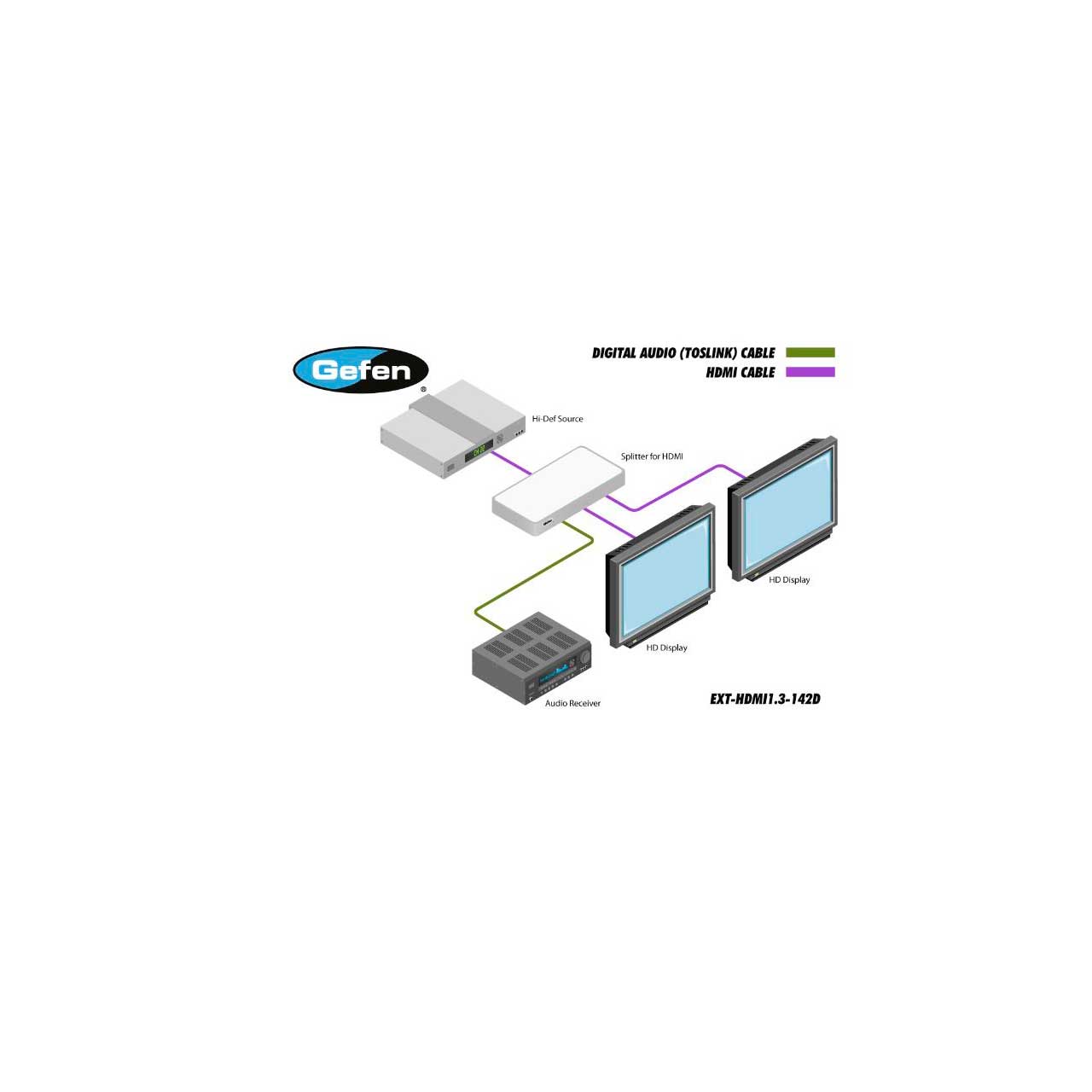

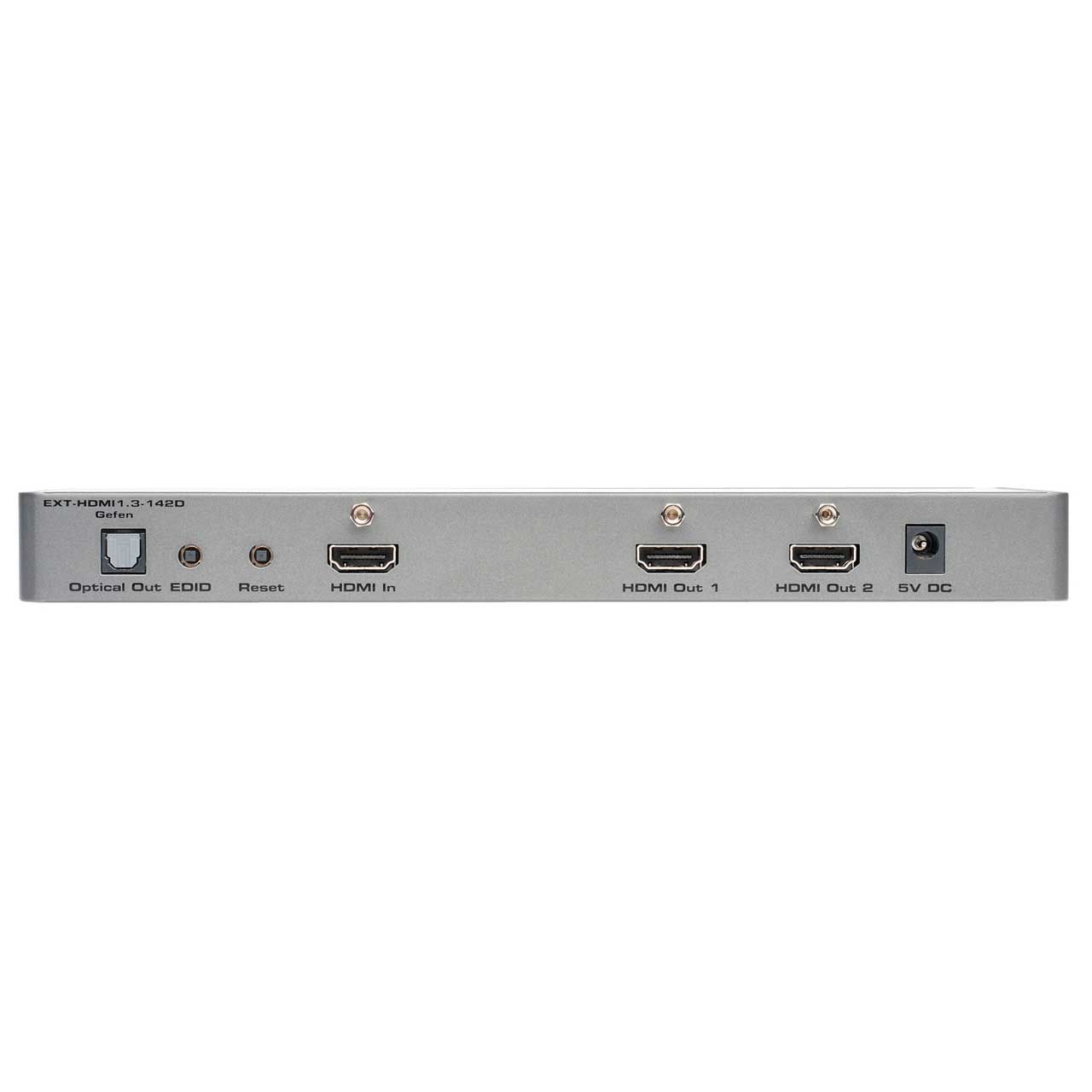

Connect the Hi-Def source to the HDMI input on the product using the supplied HDMI cable. Connect up to two (2) HDTV displays to the two (2) HDMI outputs on the product. Connect an optical audio cable from the TOSLINK connector on the Splitter to an A/V receiver or amplifier. Connect the power supply to the product and connect the power cable to an available electrical outlet. Apply power to the source and displays. The source signal will now be seen on two (2) displays at the same time.
Note: HDMI 1.3 Features Supported:
225 MHz (up to 12 bit YUV 444 @ 1080p)
Deep Color
Color Space Conversion
Dolby TrueHD and DTS-HD Master Audio
Lip-Sync
TOSLINK digital audio formats supported:
Dolby AC3 2-channel and 5.1-ch digital audio
LPCM 2-ch digital audio (32-192 KHz sampling rate)
Dolby Digital Plus 5.1-ch digital audio
DTS 2-ch and 5.1-ch digital audio
