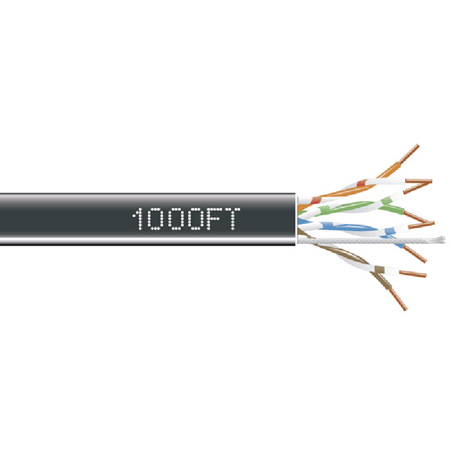

Black Box EYN860A-PB-1000 GigaBase 350 CAT5e 350-MHz Solid Bulk Cable Plenum 1000-ft. (304.8-m) - Black

EYN860A-PB-1000 - Overview

• Features:

  • Sweep tested and characterized to 350 MHz.
  • Extra headroom provides room for growth.
  • CAT5e compliance means dependable compatibility for future applications.
  • Ideal for voice, 10BASE-T, 4-/16-Mbps Token Ring, 100BASE-TX, 100-Mbps TP-PMD, T1, 155-Mbps ATM, 622-Mbps ATM, Gigabit Ethernet, and other high-speed applications.
  • Low attenuation and power-sum crosstalk characteristics over an extended frequency range.
  • Every master pull box is tested for electrical performance.

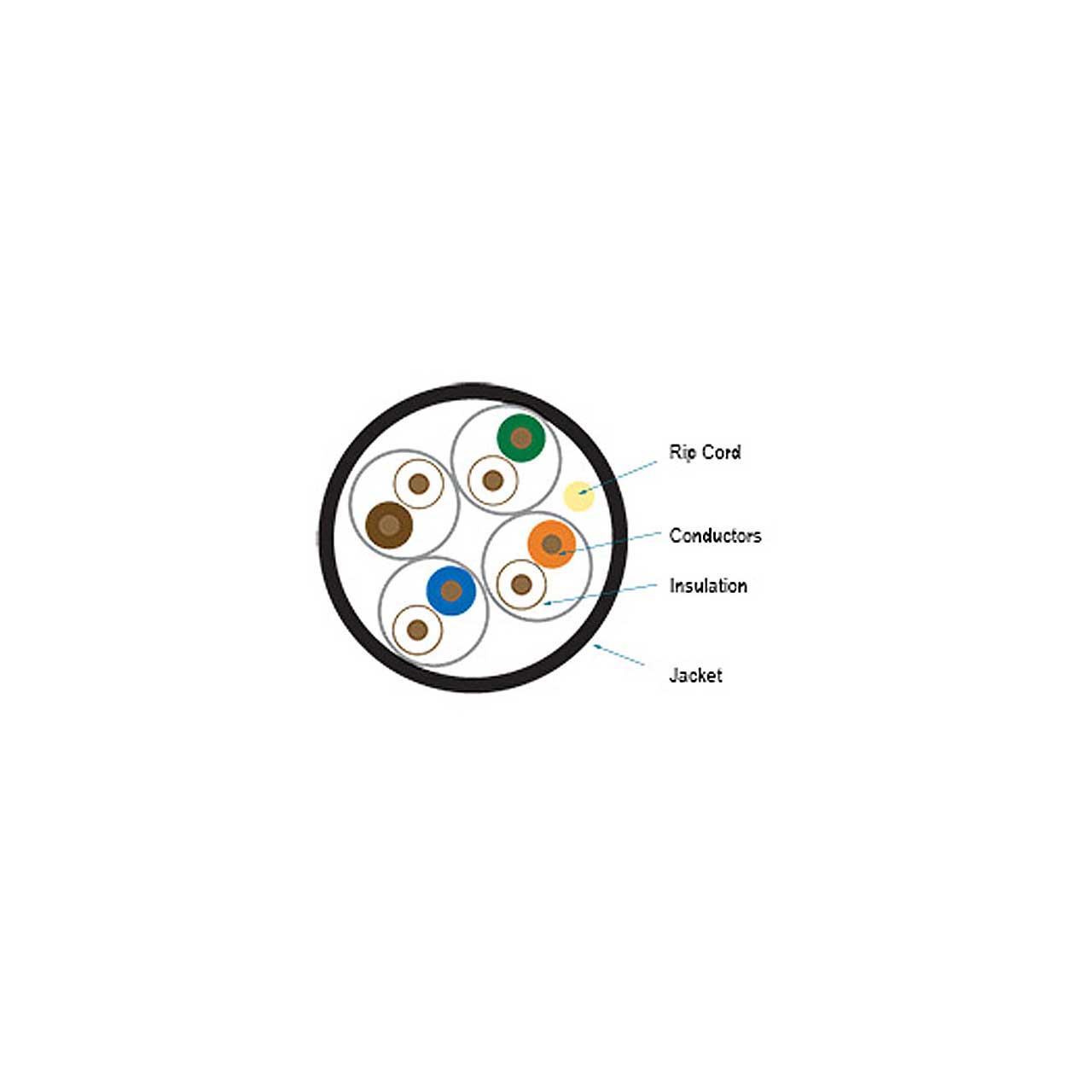

  • Longitudinal rip cord for easy jacket opening.
  • Cable is marked in two-foot increments so you always know how much you have left.


• Specifications:

  • ACR (Minimum at 100 m): 16.3 dB at 100 MHz; 1.4 dB at 200 MHz
  • Attenuation (Minimum at 100 m): 22.0 dB at 100 MHz; 32.4 dB at 200 MHz; 41.0 dB at 300 MHz; 44.9 dB at 350 MHz
  • Cable Type: 4-pair UTP
  • Capacitance Unbalance (Maximum): 3300 pF/km (Pair to ground)
  • Characteristic Impedance: 1-350 MHz: 100 ± 15 ohms
  • Conductor: 24 AWG, solid, bare copper
  • Conductor Resistance: 93.8 ohm/20° C maximum
  • Delay Skew (Maximum): 1-350 MHz: 40 nS/100 m
  • EL-FEXT (Minimum at 100 m): 23.8 dB at 100 MHz; 17.7 dB at 200 MHz; 14.2 dB at 300 MHz; 12.9 dB at 350 MHz
  • NEXT (Minimum at 100 m): 38.3 dB at 100 MHz; 33.8 dB at 200 MHz; 31.2 dB at 300 MHz; 30.1 dB at 350 MHz
  • PS-ACR (Minimum at 100 m): 14.3 dB at 100 MHz
  • PS-ELFEXT (Minimum at 100 m): 20.8 dB at 100 MHz; 14.7 dB at 200 MHz; 11.2 dB at 300 MHz; 9.9 dB at 350 MHz
  • PS-NEXT (Minimum at 100 m): 36.3 dB at 100 MHz; 31.8 dB at 200 MHz; 29.2 dB at 300 MHz; 28.1 dB at 350 MHz
  • Return Loss: 20.1 dB at 100 MHz
  • Velocity of Propagation (Minimum): 62.1% at 350 MHz


• GTIN:

  0822088075899
