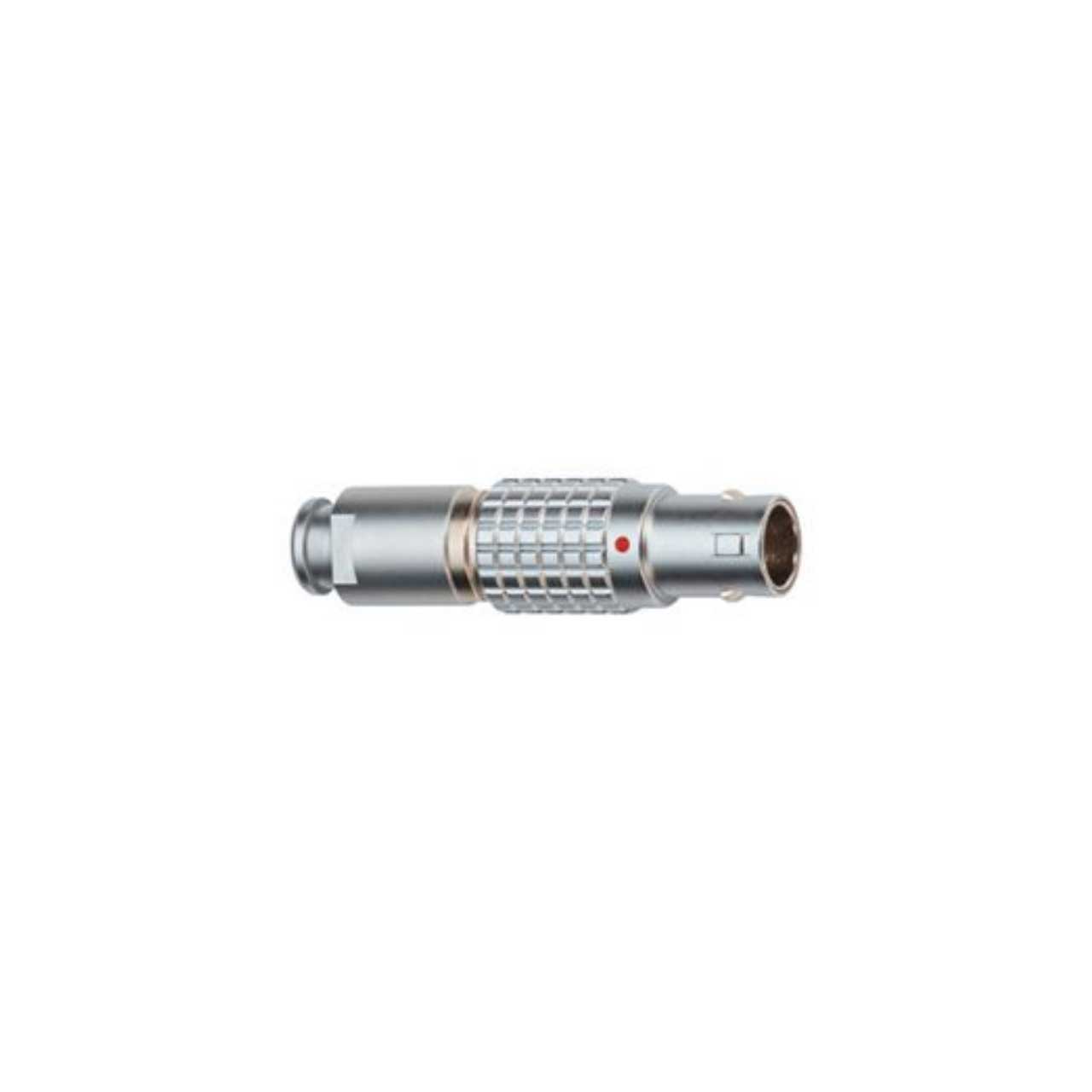

Lemo FGG.0B.302.CLAD52Z 2 Position Straight Male Plug Male Solder D52 Collet Connector

FGG.0B.302.CLAD52Z - Overview

• Specifications:

  • Contact Type: Solder
  • Contact Dia.: 0.9 mm (0.035in)
  • Bucket Dia.: 1.0 mm (0.039in)
  • Weight: 8.21 g
  • IP Rating: 50
  • AWG Wire Size: 28 - 20
  • Max. Solid Conductor: 0.56 mm^2 (AWG 20)
  • Max. Stranded Conductor: 0.56 mm^2 (AWG 20)
  • R (max): 4.8 mOhm
  • Vtest (contact-shell): 1050 V (AC), 1490 V (DC)
  • Vtest (contact-contact): 1000 V (AC), 1400 V (DC)
  • Endurance (Shell): 5000
  • Temp (min / max): -55°C / +250°C
  • Humidity (max): <=95% [at 60 deg C /140 F]
  • Vibration: 15 g [10 Hz - 2000 Hz]
  • Shock Resistance: 100 g [ 6 ms]
  • Climatical Category: 50/175/21
  • Shielding (min): 75 dB (10 MHz)
  • Shielding (min): 40 dB (1 GHz)
  • Salt Spray Corrosion: >1000 hr


• Item Includes:

  • 1x Lemo FGG.0B.302.CLAD52Z 2 Position Straight Male Solder Plug Cable D52 Collet Connector
