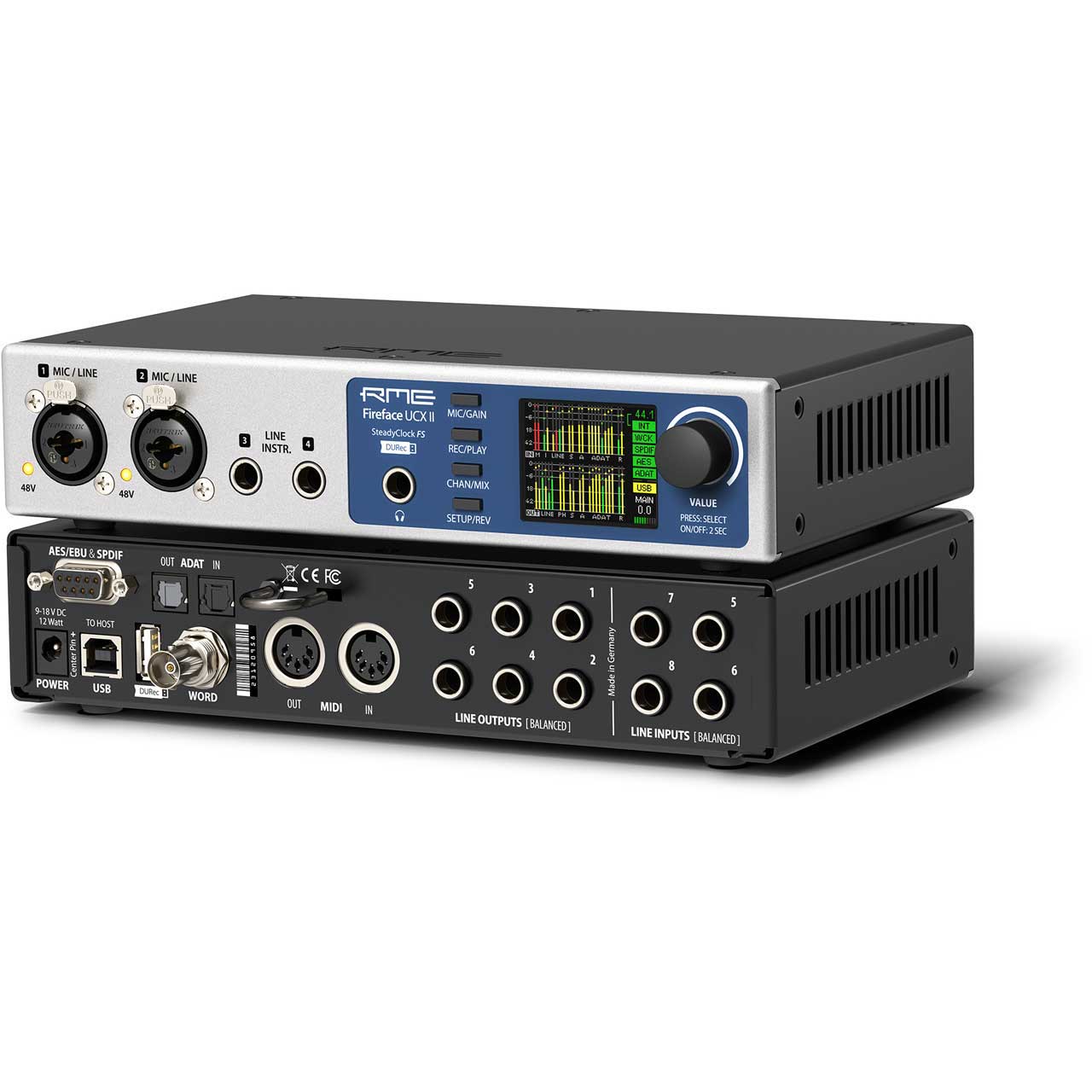

RME FIREFACE UCX II 40-Channel 192 kHz Advanced USB 2.0 Audio Interface with MIDI / ADAT / AES / EBU & SPDIF I/Os

FIREFACE UCX II - Overview

• Features:

  • 8 x Analog I/O
  • 2 x XLR/TRS Mic/Inst/Line
  • 2 x Line/Inst Input
  • 1 x Phones Output
  • 1 x AES I/O
  • 1 x ADAT I/O
  • 1 x SPDIF I/O Coax
  • 1 x Word Clock I/O
  • 1 x MIDI I/O
  • Full Stand-alone Functionality
  • 40-Channels ready for your Mobile Recording Rig
  • DC-Coupled Outputs - CV/Gate Voltage Control
  • Class Compliant Mode
  • TotalMix FX
  • ARC USB
  • RME USB 2.0
  • DC-coupled Outputs
  • SteadyClock FS
  • DURec
  • AutoSet Digital Gain Control


• Specifications:

  • Analog - AD, Line In 5-8, rear
  • Resolution AD: 24 bit
  • Signal to Noise ratio (SNR): 112 dB RMS unweighted, 115 dBA
  • Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz - 20.8 kHz
  • Frequency response @ 96 kHz, -0.5 dB: 3 Hz - 45.8 kHz
  • Frequency response @ 192 kHz, -1 dB: 2 Hz - 92 kHz
  • THD: < -110 dB, < 0.00032 %
  • THD+N: < -104 dB, < 0.00063 %
  • Channel separation: > 110 dB
  • Input: 6.3 mm TRS jack, electronically balanced
  • Input impedance: 8 kOhm unbalanced, 12 kOhm balanced
  • Input sensitivity switchable to +19 dBu and +13 dBu
  • Variable gain: 0 to +12 dB
  • Minimum level for 0 dBFS: +1 dBu, -1.2 dBV
    Line In 3-4, front
  • Additional Gain stage: 0 up to +12 dB
  • Maximum input level, +19 dBu, Gain 0 dB: Line +19 dBu, Inst +13 dBu
  • Maximum input level, +13 dBu, Gain 12 dB: Line +1 dBu, Inst -5 dBu
  • Input impedance: Instrument 1 MOhm. Line 13 kOhm balanced, 9 kOhm unbalanced
  • Input Gain Inst: +6 dB
  • Input mode: Line balanced (TRS), Inst unbalanced (TS)

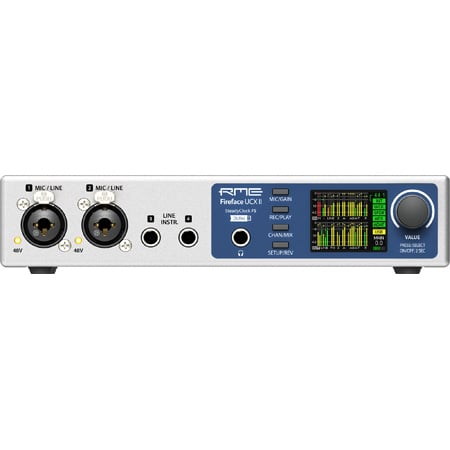

    Mic In 1-2, front
  • Input impedance: 5.4 kOhm
  • Gain range: 75 dB
  • Maximum input level, Gain 0 dB: +18 dBu
  • Maximum input level, Gain 75 dB: -57 dBu
  • EIN: -128 dBu A-weighted, 60 dB gain,150 Ohm, 20 Hz - 20 kHz
    Line In 1-2
  • Input: TRS, electronically balanced
  • Input impedance: 10 kOhm balanced, 5 kOhm unbalanced
  • Maximum input level, Gain 0 dB: +24 dBu
  • Maximum input level, Gain 75 dB: -51 dBu

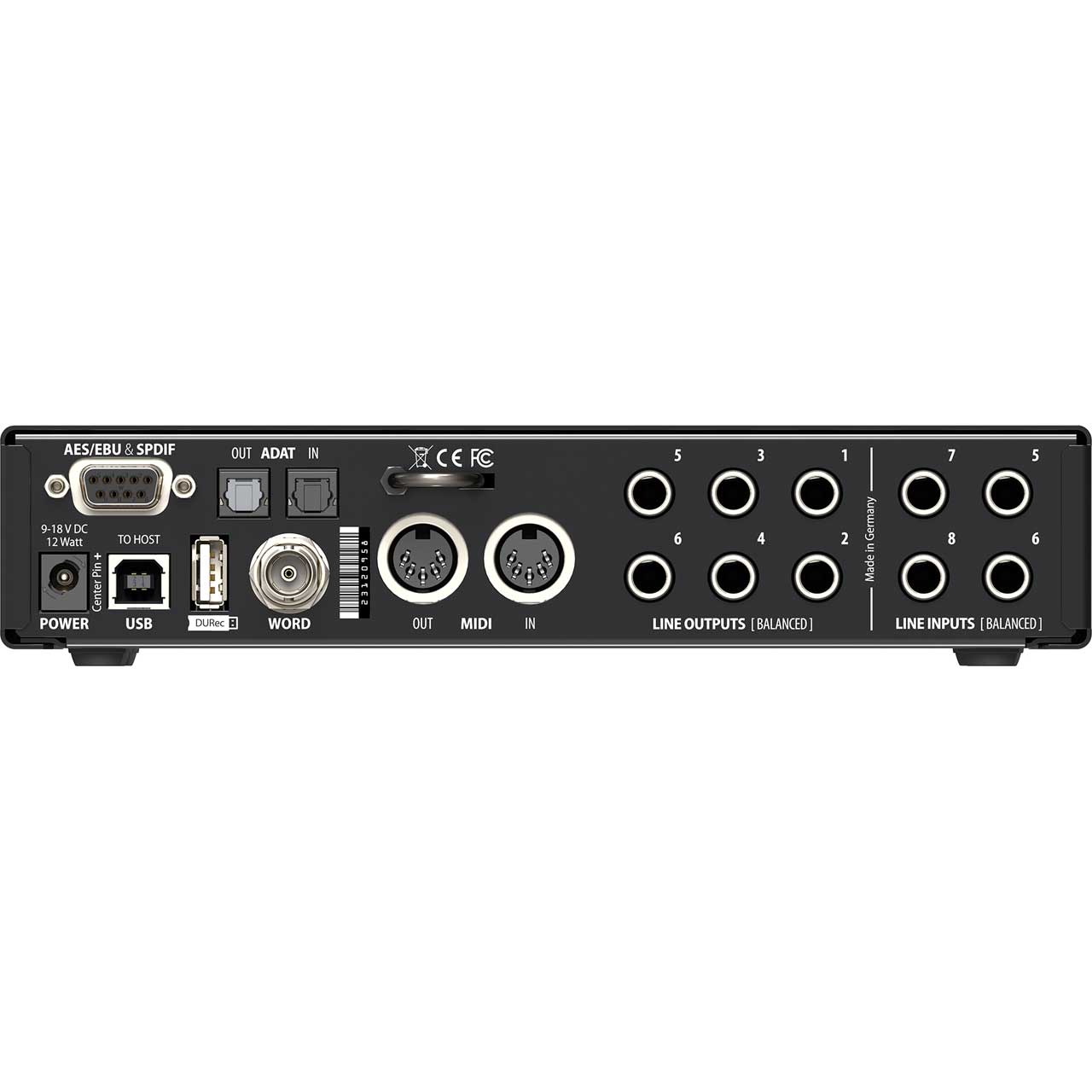

    DA, Line Out 1-6, rear
  • Resolution: 24 bit
  • Dynamic range (DR): 112 dB RMS unweighted, 115 dBA
  • Frequency response @ 44.1 kHz, -0.5 dB: 5 Hz - 20.8 kHz
  • Frequency response @ 96 kHz, -0.5 dB: 5 Hz - 45 kHz
  • Frequency response @ 192 kHz, -1 dB: 5 Hz - 89 kHz
  • THD: < -108 dB, < 0.0004 %
  • THD+N: < -104 dB, < 0.00063 %
  • Channel separation: > 110 dB
  • Maximum output level: +19 dBu
  • Output: 6.3 mm TRS jack, servo-balanced
  • Output impedance: 75 Ohm
  • Output level switchable +19 dBu, +13 dBu, +4 dBu
    DA - Stereo Monitor Output Phones (7-8)
  • Output: 6.3 mm TRS stereo jack, unbalanced
  • Maximum output level at 0 dBFS, High: +19 dBu
  • Maximum output level at 0 dBFS, Low: +4 dBu
  • Output impedance: 1 Ohm
  • Max power per channel @ 32 Ohm load, 0.1% THD: 210 mW (2.6 Vrms, +10.5 dBu)

    MIDI
  • 1 x MIDI I/O via 5-pin DIN jacks
  • Galvanically isolated by optocoupled input
  • Hi-speed mode: Jitter and response time typically below 1 ms
  • Separate 128 byte FIFOs for input and output

    Digital
  • Clocks: Internal, ADAT, AES, SPDIF, word clock
  • Jitter suppression of external clocks: > 50 dB (2.4 kHz)
  • Effective clock jitter influence on AD and DA conversion: near zero
  • PLL ensures zero dropout, even at more than 100 ns jitter
  • Digital Bitclock PLL for trouble-free varispeed ADAT operation
  • Supported sample rates: 28 kHz up to 200 kHz

    Digital Inputs - AES/EBU
  • 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
  • High-sensitivity input stage (< 0.3 Vpp)
  • SPDIF compatible (IEC 60958)
  • Accepts Consumer and Professional format
  • Lock range: 27 kHz - 200 kHz
  • Jitter suppression: > 50 dB (2.4 kHz)
    SPDIF coaxial
  • 1 x RCA, according to IEC 60958
  • High-sensitivity input stage (< 0.3 Vpp)
  • Accepts Consumer and Professional format, copy protection will be ignored
  • Lock Range: 27 kHz - 200 kHz
  • Jitter suppression: > 50 dB (2.4 kHz)
    ADAT
  • 1 x TOSLINK, format according to Alesis specification
  • Standard: 8 channels 24 bit, up to 48 kHz
  • Double Speed (S/MUX): 4 channels 24 bit 96 kHz
  • Quad Speed (S/MUX4): 2 channels 24 bit 192 kHz
    Word Clock
  • BNC
  • Max. output voltage: 5 Vpp
  • Output voltage @ 75 Ohm termination: 4.0 Vpp
  • Output impedance: 10 Ohm
  • Frequency range: 27 kHz - 200 kHz

    General
  • Power supply: external power supply
  • Typical power consumption: 13 Watts
  • Current at 12 Volt operating voltage: 910 mA (11 Watts)
  • Dimensions incl. rack ears, full depth (WxHxD):10.5" x 1.73" x 6.1"
  • Dimensions without rack ears, body depth (WxHxD): 8.5" x 1.73" x 5.1"
  • Weight: 2.0 lbs
  • Temperature range: 41° F up to 122°F
  • Relative humidity: < 75%, non condensing


• Item Includes:

  • 1x Fireface UCX II
  • 1x Cable USB 2.0, 6 ft
  • 1x Optical cable (TOSLINK), 6.6 ft
  • 1x B0968 Digital breakout cable (XLR/RCA)
  • 1x External switched power supply, lockable connector, DC 12 V 24 W
  • 1x Power cord


• GTIN:

  4260123363376
