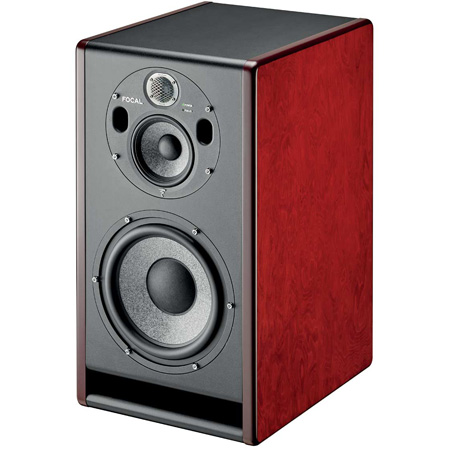

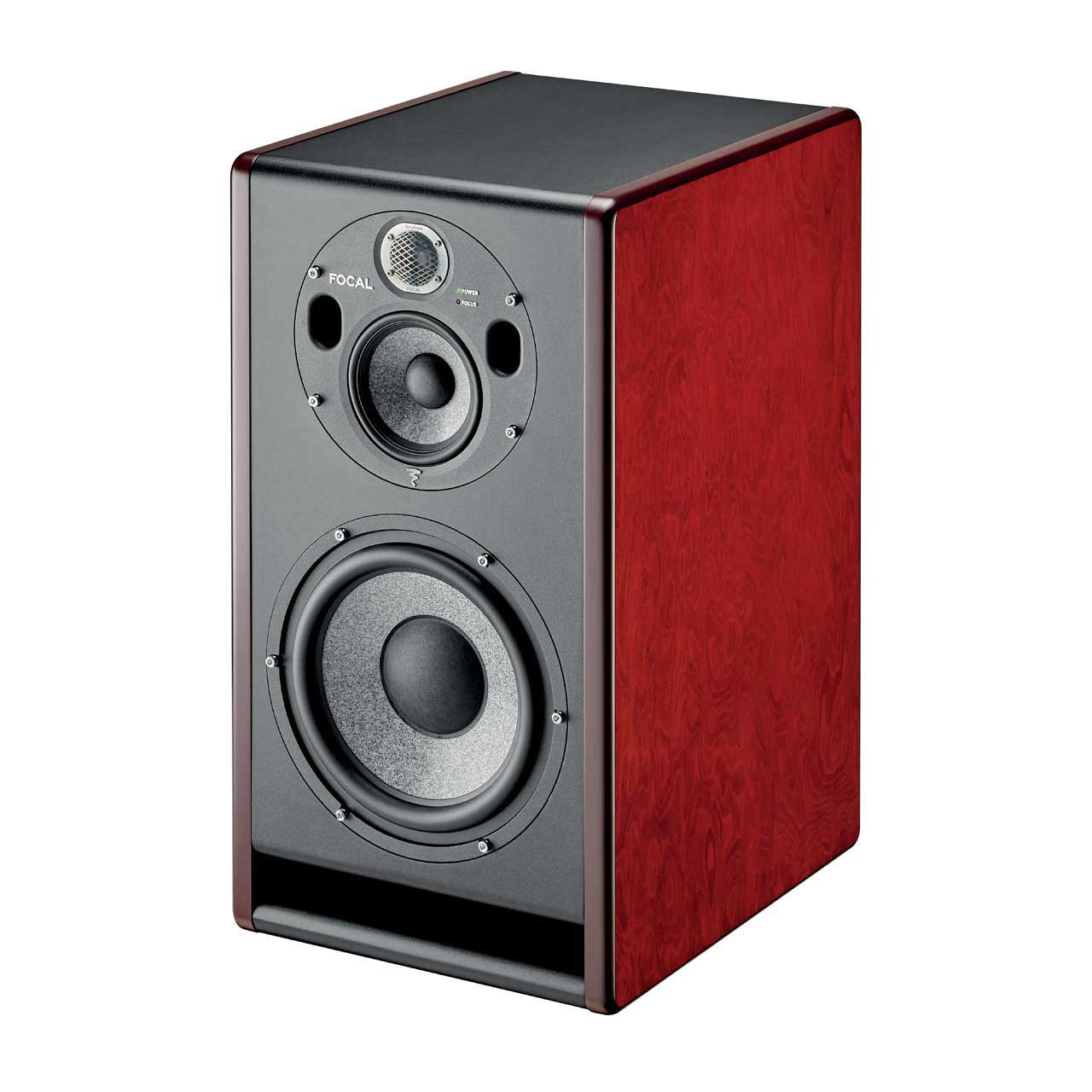

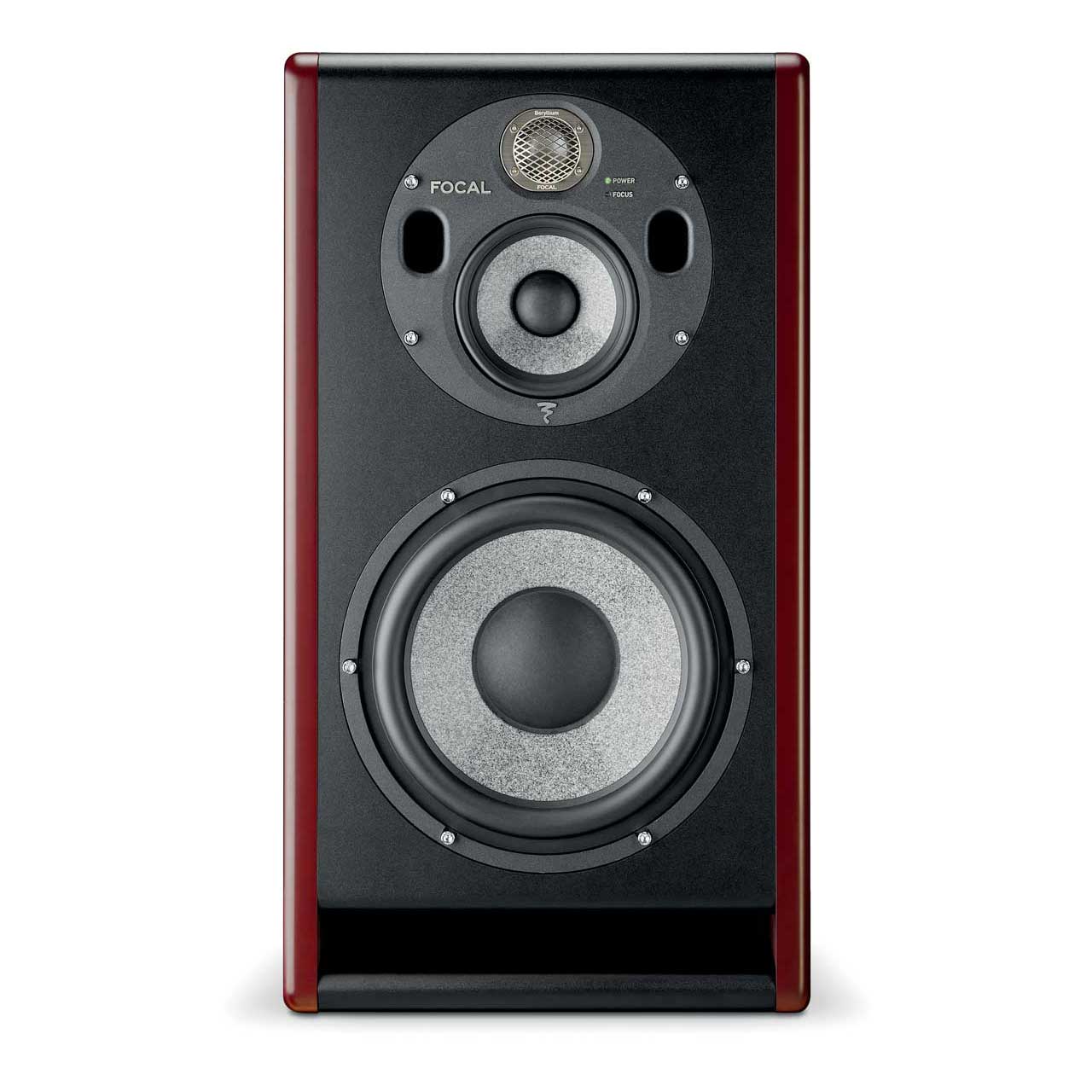

Focal TRIO11BE Remote FOCUS Switchover Loudspeaker (3-Way Monitor or 2-Way Monitor)

TRIO11BE - Overview

• Features:

  • Remote FOCUS switchover (3-way monitor or 2-way monitor) via control pedal (not included) : control the transfer quality of mixes on compact systems quickly and simply
  • Pure Beryllium inverted dome tweeter: very low directivity, linearity, dynamics
  • `W' composite sandwich cone on woofer and subwoofer: neutral sound, no distortion
  • Rotating mid-treble plate: can be positioned horizontally or vertically
  • Bass, mid-bass and treble settings on rear panel: optimum acoustical integration
  • High SPL (118 dB @ 393/8" - 1m)
  • Optimized decoupling of the mid-range speaker driver thanks to silent blocks
  • Ultra-low distortion and noise


• Specifications:

  • Performance
  • Frequency Response: 3-way mode 30Hz - 40kHz (±3dB) 2-way mode (Focus) 90Hz - 20kHz (±3dB)
  • Maximum SPL: 3-way mode 115dB SPL (peak at 1m) 2-way mode (Focus) 105dB SPL (peak at 1m)

    Electronics
  • Inputs:
    Type/Impedance: Electronically balanced / 10KOhms
    Connectors: XLR
    Sensitivity: Adaptable, +4dBu or -10dBv
  • Bass: 300W, class G
  • Mid-Range: 150W, class G
  • Treble: 100W, class AB
  • Power:
    Local Supply: 230V (class T fuse 1.6A fuse rating) - 115V (class T fuse 3.5 T fuse)
    Wiring: Connection Detachable IEC power cable
  • Indicators and Controls (Rear Panel):
    Input sensitivity selector: (+4dBu/-10dBV)
    Low frequency shelving: (±3dB from 35 to 250Hz)
    High frequency shelving: (±3dB from 4.5 to 40kHz)
    EQ low-mid frequencies: (±3dB at 160Hz, Q factor = 1)
    FOCUS input/FOCUS output
  • Auto Standby: Auto standby switch on the back of the loudspeaker: enable / disable switch
  • LED: Focus mode on, audio clipping and protection indicated by LED on front panel

    Transducers
  • Subwoofer: 8W64701, 9.81" Focal driver with W composite sandwich cone
  • Woofer: 5W04701, 5" Focal driver with W composite sandwich cone
  • Tweeter: TB872, 1" Focal pure Beryllium inverted dome tweeter

    Cabinet
  • Construction: 13/16" and 1.19"" (21mm and 30mm) panels with internal braces
  • Finish: Natural veneering side panels Dark red burr ash, black body
  • Dimensions Including 4 Rubber Feet (HxWxD): 25" x 13.56" x 17.75" (635 x 345 x 450mm)
  • Weight: 82.2lbs (37.3kg)


• GTIN:

  3544057801540
