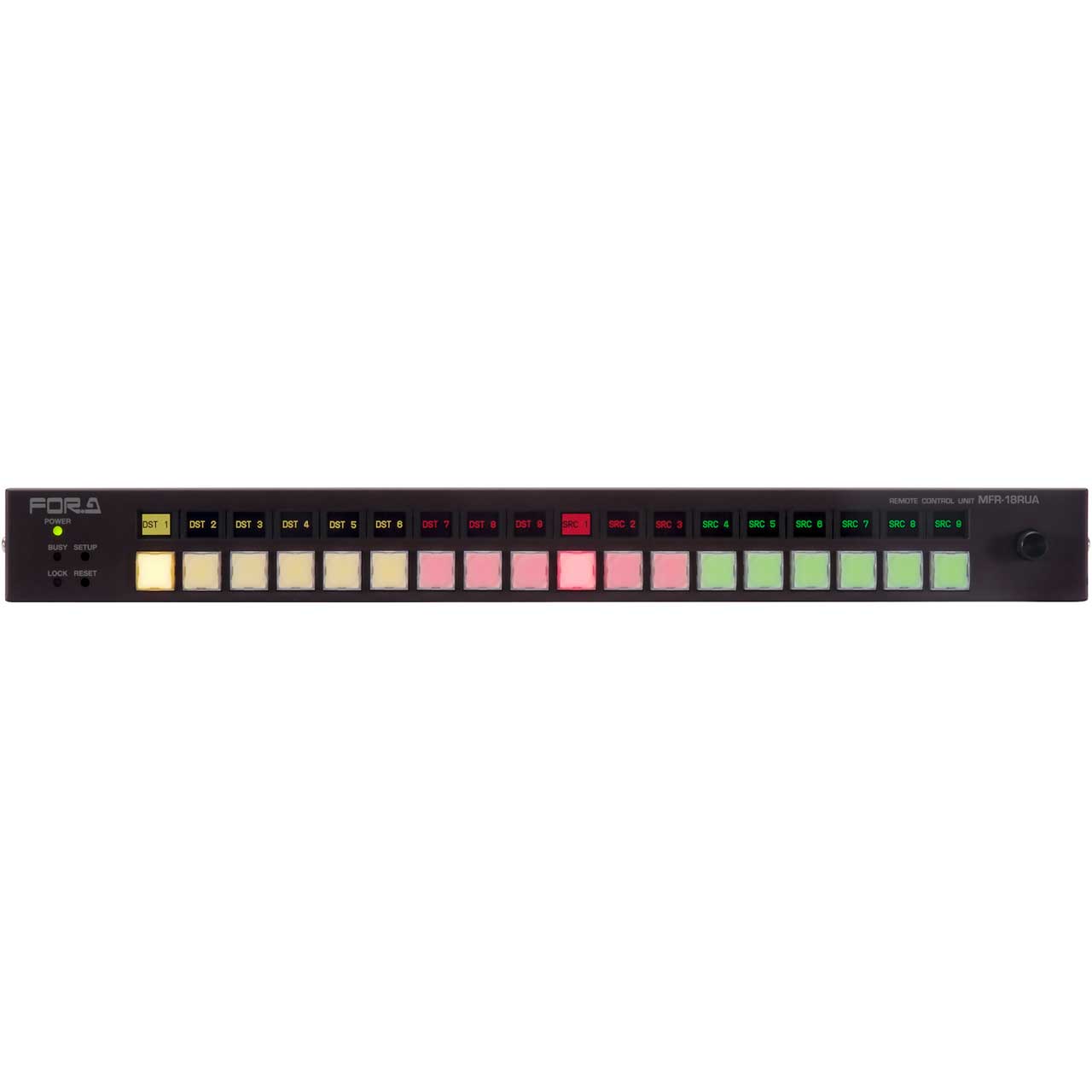

FOR-A MFR-18RUA 18 Button Remote Control Unit with LCD Display

MFR-18RUA - Overview

• Features:

  • 1U compact size
  • 18 buttons (3 colors: R, G, B)
  • Equipped with OLED display that can show source name and assigned functions for each button (7 colors: R, G, Ye, B, W, Cy, Mg)
  • Any function can be assigned to any button
  • Redundant power supply (AC adapter)


• Specifications:

  • Buttons/Color:18 buttons (3 colors: Red/Green/Orange), user assignable LCD display x 18 (Max. 7 characters x 2 lines, 7-color, Displayed above each button) with Rotary selector .
  • Number of Connections: Max. 128 (including Main, MFR-RU Series, MFR-GPI and MFR-TALM units) .
  • Interface: MFR-LAN 10/100BASE-TX RJ-45 x 1 (For connection to MU. A network switch required for multiple unit configuration) , SERVICE, RS-232C 9-pin D-sub (male) x 1 (for maintenance)
  • Temperature / Humidity: 0 celcius to 40 celcius / 30% to 85% (no condensation).
  • Power: +12 VDC Pin-connector x 2 (redundant power supply as standard).
  • Consumption:100 V AC to 120 V AC: 14VA (6W), 220 V AC to 240 V AC: 18VA (6W).
  • Dimensions: 430 (W) x 44 (H) x 42 (D) mm EIA1RU, 480 (W) (Including rack mount brackets) .


• Item Includes:

  • AC cord,
  • AC adaptor,
  • DC cable retaining clip,
  • EIA rack mount brackets,
  • Tool used to change button labels
  • LAN cable
