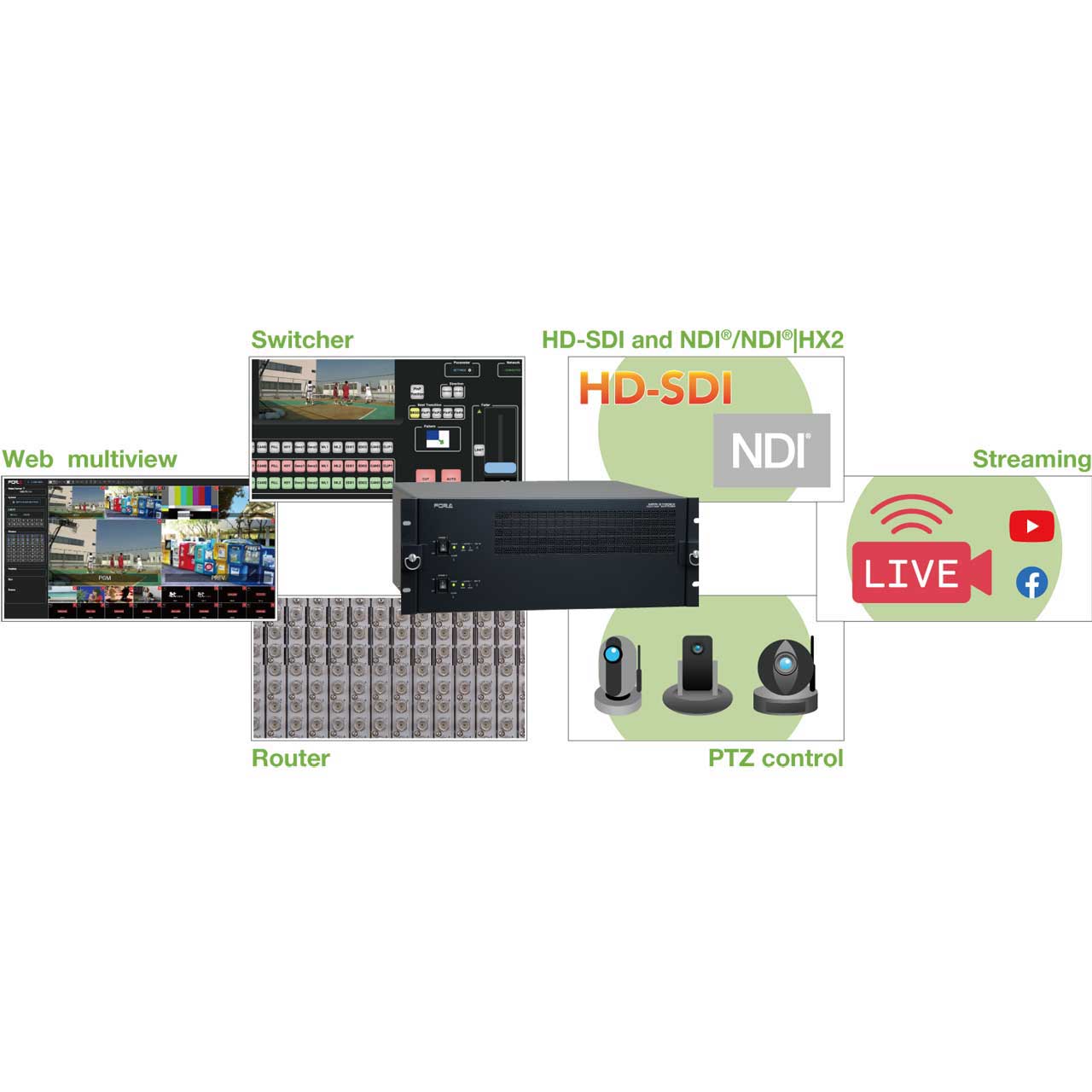

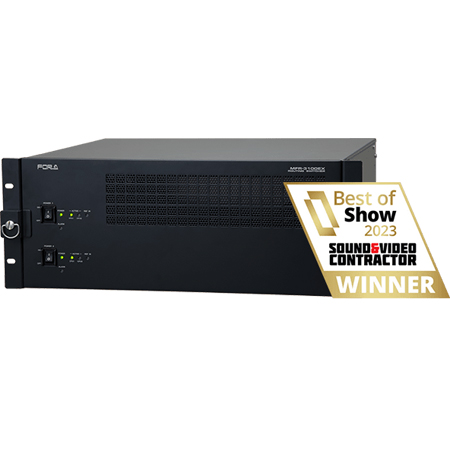

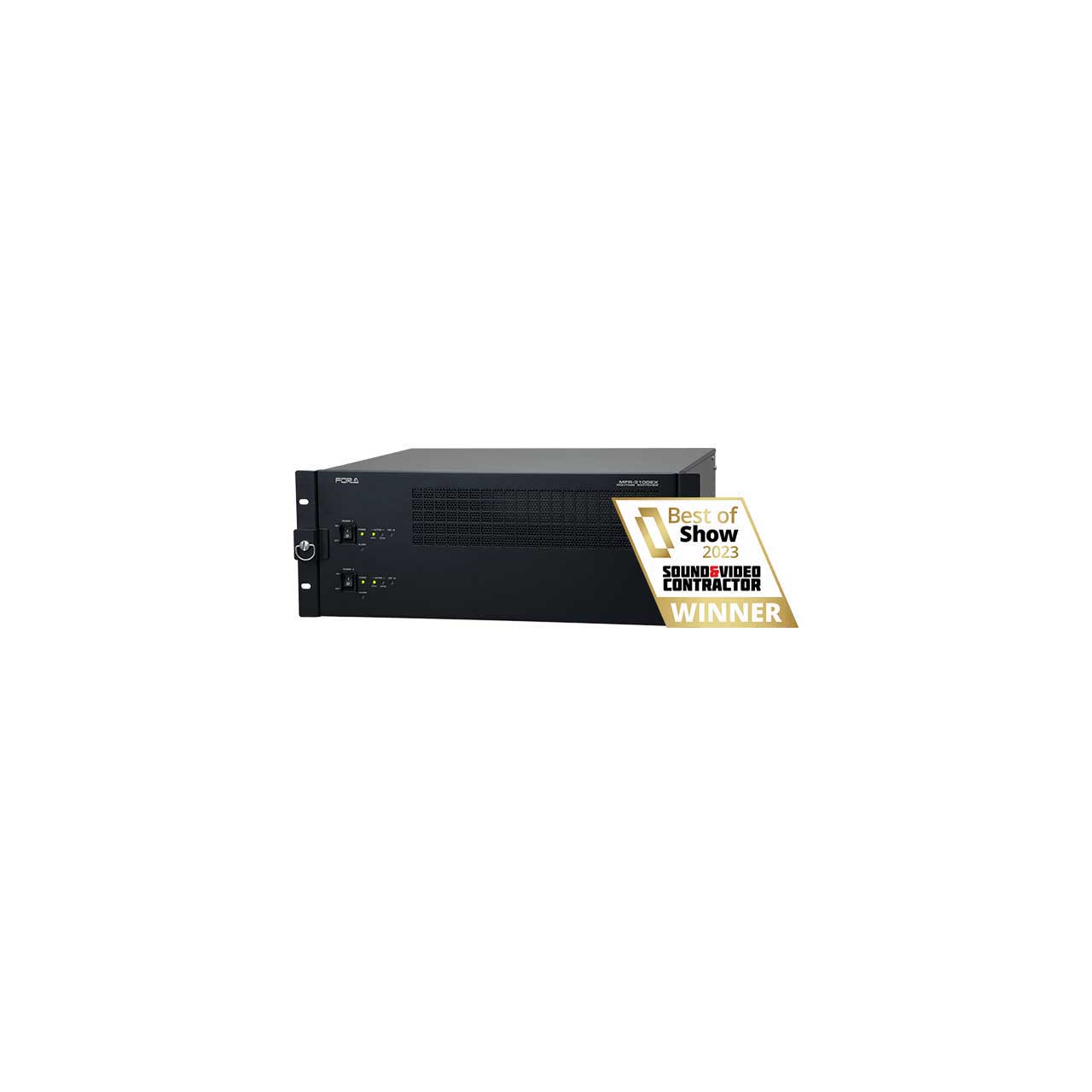

FOR-A MFR-3100EX All-in-One Video Production Center - Routing Switcher/Video Switcher/Multi-Viewer & Downstream Keyer

MFR-3100EX - Overview

• Features:

  • Video switcher function specification

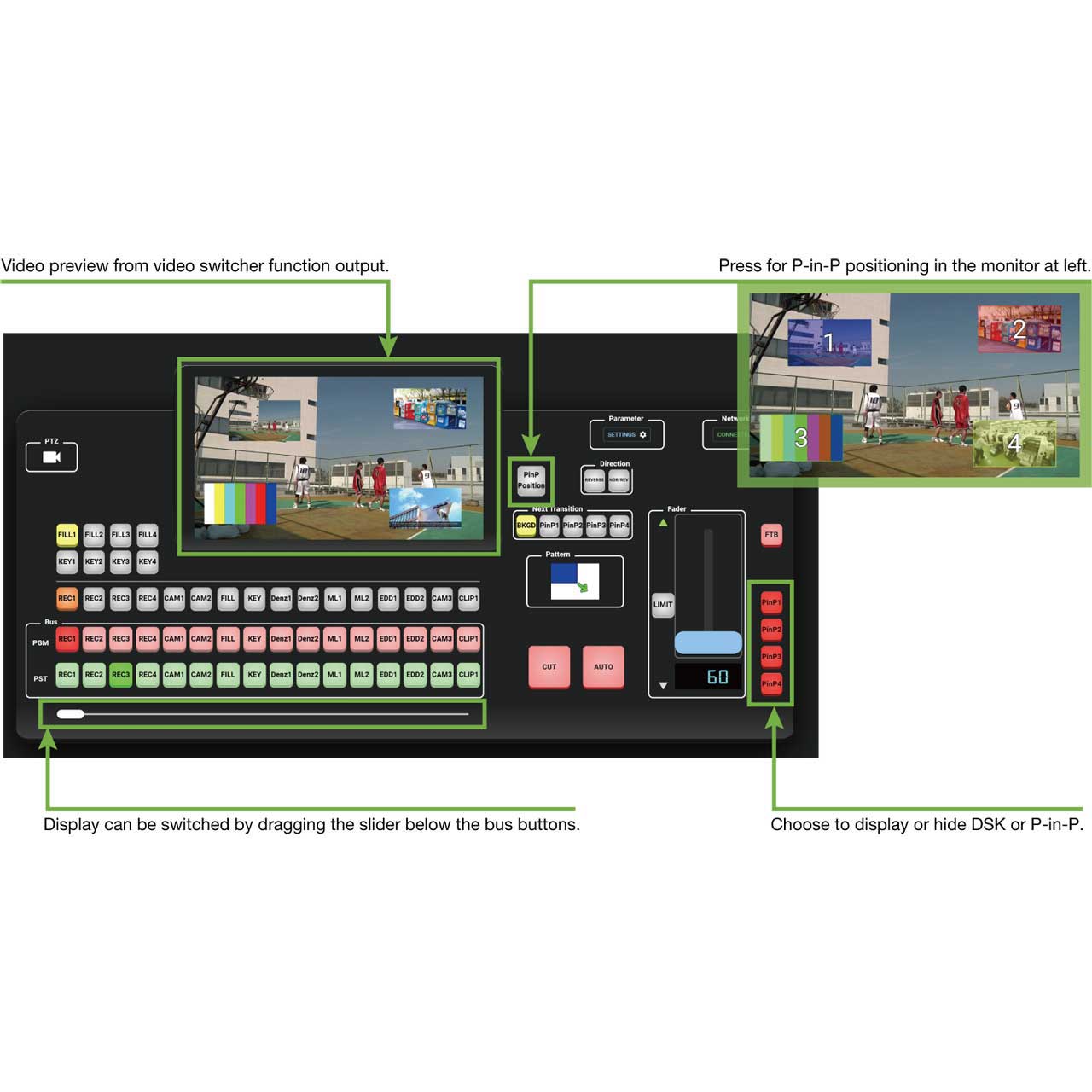

  • Software control panel MFR-CTSP
  • NDI®and NDI®|HX Supported (MFR-31VP)
  • Video streaming function (MFR-31VP)
  • SSD storage function (MFR-31VP)
  • Browser-based multi viewer

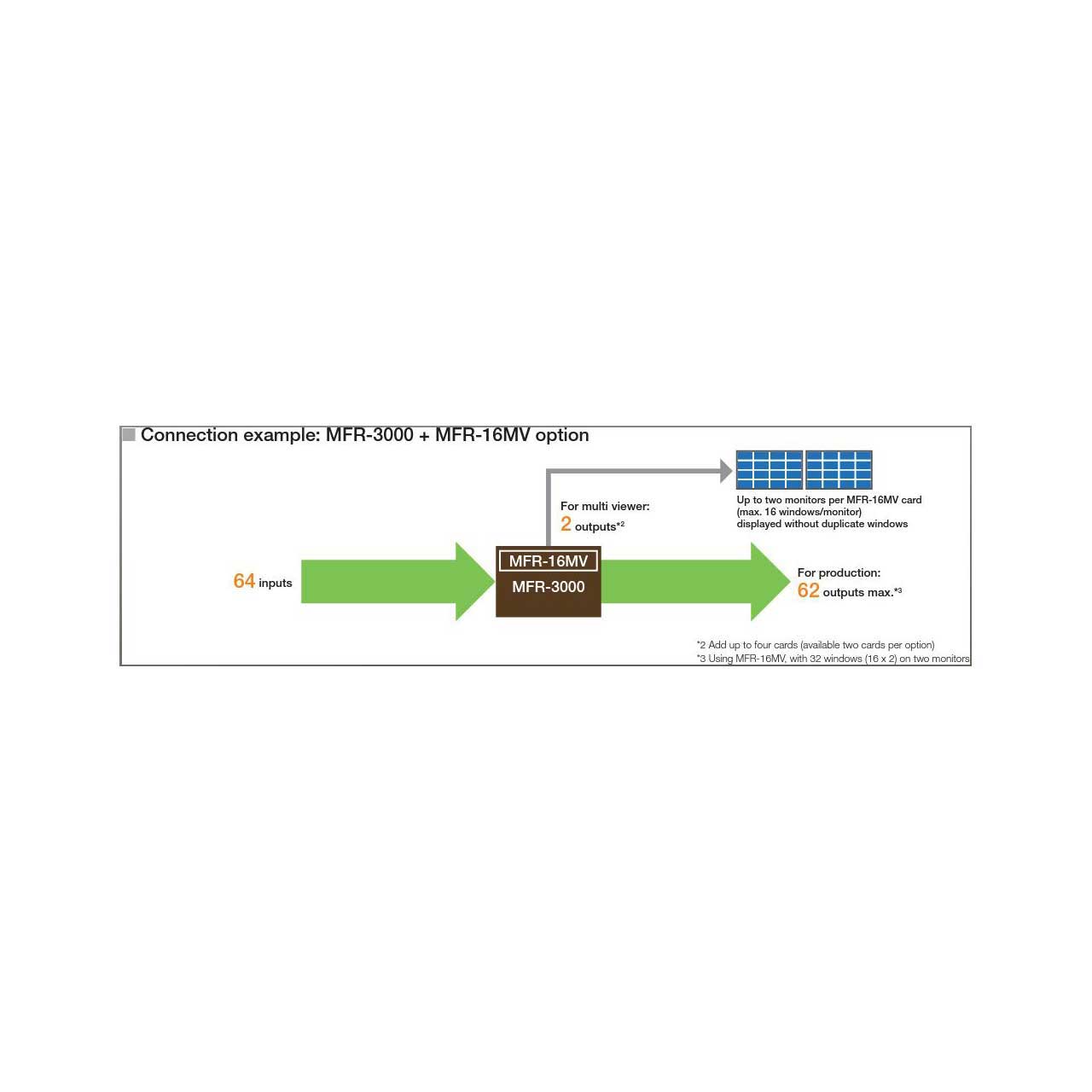

  • MFR-16MV
  • Multi-format video input and output, and MUX and DEMUX audio are available
  • Connectivity with other products
  • GUI-based configuration
  • MFR-LAN
  • Outstanding redundancy


• Specifications:

  • Temperature/ Humidity: 0°C to 40°C/ 30% to 85% (no condensation)
  • Power: 100VAC to 240VAC ±10%, 50/60Hz IN x 2 (MFR-31PS required for redundant power configuration)
  • Consumption: 671VA (661W) at 100 - 120VAC 608VA (510W) at 220 - 240VAC
  • Dimensions (WxHxD): 430 x 177 x 400mm (16.93 x 6.97 x 15.75in) EIA 4RU
  • Width including rack mount brackets: 18.98in
  • Weight: 25kg (55.12lbs) (with full options)

    Video Formats:
  • UHD 4K (12G-SDI) (3G-SDI): 2160p / 59.94, 50 (With MFR-8SDIGB/ 8SDOGB); Single Link 12G-SDI (SMPTE ST 2082-10); Quad Link 3G-SDI (SMPTE ST 425-5)
  • HD (3G-SDI): 1080p / 60, 59.94, 50 (SMPTE 424M)
  • HD (HD-SDI): 1080i / 60, 59.94, 50; 1080p / 30, 29.97, 23.98, 25, 24; 1080PsF / 30, 29.97, 23.98, 25, 24; 720p / 60, 59.94, 50 (SMPTE 292M)
  • SD (SD-SDI): 525/59.94i, 625/50i (SMPTE 259M) (With MFR-8SDI/ 8SDO)
  • DVB-ASI: Compliant to EN 50083-9 (MFR-8SDI/ 8SDO)


  • Matrix Size: Min. 8 x 8 to Max. 64 x 72 (Max. logical matrix: 512 x 512)
  • Number of input slots: 8
  • Number of output slots: 9 (Expandable on an 8-channel basis)
