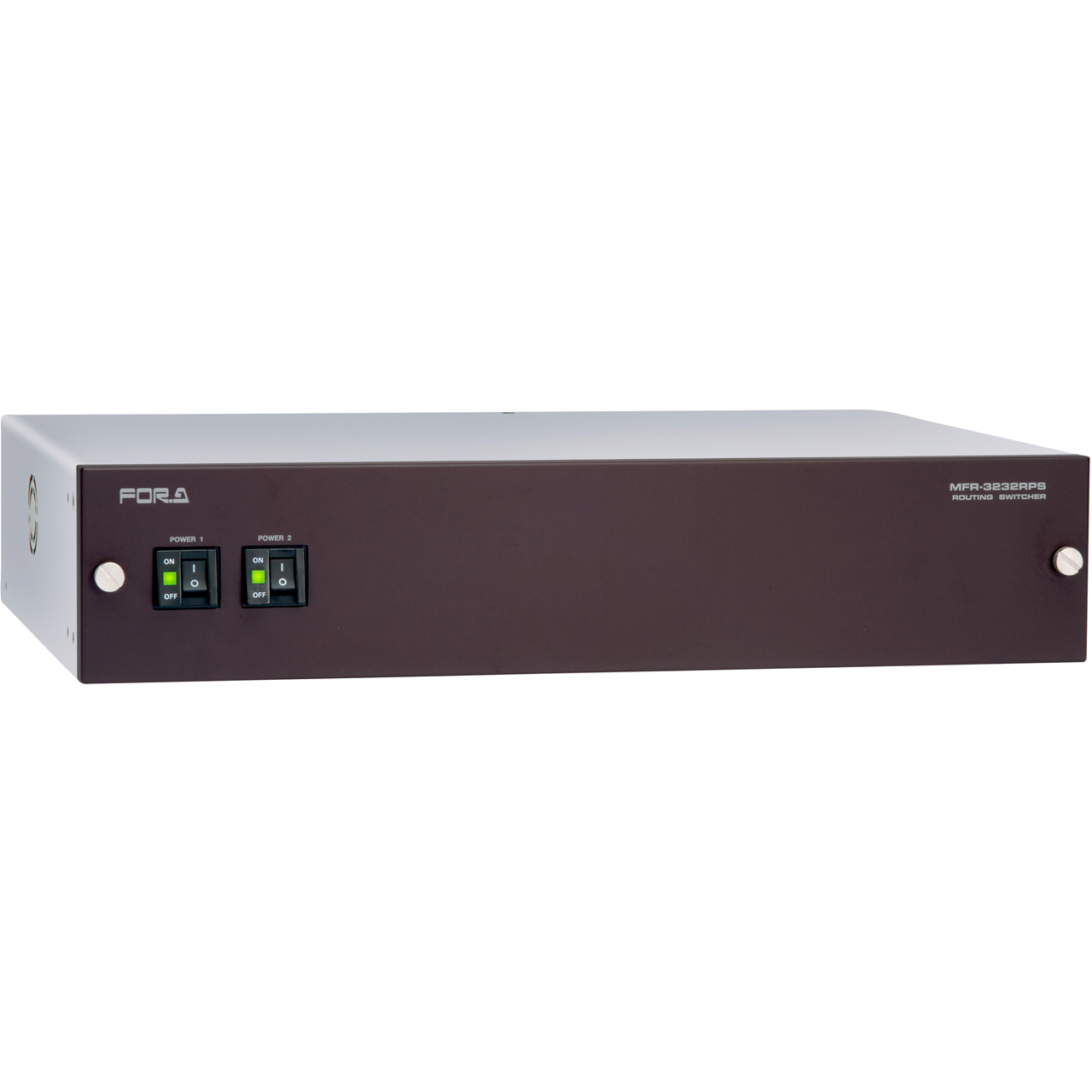

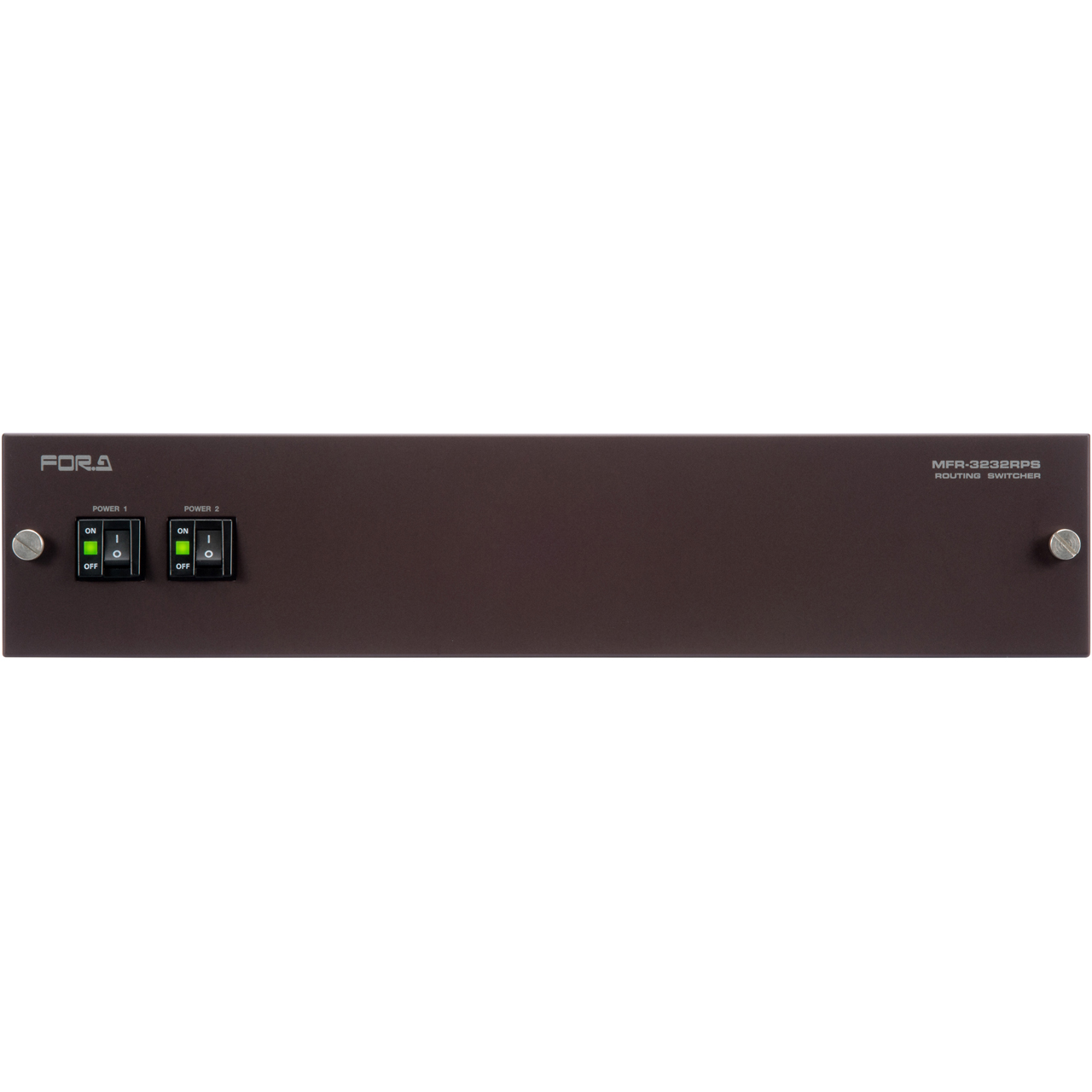

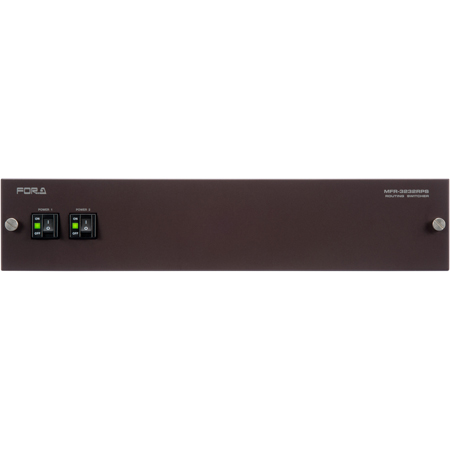

Multi-format routing switchers that support 3G-SDI, HD-SDI, SD-SDI, ASI, and AES signals. FOR-A features five models, each with a different number of inputs and outputs. Optimal for small- and medium-scale systems and despite their compact cabinet size, these models inherit various, proven MFR-5000 Series functions such as the interface function for multi-link synced operation and tally and automatic source name tracking connections with peripheral devices (video switchers and multi-viewers).
Multi-format support
3G-SDI, HD-SDI, SD-SDI and ASI input and output support provide automatic signal recognition, allowing you to perform your operation irregardless of the signal type. AES signal supporting model MFR-1616A is also provided.
Aside from ordinary crosspoint switching, supports various crosspoint control formats/functions
Salvo function: Button assigning type, Main unit storage type
Take operation: Mode-switching Take button, Always Take button
Link function
Level operation
Chop function
Incorrect operation deterrence:
Inhibition: Crosspoint, Source, Destination
Lock: Lock Other, Lock All, Lock Local
All models come equipped with a built-in Web server, enabling external control via browser.
System construction with FOR-A video switchers and multi-viewers
System proposals that include FOR-A video switchers and multi-viewers and third-party manufacturer products (protocols: TSL, HARRIS).
SNMP remote monitoring support
All models support SNMP remote monitoring, for integration into an SNMP monitoring system. You can monitor various function states such as crosspoint errors, presence of SDI signal input/output, as well as power source, fan and CPU states.
4K Capablity (SDI, ASI supporting model)
Capable of 4K signal switching with four 3G-SDI inputs.
Various integrated redundancy technologies and functions enhance core routing switcher capability.
Redundant CPU board MFR-SRCPU (option): A secondary CPU board constantly monitors and immediately switches primary board operation, when trouble occurs, to the secondary board to continue functions with no downtime.
Redundant power source MFR-SRPS (option): Dual power units allow flexible response to power unit and power supply trouble.
