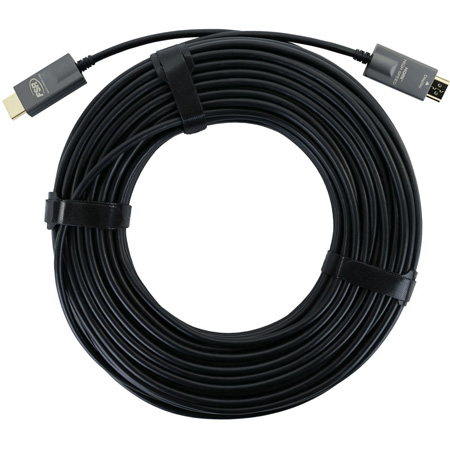

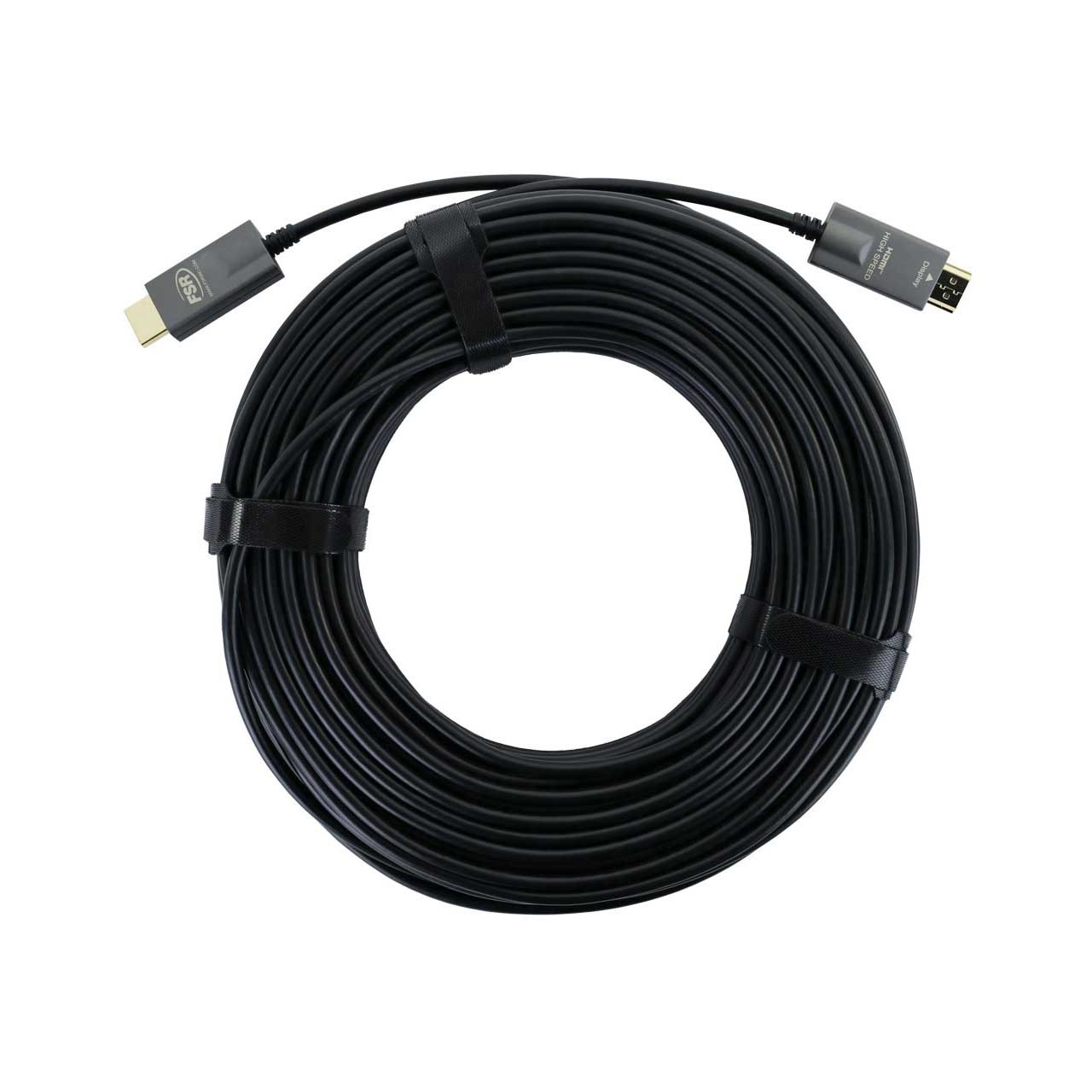

The FSR DR-H2.0 Next Generation Digital Ribbon Cables utilize a proprietary technology to allow high speed and high definition HDMI signal transmission over distances of up to 328 ft. The cable is fitted with a discreet black jacket that allows the cable to seamlessly blend in after installation. The Next Generation cables are Plenum Rated, giving you protection and high quality packaged together.
The Next Gen cables can easily handle up to 4k 60Hz 4:4:4 HDR uncompressed HDMI video and are ARC compatible. The cables meet HDMI 2.0 and HDCP 2.2 testing standards and support DDC for HDCP and EDID, PCM, Dolby, DTS-HD, and True HD Audio.

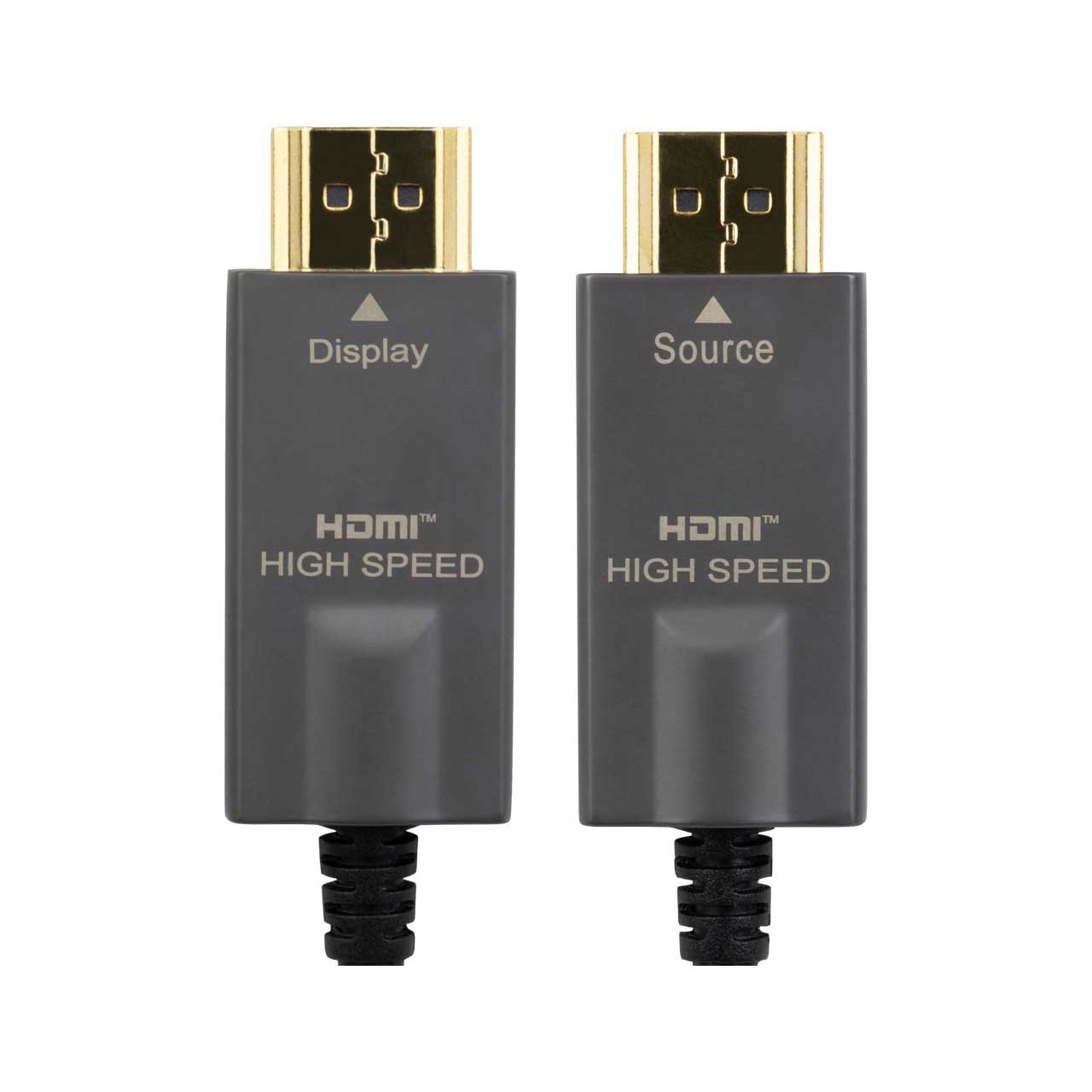

The connector shells are labeled "source" and "display" to aid in proper connection during the installation. Both the cable and connector were designed to easily fit within a 1" conduit.
The hybrid fiber/copper cables deliver a speed of 18 Gb/sec video bandwidth. These advanced technology doesn't stop there with the use of four glass fibers, seven copper wires supply the necessary power to the embedded circuitry at both ends of the cable - saving space and money.
