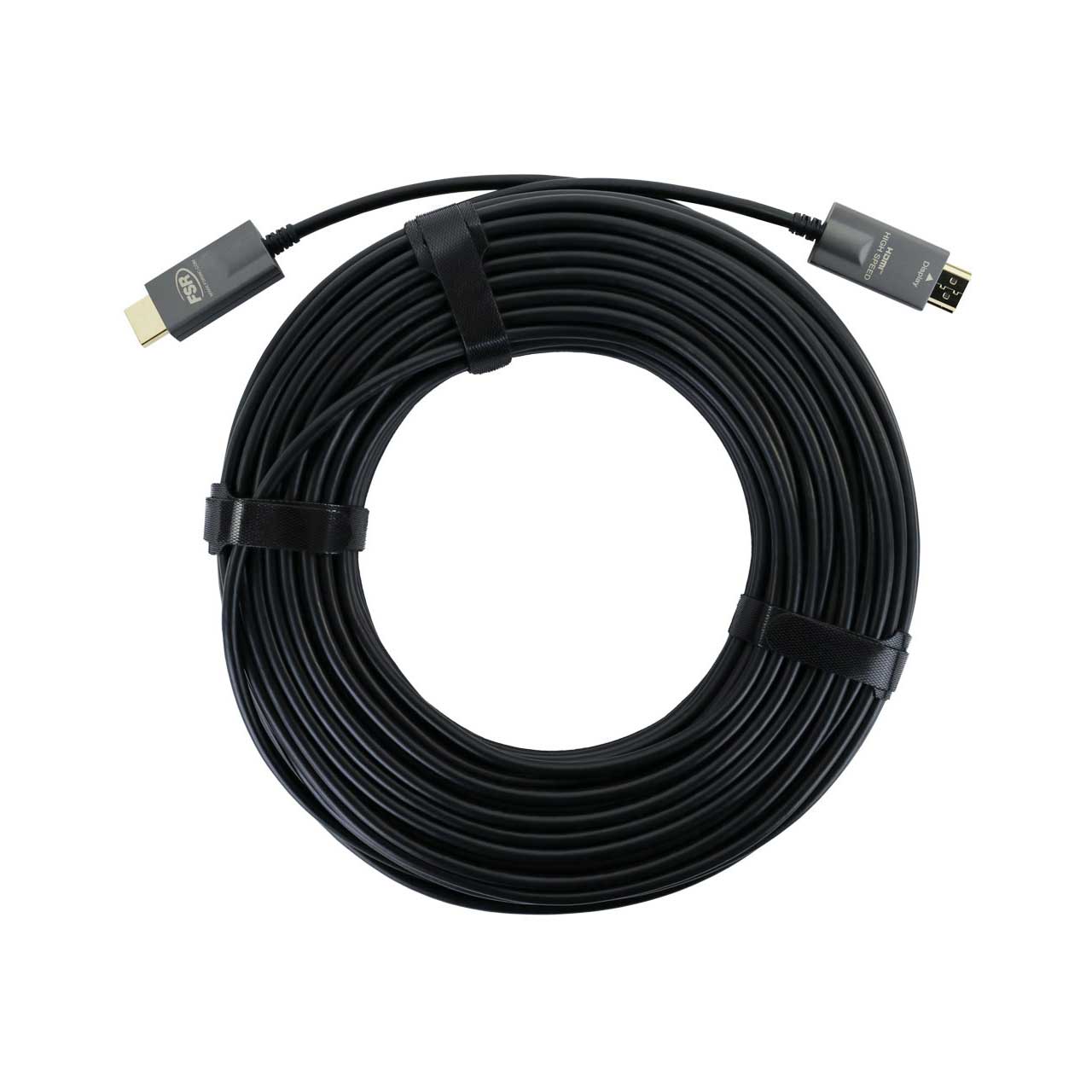

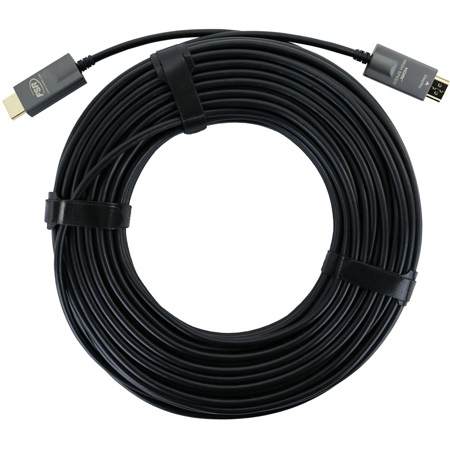

FSR DR-H2.0-SR-50M Black AOC Cable - SS Reinforced HDMI 2.0 Male to HDMI 2.0 Male - 185 Feet (50 Meter)

ITEM #: FSR-DRH20SR50M MFG #: 18171

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$619.00

Our Price:

$502.95

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


18171 - Overview

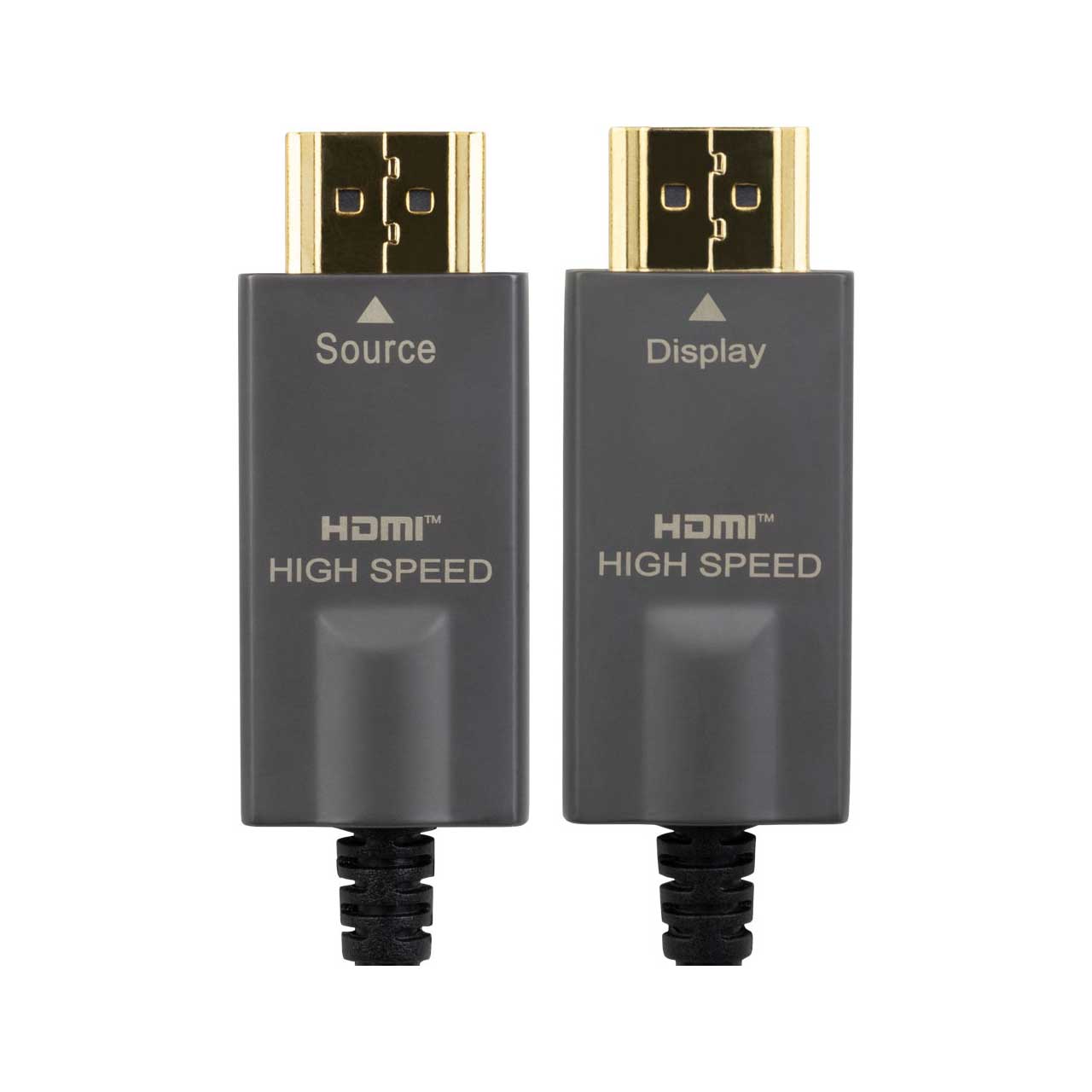

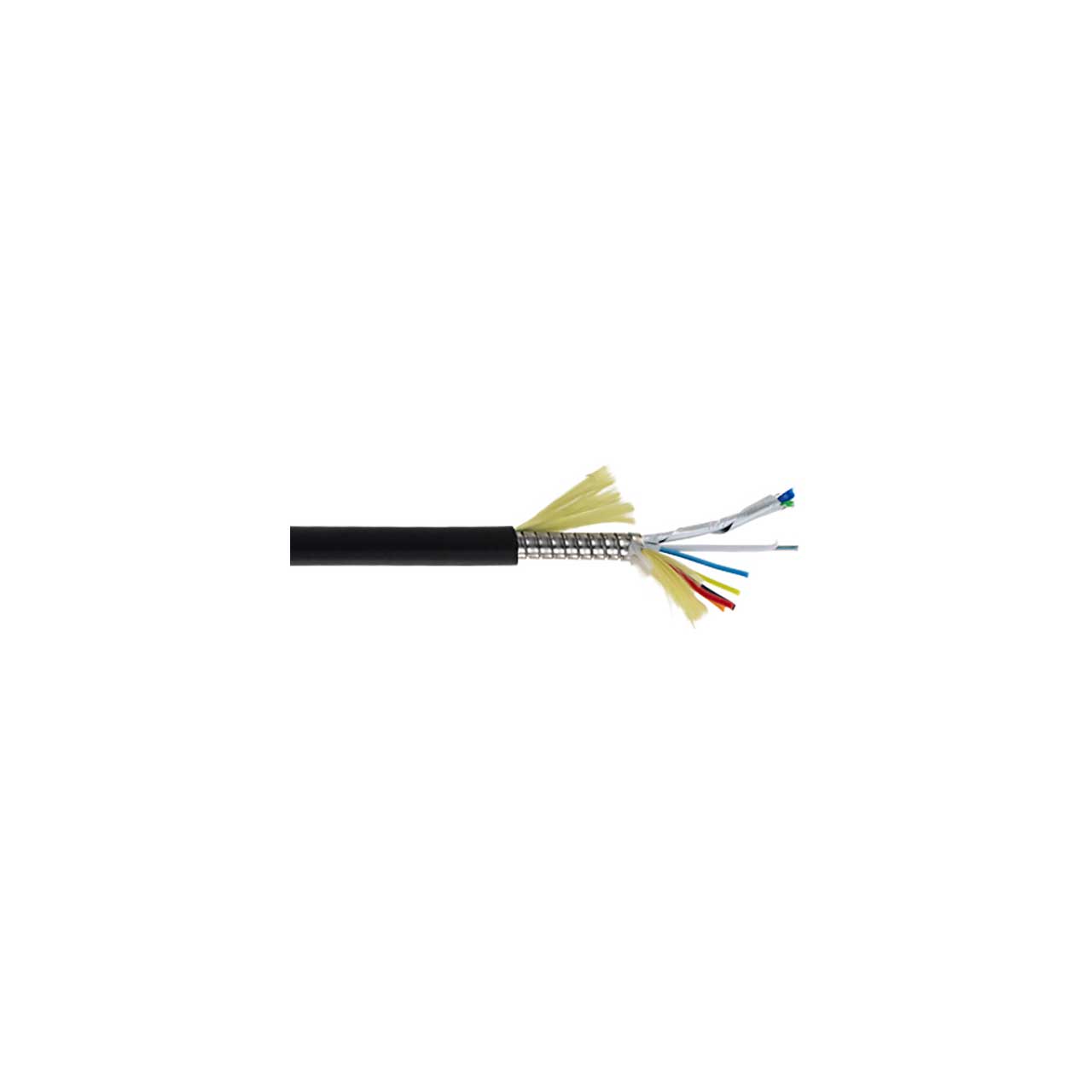

FSR's Next Generation DR-H2.0-SR Digital Ribbon Cables utilize a proprietary technology to allow high speed, high definition HDMI signal transmission over distances of up to 328 ft. This durable cable is fitted with a discreet stainless steel reinforced inner jacket and an outer black jacket that allows the cable to withstand rough service during and to blend in after installation. The hybrid fiber/copper cables deliver a speed of 18 Gb/sec video bandwidth. They can easily handle up to 4k 60Hz 4:4:4 HDR uncompressed HDMI video and are ARC compatible. The cables come pre-terminated in convenient lengths. These advanced technology cables use four glass fibers, seven copper wires and supply the necessary power to the embedded circuitry at both ends of the cable. They meet the HDMI 2.0 / HDCP 2.2 testing standards. The connector shells are labeled "source" and "display" to aid in proper connections.

  • Features:

    • Stainless steel reinforced construction
    • Enhanced pull strength of 100 lbs.
    • Suitable for Rough Service. Short term load limit of 2000N/100mm (450lbs./4")
    • HDMI 2.0 with 4k@60Hz YUV 4:4:4 and HDCP 2.2 compliance
    • Overcomes distance limitations of conventional HDMI cables
    • Competitive in cost to older cable types
    • Signal integrity is uncompromised
    • Multi format compatibility
    • No external power or special tooling required
    • Cable and connectors easily fit within a 1" conduit
    • Plenum Rated - Type CMP/FT6
    • Supports DDC for HDCP and EDID
    • Supports PCM, Dolby, DTS-HD & True HD audio
    • ARC compatible

  • Specifications:

    • Performance Characteristics
    • Video Connectors: Male HDMI
    • Maximum Length: 328' (100 meters)
    • Cable Dimensions: 165 Feet (50 Meters)
    • UL Listing: CMP/FT6
    • Compliance: RoHS, UL444, CSA C22.2 No. 214, UL 746A
    • HDMI Cable Type: High-Speed HDMI
    • Total Power Consumption: 0.25 Watts
    • Endurance at Bend Radius: Over 10k cycles at 2" (50 mm) Radius
    • Minimum Bend Radius: 0.5" (12.7mm)
    • Maximum Tensile Load: 100 lbs.

      Environmental Performance
    • Operating Temperature Range +32° F to +122° F (0 ° to +50°C)
    • Maximum Operating Humidity 85%
    • Storage Temperature Range -22° to +122° F (-30° to +50°C)
