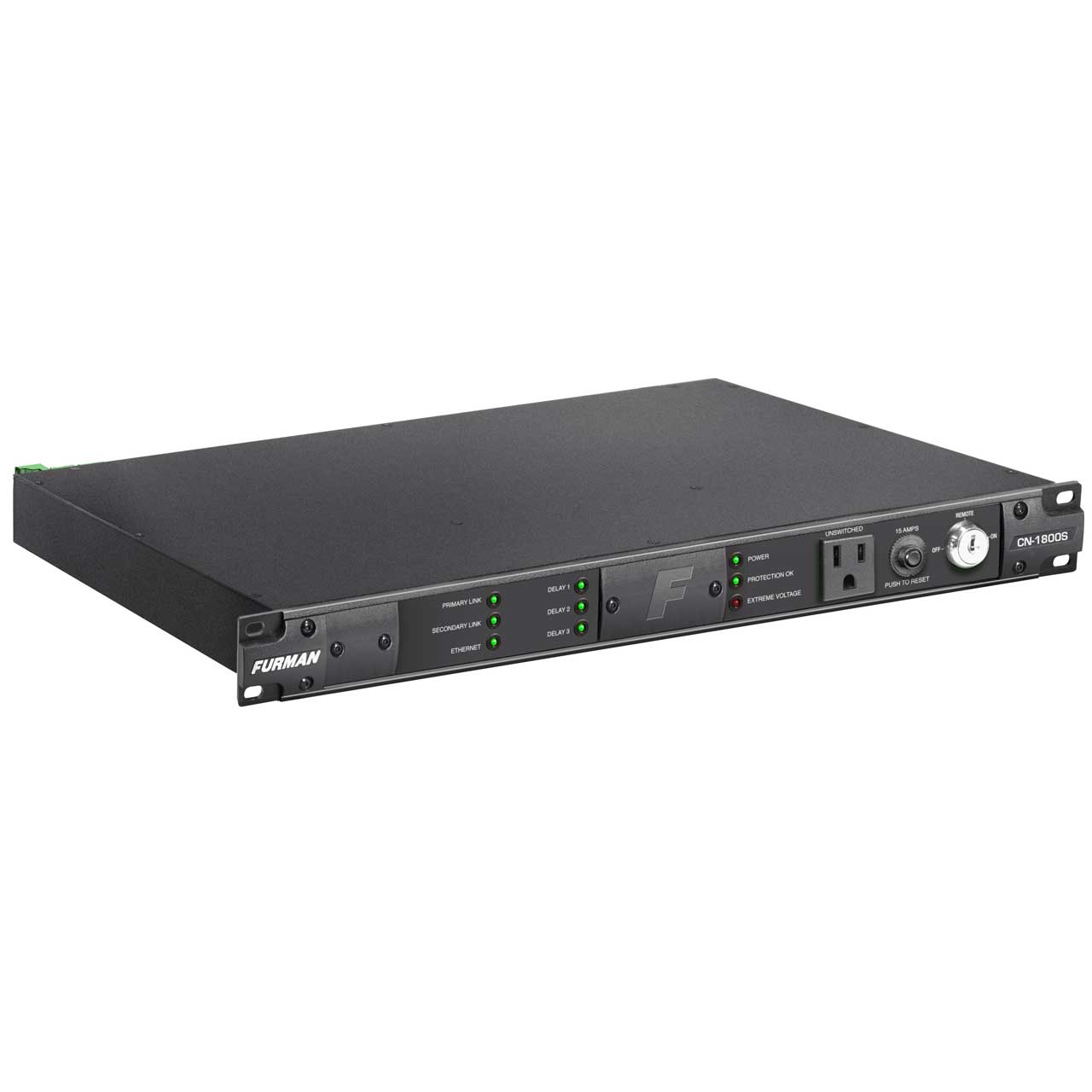

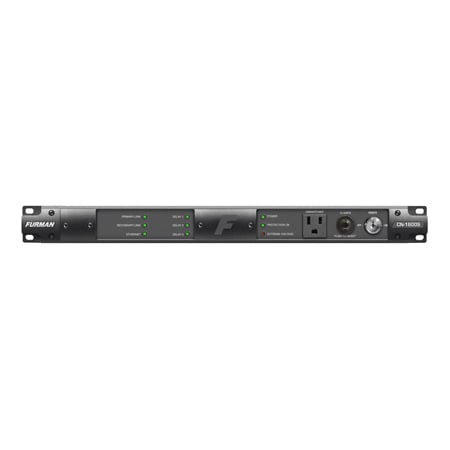

Furman CN-1800S 1 RU 15 Amp Remote Smart Sequencer W/SMP - Auto Reset 10Ft Cord

ITEM #: FUR-CN-1800S MFG #: CN-1800S

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Furman
Free Shipping with $49 Minimum Order

List Price:

$839.95

Our Price:

$550.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • This item is not returnable. See Terms & Conditions for details.
Report Lower PriceLarge Quantity Quote

CN-1800S - Overview

SmartSequencing technology allows large and complex A/V systems to be safely powered on and off with a simple press of a button or turn of a key - even by non-technical personnel. SmartSequencing's bidirectional communications between installed units enables a primary unit to control and sequence multiple secondary units, ensuring multi-zone electronic systems are powered on and off safely and dependably across an entire installation. Units can be connected via current loop at runs of more than 1,000 feet with full backwards compatibility with Furman's legacy sequencers or a wide variety of third party products.

Providing robust control options, the CN-1800S (15 amp) supports RS-232 communication with command sets for integration with control systems. An optional RS-232-to-Ethernet adaptor (sold separately) adds full IP-addressability to the unit, allowing it to be controlled, programmed, and monitored from a smartphone, tablet, PC, or any Web-enabled device via Telnet, direct HTTP connection, or Panamax/Furman's BlueBOLT-hosted remote power and energy management platform.

  • Features:

    • SmartSequencing Technology allows large or complex A/V systems to be safely powered on and off with the simple press of a button or key turn.
    • Series Multi-Stage Protection (SMP) ensures zero downtime for mission critical installations by safely eliminating dangerous surges & spikes.
    • Extreme Voltage Shutdown (EVS) safeguards from catastrophic under and over voltage conditions.
    • Linear Filtering Technology (LiFT) ensures maximum equipment performance by reducing AC noise in a linear fashion across a wide-bandwidth spectrum.
    • 15 amp capacity.


  • Specifications:

    • AC Voltage Input Range: 90-139VAC, 50/60Hz
    • Maximum AC Current Rating: 15 amps (Thermal breaker)
    • AC Cord: 3/14AWG, 10 feet, black, fixed, NEMA 5-15P plug
    • AC Receptacles

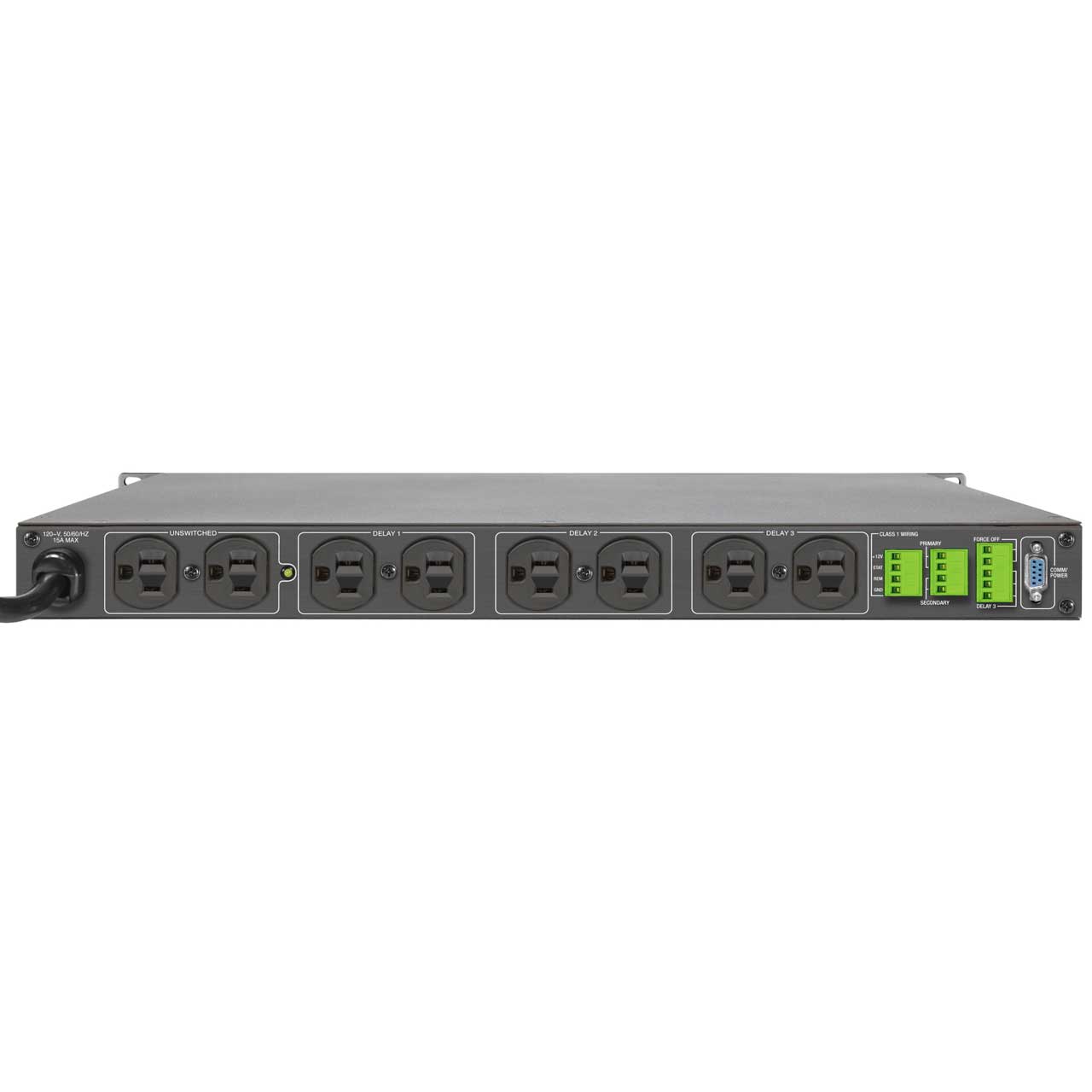

    • Rear Panel Outlets: 2 Unswitched NEMA 5 15R's (1 duplex), 6 Sequenced NEMA 5-15R's (3 duplexes each controlled by separate relay)
    • Front Panel: One NEMA 5-15R Convenience Outlet, Unswitched
    • Surge/Under-Overvoltage Protection
    • AC Surge Protection: SMP
    • Spike Protection Mode: Line to neutral, zero ground leakage
    • Spike Clamping Voltage: 188VAC peak @ 6,000 volts/3,000 amps
    • Response Time: 1 nanosecond
    • Maximum Surge Current: 6,500 Amps
    • AC Undervoltage Protection: EVS, 77VAC+/-3VAC
    • AC Overvoltage Protection: EVS, 145VAC+/-5VAC
    • AC Overvoltage Reset Modes: Manual and Auto-reset (configurable)
    • AC Filtering
    • LiFT
    • Noise Attenuation: Linear, 10dB @10KHz, 40dB@100KHz, 50dB@500KHz
    • Operating Temperature Range
    • 5C (40F) to 40C (105F) degrees
    • Humidity Range: <90% rH (Relative Humidity)
    • User Interface
    • Key-switch: Front panel, 3-position key-switch (On, Off, Remote)
    • Keys: Included, 1 pair
    • Push-button Switch: Front panel, hidden by security cover
    • Circuit Breaker: Front panel, push-button, 15A Thermal Breaker

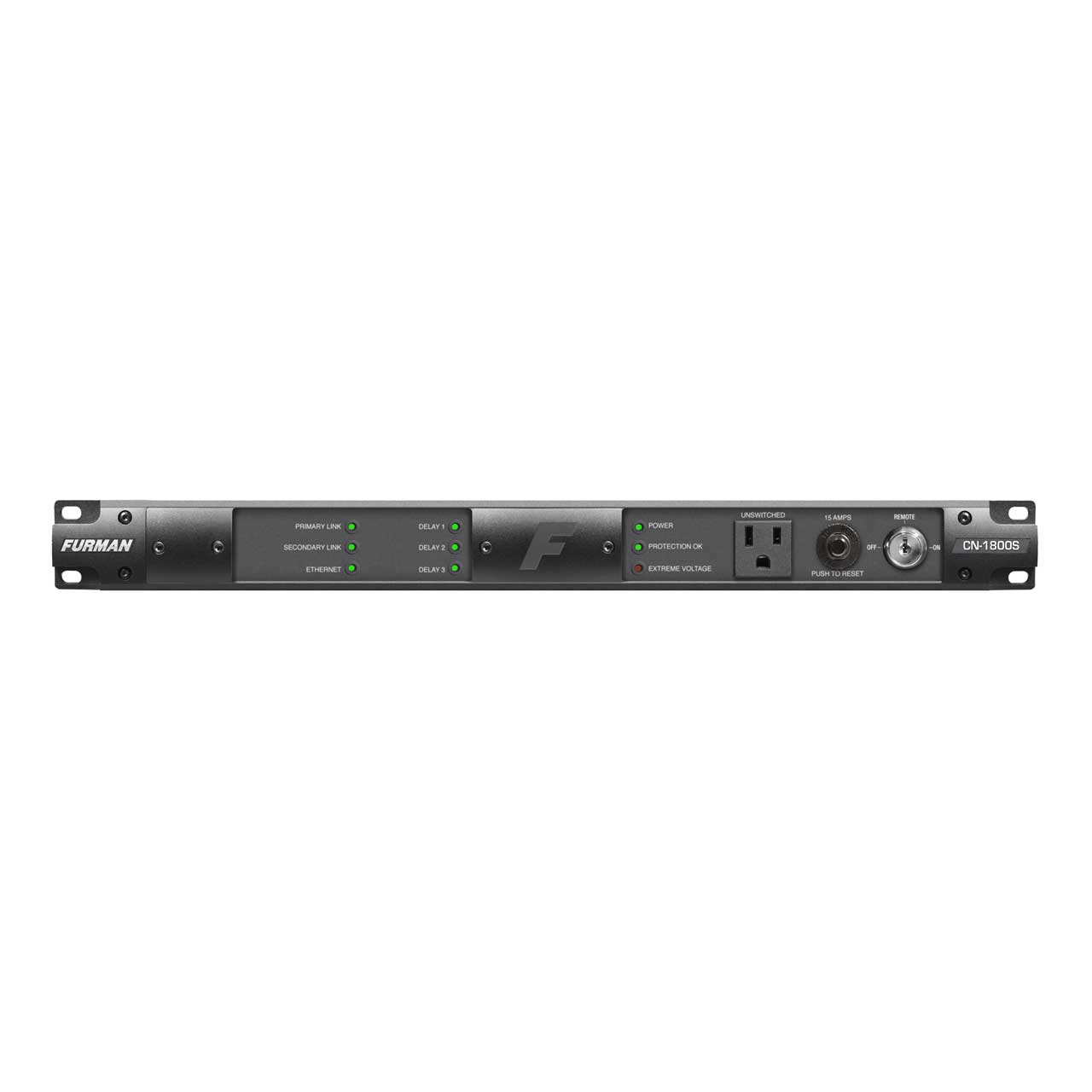

    • Front panel diagnostic indicators: Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage

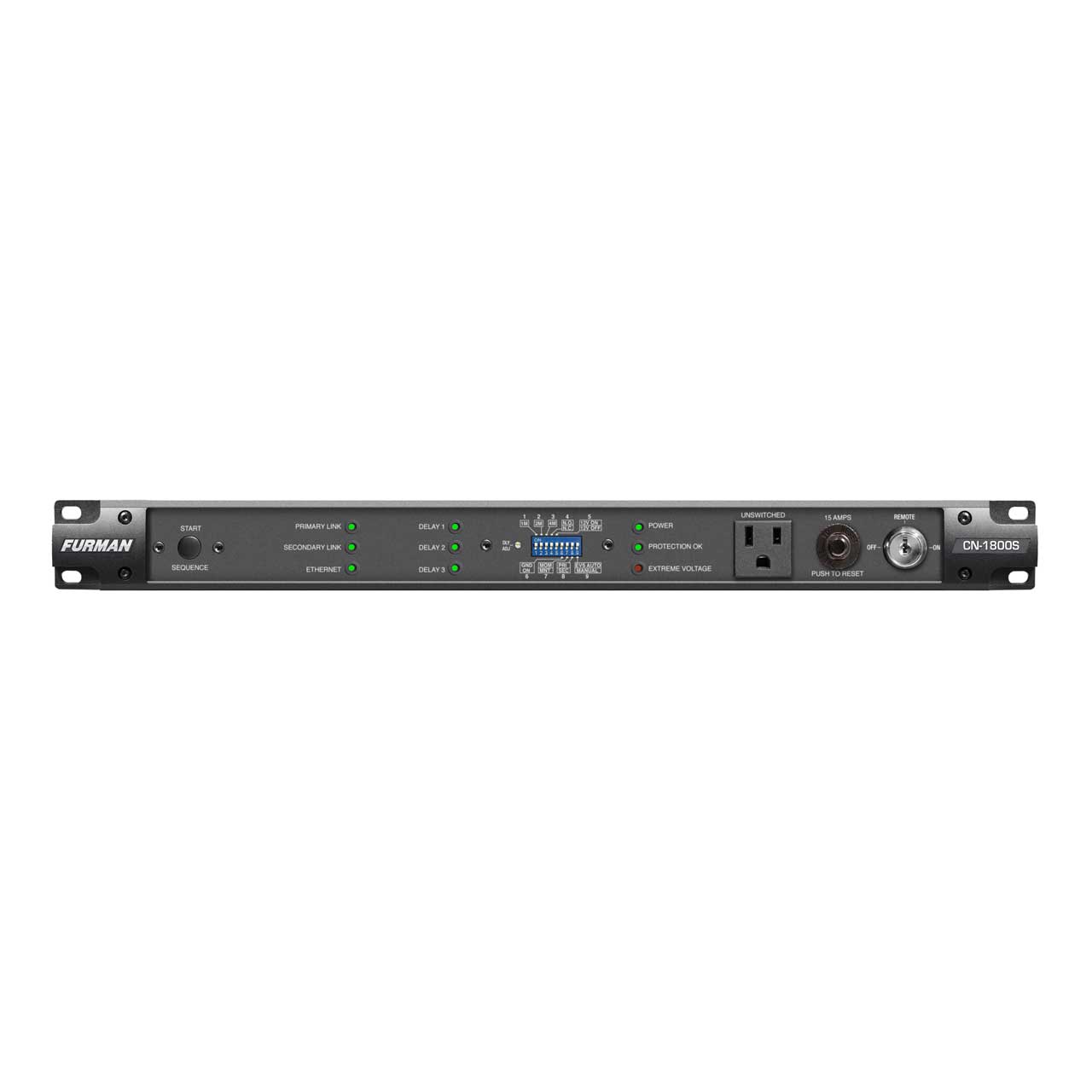

    • Front Panel DIP Switches: Front panel. Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off BND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual
    • Potentiometer: Front panel, hidden by security cover, fine tune delay adjust
    • Control/Status/Triggering (Rear Panel):
    • Remote Terminal: +5-30VDC In, 12VDC (12mA) Out
    • SmartSequencing: Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop - 1000' nominal)
    • Remote Terminal: Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)
    • Force Off/Delay 3 Terminal: Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring)
    • RS-232 Compatible: Yes, DB-9 Connector
    • IP Addressability: Optional, via BB-RS232 Ethernet/RS-232 Adapter (sold separately) for IP control via Telnet, HTTP, BlueBOLTr
    • Voltmeter: Available with RS-232/Ethernet option, ± 2VAC accuracy
    • Ammeter: Available with RS-232/Ethernet option, ±1A accuracy
    • Power Consumption (No Load): 10 Watts
    • Safety Agency: NRTL-C, RoHS Compliant


  • GTIN:

    0654061028451
