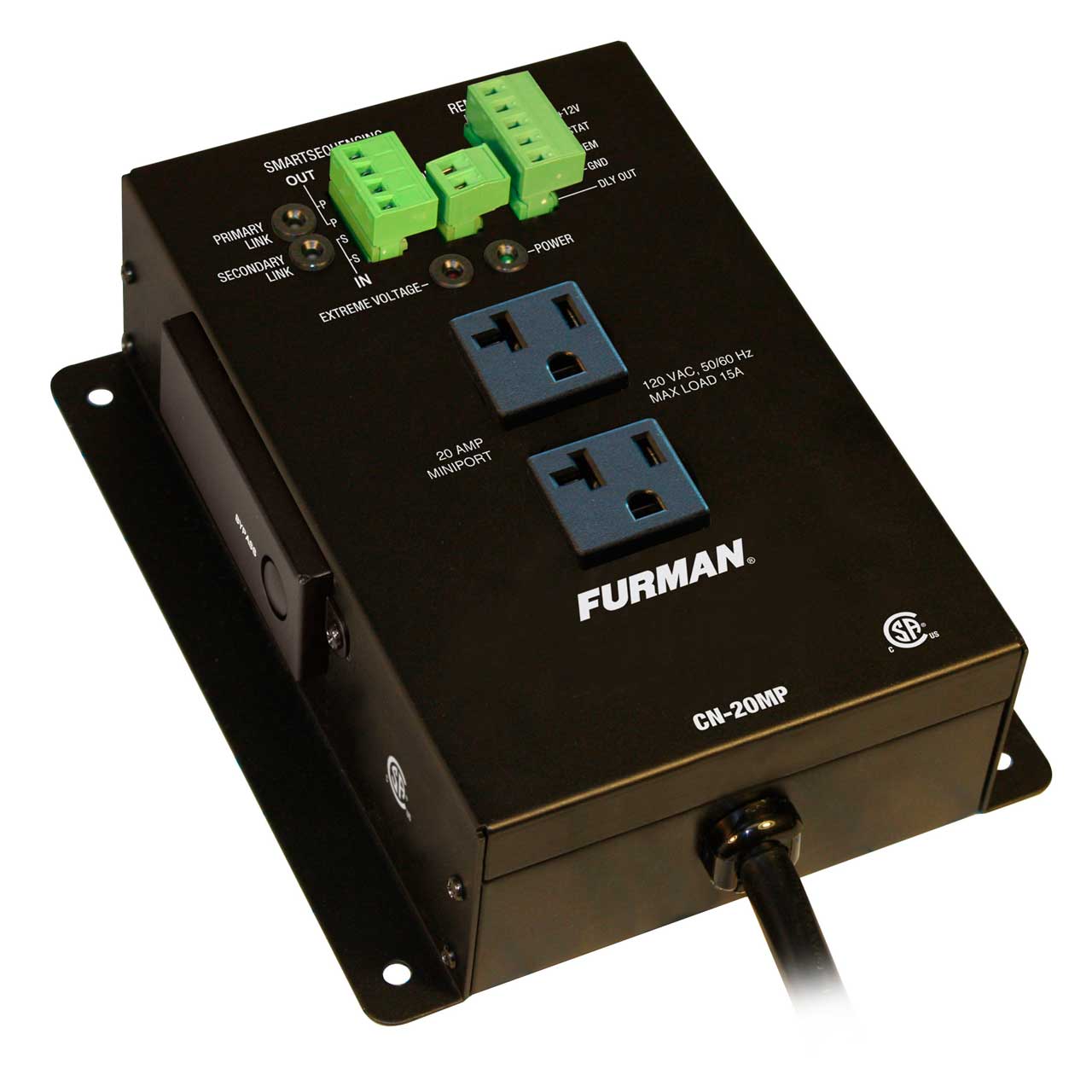

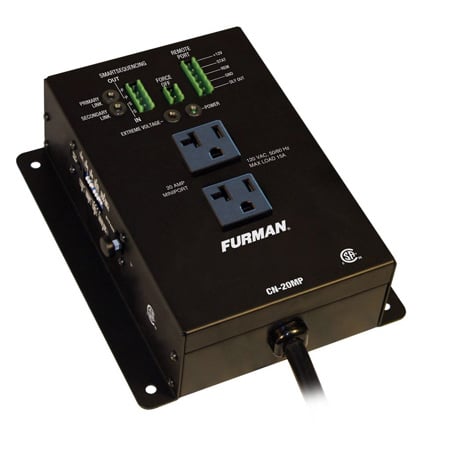

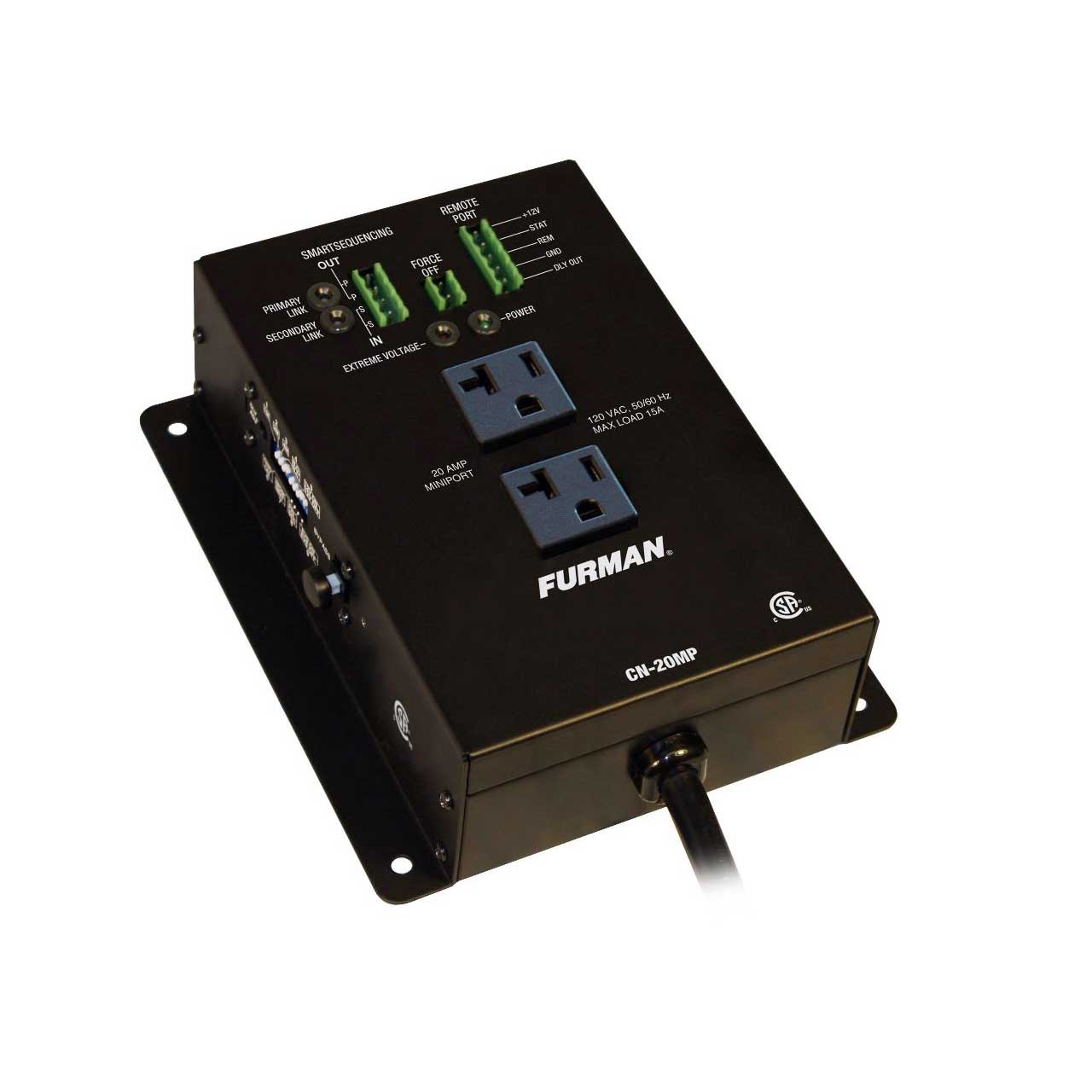

Furman CN-20MP Contractor Series 20 Amp Miniport

ITEM #: FUR-CNMP20 MFG #: CN-20MP

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Furman
Free Shipping with $49 Minimum Order

List Price:

$414.95

Our Price:

$239.99

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

CN-20MP - Overview

Furman's Contractor Series MiniPorts extend the benefits of SmartSequencing to electronics outside of the equipment rack, providing tremendous flexibility to any installation scenario. Units may be daisy-chained and fully controlled via a Furman SmartSequencer, legacy Furman sequencer, third-party sequencers, via the Internet (with BB-RS232 adaptor and SmartSequencer), and/or control and automation systems.

DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches.

Sequencing of duplex initiated remotely by standard analog triggering (remote terminal) or data link (SmartSequencing from CN-1800S or CN-2400S).

The CN-20MP can shut itself off automatically when triggered by a fire alarm.

  • Specifications:

    • AC Voltage Input Range
    • 90-139VAC, 50/60Hz
    • Maximum AC Current Rating
    • 20 Amps (No Breaker)
    • AC Cord
    • 3/12AWG, 10 feet, black, fixed, NEMA 5-20P plug
    • AC Receptacles
    • 2 NEMA 5-20R's (1 duplex)
    • Surge/Under-Overvoltage Protection
    • AC Undervoltage Protection: EVS, 77VAC+/-3VAC
    • AC Overvoltage Protection: EVS, 140VAC+/-5VAC
    • AC Overvoltage Reset Modes: Enabled and disabled (configurable via DIP Switch #9)
    • Operating Temperature Range
    • 5C (40F) to 40C (105F) degrees
    • Humidity Range
    • <90% rH (Relative Humidity)
    • User Interface:
    • Circuit Breaker: No Breaker
    • Front panel diagnostic indicators (LED): Power, Extreme Voltage, Primary Link, Secondary Link

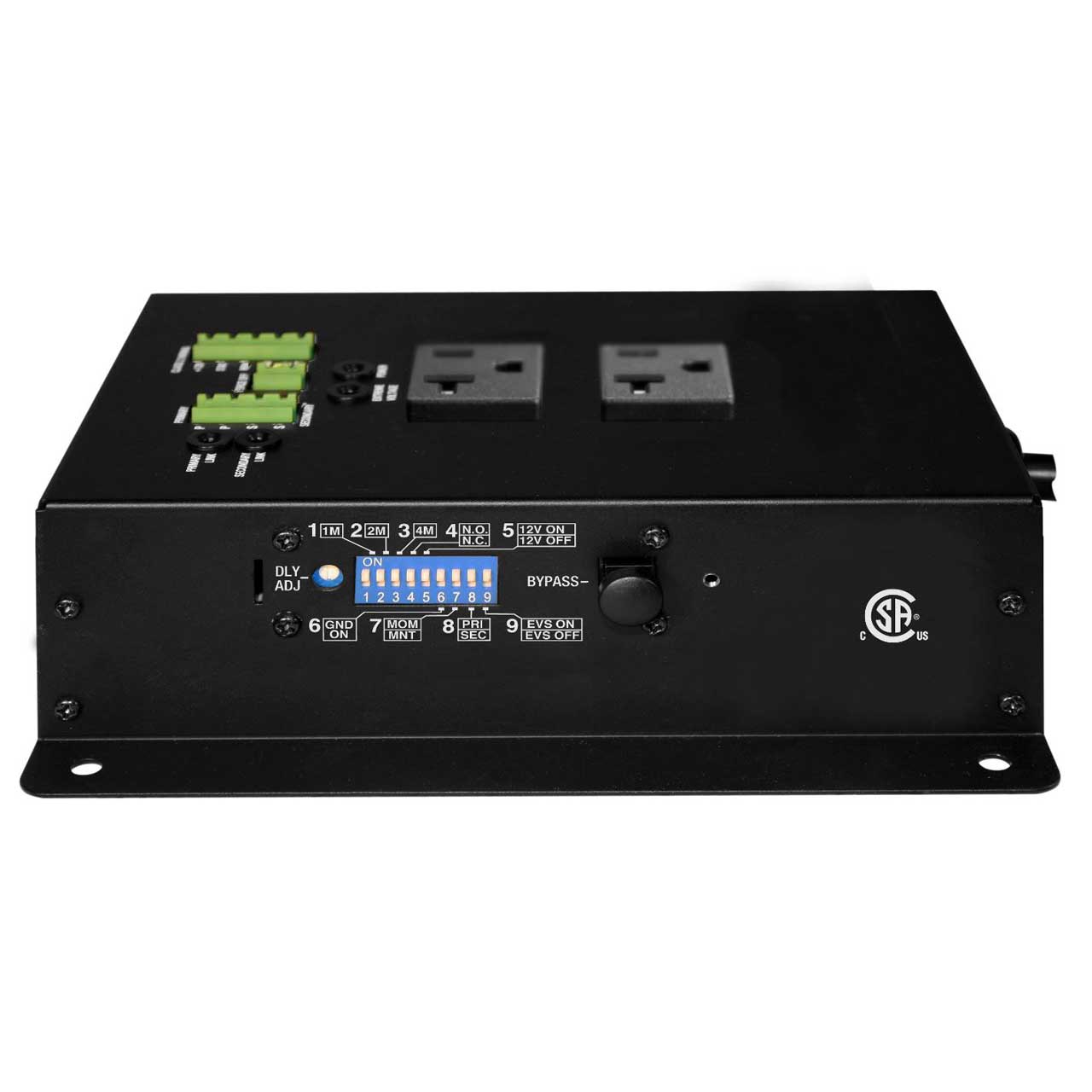

    • Side Panel DIP Switch Features (with security cover): 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off GND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual
    • Side Panel Potentiometer allows fine tune delay adjustments
    • Control/Status/Triggering (Rear Panel):
    • Remote Terminal: +5-30VDC In, 12VDC (12mA) Out
    • SmartSequencing: Phoenix-type 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop - 1000' nominal)
    • Remote Terminal: Phoenix-type 5-Pin Connector With Screw Terminals; +12V, STAT, REM, GND, DLY_OUT (Class 1 Wiring)
    • Force Off: Phoenix-type 2-Pin Connector With Screw Terminals, FORCE OFF (Class 1 Wiring)
    • IP Accessibility: Optional IP control via Telnet, HTTP, or BlueBOLTr when used in conjunction with SmartSequencing.
    • Voltmeter: Available with SmartSequencing Ethernet option, ± 2VAC accuracy
    • Ammeter: Available with SmartSequencing Ethernet option, ±1A accuracy
    • Power Consumption (No Load):
    • 10 Watts
    • Safety Agency:
    • CSA, RoHS Compliant


  • GTIN:

    0654061028482
