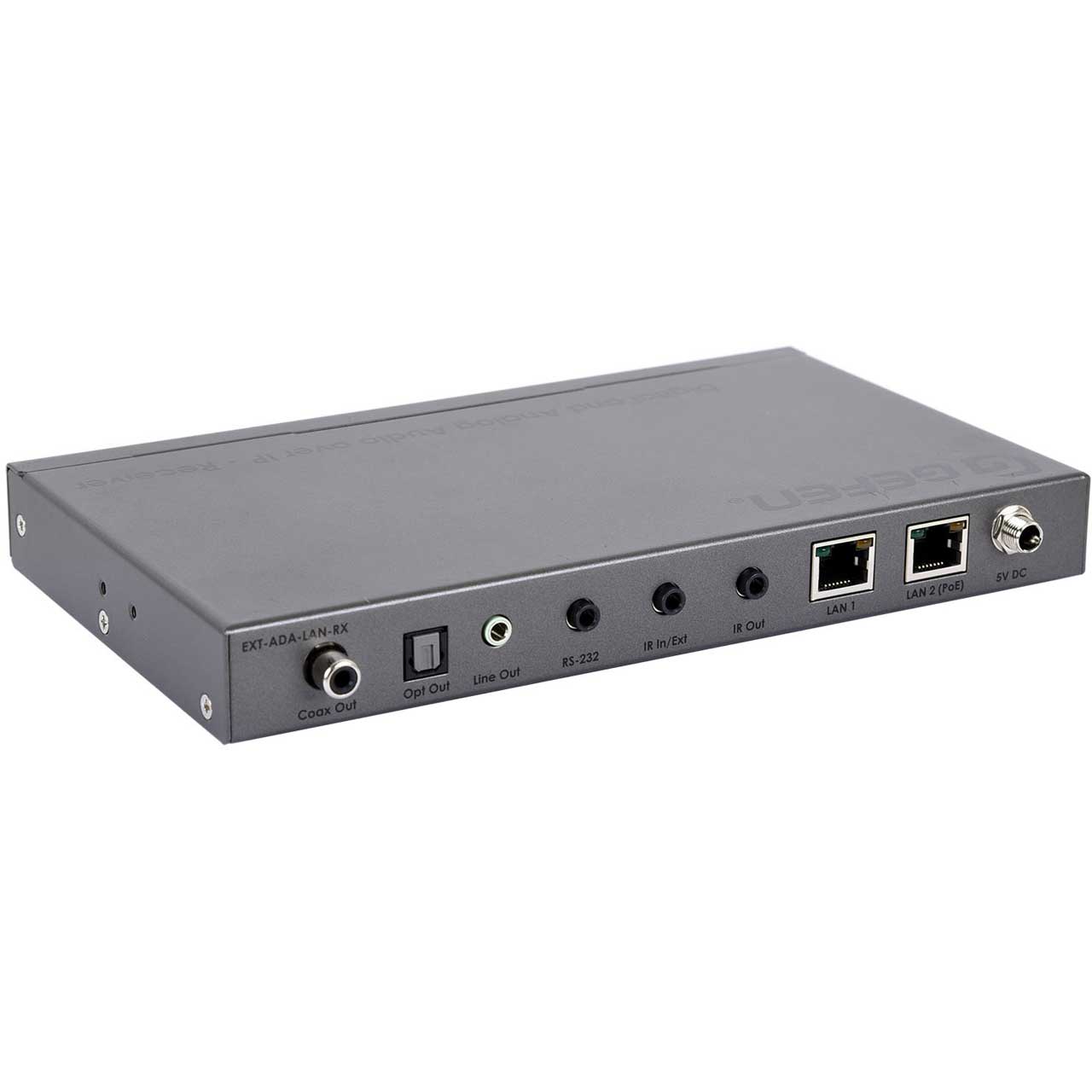

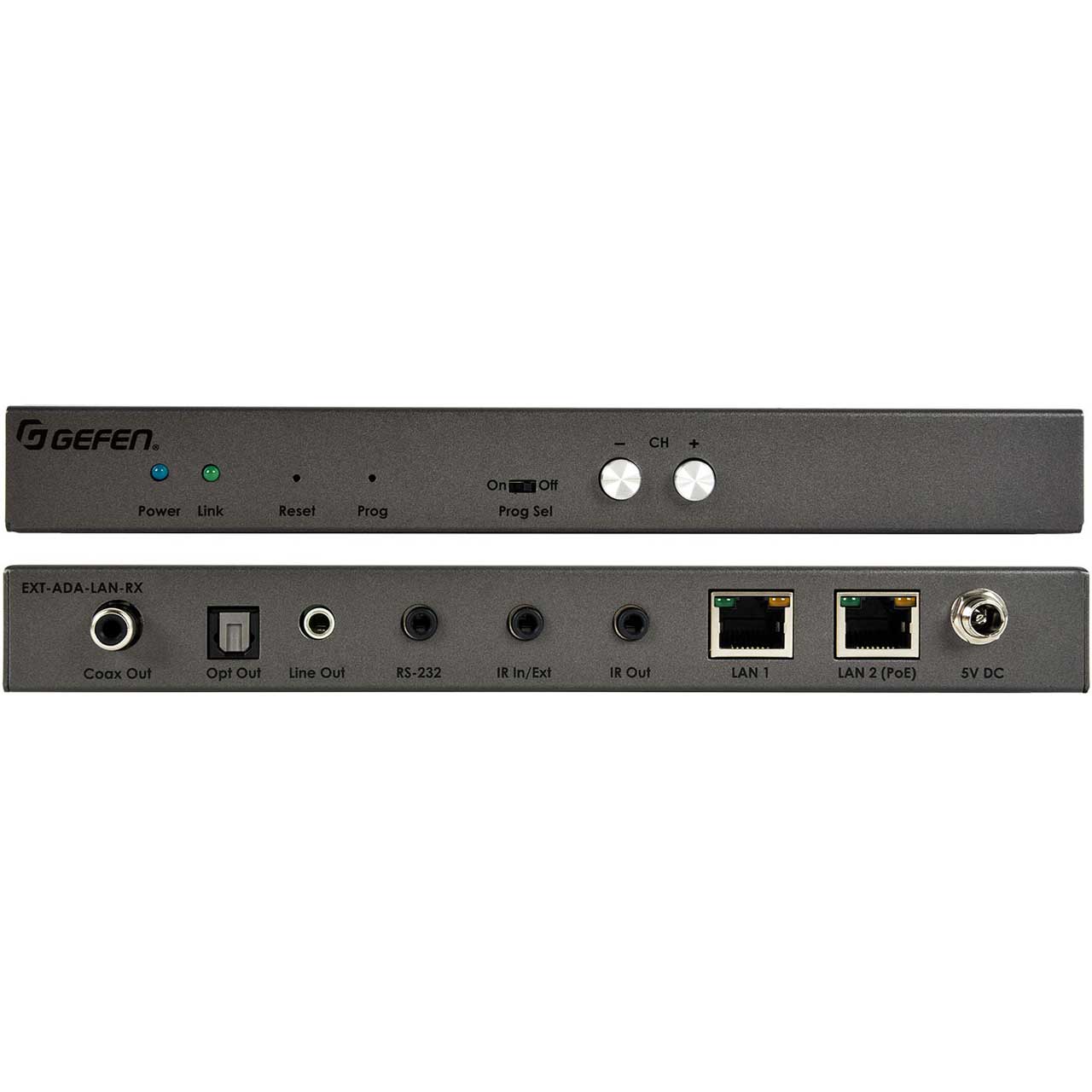

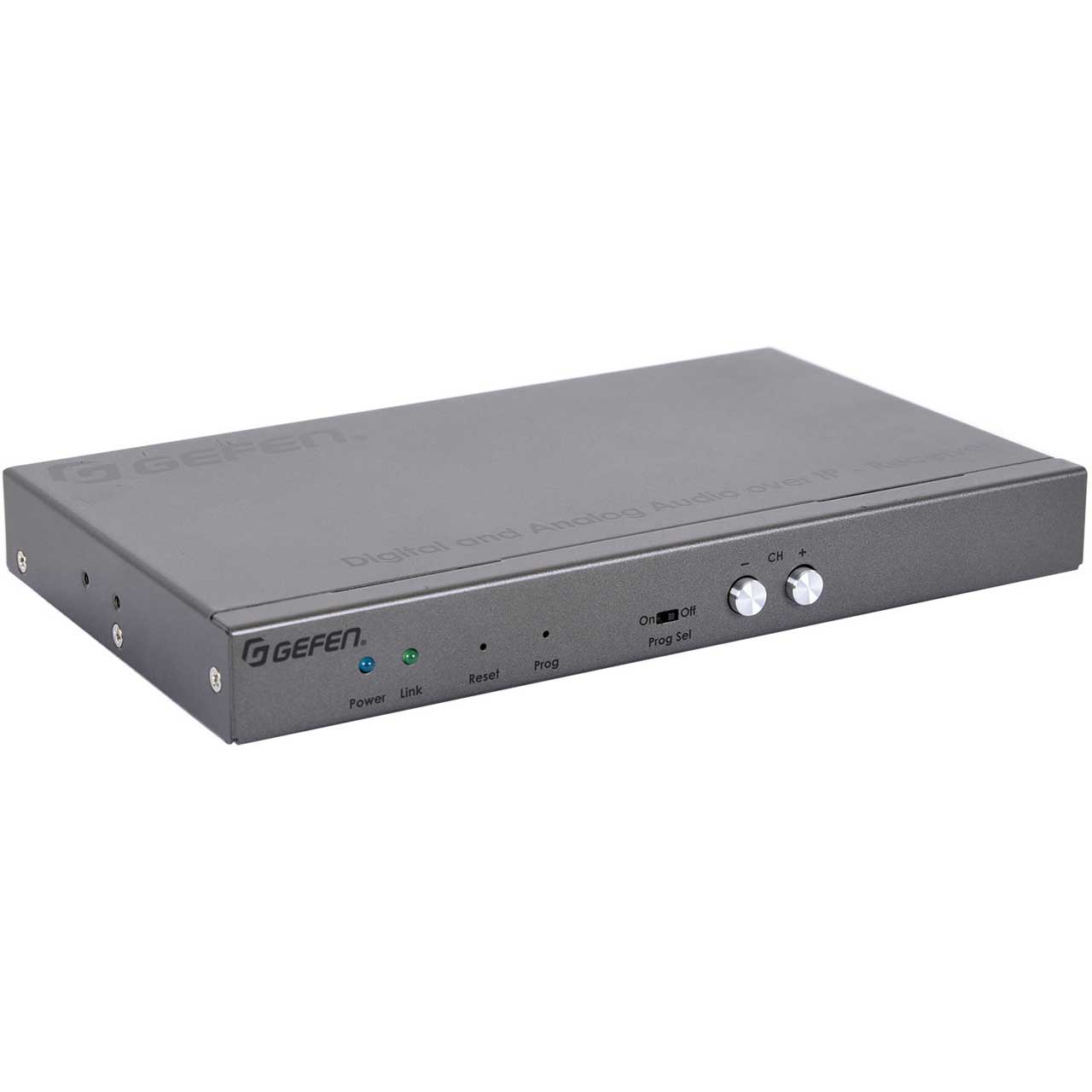

Gefen EXT-ADA-LAN-RX Digital and Analog Audio over IP - Receiver

ITEM #: GEF-EXTADALAN-RX MFG #: EXT-ADA-LAN-RX

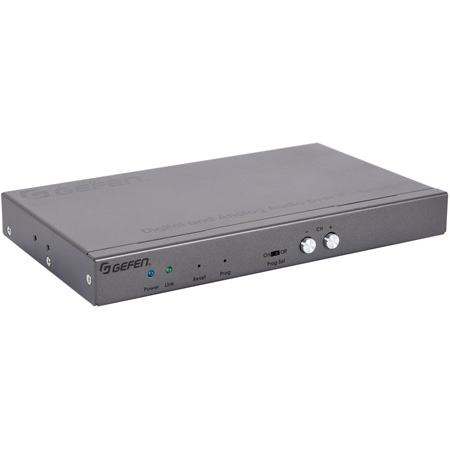

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$702.45

Our Price:

$584.85

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


EXT-ADA-LAN-RX - Overview

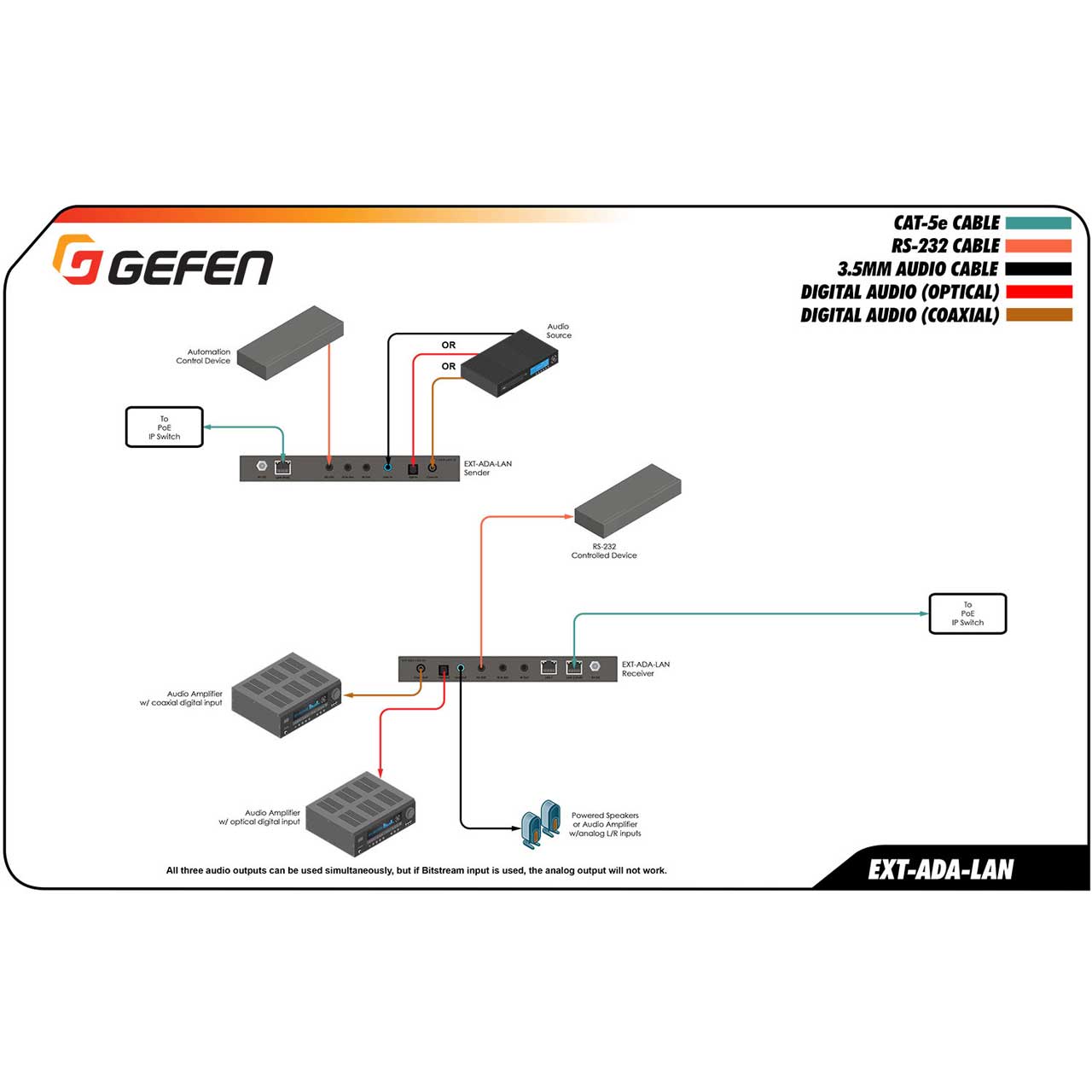

Gefen's AV over IP solutions continue their tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. The Digital and Analog Audio over IP Sender (EXT-ADA-LAN-TX) and Receiver (EXT-ADA-LAN-RX) are a much-needed audio-only option for background music, public announcements, and other applications where stand-alone audio needs to be distributed through the AV system. Audio input and output options include L/R Analog, Coaxial Digital, and Optical Digital. When using the digital inputs and outputs, 2-channel PCM and up to 5.1 channels of Bitstream can be distributed through the system. In addition to audio, RS-232 and 2-way IR can also be independently routed and distributed for source and amplifier control. The entire Gen 2.0 product line, including the audio models, feature backward-compatibility with our first-generation products.

  • Features:

    • Extends digital and analog audio, RSZ-232, and IR, using a Gigabit Local Area Network
    • Independent audio, RS-232, and IR routing
    • Backward-compatible with first generation Gefen AV over IP products
    • Analog L/R, Coaxial Digital, and Optical Digital Inputs and Outputs
    • MFU (Mass-Firmware-Update), quick and automated configuration, and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller
    • Enhanced API for added functionality with third-party control systems
    • Built-in web interface, Telnet, and UDP
    • Supports 39,900 Senders and a combination of over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
    • 802.3af standard Power-over-Ethernet allows the new Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies
    • Two-port Gigabit Ethernet switch built into the Receiver unit
    • Field-updatable firmware via EXT-CU-LAN controller or the built-in web server interface
    • Locking power supply connectors
    • Low-profile, half-rack width Sender and Receiver enclosures are rack-mountable using EXT-RACK-1U-GRY
    • Sender and Receiver can also be surface-mounted using the included L-brackets
    • Low profile Receiver enclosure features an IR Extender port and can be hidden away behind the display

  • Specifications:

    • Supported Audio Formats: Analog: L/R Stereo; Digital: 2-Channel PCM and up to 5.1 channels of Bitstream
    • Analog Line Input (Sender): (1) 3.5mm mini-stereo jack
    • Analog Line Output (Receiver): (1) 3.5mm mini-stereo jack
    • Optical Digital Audio Input (Sender): (1) TOSLINK®
    • Optical Digital Audio Output (Receiver): (1) TOSLINK®
    • Coaxial Digital Audio Input (Sender): (1) RCA, female
    • Coaxial Digital Audio Output (Receiver): (1) RCA, female
    • RS-232 port (Sender/Receiver): (1) 3.5mm stereo jack, female, DB-9 adaptor included
    • IR In/Ext (Sender/Receiver): (1) 3.5mm mini-stereo jack
    • IR Out (Sender/Receiver): (1) 3.5mm mini-mono jack
    • IR Extender type: EXT-RMT-EXTIRN
    • Ethernet port (Sender): (1) RJ-45, shielded, PoE
    • Ethernet ports (Receiver): (2) RJ-45, shielded, one with PoE
    • Channel Up button (Receiver): (1) tact-type
    • Channel Down button (Receiver): (1) tact-type
    • Reset button (Sender/Receiver): (1) tact-type, recessed
    • Program button (Sender/Receiver): (1) tact-type, recessed
    • Program Select switch (Sender/Receiver): (1) slide-type, recessed
    • Link Indicator (Sender/Receiver): (1) LED, green
    • Power Indicator (Sender/Receiver): (1) LED, blue

  • Item Includes:

    • 1x Receiver unit (EXT-ADA-LAN-RX)
    • 1x 5V 2.6A Power Supply (EXT-PS526AIP-LP-6)
    • 1x 3.5mm-to-DB-9 Adaptor, M-M (ADA-MP-2-DB9-MM-AB)
    • 1x IR Extender (EXT-RMT-EXTIRN)
    • 4x Self-Adhesive Rubber Feet
    • 2x L-Shaped Mounting Brackets
    • 4x Machine screws for L-Shaped Mounting Brackets
    • 2x Machine screws for EXT-RACK-1U-GRY (sold separately)
    • 1x Quick-Start Guide

  • Warranty:

    • 3 Year

  • GTIN:

    0888814999778
