High-speed & long-distance HDMI 2.1 transmission by optical fiber!
The Gefen GF-HD48G-1MPO extends uncompressed, full-bandwidth HDMI 2.1 audio/video up to 100m (330 feet)
-
- High-speed & long-distance transmission by optical fiber
- Compatible with HDMI standard v2.1
- Supports OM3 (or OM4) fiber with
- 8 core MPO/MTP connectors
- I2C Data and Hot Plug Detection signal is transmitted by optical fiber
- CEC control, EDID, and HDCP 2.3 premium content protection
- Support for static & dynamic HDR, allowing for extended dynamic range and wide color gamut support
- Supports VRR (Variable Refresh Rate)
- EMI & Safety: CE, FCC
- Optical Source: VCSEL Laser
- O/E Converter: PIN Photo Diode
- Using Fiber: 8-core (or 12-core)
- MPO/MTP fiber optical cable (OM3, 50/125 μm, Polarity type A)
-
- Signal Support: HDMI v2.1
- Video Bandwidth: 48.0 Gbps
- Tmds Clock: 5940 Mhz
- Supporting Resolution: 8K/4K UHD (Up to 7680x4320)
- Distance: Up to 100 meters (330ft)

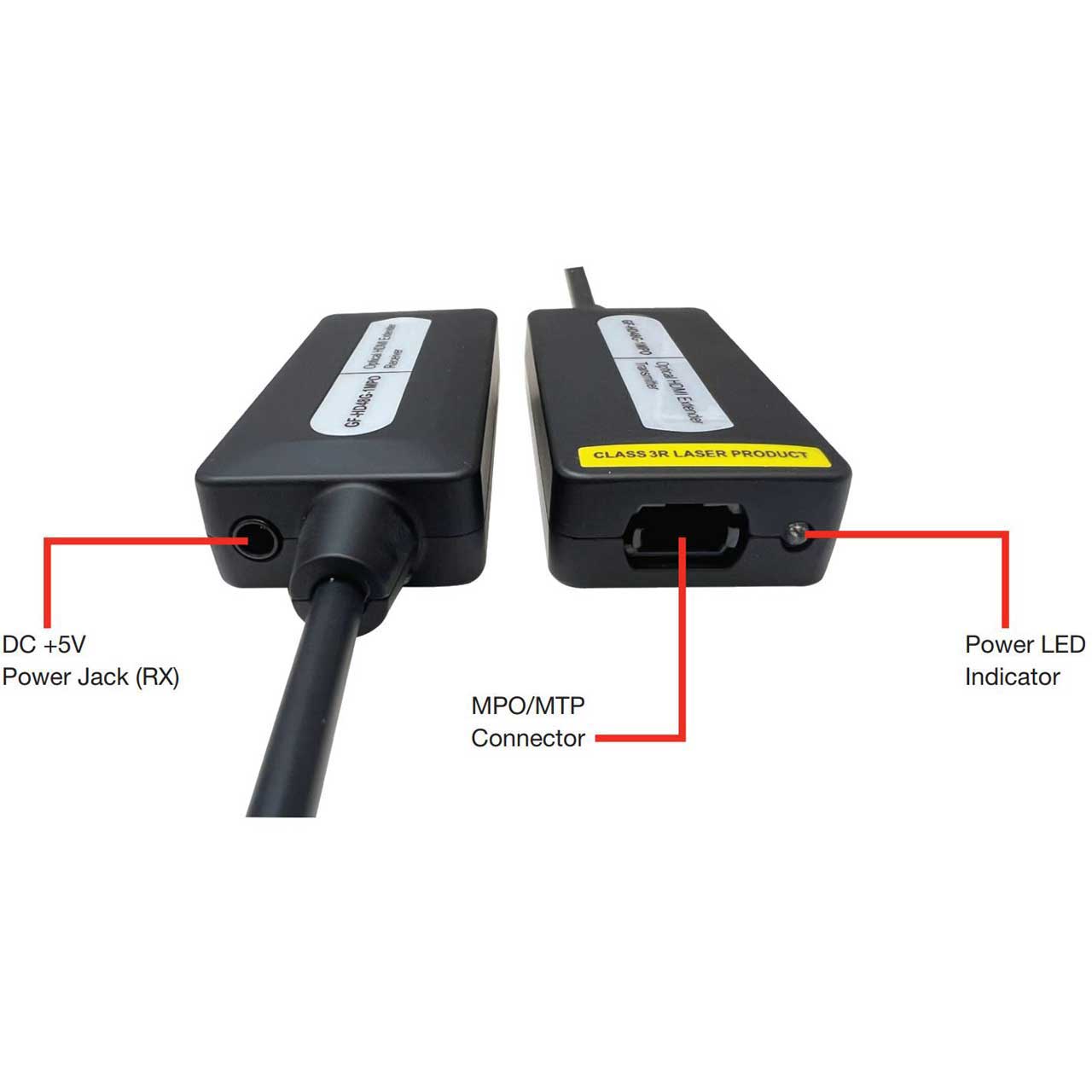

- Connector/Fiber: HDMI 19 Pin (male) / MPO/MTP
- Audio Support: Up to 8 Channel PCM, DTS Master, DTS:X, Dolby TrueHD, Dolby Atmos
- Power Consumption: 0.75W (typ) ~ 0.95W (typ)
- Dimensions: 300 x 16 x 31mm (11.81 x 0.63 x 1.22in)
- Temperature Range: Operating: -20°C ~ 70°C (-4°F ~ 158°F), Storage: 0°C ~ 50°C (32°F ~ 122°F)
-
- 2x 5V/2A DC Power Supply (Interchangeable connectors: US, UK, AU, EU)

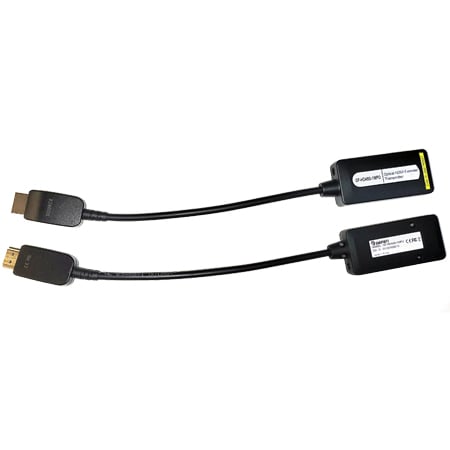

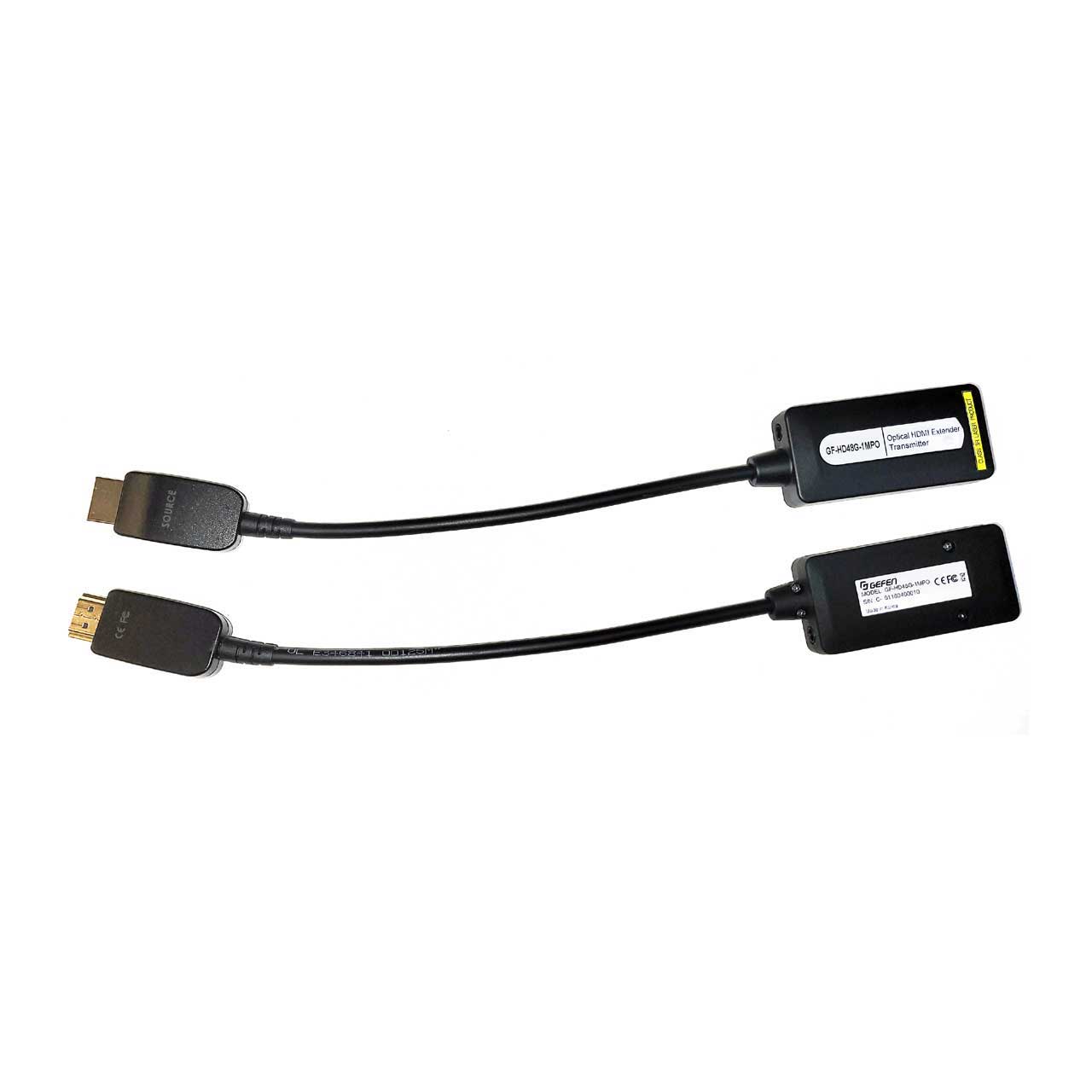

- 1x Optical HDMI Fiber Extender Transmitter
- 1x Optical HDMI Fiber Extender Receiver
- 1x Quick-Start Guide
-
