Litepanels GEMINI 2X1 HARD RGBWW 2x1 DMX Video Light Panel Kit with 23000 Lux at 10ft/3m from 500 Watts

ITEM #: GEMINI-2X1-HARD MFG #: GEMINI 2X1 HARD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$6,400.00

Our Price:

$6,080.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


GEMINI 2X1 HARD - Overview

The Brightest & The Lightest
Brighter than any other 2x1 panel, yet lighter than its peers, the Litepanels Gemini 2x1 Hard is a beautiful paradox delivering glorious high quality, powerful bright cinematic lighting in a lightweight agile fixture.

Gemini 2x1 Hard can deliver a powerful 20° beam of accurate hard white light, or seamlessly switch to a beautiful soft 100° wash, and at the touch of a button, unleash a world of creativity with full RGBWW output and special effects. With dual or quad mounting options to bank fixtures together creating an outstanding 92,000 lux of intense light, Gemini 2x1 Hard is the ultimate production light.

Almighty Output
23,000 lux of raw output at 10ft/3m from a 500W panel creates a new world of options. Control and modify without compromising on source. Gemini 2x1 Hard shifts from an intense 20° beam to a soft wrap-around light with diffusers included in the box, and still offers scope for many more layers.

Exquisite Accuracy
Beautiful light quality and glorious true color reproduction combine. With no color shift or flicker at any framerate, shutter angle, or at any intensity from 100-0.1%, everything in the scene is illuminated by naturally beautiful light that renders color and skin tones perfectly. Highly accurate correlated color temperature control across the full spectrum from a warm 2700K to a cool 10000K with full plus minus green/magenta fine tuning.

Outstanding Agility
Lighter than any comparable 2x1 panel and with no separate ballast, the Gemini 2x1 Hard stands apart as a lightweight weighing in at just 25.3lbs (11.5kg). Integrated DMX and CRMX speed up control, with lighting modes that offer pinpoint color manipulation. Gemini is faster and safer to rig, and ready for action in any location.

Industrial Strength
Gemini 2x1 Hard will work first time, every time for years to come. Tough enough to stand up to demanding set life, Gemini is manufactured to industrial standards using durable, robust materials.

  • Features:

    • The most powerful 2x1 panel
    • 23,000 lux at 10ft/3m (Daylight) with a 20° beam angle
    • Ultra light and domed diffusers included for softer light in an instant
    • Extended white color temperature range from 2,700-10,000K
    • Outstanding color accuracy, CRI 95 / TLCI 97
    • Full RGBWW color gamut mixing
    • CCT, HSI and XY control modes
    • Full plus/minus green color correction
    • 0.1 - 100% automatic flicker-free dimming at any frame rate or shutter angle
    • Integrated DMX, RDM and CRMX
    • Multi-voltage 100-240VAC; DC Input 26-33 VDC
    • Lightweight: 25.3 lbs / 11.5 kg including yoke and power supply

  • Specifications:

    • LED Panel: RGBWW
    • Beam angle (no diffuser): 20°
    • Beam angle with Domed Diffuser: >100°
    • Optics: 20° custom TIR lens
    • CCT Range: 2,700-10,000K

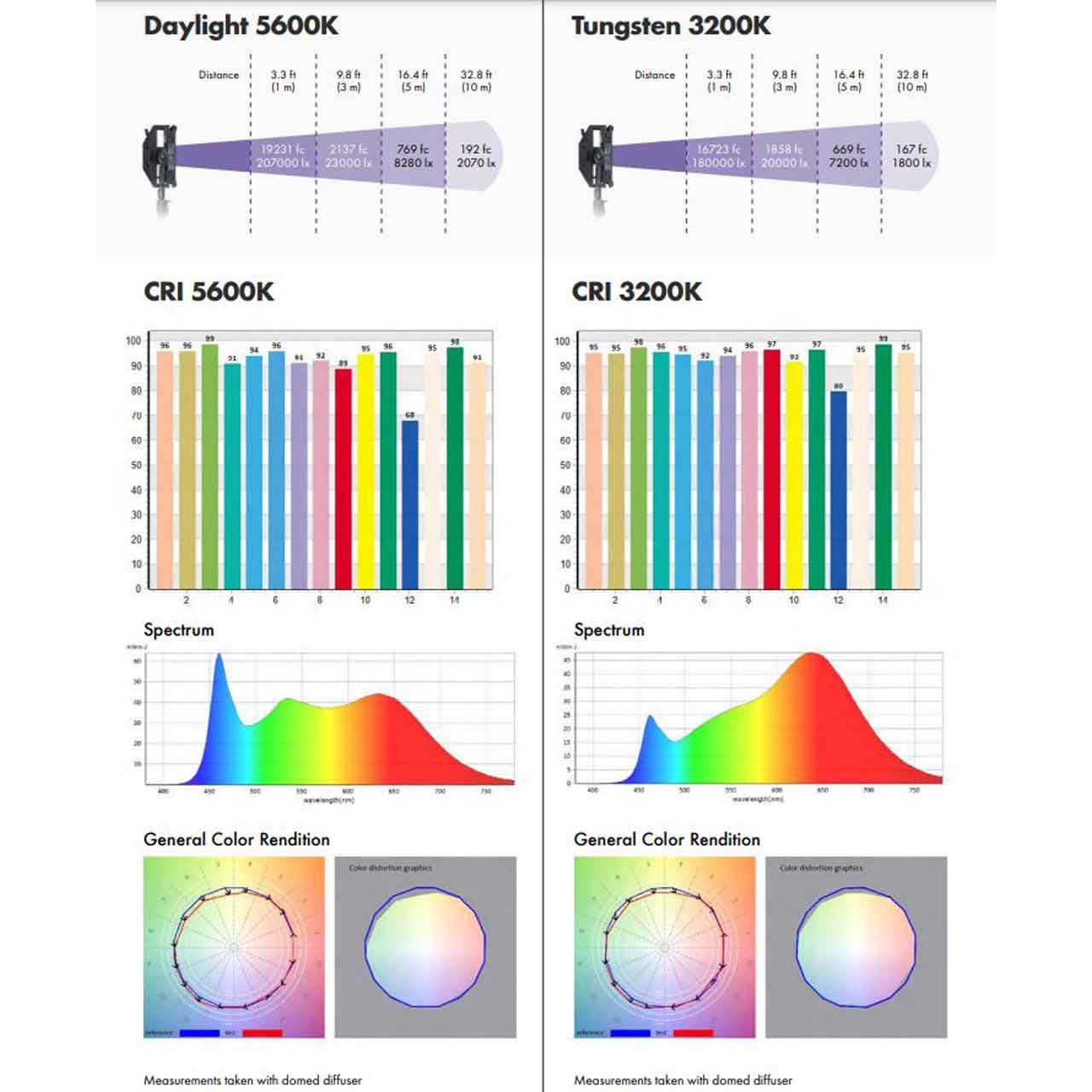

    • Daylight (5600K) (Lux @10ft/3m): 23.000 (No diff) / 2.800 (Domed diff)
    • Tungsten (3200K) (Lux @10ft/3m): 20.000 (No diff) / 2.300 (Domed diff)
    • RED (Lux @10ft/3m): 2.700 (No diff)
    • GREEN (Lux @10ft/3m): 11.800 (No diff)
    • BLUE (Lux @10ft/3m): 1.300 (No diff)
    • TLCI (average): 95
    • CRI (average): 97
    • +/- Green-Magenta Adjustment: Continuously Variable
    • Included Diffusion: Ultra Light (900-3653) / Domed (900-3649))

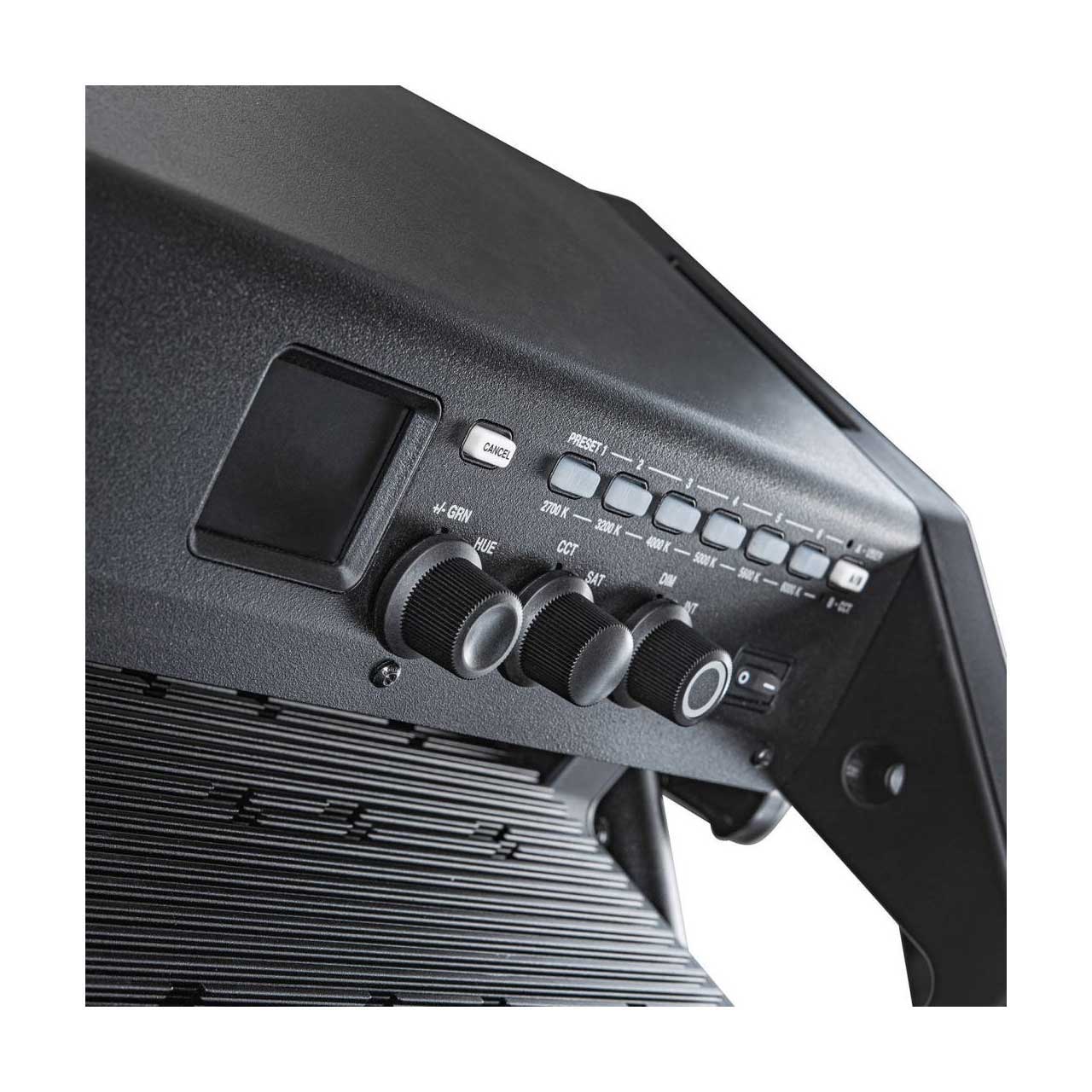

    • Lighting Control Modes: RGBWW/CCT/HSI/xy/Gel/FX single dial with LCD menu control
    • Number of Gels: 300
    • Number of Effects: 11
    • Dimming Control: Constant Current 0-100% Continuous
    • Remote Control Options: Integrated: DMX, RDM, CRMX. Optional dongle: Bluetooth
    • Fan Control: Yes
    • USB Updates: Yes
    • Ambient Temp Operation: -4° to 113° F / - 20° to + 45° C
    • Estimated LED lifetime: 35,000+ hrs
    • Preset Options: 6x preset CCT modes with quick select buttons, 6x customisable user presets with quick select buttons
    • Versions: manual, pole operated
    • Weight - Regular Yoke: 25.3 lbs / 11.5 kg
    • Weight - Pole Operated Yoke: 32 lbs / 14.5 kg
    • Height: 112"/ 320 mm
    • Width: 25"/ 634 mm
    • Depth: 6.9" / 176 mm
    • Mounting method: Junior Pin (removable)
    • Nominal power draw: 500W
    • Power supply: Internal
    • Mains Input: PowerCON True 1, 100-240 VAC / 50-60 Hz
    • IP Rating: IP20

  • Item Includes:

    • 1x GEMINI 2X1 HARD Light Fixture
    • 1x GEMINI 2X1 HARD Yoke with junior pin
    • 1x Ultra Light Diffuser
    • 1x Domed Diffuser
    • 1x Hex L-Key, 6mm (not pictured)
    • 1x US Power Cable

  • GTIN:

    5060520689654
