Greenlee 7306SB 11-Ton Hydraulic Knockout Kit with Hand Pump and Slug-Buster 1/2 Inch - 2 Inch

ITEM #: GRL-7306SB MFG #: 7306SB

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the GRL-7306SB

7306SB - Overview

11-Ton Battery-Hydraulic Drivers
Compact, fast, and powerful battery-hydraulic knockout drivers capable of punching up to 4-inch
conduit sized holes in mild steel, stainless steel, aluminum, brass, copper, fiberglass and plastics.

Auto-Stop Feature
Detects punch completion and automatically stops, helping to prevent damage to knockout parts

Patent-Pending Auto-Retract Technology
Pressure-sensing technology accurately detects punch completion and automatically retracts the ram, helping to prevent
damage to knockout parts

360° Rotating Head
Rugged patent-pending swivel
design to easily punch at any angle

Rugged Neck
Increased durability and life of tool

Timesaver
Punch faster, with a maximum
cycle time of 8 seconds

Compact, Ergonomic Design
Provides easy one-handed operation
and an ergonomic tapered grip

Battery Platform
Powerful long-lasting Makita® 18V Li-Ion
battery, quickly charges in 30 minutes

I-Press Software
Monitor tool performance and set service intervals
via i-press Bluetooth® communication. LS50
compatible with Gator Eye® desktop software.

  • Features:

    • Compact, Lightweight Design - for portability and fast, easy one-person operation
    • Slug-Buster punch profile splits slugs for easy slug removal
    • Knurled edge on punches for better grip
    • New die design optimized for widest range of materials and drivers
    • Laser markings for quick part identification. Alignment markings for improved accuracy.
    • Easy threading - draw studs with "dog point" tip helps eliminate cross-threading. Hex key access for easy removal from tool
    • Compatibility - works with all Greenlee knockouts. Same draw studs used with Intelli-PUNCH, LS50L2 and 746A ram
    • Punches, dies, draw studs and case made in the USA
    • Driver manufactured in the USA from US and global components


  • Specifications:

    • Type: 11-Ton Hydraulic Knockout Kit with Hand Pump
    • Application: For punching holes in mild steel, stainless steel, aluminum, brass, copper, fiberglass and plastics
    • Size: 1/2" - 2" conduit size knockouts (hole size: 0.89" - 2.42" or 22.5 mm - 61.5 mm)
    • Material: Punch up to 10 ga mild steel or 12 ga stainless steel

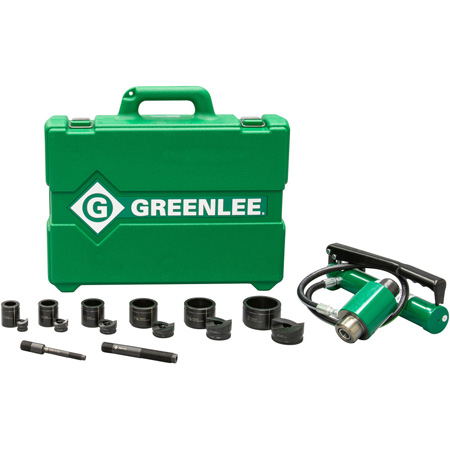

  • Item Includes:

    • 1x 46A Ram and 767 Hand Pump
    • 1x 1/2" - 2" conduit size Slug-Buster punches
    • 1x 1/2" - 2" conduit size dies
    • 1x 7/16" hydraulic draw stud
    • 1x 3/4" hydraulic draw stud
    • 1x KCC-7672 carrying case


  • GTIN:

    0783310343608
