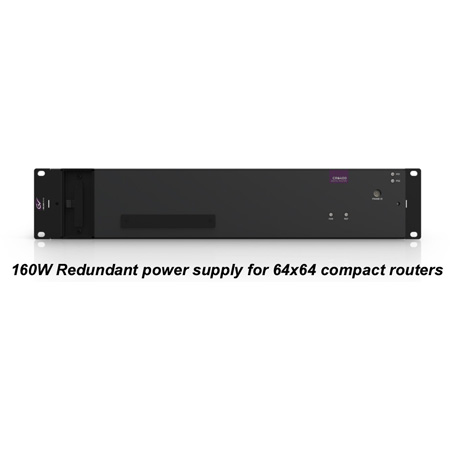

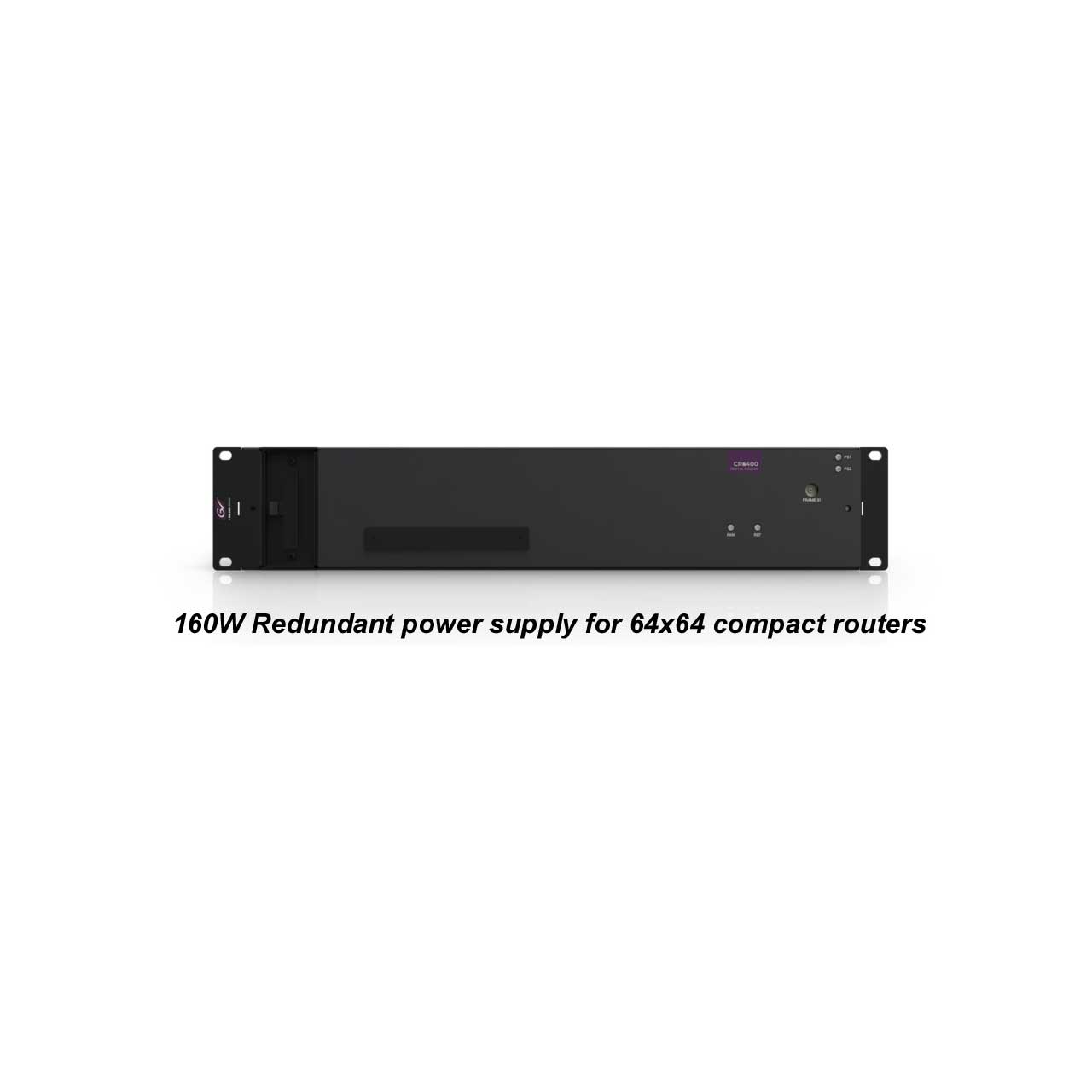

Grass Valley CRPS2 Redundant Power Supply for CR6400 Compact Routers - 160W

CRPS2 - Overview

• Features:

  • DIN connectors
  • High-density 64x64 matrix in 2 RU
  • Optional, redundant power supply
  • Broadcast quality components for superior signal performance
  • Rugged design to smoothly handle both movement and temperature extremes
  • Local control panel option, CP6464, mounts to the front of the router or can be used for remote access using an RP32
  • Operates with or without external control system
  • Field serviceable modules are hot swappable
  • Crosspoint card
  • Control card
  • Input and output cards
  • Fan module


• Specifications:

  • Electrical
  • DC power: External power supply: 12 VDC ± 10%, 5A.
  • Power consumption: 77W max (CR6464-3G-SDI router); 55W max (CR6464-AES router)

    Dimensions
  • Height: 88.1 mm (3.47 in.), fits EIA 2 RU (88.9 mm / 3.50 in.)
  • Width: 482.6 mm (19.0 in.)
  • Depth: 258.6 ±0.25mm (10.18 ±0.01 in.), enclosure <273.1 mm (10.75 in.) from front of rack to extended ground screw

    Weight
  • 5.35 kg (11.8 lbs.) with no I/O cards, without control panel.
  • 6.94 kg (15.3 lbs.) with 4 I/O cards, without control panel.

    Connectors
  • Power: 2 connectors, DIN 4
  • Ethernet: 1 connector , 10/100BaseT, RJ-45 jack
  • RS-422: 1 connector, 9-pin D type, usage determined by software, SMPTE 207M
  • Video reference: 2 connectors, BNC, 75Ω
  • Optional control panel: Two 2x60 connectors
  • Removable module: 4 I/O card slots at rear; 1 crosspoint card slot at rear; 1 control card slot at rear; 1 fan module removable at the front; I/O module types: SDI, AES
  • Grounding terminal: Copper, accepts 14-6 AWG
  • CR6400 Power Supply AC power: 120-240 VAC, 50-60 Hz, up to 2.0A
  • DC power: 48 VDC, 160W max, 3.34A max
  • Ripple and Noise: <240 mVp-p
  • Efficiency: Typically 94%
  • Weight: 0.66 kg (1.45 lbs.)
  • Regulatory: UL listed and CE compliant.
  • CR Series Digital Video Specifications1 Input & output impedance: 75Ω; >400m (1,312 ft.), Belden 1694A or equivalent, 270 Mb/s; >150m (492 ft.), Belden 1694A or equivalent, near 1.5 Gb/s; >100m (328 ft.), Belden 1694A or equivalent, near 3.0 Gb/s; 3G-SDI Specification Detail
  • Auto re-clocking: 270 Mb/s, and 1.483, 1.485, 2.966, and 2.970 Gb/s, or auto bypass. Pass-through: 10 Mb/s to 3.0 Gb/s
  • Input & output impedance: 75Ω; >400m (1,312 ft.), Belden 1694A or equivalent, 270 MB/s; >150m (492 ft.), Belden 1694A or equivalent, near 1.5 GB/s; >100m (328 ft.), Belden 1694A or equivalent, near 3.0 GB/s; >80m (262 ft.), Belden 1694A or equivalent, near 3.0 GB/s for CQX routers
  • Input return loss: >15 dB, 5 MHz to 1.5 GHz
  • Output level: 800 mVpp±10%
  • Output offset: 0 VDC±0.5V
  • Output rise/fall time: ≤135 ps
  • Output overshoot: ≤10% of amplitude
  • Output timing jitter: ≤0.2 UI p-p
  • Output alignment jitter: ≤0.3 UI at 100 kHz
  • Output return loss: > 10 dB, 1.5 GHz to 3.0 GHz

    HD-SDI Specification Detail
  • Data rates: Up to 1.5 Gb/s, reclocking at 143, 177, 270, 360 & 540 Mb/s and 1.483 & 1.485 Gb/s rates, automatic bypass for other rates
  • Input & output impedance: 75Ω
  • Cable equalization: Up to 150m (492 ft.) Belden 1694A or equivalent cable, at 1.483 Gb/s and 1.485 Gb/s; Up to 400m (1,312 ft.) Belden 1694A or equivalent cable, at 143-540Mb/s
  • Input return loss: > 15 dB, 5 MHz to 1.5 GHz
  • Output level: 800 mVpp±10%
  • Output offset: 0 VDC±0.5V
  • Output rise/fall time: ≤270 ps (20% to 80%)
  • Output overshoot: ≤10% of amplitude
  • Output jitter: ≤0.2 UI p-p
  • Output return loss: ≥15 dB, 5 MHz to 1.5 GHz

    SD-SDI Specification Detail
  • Data rates: Auto reclocking at 143, 177, 270, 360 & 540 Mb/s and automatic bypass for other rates
  • Input & output impedance: 75Ω
  • Cable equalization: Up to 300m (984 ft.) Belden 1694A or equivalent cable
  • Input return loss: ≥15 dB, 5 to 540 MHz
  • Output level: 800 mVpp&
