Galaxy Audio DHXR4D DHX Four Channel Wireless Receiver - Code D (584 - 607 MHz)

ITEM #: GXY-DHXR4D MFG #: DHXR4D

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the GXY-DHXR4D

DHXR4D - Overview

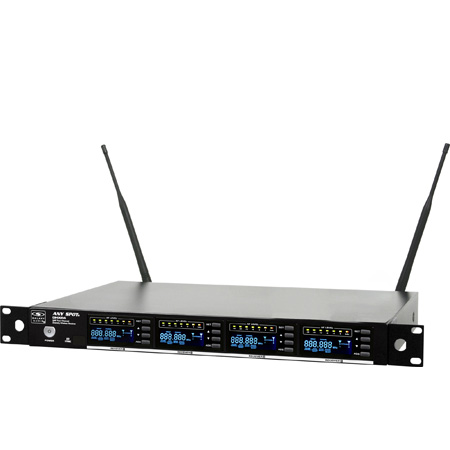

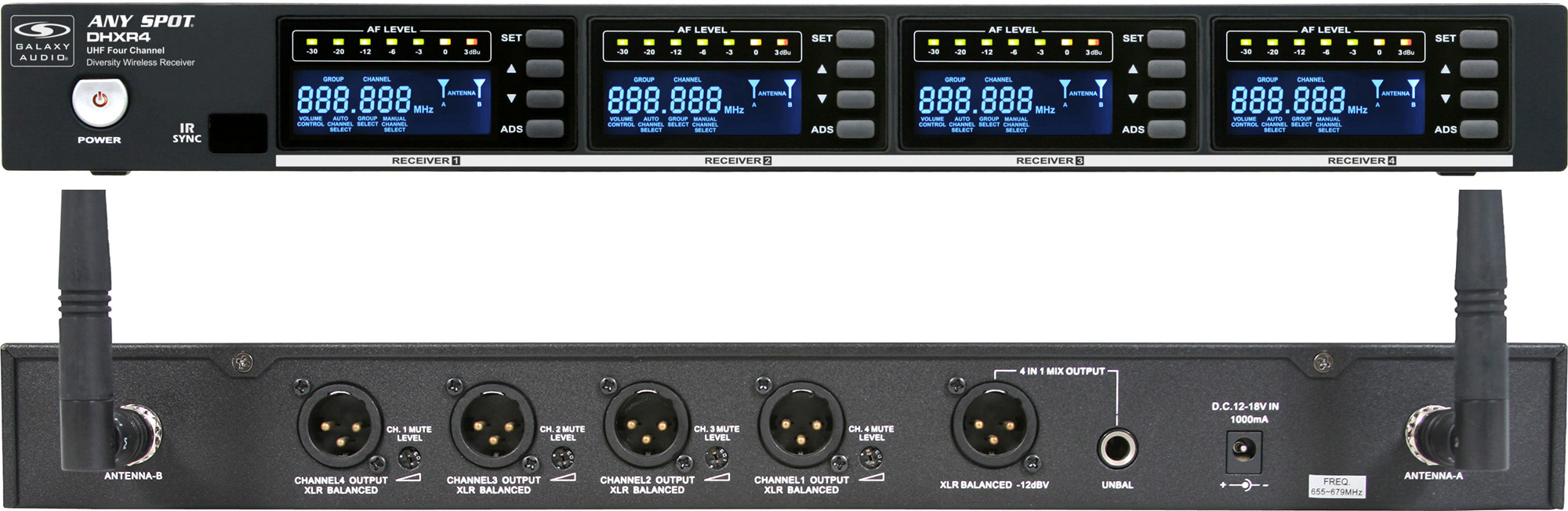

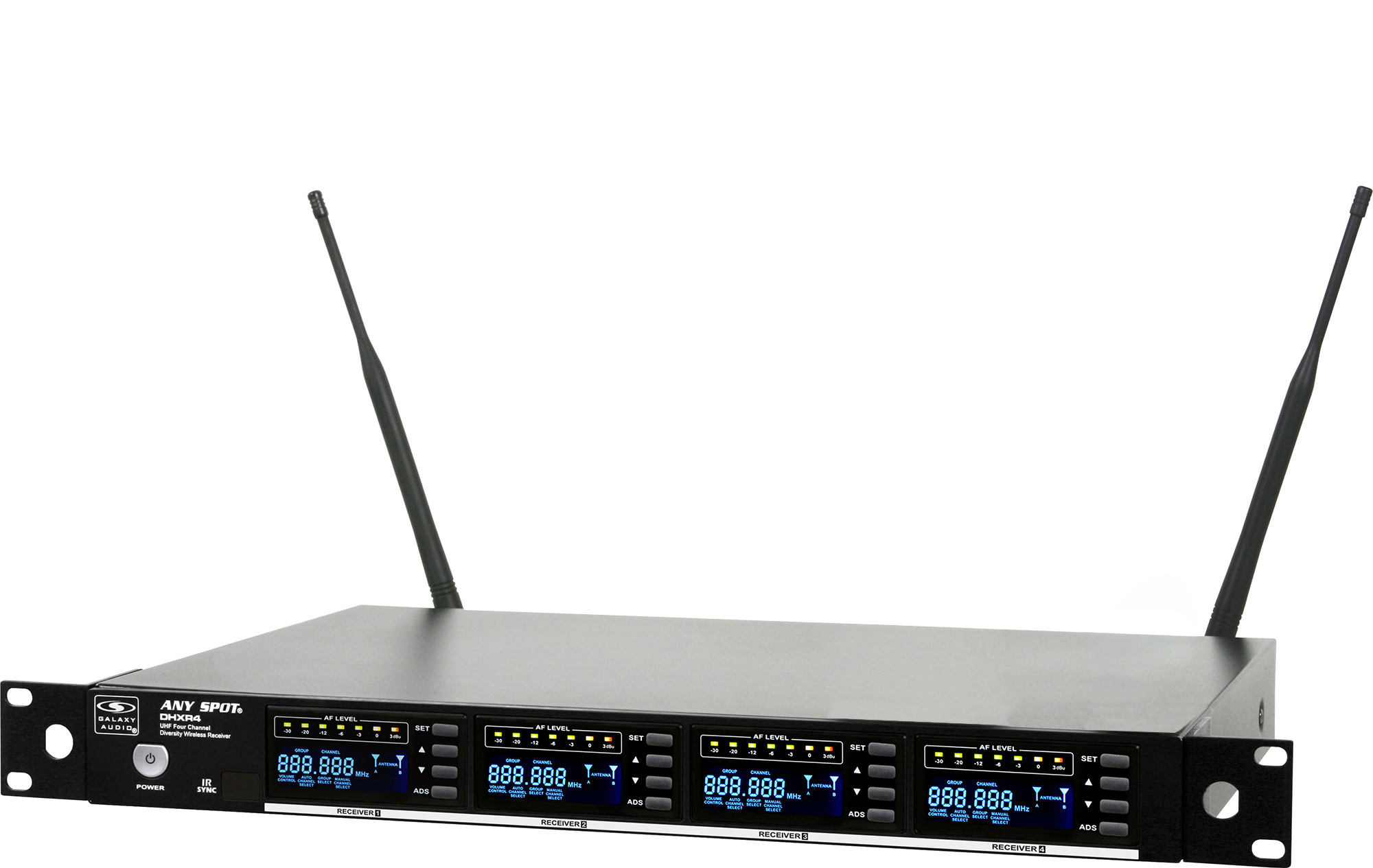

The Galaxy Audio DHXR4 (Code D 584 - 607 MHz) offers the same great features as the DHTRQUAD system, with 4 receivers in a single rack space chassis. The DHXR4 offers 4 independent receivers, each with Auto Scan, IR Sync, and 120 selectable channels. The receivers have also been improved with Tone-key squelch for improved rejection of outside interference. The DHXR4 has a built in antenna combiner and power distributor. The DHXR4 has 4 independent XLR outputs (one for each channel) as well as mixed output, allowing the user to submix the microphones on the DHXR4 and come out of one XLR or 1/4" output. The DHXR4 can be used with any 65 or 77 Series Handheld or Body Pack transmitter.

  • Features:

    • 300' Range
    • Auto Scan
    • 120 Selectable UHF Frequencies
    • Diversity Antennas
    • Rack Mount Kit Included

      DHXR4 Four Receiver Rack Mount System

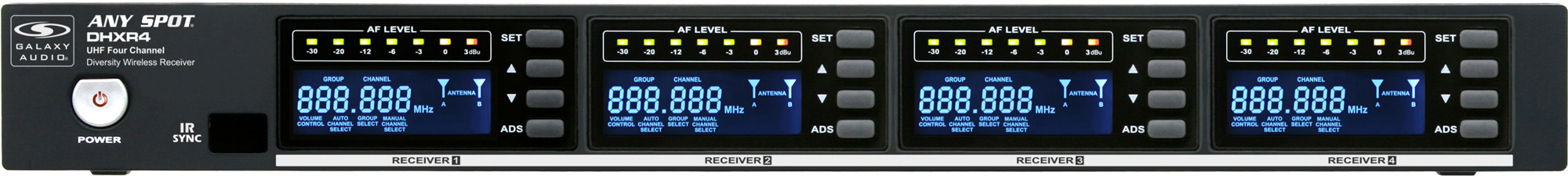

    • LCD Display
    • IR Sync Receiver to Transmitter
    • Frequency with Channel and Group Selector
    • AF/RF Indicators
    • Tone-key Squelch
    • Squelch Adjustment
    • XLR/1/4" Output
    • Detachable BNC Antennas
    • Metal Chassis


  • Specifications:

    • DHXR4 System Specs
    • Available Frequencies: 120
    • Frequency Ranges: CODE D 584~607 MHz
    • CODE N 518~542 MHz
    • Transmitter Output Level: 20 mW
    • Band: UHF
    • Operating Range: Under Typical Conditions 300' (92 m), actual range depends on RF signal absorption, reflection, and interference.
    • Audio Frequency Response: (+/-3 dB) 60 Hz - 16 kHz
    • Total Harmonic Distortion: (+/-30 kHz deviation, 1 kHz tone): <1%
    • Dynamic Range: >90 dB A-weighted
    • Operating Temperature Range: 14° F to 122° F (-10° C to 50° C), battery characteristics may limit this range

      DHXR4 Receiver
    • Audio Output Level (+/-30 kHz deviation, 1 kHz tone):
      XLR Connector (into 600 Ohms load) -12 dBV
      1/4" Connector (into 3 k Ohms load) -18 dBV

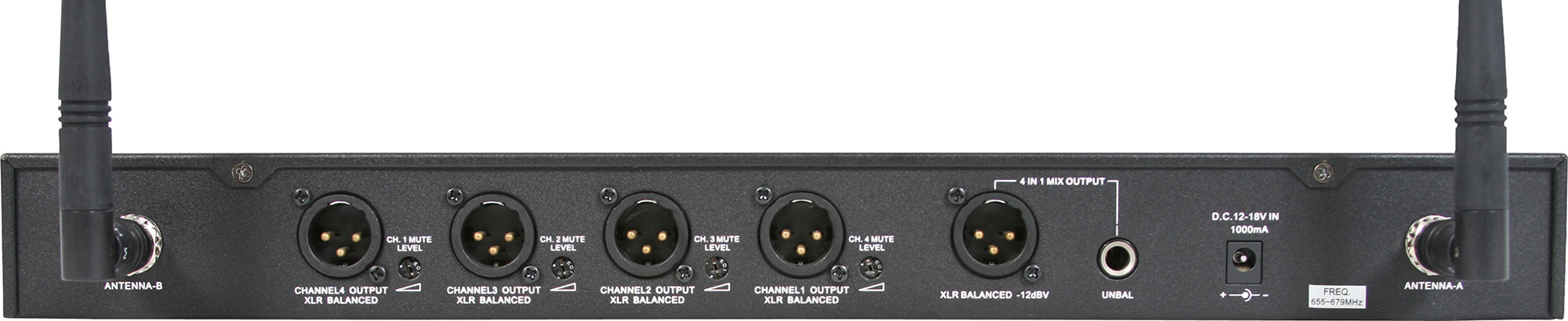

    • Output Connections:
      Four Male XLR Balanced
      1 Mixed XLR Balanced
      1 Mix 1/4" Unbalanced
    • Output Impedance:
      XLR connector 200 Ohms
      1/4" connector 1 k Ohms
    • XLR Output:
      Impedance balanced; Pin 1: Ground (cable shield)
      Pin 2: Audio +
      Pin 3: No Audio -

    • Sensitivity: -93 dBm for 30 dB
    • Image Rejection: >90 dB
    • Casing: Metal Chassis EIA STANDARD 1 U
    • Dimensions: 1.7" x 16.1" x 11" (45 x 410 x 280 mm) (HxWxD)
    • Weight: 117 oz (3,300 g)
    • Power Requirements: 12-18 V DC at 1000 mA, supplied by external power supply


  • Item Includes:

    • 1x DHXR4 receiver
    • 1x 1/4" to 1/4" audio cable
    • 1x Power supply
    • 2x Antennas
    • 2x Extension kits
    • 1x Rack ears
    • 1x Quick start guide
    • 2x Antenna plugs
    • 6x Screws


  • GTIN:

    0691281005978
