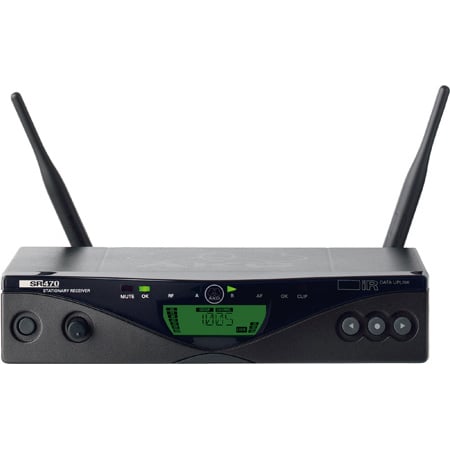

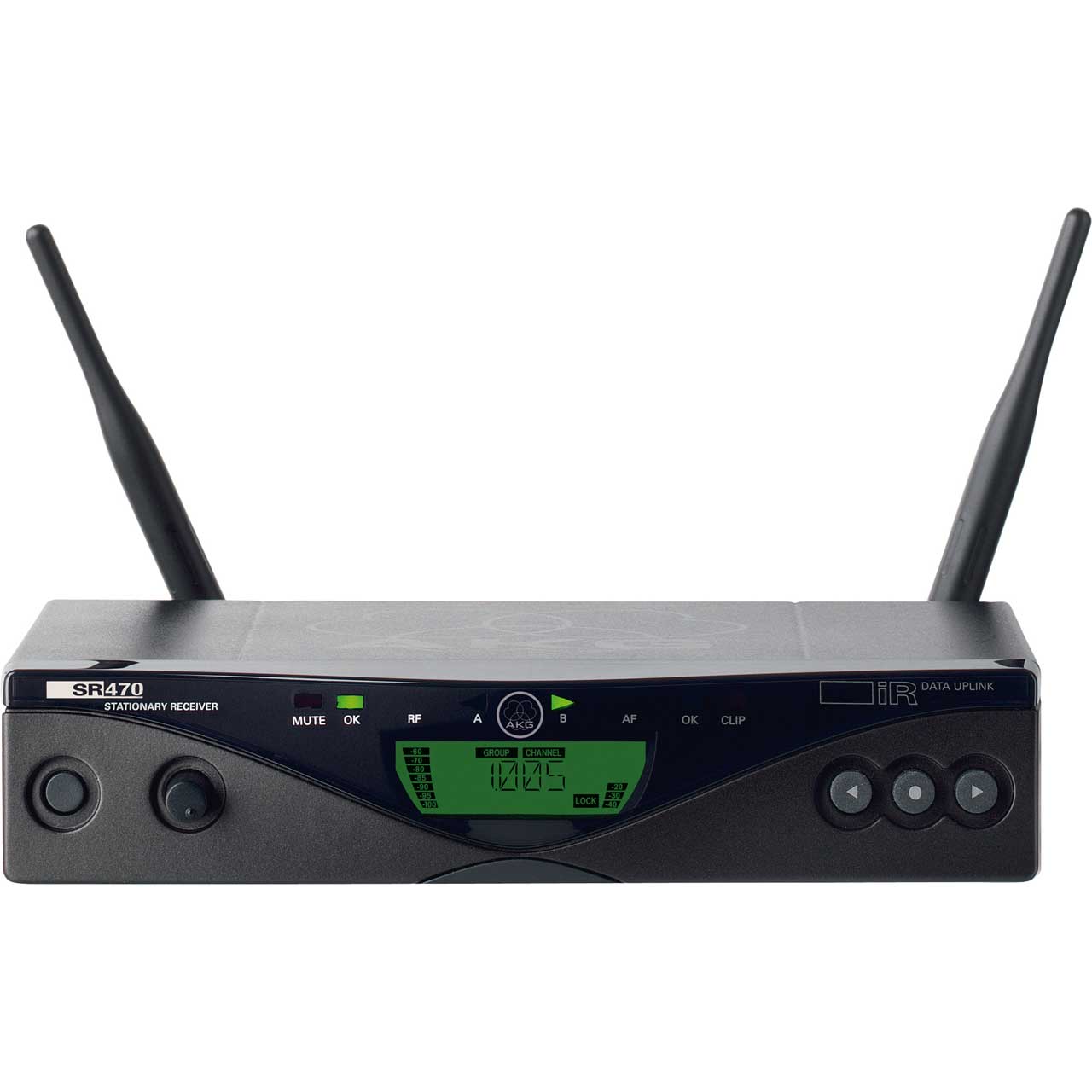

AKG SR470 BD7 Wireless Stationary Receiver - BD7 Frequency (500-530 MHz)

ITEM #: AKG-SR470-BD7 MFG #: 3300H00150

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$458.81

Our Price:

$359.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


3300H00150 - Overview

Flexible and Expandable
for conference, medium theater and houses of worship applications

SR470 analog space diversity professional wireless receiver comes in a rugged half-rack metal housing. The enhanced Auto Setup, Environment Scan and Rehearsal mode allows a very quick and easy system setup. The programmable backlight changes color to warn the user of critical operating conditions e.g. transmitter low battery information, audio peaks, or low radio signal strength.

A wide range of professional antenna splitters, power supplies, and high quality remote antennas are available to handle complex antenna systems and up to 48 simultaneous wireless channels, even with large covering area.

  • Features:

    • Enhanced automatic setup with channel preview for quick and easy system setup
    • Pre-coordinated TV channel frequency presets maximum channel density for multichannel systems
    • Environment scan and rehearsal functions for secure operation even in crowded radio frequency environment
    • Programmable multicolor backlight display clear visual information of selectable warning signals
    • External antenna connectors connect splitters, remote antennas and long cable runs to multi channel systems

  • Specifications:

    • Audio
    • Audio frequency bandwidth: 35 to 20000 Hz
    • Signal to Noise: 120 dB-A
    • THD at 1 kHz: 0.3 Prozent

    • Enhanced
    • Operating temperature range: -10 to 55 Celsius
    • Radio Sensitivity: -100 dBm

    • Radio
    • Switching bandwidth: 30 MHz
    • Recommended simultaneous channels: 32
    • Number of selectable frequencies: 1220 (selectable in 25kHz steps)
    • Frequency Selection: Selectable frequency in 25kHz steps
    • Wireless channels within device: N/A
    • Radio Range (Line of Sight): 100m (depending on antenna system)
    • Switchable RF Power: No
    • Modulation: N/A
    • Encryption: No encryption
    • Diversity: Space Diversity
    • Pilot Tone: Yes

    • General
    • Transmitter Synchronization: Infrared
    • HiQnet compatible: No
    • Racksize: 1/2 Racksize (19")
    • Rackheight: 1 RU

    • Antenna Interface
    • Amount: 2
    • Type: BNC
    • Gender: Female
    • Note: Radio input for connection to remote antennas

    • Audio Outputs 1
    • Amount: 1
    • Type: Balanced XLR
    • Gender: Male
    • Contacts: 3-pin
    • Note: Balanced audio output level switchable to -30 or 0 dB

    • Audio Outputs 2
    • Amount: 1
    • Type: Unsymetrischer Klinkenstecker (6,3mm)
    • Gender: Female
    • Contacts: 3-pin
    • Note: Unbalanced audio output

    • Powering Interface
    • Internal Power Supply: No
    • Type: Lockable DC Socket
    • Voltage: 12 to 12 V

    • Design
    • Body: Metall
    • Finish: Black

    • Dimensions / Weight
    • Length: 1.73"
    • Height: 7.95"
    • Width: 6.97"

  • GTIN:

    0885038029410
