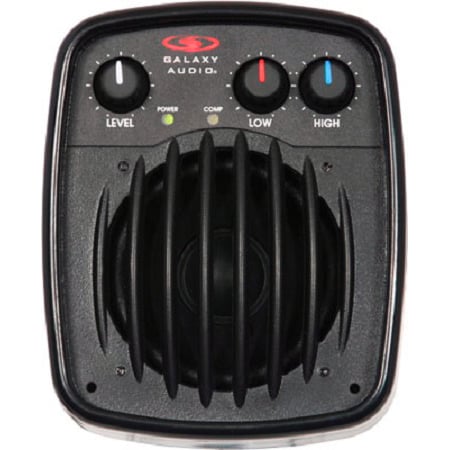

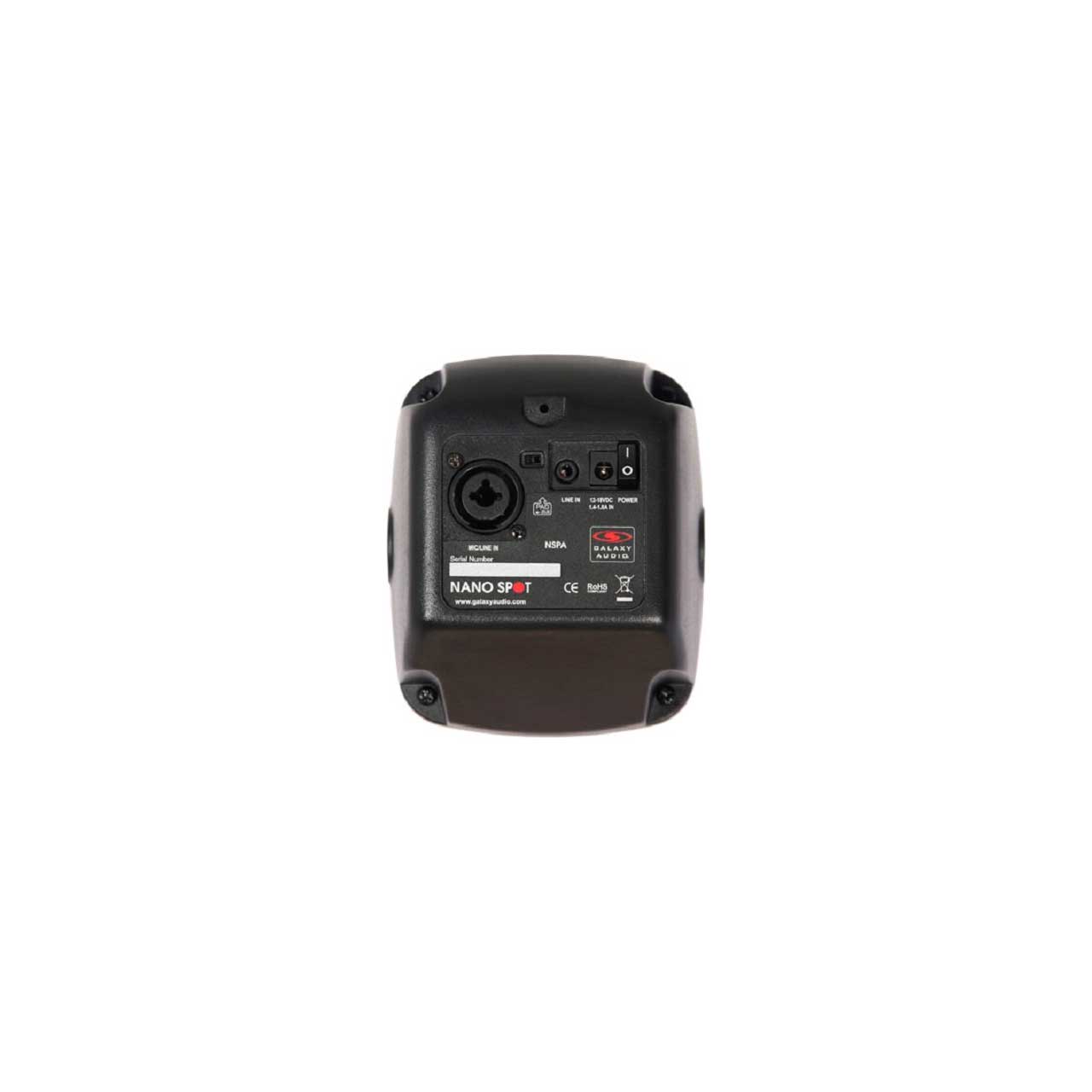

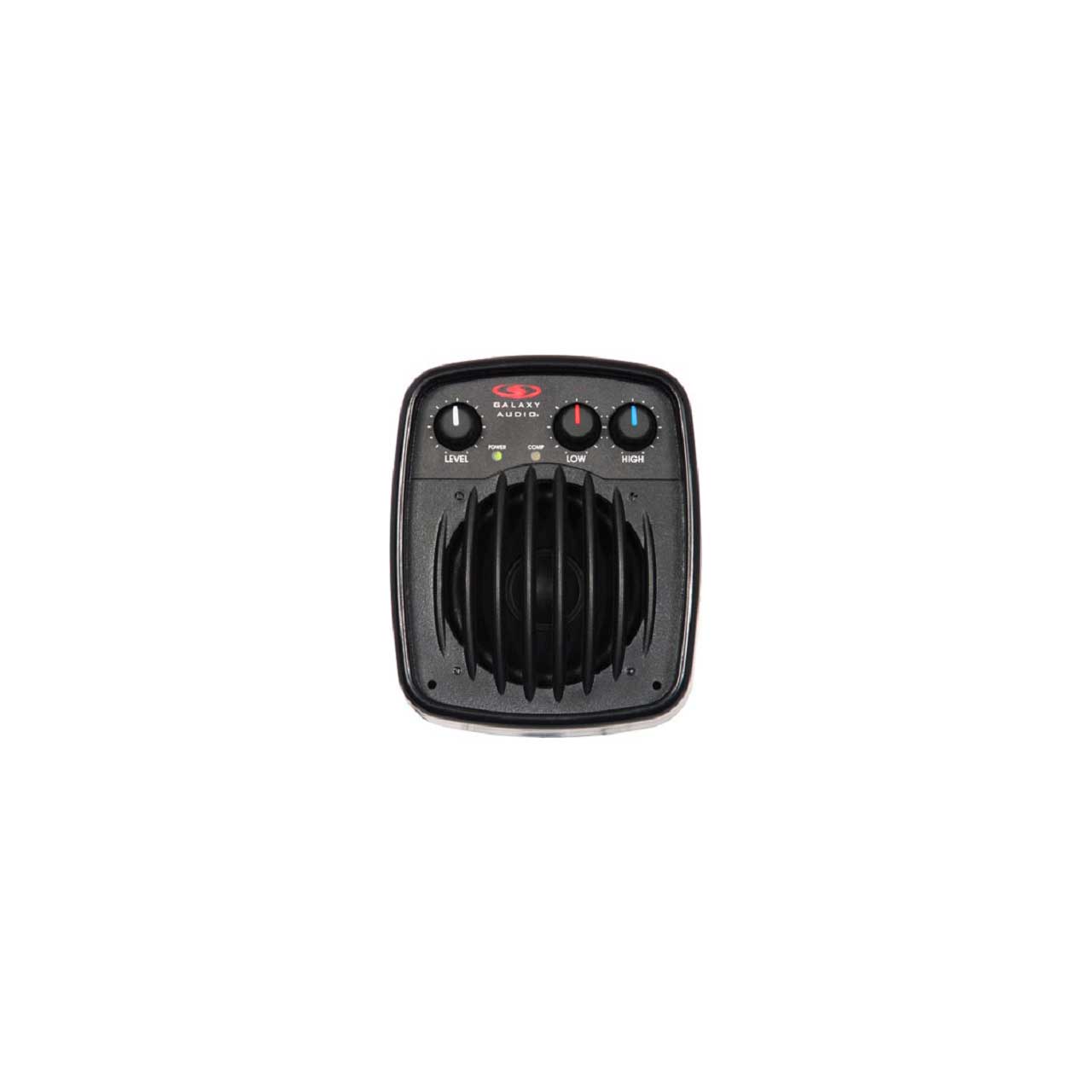

Galaxy NSPA Powered Nano Spot Compact PA System

NSPA - Overview

• Features:

  • 3" 4 ohm Driver
  • Stand / Bracket Mountable with included NSPA Bracket Kit
  • 2 band EQ
  • XLR Input: 4.4 k Differential Balanced
  • 1/4" Input: 10 k Balanced
  • 1/8" Input: 22 k Balanced (11 k Unbalanced)
  • Power LED
  • Signal LED
  • Compressor LED


• Specifications:

  • 3 Inputs: (1) One XLR Balanced; (2) One 1/4" Balanced; (3) One 1/8" Stereo Summing
  • Phantom Power: 24Vdc
  • Controls: Equilizer, One Volume Pot
  • Nominal impedance: 4 ohms
  • Power Supply: 18Vdc, 1.75A
  • Built in Amplifier: 25 watts @ 4 ohms
  • Speaker: 87.5dB @ 1 watt/1 meter
  • Frequency response: 150Hz-17kHz
  • Maximum SPL: 101.5dB
  • Enclosure Materials: High Density ABS
  • Indicator LED's: Power, Compressor & Signal
  • Input Impedance: XLR Input: 4.4 k, Differential Balanced; 1/4" Input: 10 k Balanced; 1/8" Input: 22 k Balanced (11 k Unbalanced)
  • PAD Switch: 20dB
  • Built in Compressor
  • Included: Power supply, Stand/Wall Mount
  • Color: Black
  • Dimensions: 5" x 4.25" x 4.5" (127mm x 108mm x 114mm)
  • Net weight: 1.75 lbs. (0.793kg)


• Item Includes:

  • SA-1 Stand Adaptor
  • Power Supply
  • Stand/Wall Mount Bracket
  • Manual


• GTIN:

  0691281104732
