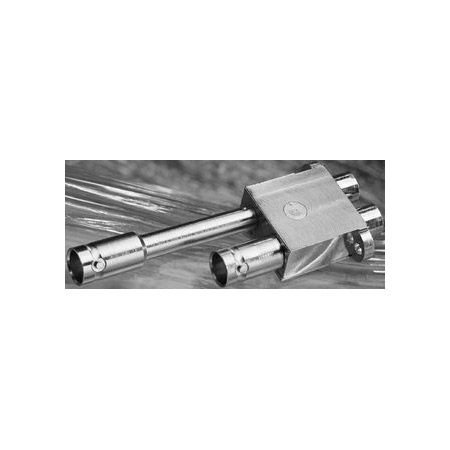

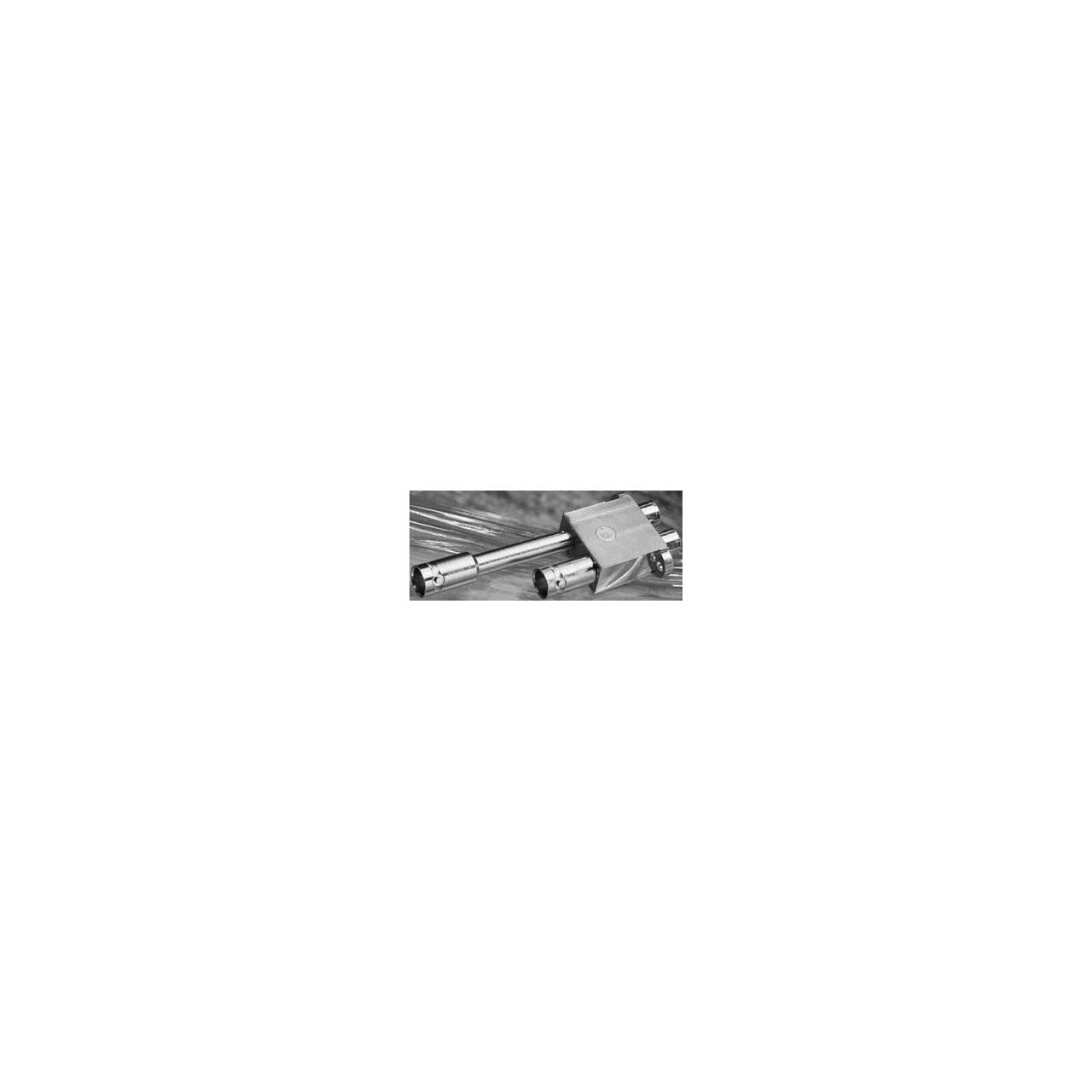

The HDVDPM is a low profile jack designed for HDTV digital applications where space allocation is critical (see Application Notes below). Smaller and with a lower profile than the standard WECo jacks, the HDVDPM allows for 128 ports in the same rack space as 48 standard jacks, a density improvement of 33% more patching.
This miniature high frequency dual coaxial normal-thru digital patch jack establishes a benchmark for superior mechanical design, wideband performance, dependability and reliability at a highly competitive price.
The HDVDPM jack incorporates an innovative and unique normal-thru contact interface that delivers superior mechanical reliability. As a result, typical normal-thru failures are eliminated. In addition, the HDVDPM is designed to meet both the time domain and frequency domain requirements
mandated by SMPTE for HDTV transmission.
