Camplex Lightweight 7.8mm Bend Tolerant SMPTE 311M Camera Cable with LEMO Connectors - 1000 Foot

ITEM #: HF-FUWPUW-7-1000 MFG #: HF-FUWPUW-7-1000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$5,434.95

Our Price:

$4,891.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


HF-FUWPUW-7-1000 - Overview

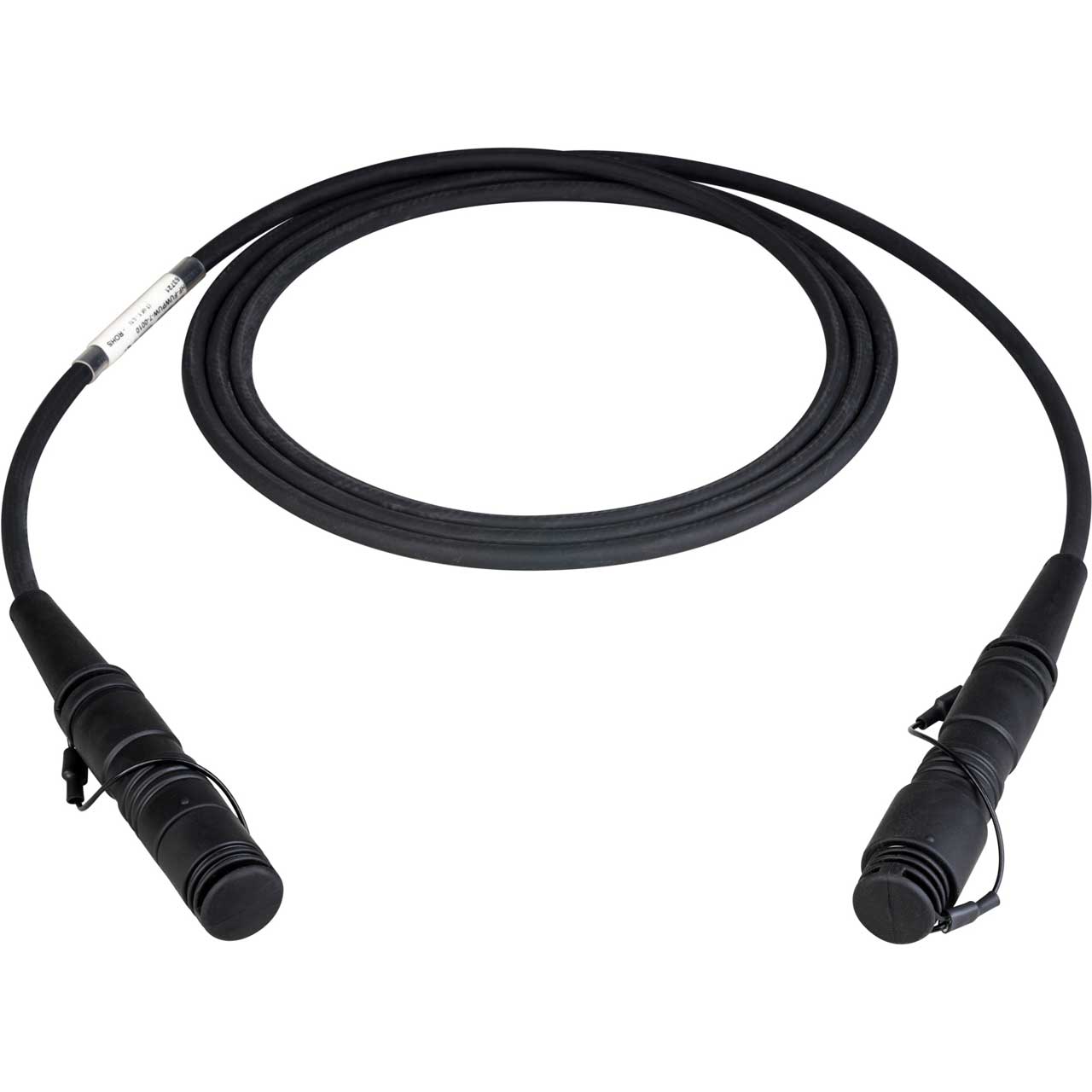

Lightweight, bend tolerant and rugged, the Camplex SMPTE 311 7.8mm Special Operations Tactical Camera Cables feature extra flexible superior shielding making it the ideal hybrid fiber cable for jib-mounted cameras, mobile production truck bays and anywhere weight and a bend insensitive fiber are paramount.

The Camplex HF-FUWPUW-7 SMPTE cable is assembled with Lake Cable 7.8mm SMPTE311 Special Operations Tactical Camera Cable and LEMO FUW-PUW connectors. Offering the durability you expect from Lake Cable, it features the extra-durable, flexible and lightweight 7.8 mm Hybrid-Fiber cable with improved mobility for portable High-Def camera applications.

The cable is made with 2 bend insensitive single mode tactical grade buffered optical fibers, 4 flexible tinned copper auxiliary and signal conductors; flexible whilst strong aramid central strength member. LEMO certified machine polished fiber contacts are fully protected with Camplex over boots and caps for the most demanding applications for high-speed uncompressed HD video transmissions over long distances.

Meets or exceeds SMPTE 304M/311M standards.

Available in a variety of lengths.

  • Features:

    • Compatible with SMPTE 311
    • Lightweight Design for Highly Mobile Deployments
    • Extruded Matte Finish Polyurethane Jacket to Reduce Surface Friction
    • Cut and Abrasion Resistant Tactical Design
    • Highly Flexible Aramid Central Strength Member Terminations by LEMO Certified Technicians
    • Electrical Assemblies 100% Tested for Continuity and Shorts
    • Fiber Optic Assemblies 100% Tested for Attenuation and Back Reflection
    • Conforms to LEMO Assembly Specification for Cables Terminated to the LEMO 3K.93C Assembly and Test Standard
    • Applications
    • On-stage Stabilized Cameras
    • Jib Mounted Cameras
    • Any Place Where Cameras Need to Move Quickly
    • Mobile Production Trucks

  • Specifications:

    • SMPTE 311 AVBSMPTE7MMK 7.8 mm Hybrid Cable
    • (2) 16 AWG 65 Strand TC PE Insulated Auxiliary Conductors
    • (2) 24 AWG 19 Strand TC PE Insulated Signal Conductors
    • Kevlar K1500 Cord - Polyolefin Insulated
    • (2) 9.5 Micron fibers TPE Insulated PVC jacket
    • 95% Coverage Tinned Copper Spiral Wrap Shield DCr < 20Ωkm

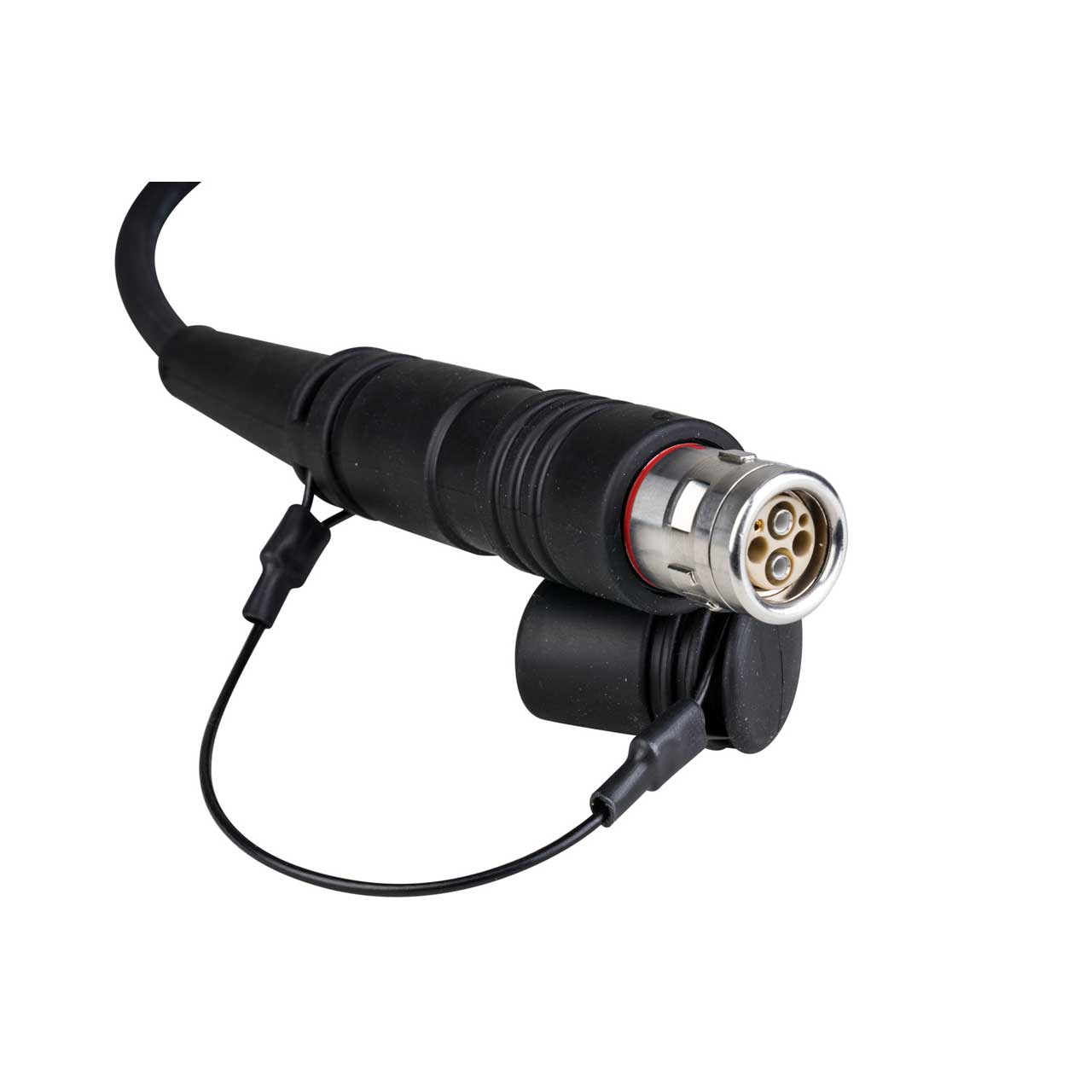

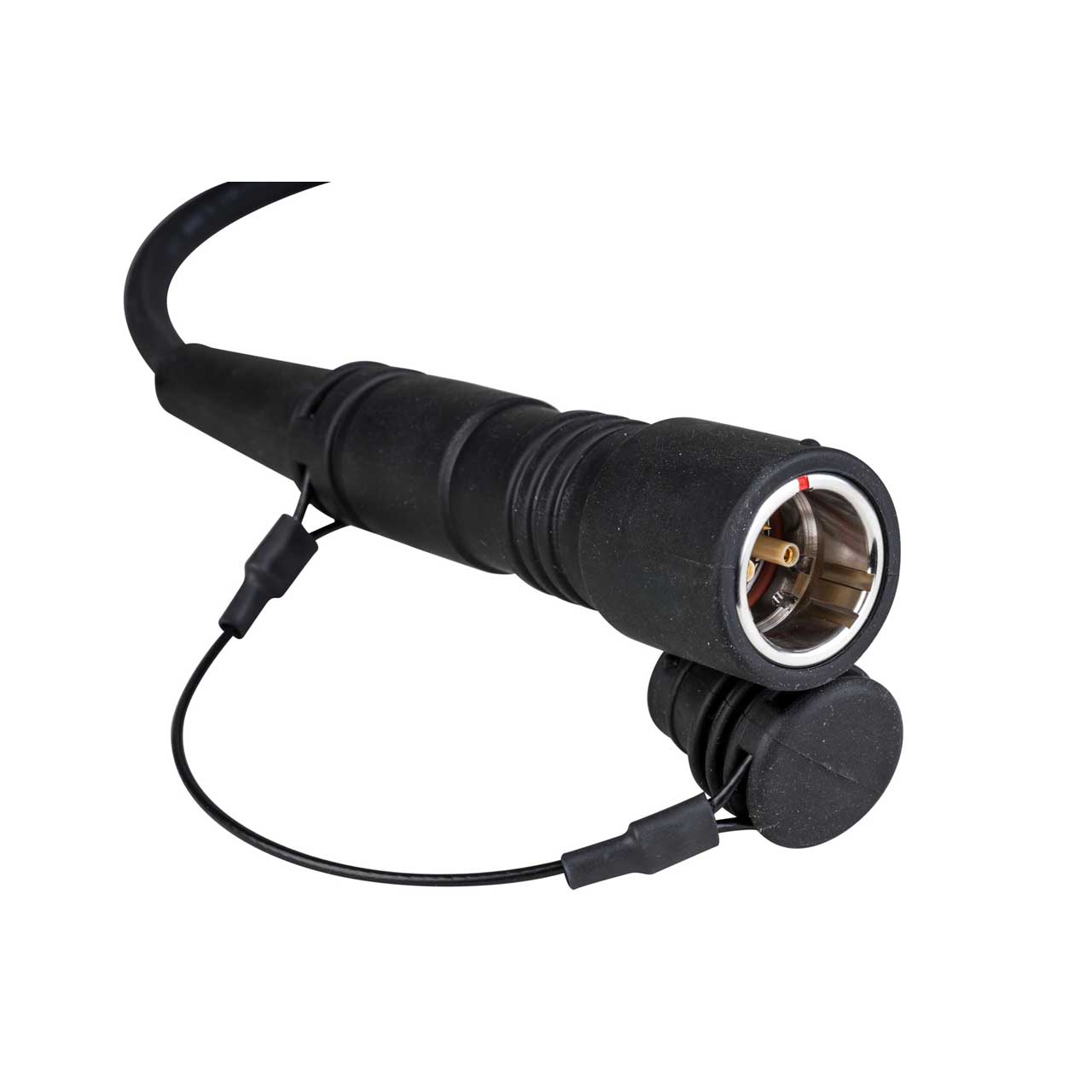

      LEMO FUW and PUW SMPTE Fiber HDTV Connectors
    • SMPTE Hybrid Straight Cable Connectors
    • Protective Over boots & Dust Caps
    • Designed for Fast Cleaning
    • Push-Pull Self-Latching System
    • Stainless Steel Shell
