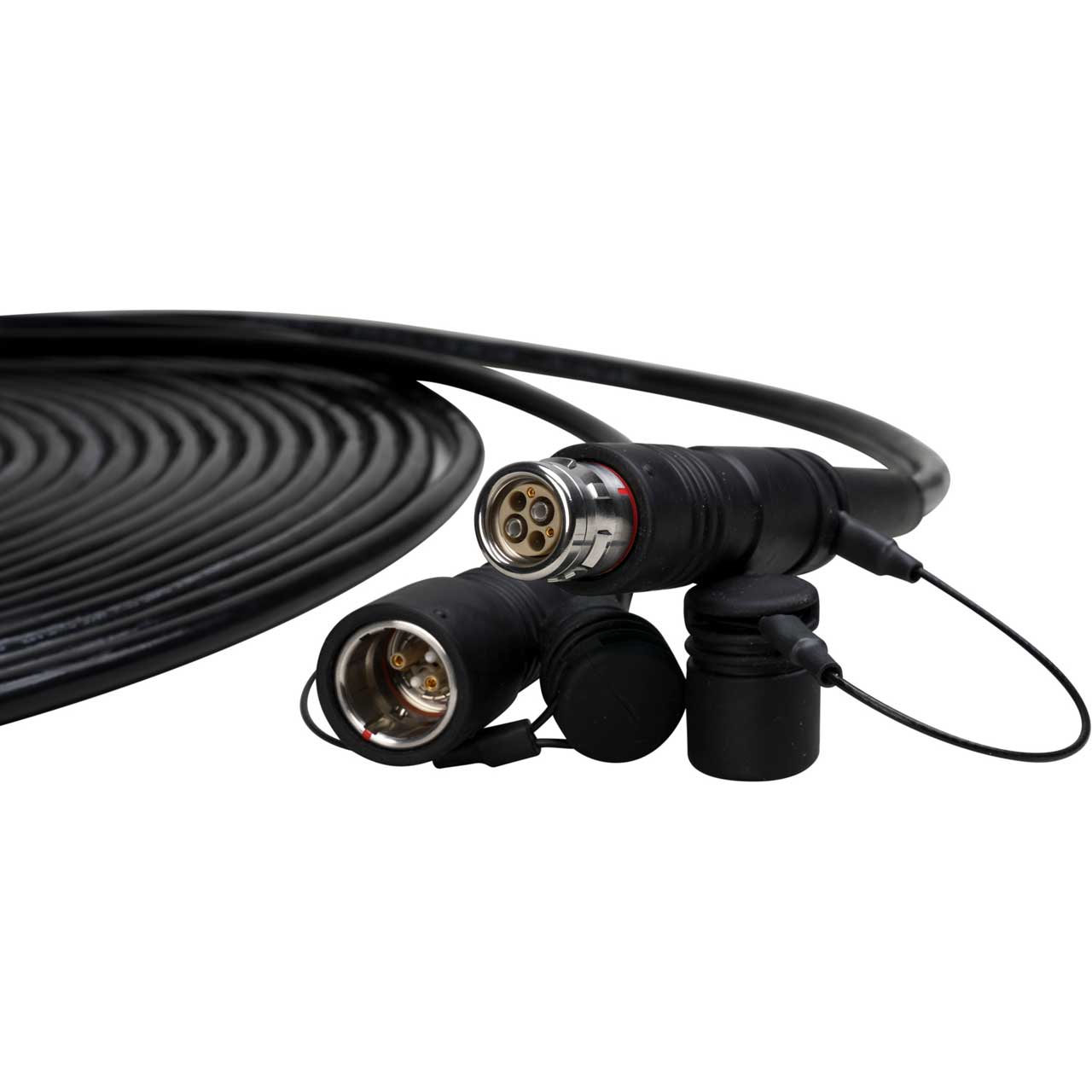

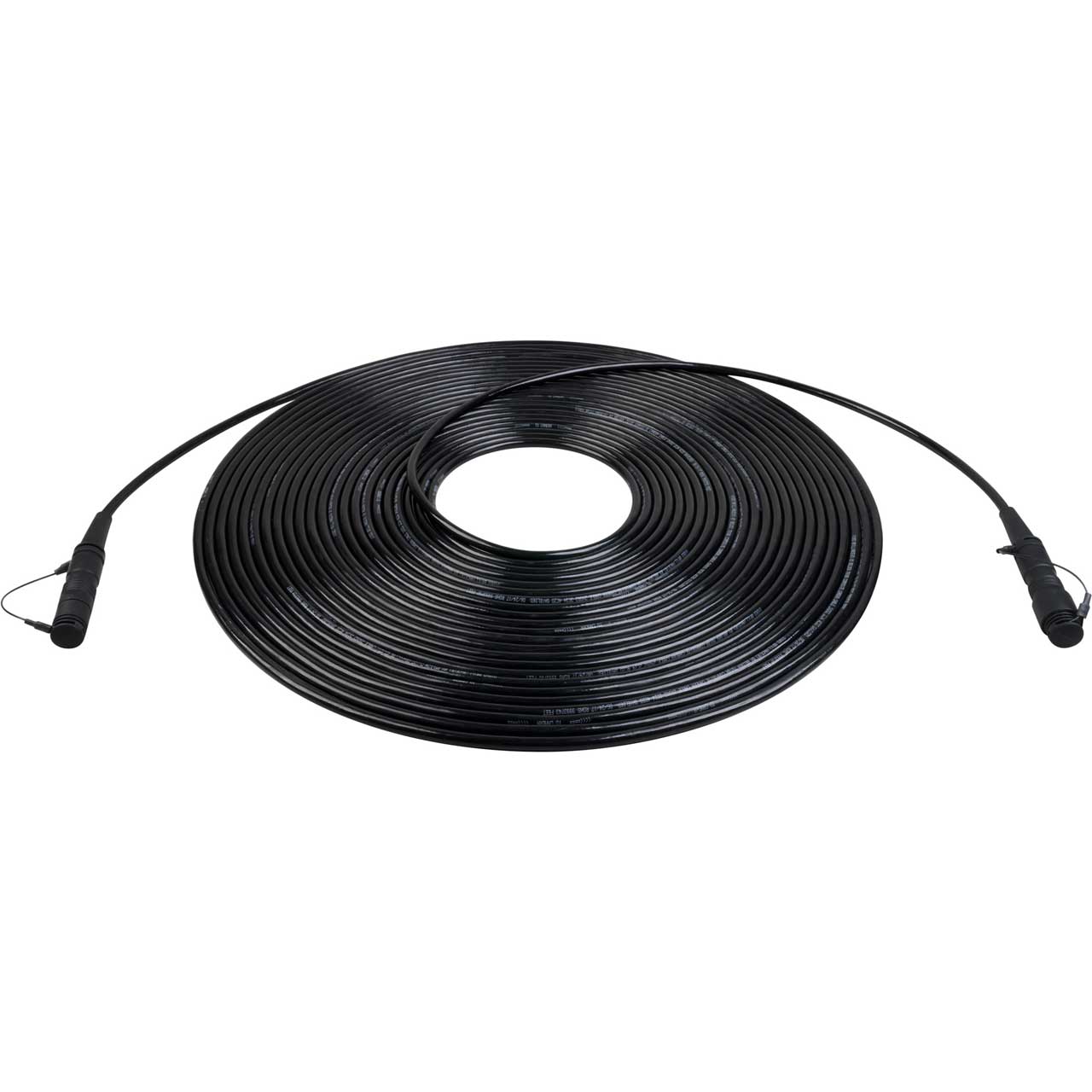

Camplex LEMO FUW-PUW with OCC Tactical SMPTE Hybrid Fiber Camera Cable - 100 Foot

ITEM #: HF-FUWPUW-T-0100 MFG #: HF-FUWPUW-T-0100

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,377.95

Our Price:

$1,239.95

Availability: In Stock
iAvailability Description Popup


    HF-FUWPUW-T-0100 - Overview

    Camplex SMPTE 311M ruggedized camera cable assemblies with ultra-precision connectors meet your high-definition needs in harsh environments without affecting performance!

    Featuring OCC SMPTE 311M ruggedized camera cable and ultra-precision LEMO connectors, Camplex LEMO FUW-PUW Outside Broadcast SMPTE Fiber Camera Cables are ideal for mobile trucks, outdoor venues, and permanent outdoor installations.

    OCC cables feature a tough abrasion-resistant polyurethane jacket to meet all your high-definition needs in harsh environments without affecting performance. These flexible cables are perfect for use behind racks and in trucks where space is extremely limited. LEMO-certified machine polished fiber contacts are fully protected with Camplex over-boots and caps for the most demanding applications for high-speed uncompressed HD video transmissions over long distances.

    Assemblies are multi-stage machines polished and tested for <-55db RL with test results supplied for each cable, which meets or exceeds SMPTE 304M/311M standards. Assembled and tested by LEMO-trained technicians in our in-house fiber shop to LEMO specifications. Full repair services are also available.

    Available in a variety of lengths, custom lengths and configurations.

    • Features:

      • Connects LEMO 3K.93C Camera and Camera Control Unit Interfaces
      • Rugged OCC SMPTE Cable for Harsh Environments
      • Extreme Temperature Cable Rating: -40°C to +75°C
      • Terminations by LEMO Certified Technicians
      • Low Insertion and Return Loss (Documents Provided with Each Cable)
      • Made in the USA

    • Specifications:

      • OCC SMPTE Tactical Cable
      • Core/Cladding Diameter (µm): 9/125
      • Wavelength (nm): 1310/1550
      • Maximum Cable Attenuation (dB/km): 0.5/0.5
      • Primary Coating Diameter (µm): 500
      • Secondary Buffer Diameter (µm): 900
      • Zero Dispersion Slope (ps/nm2-km): 0.092
      • Proof Test Level (kpsi): 100
      • Jacket Material: Polyurethane
      • Cable Weight: 144 kg/km (97 lbs/1000')
      • Cable Diameter: 9.2 mm (0.36in)
      • Strength Member: 16 AWG Galvanized Steel, Polyurethane Insulated -Purple
