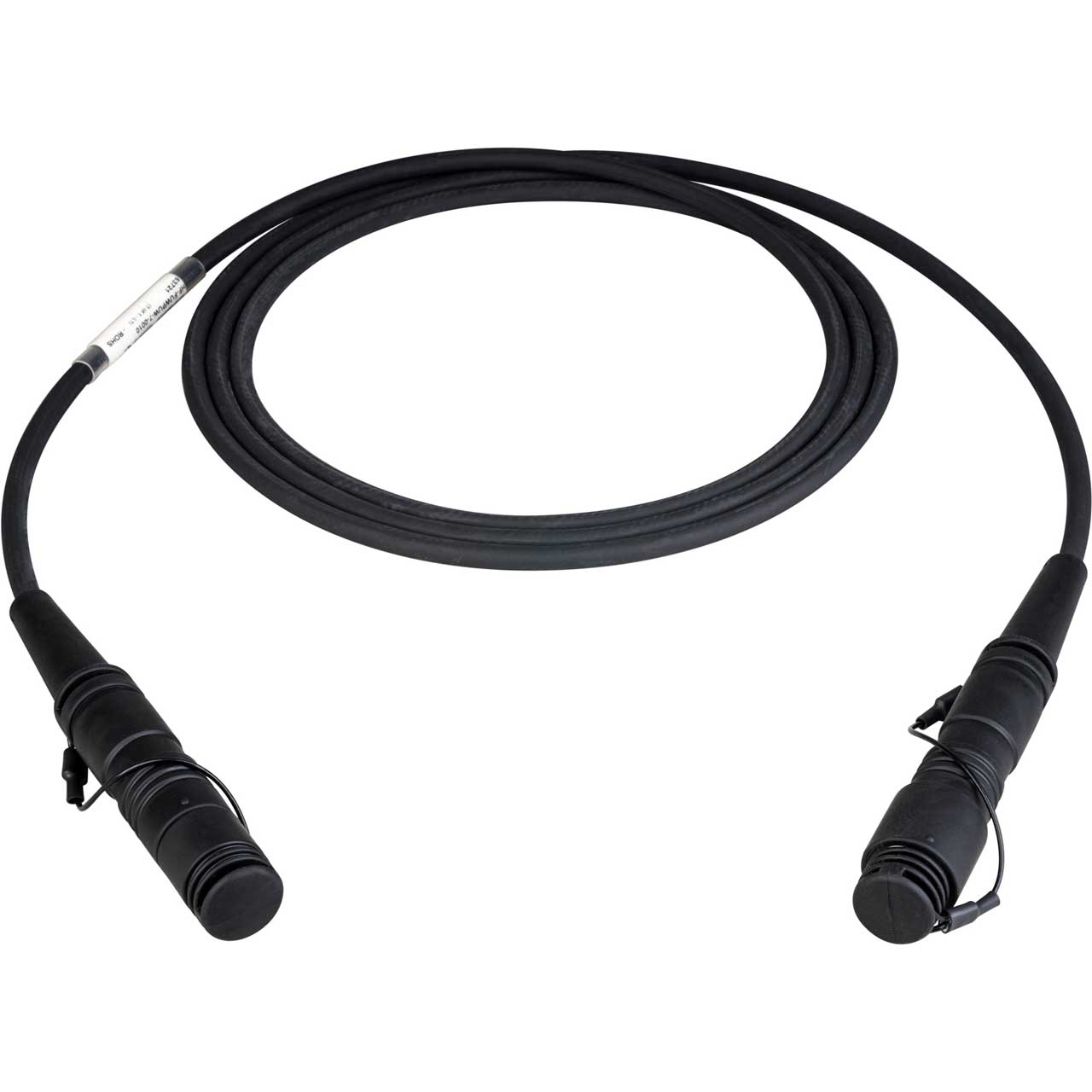

Camplex Lightweight 7.8mm Bend Tolerant SMPTE 311M Camera Cable with LEMO Connectors - 100 Foot

ITEM #: HF-FUWPUW-7-0100 MFG #: HF-FUWPUW-7-0100

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,385.95

Our Price:

$1,247.49

Availability: In Stock
iAvailability Description Popup


    HF-FUWPUW-7-0100 - Overview

    Lightweight, bend tolerant and rugged, the Camplex SMPTE 311 7.8mm Special Operations Tactical Camera Cables feature extra flexible superior shielding making it the ideal hybrid fiber cable for jib-mounted cameras, mobile production truck bays and anywhere weight and a bend insensitive fiber are paramount.

    The Camplex HF-FUWPUW-7 SMPTE cable is assembled with Lake Cable 7.8mm SMPTE311 Special Operations Tactical Camera Cable and LEMO FUW-PUW connectors. Offering the durability you expect from Lake Cable, it features the extra-durable, flexible and lightweight 7.8 mm Hybrid-Fiber cable with improved mobility for portable High-Def camera applications.

    The cable is made with 2 bend insensitive single mode tactical grade buffered optical fibers, 4 flexible tinned copper auxiliary and signal conductors; flexible whilst strong aramid central strength member. LEMO certified machine polished fiber contacts are fully protected with Camplex over boots and caps for the most demanding applications for high-speed uncompressed HD video transmissions over long distances.

    Meets or exceeds SMPTE 304M/311M standards.

    Available in a variety of lengths.

    • Features:

      • Compatible with SMPTE 311
      • Lightweight Design for Highly Mobile Deployments
      • Extruded Matte Finish Polyurethane Jacket to Reduce Surface Friction
      • Cut and Abrasion Resistant Tactical Design
      • Highly Flexible Aramid Central Strength Member Terminations by LEMO Certified Technicians
      • Electrical Assemblies 100% Tested for Continuity and Shorts
      • Fiber Optic Assemblies 100% Tested for Attenuation and Back Reflection
      • Conforms to LEMO Assembly Specification for Cables Terminated to the LEMO 3K.93C Assembly and Test Standard
      • Applications
      • On-stage Stabilized Cameras
      • Jib Mounted Cameras
      • Any Place Where Cameras Need to Move Quickly
      • Mobile Production Trucks

    • Specifications:

      • SMPTE 311 AVBSMPTE7MMK 7.8 mm Hybrid Cable
      • (2) 16 AWG 65 Strand TC PE Insulated Auxiliary Conductors
      • (2) 24 AWG 19 Strand TC PE Insulated Signal Conductors
      • Kevlar K1500 Cord - Polyolefin Insulated
      • (2) 9.5 Micron fibers TPE Insulated PVC jacket
      • 95% Coverage Tinned Copper Spiral Wrap Shield DCr < 20Ωkm

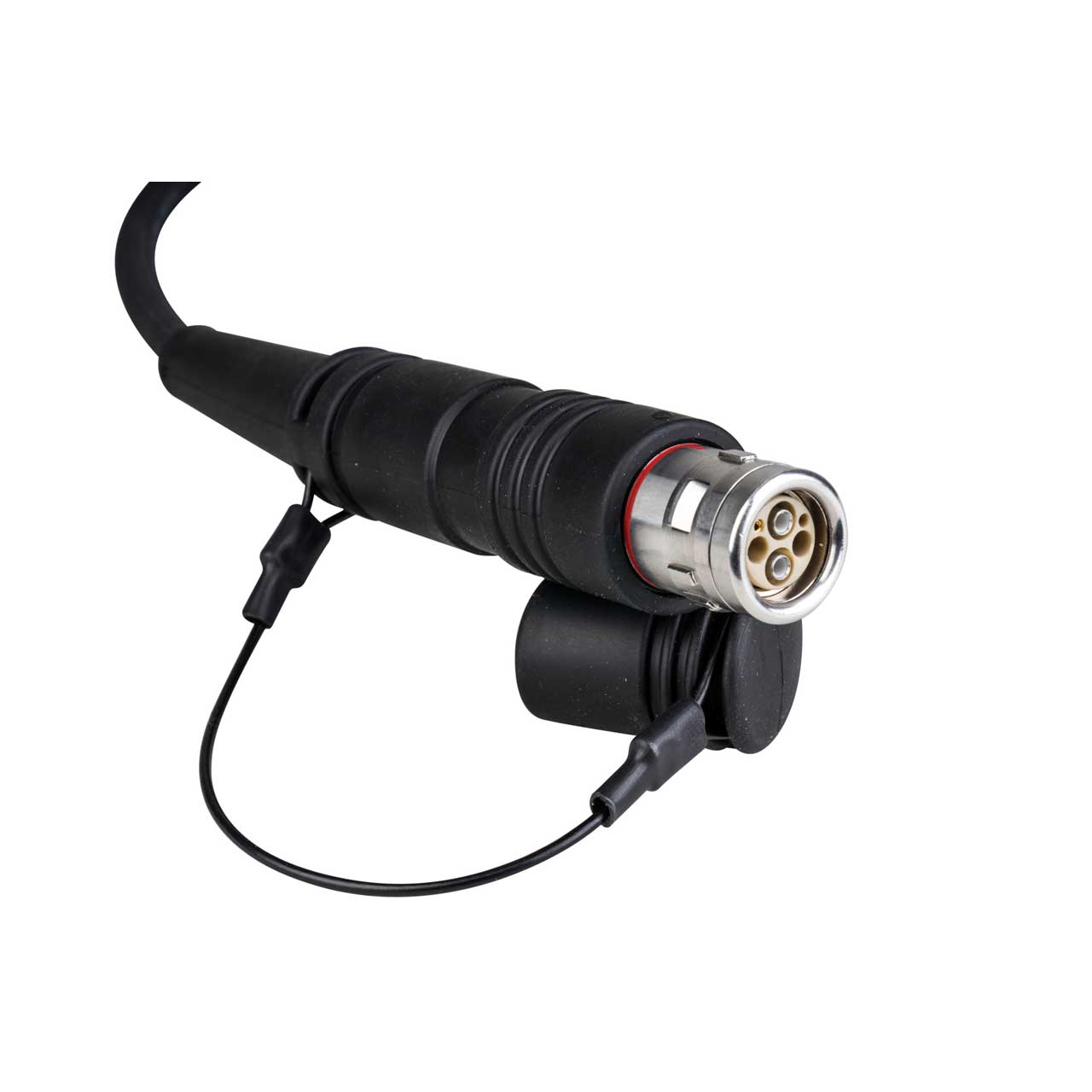

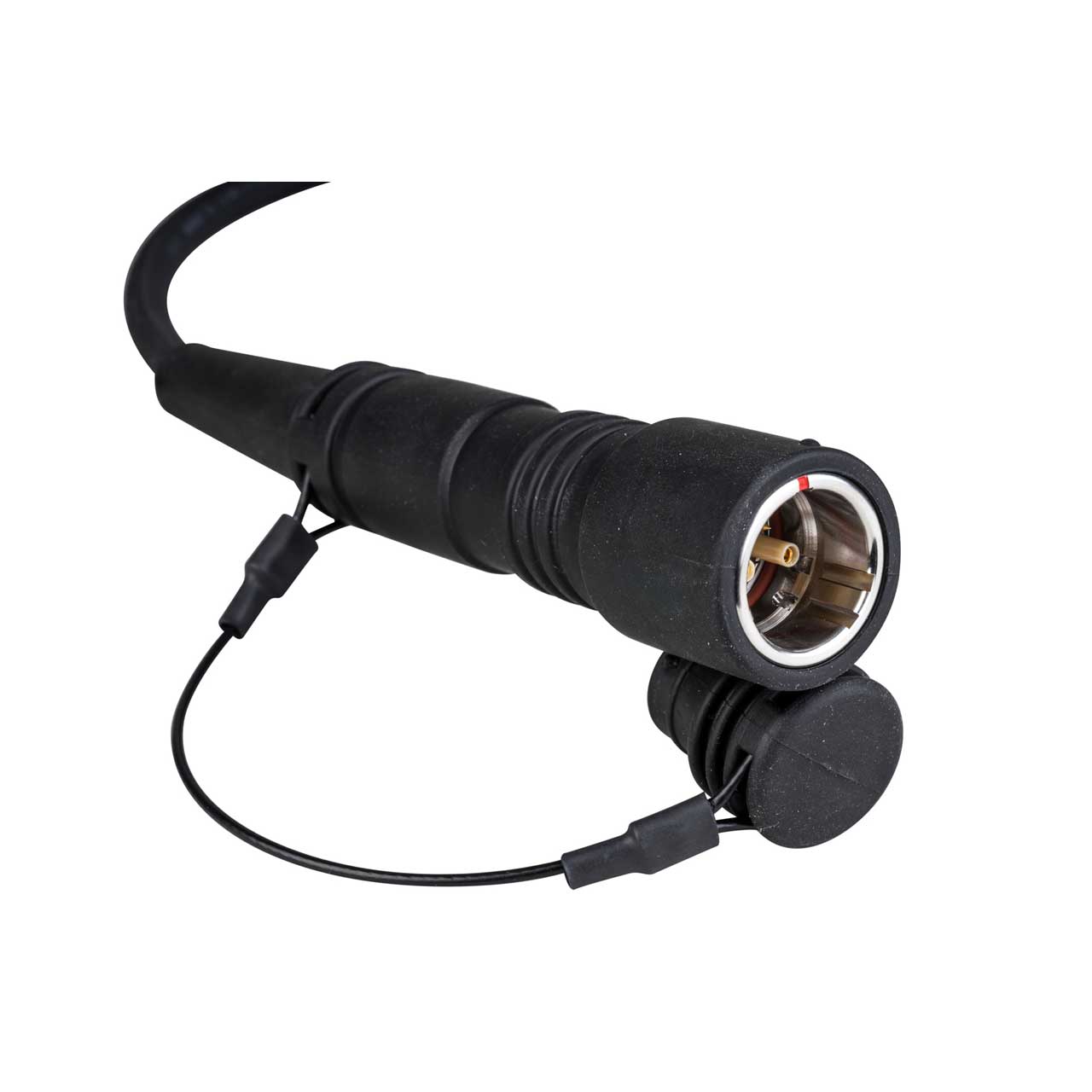

        LEMO FUW and PUW SMPTE Fiber HDTV Connectors
      • SMPTE Hybrid Straight Cable Connectors
      • Protective Over boots & Dust Caps
      • Designed for Fast Cleaning
      • Push-Pull Self-Latching System
      • Stainless Steel Shell
