Extremely Rugged & Lightweight OM3 Multimode Tactical Fiber Snakes Designed for Broadcast & Pro-Audio Applications!
Ruggedized multi-channel fiber optic cables designed for multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables with internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to withstand crushing by both military tanks and Outside Broadcast vehicles. Cables are complete end-to-end tactical grade where fanout channels are covered with tactical grade polyurethane furcation tubing. All assemblies multi-stage machine polished and tested for less than .55db RL (complete per-channel test results available on request). Built in-house at our state-of-the-art fiber lab - the only fiber lab in the US to have achieved full certification from LEMO, Neutrik & Canare!

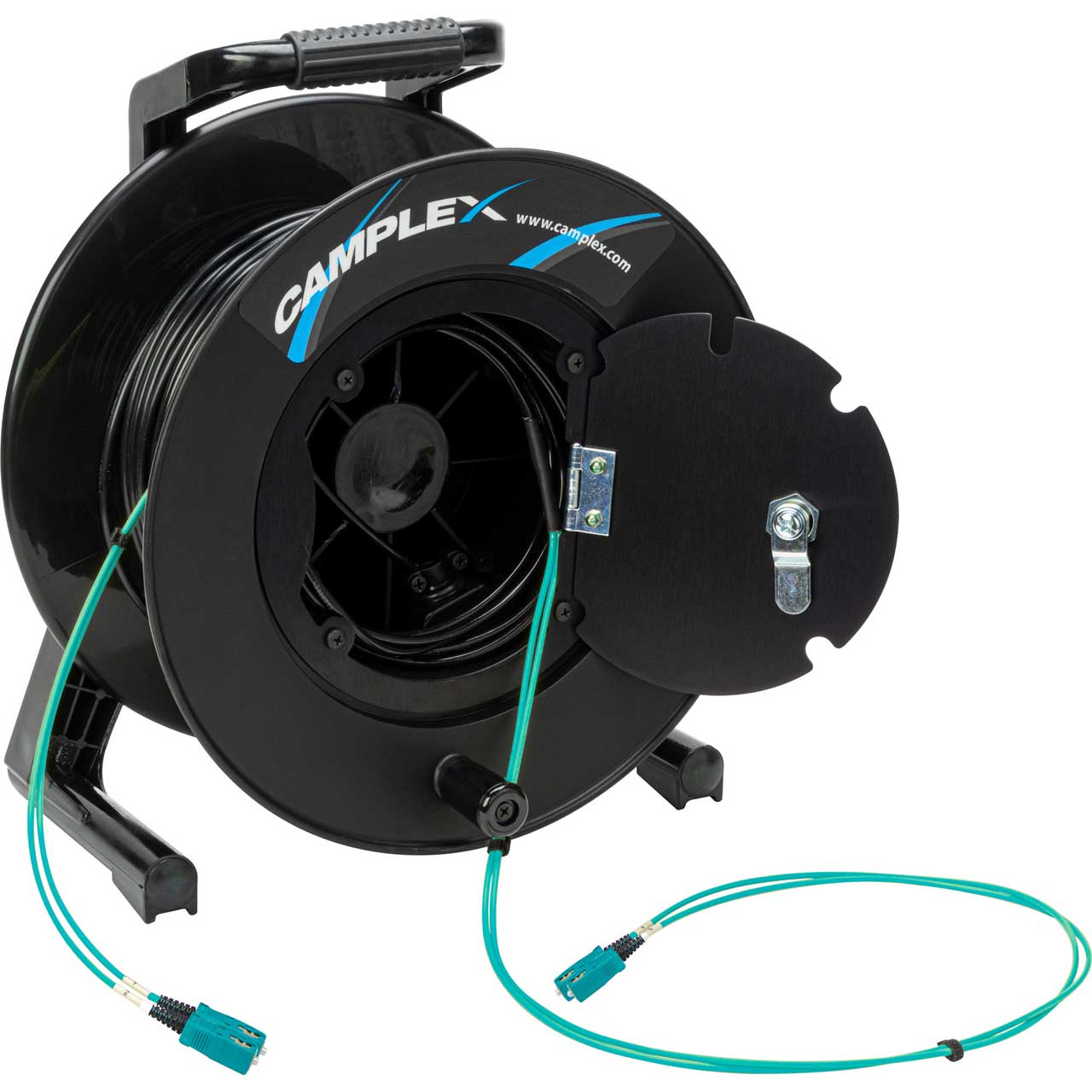

Reels can include a hinged latching door, outboard coiling ring with retention strap, or slotted disk dividers depending on cable diameters and lengths. Check with your sales associate for reel information regarding specific assemblies.
Custom configurations and assemblies as well as full repair services are always available for any brand tactical or SMPTE hybrid fiber cable.
Understanding MADI.
For numerous users this optical interface is a mystery.Very few have ever dealt with huge cabinets full of professional network technology. Therefore, here are some explanations regarding `MADI optical': The cables have an internal fibre of only 50 or 62.5 ‘m (microns) in diameter and a coating of 125 ‘m. The plugs used are an industry standard, called SC. The cables are available as a duplex variant (2 cables being glued together) or as a simplex variant (1 cable). The transmission uses the multi-mode technique, which supports cable lengths of up to almost 2000 meters.
MADI is being used as a multi-Channel link between mixing consoles, DAWs or multi-track recorders or other digital outboard gear, as a transmission format in large scale digital audio routing systems, to transmit digitized microphone and line signals from a stage box to a theatre or studio mixing console.
