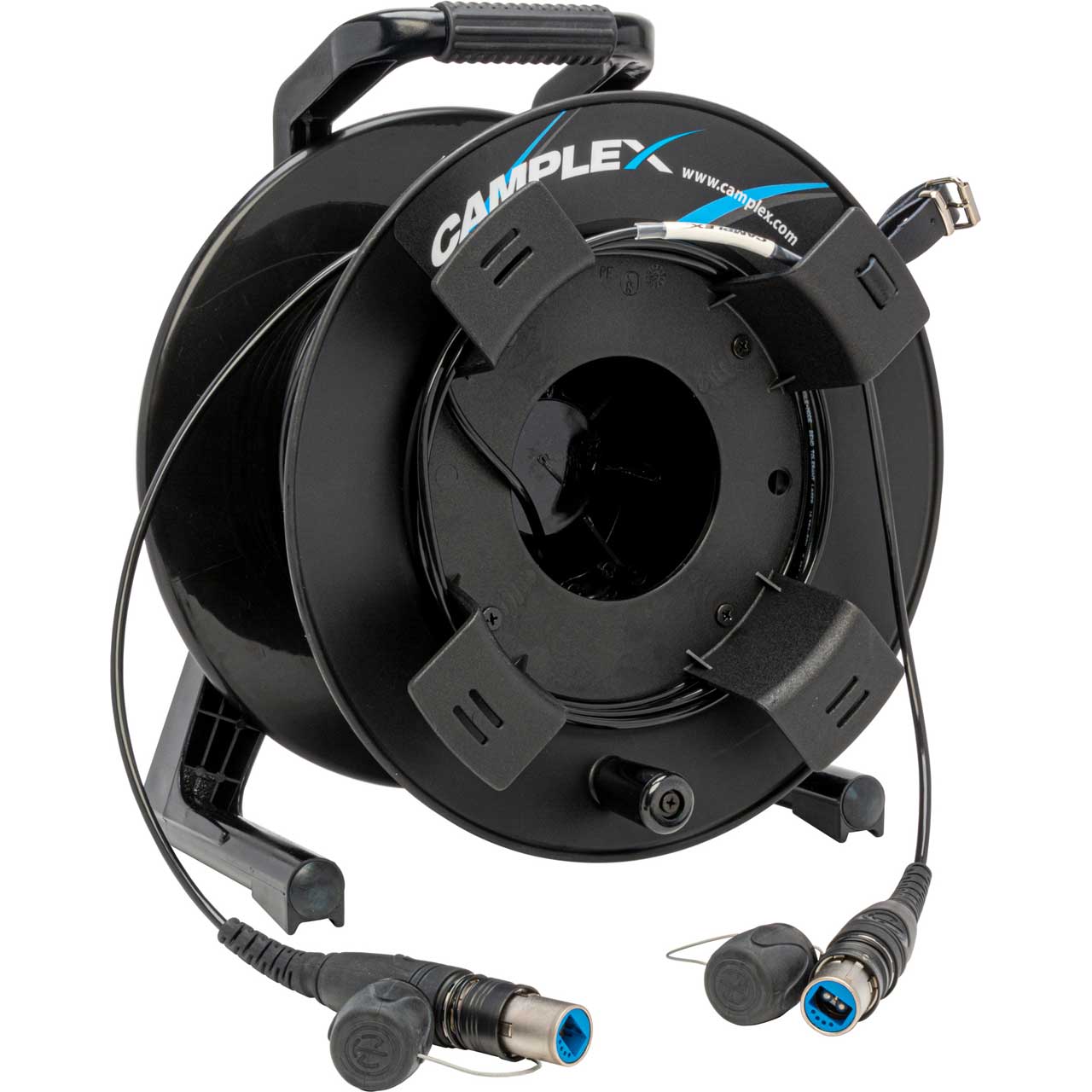

OpticalCON DUO NO2SX to NO2SX Single Mode Hybrid SMPTE 311M Tactical Broadcast Cable. OpticalCON assemblies are COCA factory terminated and machine polished in our state-of-the-art Fiber Optic Lab. Neutrik OpticalCON assemblies are made with tactical broadcast SMPTE 311M cable rated for ruggedized applications and field deployment in commercial and professional broadcast AV applications.
Machine polishing processes provide exceptionally low return loss and insertion loss. OpticalCON features a ruggedized connector body, common LC contacts, and a mechanical shutter system to shield against end-face contamination. SMPTE cable with 2 Single Mode fiber UPC, 2 x AWG24 and 2 x AWG16 or (2x17AWG) stranded copper power conductors, overall copper braided shield and stainless-steel strength member.
Our cables are exclusively assembled using the Neutrik opticalCON ADVANCED system. opticalCON ADVANCED further enhances the original opticalCON making it more robust by adding lockable and waterproofed metal caps as well as rubber guards. This is especially critical for outdoor applications. The ergonomic cable strain relief improves the cable protection and water resistance in long-term use, and the color-coding options allow custom-built coding.
