Hollyland Mars M1 Enhanced 5.5-Inch Wireless Transceiving Monitor and Mars 4K Video Transmission System Kit Bundle

Name: Hollyland Mars M1 Enhanced 5.5-Inch Wireless Transceiving Monitor and Mars 4K Video Transmission System Kit Bundle
Brand: Hollyland
SKU: HL-MARS-VTMK5IN
Price: 949.00 USD
Availability: PreSale

ITEM #: HL-MARS-VTMK5IN MFG #: MARS M1 ENHANCED 4K KIT

Hollyland

Our Price:

$949.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

MARS M1 ENHANCED 4K KIT - Overview

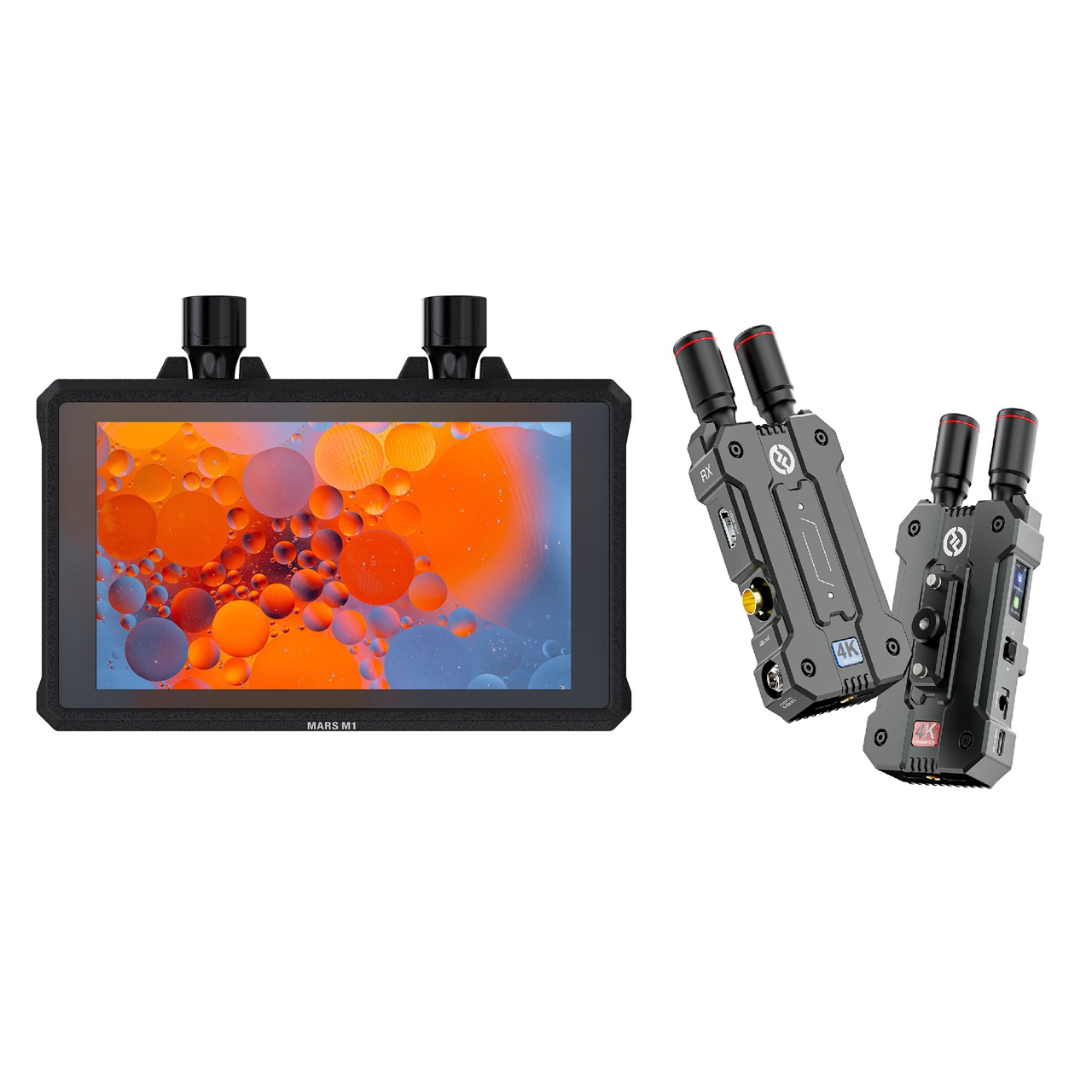

Introducing the Hollyland Mars M1 Enhanced Monitor & Mars 4K Kit Bundle - featuring the Mars M1 Enhanced, the Mars 4K Receiver, and the Mars 4K Transmitter, perfect for wirelessly sending and receiving 4K HDMI signals, all for one lower price!

The Mars M1 Enhanced is a versatile wireless monitor that integrates transmitter, receiver, and monitoring functions into one solution. The 5.5" touch screen with groundbreaking advantages such as accurate color calibration and Rec.709 color gamut, delivers a pleasant monitoring experience with professional image analysis functions. The device supports an impressive LOS range of up to 450ft (150m) and boasts a low latency of only 0.08 seconds, allowing for more flexibility in device deployment and ensuring seamless monitoring without noticeable lag.

The Mars 4K wireless video transmission system is capable of a 450ft (150m) LOS range and ultra-low latency of 0.06s. The Mars 4K is designed to combine high performance and reliable quality at an affordable price.

For more information on the items in this bundle, including key features and technical specifications, please visit the individual web pages for the HL-MARSM1ENANCED and the HL-MARS-4K on our site.

Features:
- Transmitter, Receiver, and Monitor All-in-One
- Responsive 5.5" Full HD LCD Touch Screen
- User Friendly HollyOS Operating System
- 450ft Stable Transmission, 0.08s Ultra-Low Latency
- Support HDMI & SDI Dual Port
- Flexible Power Supply Options
Specifications:

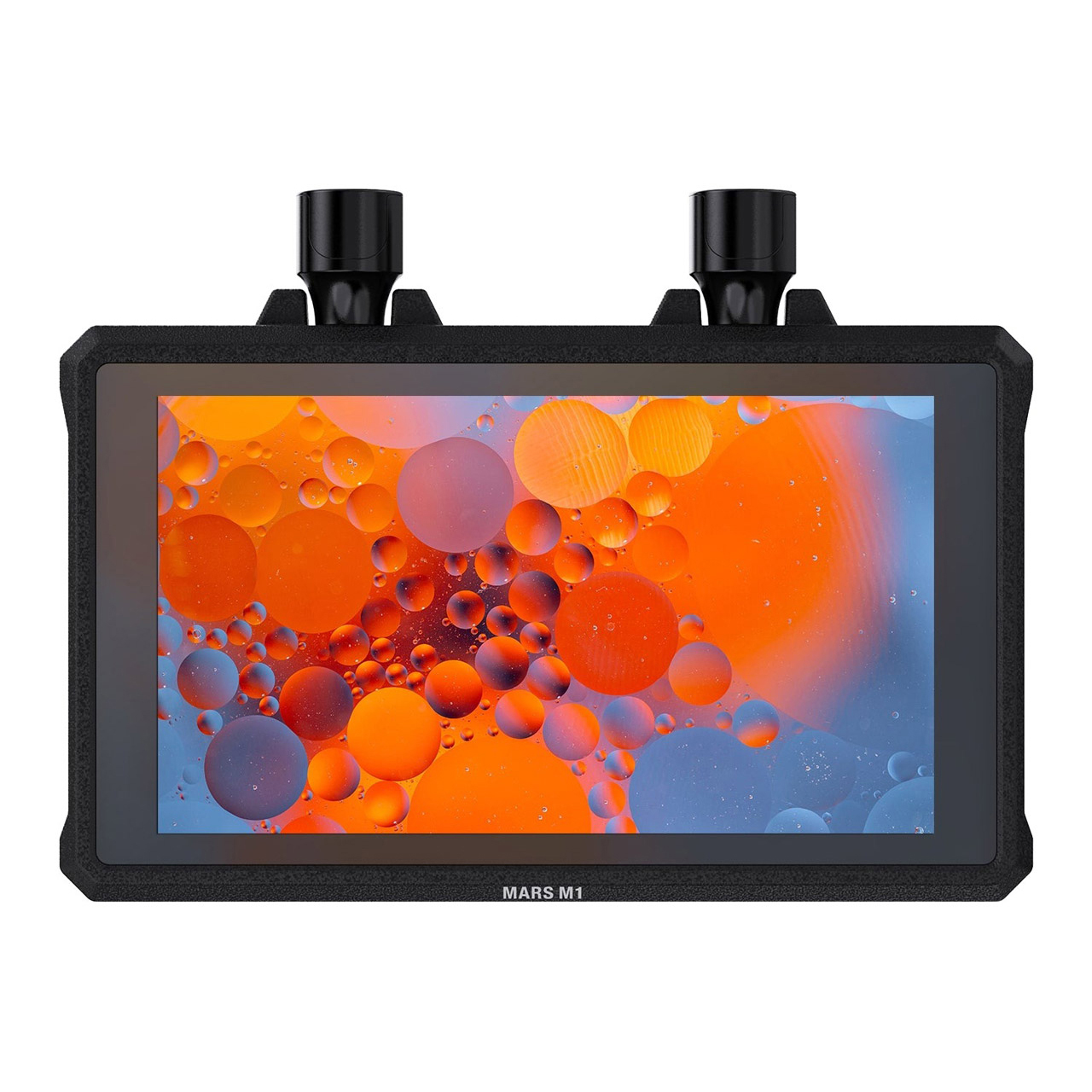

- Mars M1 Enhanced
- Transmitter Video Input Interface:
  - HDMI 1.4b IN (Type-A female)
  - 3G-SDI IN (BNC female)
- Transmitter Video Output Interface: HDMI 1.4b LOOPOUT (Type-A female)
- Receiver Video Output Interface: HDMI 1.4b OUT (Type-A female)
- Antenna Interface: Two RP-SMA male interfaces
- Power Input Interface: DC IN (2.0mm core socket)
- Power Output Interface: DC OUT (2.0mm core socket)
- Headphone Jack: 3.5mm
- Upgrade Interface: USB-C (USB-2.0 OTG)
- Screen Size: 5.5" touchscreen
- Screen Resolution: 1920x1080 pixels
- Pixel Density: 403 PPI
- Aspect Ratio: 16:9
- Screen Brightness: 1,000 nits
- Contrast Ratio: 1000:1
- Power Input Voltage:
  - DC IN: 7-16V 2.5A (nominal 12V)
  - NP-F battery: 6.8V-8.4V
- DC Output Voltage: 8.4V±5%
- Transmitter Power Consumption: <16W
- Receiver Power Consumption: <13.6W
- Net Weight: 14.1oz (400g) with external antennas excluded
- Dimensions: 5.98" x 3.78" x 1.57" (152mm x 96mm x 40mm) with external antennas excluded
- Codec Technology: H.264
- Bit Rate: 12Mbps
- TX Power: ≤ 21±1.5dBm
- Transmission Latency: ~0.08s (test data when 1080p60 signals are transmitted in a laboratory environment)
- LOS Range: Up to 450ft (150m) (test data in an unobstructed outdoor environment free of interference)
- Bandwidth: 20MHz
- Audio Format: Eight audio channels for the HDMI 1.4b
- Operating Temperature: 14°F - 140°F (-10°C - 60°C)
- Storage Temperature: -40°F - 140°F (-40°C - 60°C)

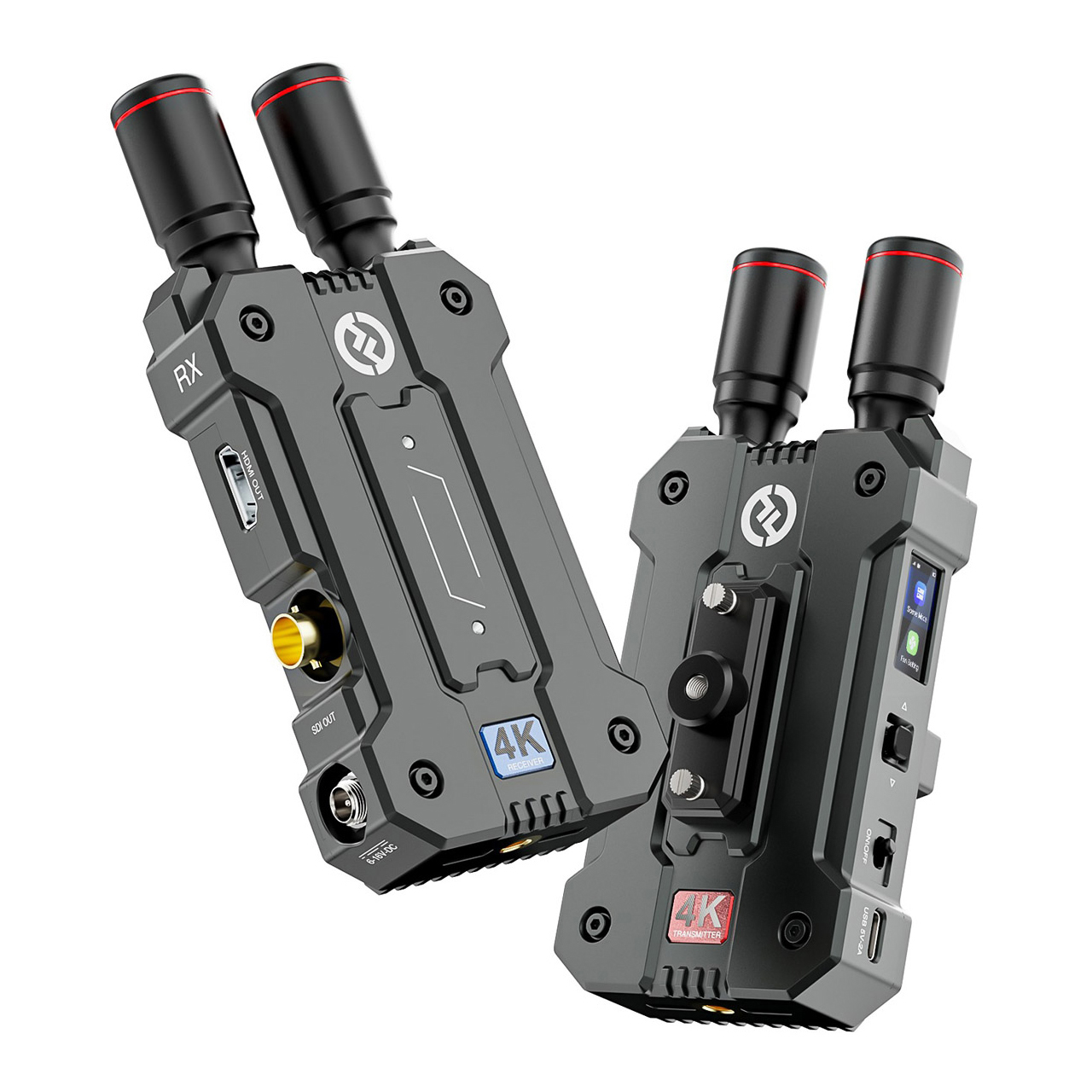

  Mars 4K Transmitter
- Interface:
  - Antenna (RP-SMA male)
  - HDMI 1.4 b input (Type-A female)
  - 3G-SDI input
  - DC input (2.0mm core socket)
  - USB Type-C (USB 2.0 OTG)
- Voltage: DC input: 6V-16V, USB Type-C: 5V/2.5A (not supporting the QC and PD protocols), NP-F battery: 6.8V-8.4V
- Power Consumption: < 8.5W (typical)
- Weight: 0.49lbs (223g), excluding the antennas
- Dimension (LxWxH): 4.5" x 2.5" x 1.3" (115mm x 65mm x 32mm)
- Operating Frequency: 5.1GHz - 5.8GHz
- Modulation Mode: 802.11n
- TX Power: 21dBm (max.)
- RX Sensitivity: N/A
- Bit Rate: 8Mbps - 20Mbps
- Latency: 0.06s (test data when 1080p60 signals are transmitted in a laboratory)
- Range: 450ft (150m)(test data in an open, interference-free outdoor environment)
- Bandwidth: 20MHz
- Audio Format: 2 audio channels for the 3G-SDI and 8 audio channels for the HDMI 1.4b
- Operating Temperature: 14°F - 140°F (10°C - 60°C)
- Storage Temperature: 14°F - 140°F (10°C - 60°C)
- ESD Protection: Contact discharge: ±&6kV; air discharge: ±8kV (test data)

  Mars 4K Receiver
- Interface:
  - Antenna (RP-SMA male)
  - HDMI 1.4 b input (Type-A female)
  - 3G-SDI input
  - DC input (2.0mm core socket)
  - USB Type-C (USB 2.0 OTG)
- Voltage: DC input: 6V-16V, USB Type-C: 5V/2.5A (not supporting the QC and PD protocols), NP-F battery: 6.8V-8.4V
- Power Consumption: < 5W (typical)
- Weight: 0.49lbs (223g), excluding the antennas
- Dimension (LxWxH): 4.5" x 2.5" x 1.3" (115mm x 65mm x 32mm)
- Operating Frequency: 5.1GHz - 5.8GHz
- Modulation Mode: 802.11n
- TX Power: 21dBm (max.)
- RX Sensitivity: -90 dBm

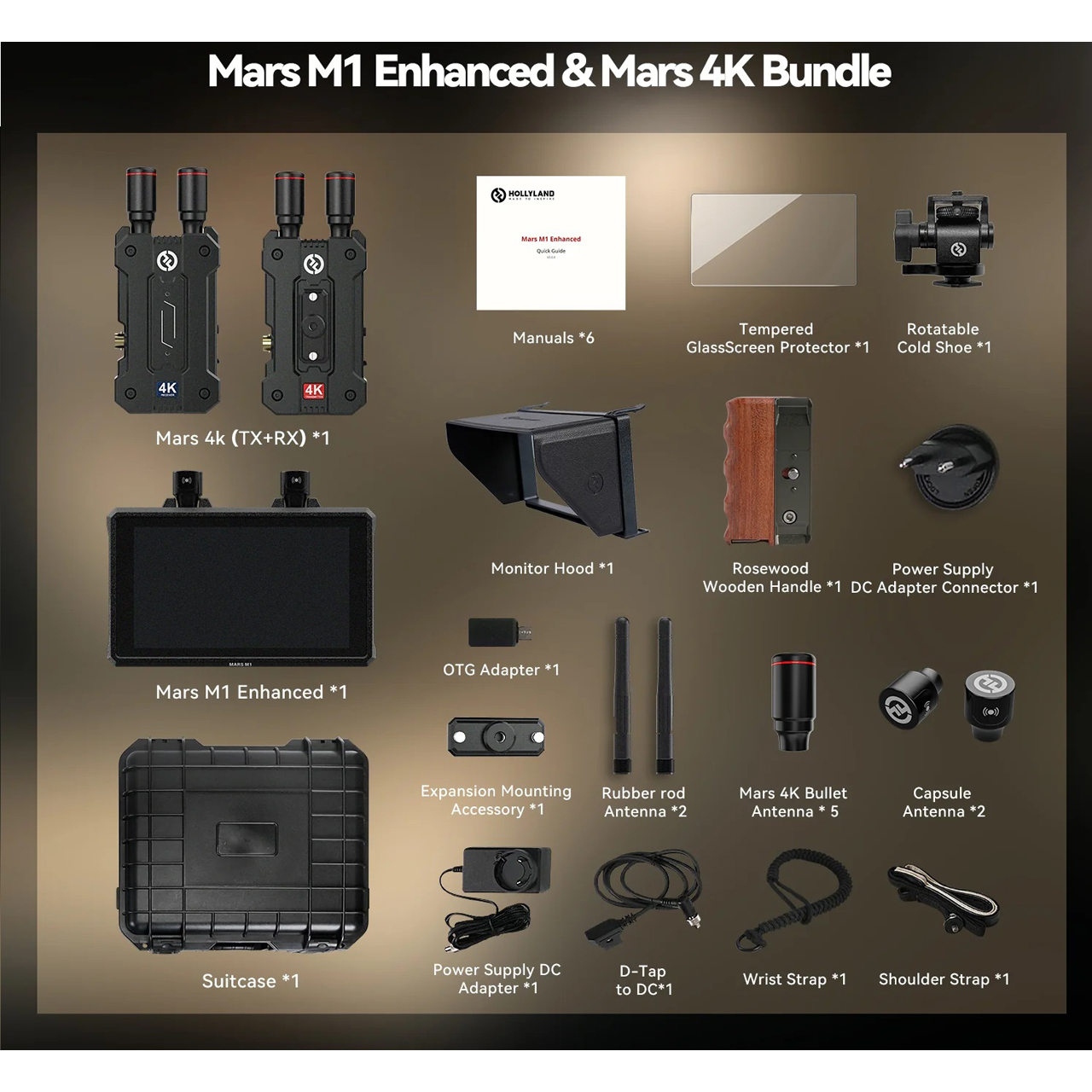

Item Includes:
- 1x Mars M1 Enhanced Transceiver
- 1x Mars 4K Transmitter
- 1x Mars 4K Receiver
- 1x Carrying Case
- 1x Tempered Glass Screen Protector
- 1x Rotatable Cold Shoe
- 1x Mars M1 Monitor Hood
- 1x Mars M1 Rosewood Handle
- 1x Power Supply DC Adapter
- 1x Power Supply DC Adapter Connector
- 1x On-the-go Adapter
- 1x Expansion Mounting Accessory
- 2x Rubber Rod Antennas
- 1x D-Tap to DC Cable
- 5x Mars 4K Bullet Antennas
- 2x Capsule Antennas
- 1x Mars M1 Wrist Strap
- 1x Mars M1 Shoulder Strap
- 6x User Manuals
GTIN:
0191460004230
