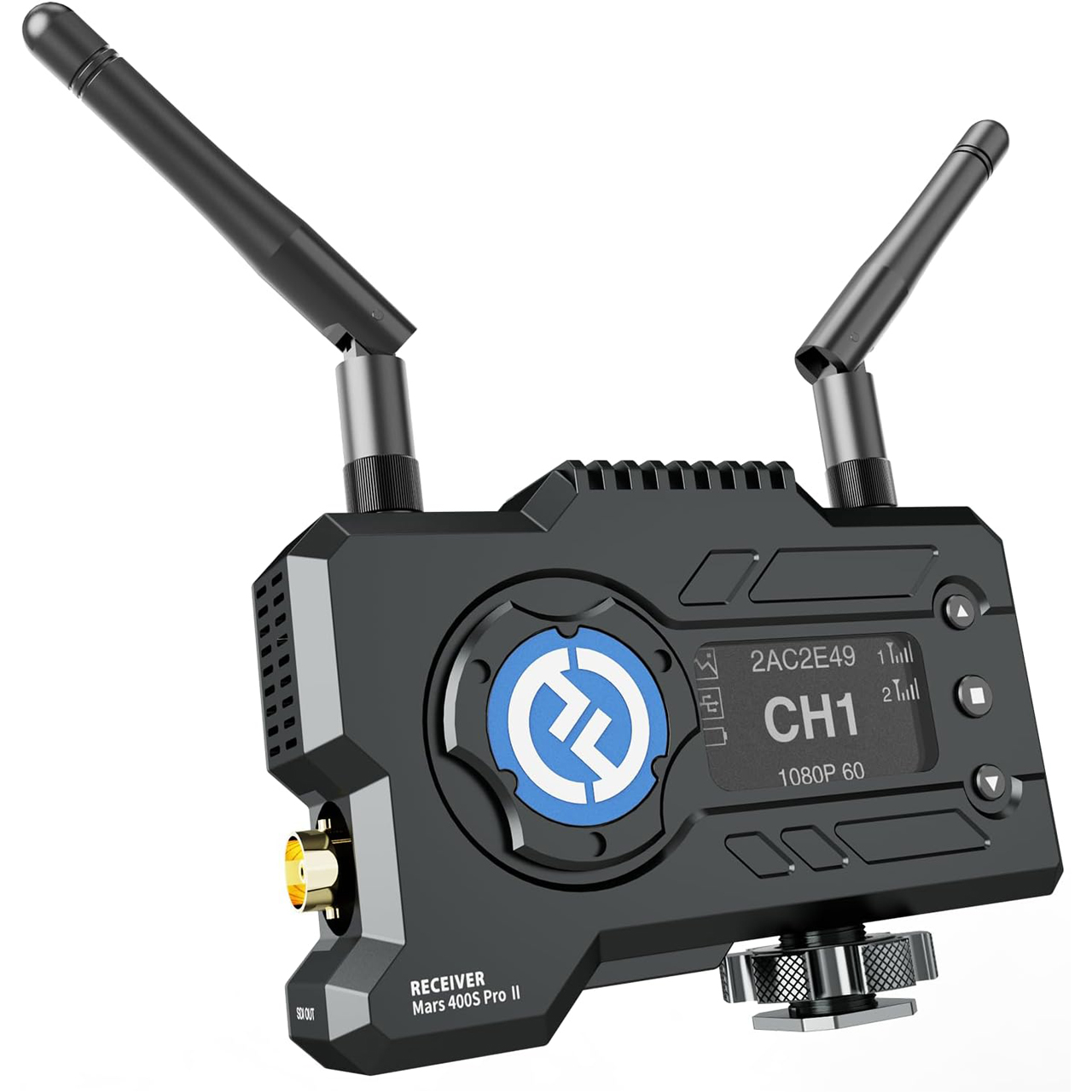

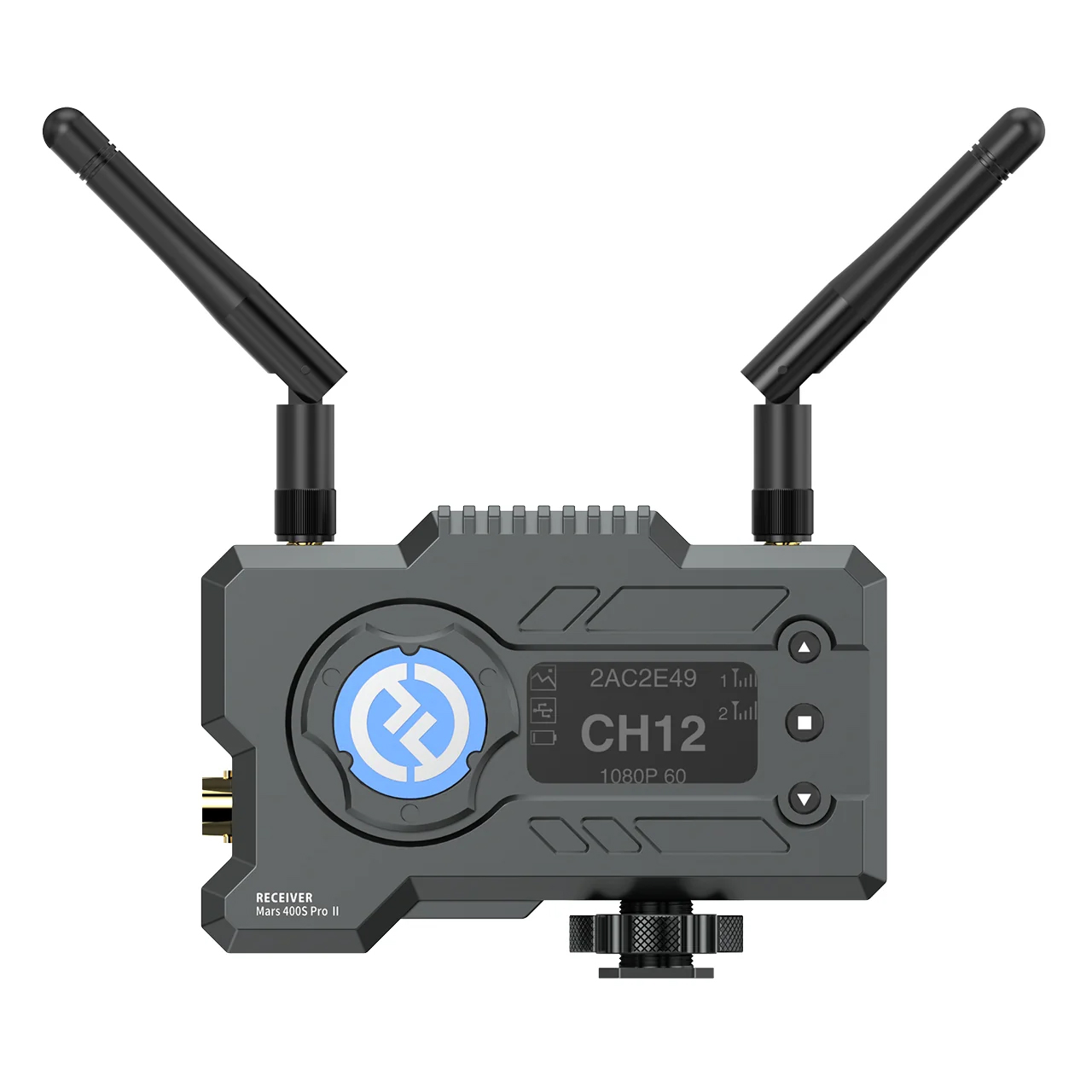

Hollyland MARS 400S PRO II RX SDI/HDMI Wireless Video Receiver - 450 Foot (150m) LOS Range

ITEM #: HL-MARS400SPRO2R MFG #: HL-MARS 400S PRO II RX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$279.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


HL-MARS 400S PRO II RX - Overview

Unleash Wireless Possibilities

Greater Range, Lower Latency
The Hollyland Mars 400S Pro II is a powerful video transmission device with several remarkable features. It offers a transmission range of up to 450ft (150m) and achieves a low latency of just 70ms. Additionally, Mars 400S Pro II is equipped with SDI+HDMI dual interfaces, supports multi-receiver setups, and allows monitoring through the HollyView App.

Experience Crisp Clarity with 12 Mbps Data Rate
Supports 12 Mbps data rate, enabling high-definition video transmission and delivering clear, refined image quality with rich details.

70ms Ultra-Low Latency 450ft (150m) Transmission Range
Mars 400S Pro II raises the bar with an incredibly low latency of just 70ms. It outperforms Mars 400S Pro by reducing latency by 30% and providing a stable signal transmission range of up to 450ft. This ensures exceptional high-definition image quality and an immersive low-latency experience.

Furthermore, Mars 400S Pro II is compatible with Mars 400S Pro, allowing them to be paired and used together.

Please Note: The LOS range of 450ft (150m) is based on interference-free laboratory measurements.

SDI + HDMI Dual Ports for Unmatched Compatibility
Equipped with both SDI and HDMI interfaces, Mars 400S Pro II provides enhanced device compatibility and convenient connections to various types of equipment. Whether it's a DSLR camera or a professional film camera, Mars 400S Pro II can fulfill your connectivity requirements.

Steady Shooting with Smart Channel Scan
Upon startup, Mars 400S Pro II automatically selects the best frequency channels. Additionally, channel scanning can be conducted using the receiver or the HollyView App, providing a visual representation of signal interference levels at each frequency. Allows for the swift identification of the most suitable frequency.

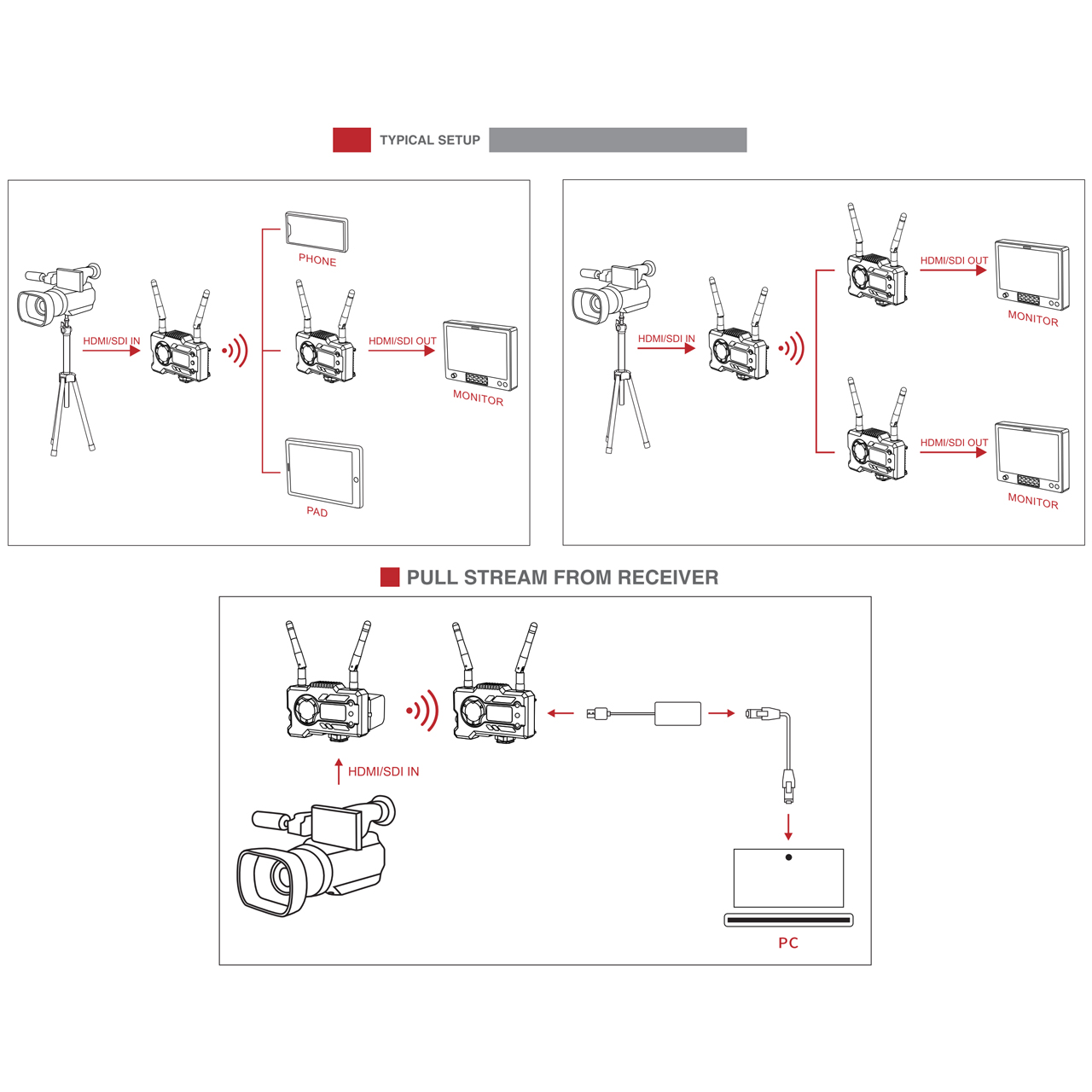

Monitoring on Up to 4 Devices
Mars 400S Pro II offers flexible solutions to meet monitoring needs, including team collaboration, multi-crew monitoring, and multi-member cooperation.

Flexible Fan Control Including Mute Option
Mars 400S Pro II is equipped with a three-speed fan adjustment feature (Auto, Low Speed, Off). Its intelligent cooling design allows it to perform optimally in various usage scenarios by reducing device temperature and ensuring stable signal transmission.

Integrated Cold Shoe for Seamless Installation
The units feature an integrated cold shoe mount with 1/4"- 20 thread to simplify the installation process. Simply connect the cold shoe of the Mars 400S Pro II to the cold shoe slot on your device, without the need for any cumbersome additional installation steps.

  • Features:

    • 70ms Ultra-Low Latency, 450ft Transmission Range.
    • SDI+HDMI Dual Interfaces, 4 APP Monitoring
    • Up to 1080p, 12Mbps Data Rate, 3 Scene Modes.
    • Smart Channel Scan, Direct Live Streaming.
    • Multiple Power Supply and Diverse Fan Control Modes.
    • Sturdy & Durable Zinc Alloy Shell.
    • Colorful Indicator Logos, Integrated Cold Shoe.

  • Specifications:

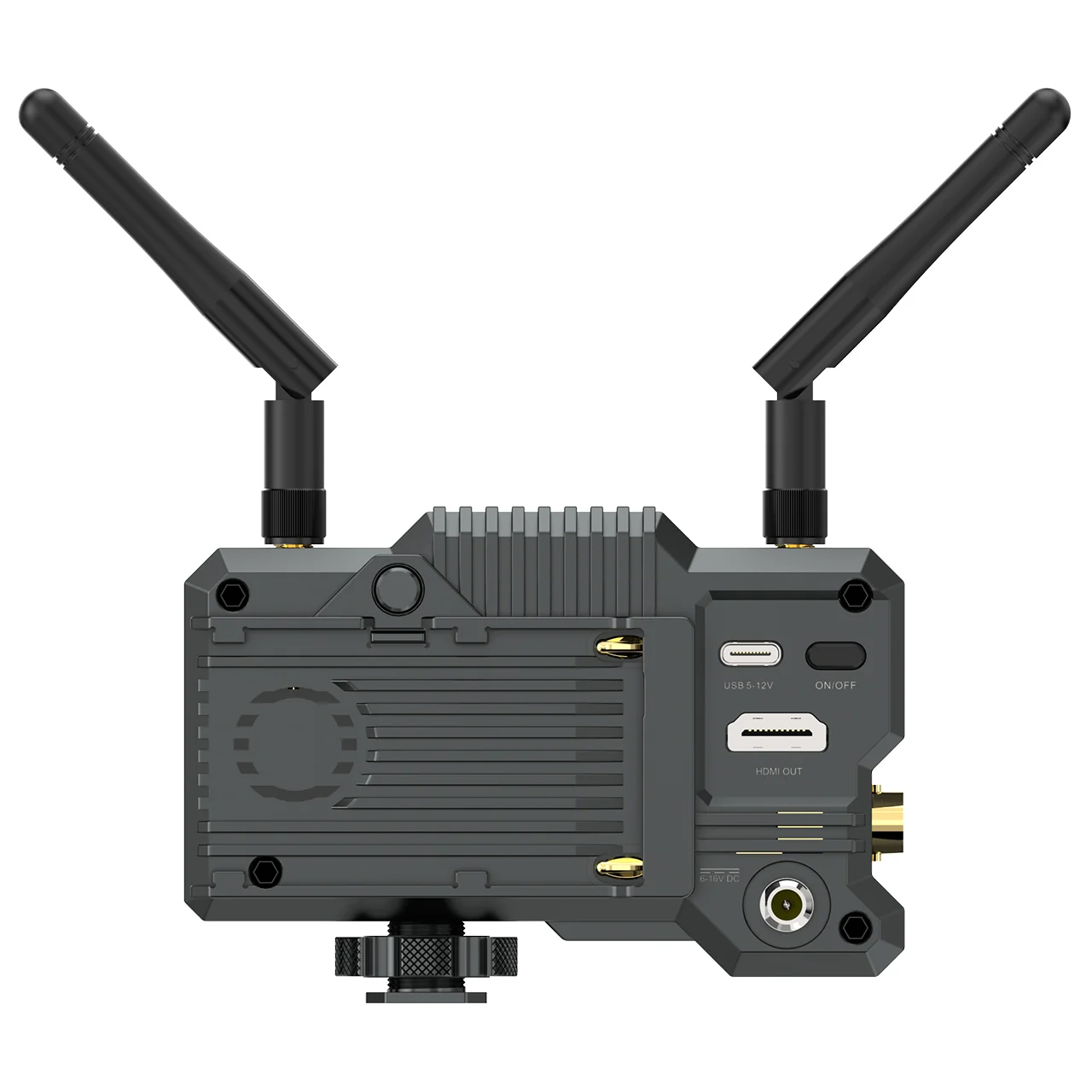

    • Interfaces:
      - HDMI Output (Type A Female)
      - SDI Output
      - 2* Antenna Interfaces (RP-SMA Male)
      - DC Input
      - USB Type-C
    • Supply Interfaces:
      - DC Power Input: 6-16V
      - USB Type-C Power Supply: 5V/2A
      - Battery Power Supply: 6-16V DC - NP-F Style ( sold seperately)
      - Power Consumption: <7W
    • Weight: 206g
    • Dimension (LxWxH): 4.33" x 2.83" x 1.32" (110mm x 72mm x 33.5mm)(battery plate excluded)
    • Output Video Format:
    • HDMI:
      - 720p50/60
      - 1080i50/60
      - 1080p24/25/30
      - 1080p50/60
    • SDI:
      - 1080p60/50(Level A)
      - 1080i60/50
      - 1080p30/25/24
      - 1080psf24
      - 720p60/50
    • Frequency: 5GHz
    • Receiver Sensitive: -80dBm
    • Transmission Latency*:
    • - HD Mode: 70ms
      - Focus: 56ms
    • Bandwidth: 20MHz
      Please Note: The operating frequency and TX power vary by country and region. In some countries and regions, the 5.1GHz, 5.2GHz, and 5.8GHz frequency bands are prohibited, or the 5.1GHz and 5.2GHz frequency bands are only allowed for indoor use. Please refer to local laws and regulations for more information. * test data when 1080p60 signals are transmitted in a laboratory environment.

  • Item Includes:

    • 1x Receiver
    • 3x Antenna
    • 1x User Manual
    • 1x DC Adapter
    • 1x Warranty Card

  • GTIN:

    0191460005053
