Hollyland MARS 4k UHD Wireless 5G Video Receiver - SDI/HDMI 1.4 - 450-Ft/150m Loss Range w/ 0.06s Low Latency

ITEM #: HL-MARS4KRX MFG #: HL-MARS 4K RECEIVER

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$329.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup

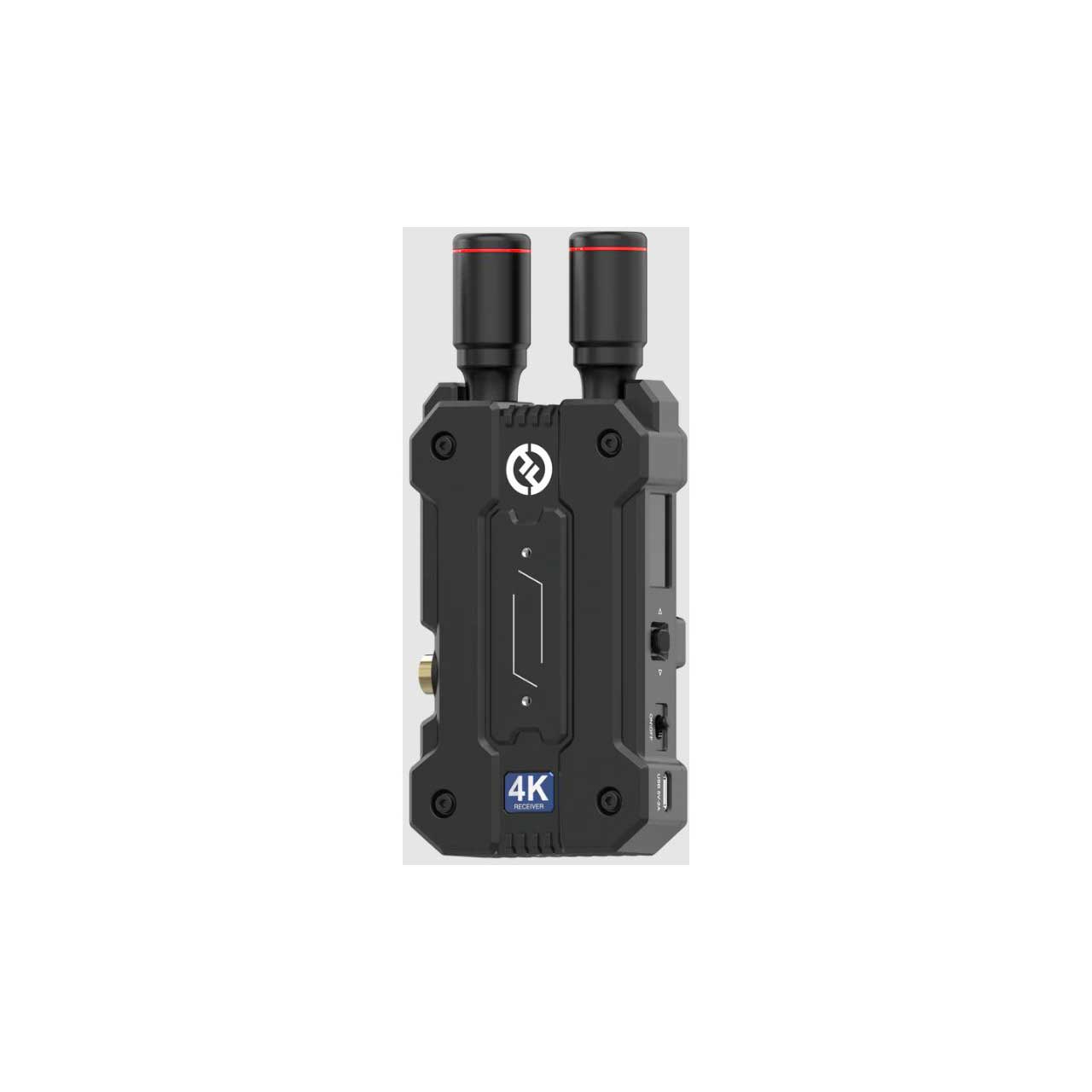

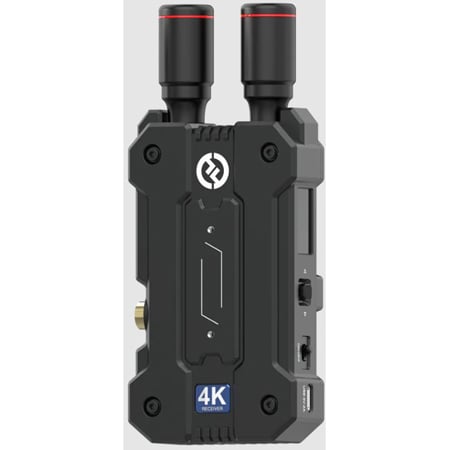

HL-MARS 4K RECEIVER - Overview

The new Hollyland Mars 4K wireless video transmission system is capable of a 450ft (150m) LOS range and ultra-low latency of 0.06s. The Mars 4K is designed to combine high performance and reliable quality at an affordable price. The Mars 4K supports 4K UHD video transmission at 30fps for the discerning videographer looking for high-resolution production capability. The Mars 4K achieves an incredible LOS range of 450ft (150m) and ultra-low latency of 0.06s. Its upgraded dual-core codec chip is capable of a data rate ranging from 8 Mbps to 20 Mbps, with 12 Mbps as the default. The Mars 4K supports HDMI and SDI input and output for expanded connectivity and compatibility. The SDI provides expanded frame rate flexibility for both broadcast and production frame rate (decimal-point frame rate) standards and compatibility through production and postproduction. The Mars 4K transmitter is compatible with up to two receivers or four mobile devices with the app installed. Up to four mobile devices with the app installed allow a maximum of four parties (such as the director, producer, light control personnel, and audio personnel) on the site to monitor the shooting at the same time. The Mars 4K is featured with superior corrosion and wear resistance for outstanding durability. With disassembly-free, bullet-styled antennas attached, the well-thought-out design form factor optimizes operational functionality for fast configurations.

Please note: This is the receiver only! .

  • Features:

    • 400ft Transmission Range between TX and RX(LOS)
    • 300ft Transmission Range between TX and APP(LOS)
    • Integrated Cold Shoe for Quick Installation
    • Transmission Latency is Less than 0.1s
    • SDI Input & HDMI Input at TX
    • SDI Output & HDMI Output at RX

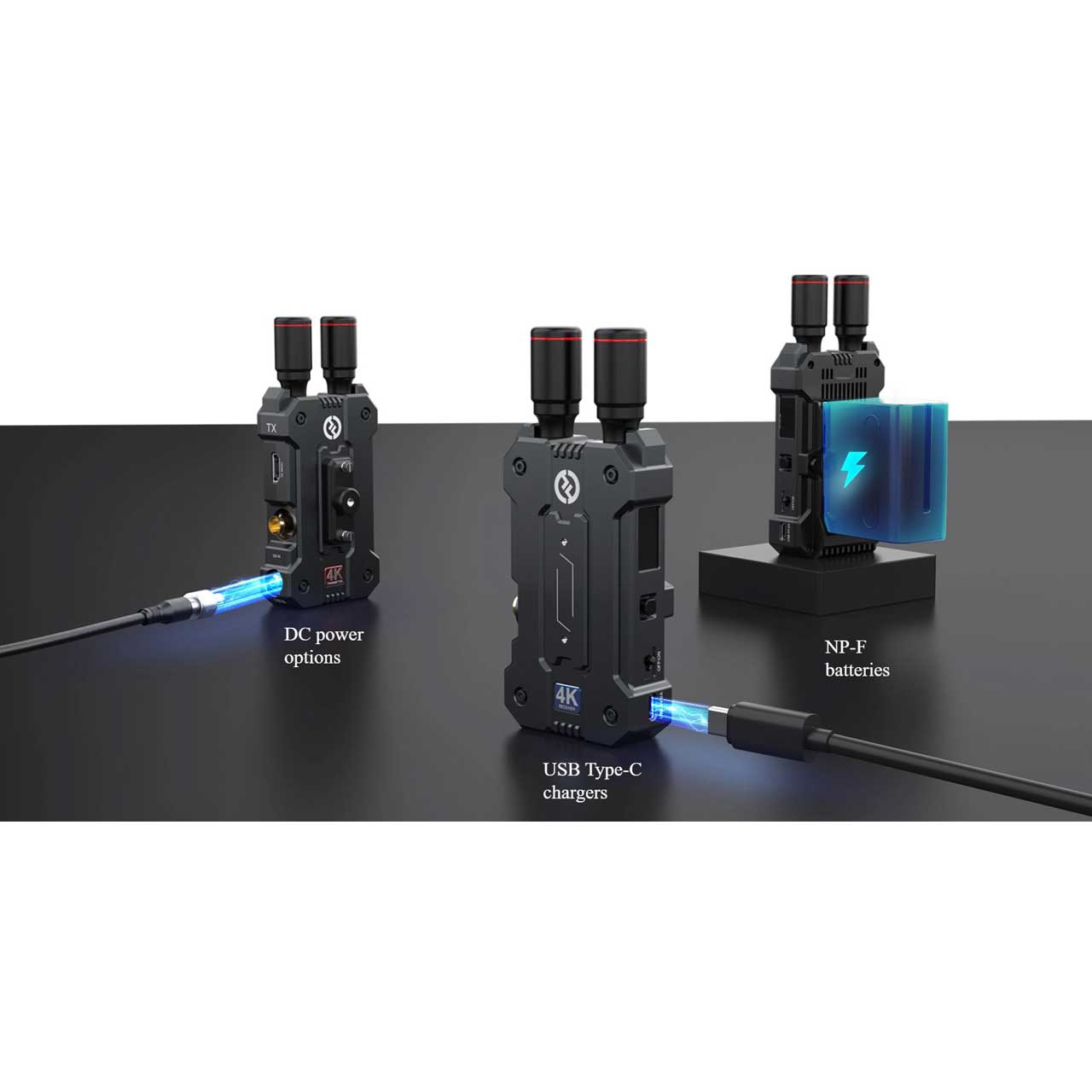

    • Supports DC Power Supply, USB Type-C Power Supply and Battery Power Supply
    • 1 Transmitter Supports 2 Receivers(1 Transmitter Supports 1 Receiver and 2 APPs
    • Monitoring, or 1 Transmitter Supports up to 4 APPs Monitoring Without Receiver)
    • Supports Smart Channel Selection
    • Supports APP Firmware Upgrade
    • Direct Data Stream from RX for Live Streaming

  • Specifications:

    • Interfaces HDMI Output (1.4b Type A Female)
    • 3G-SDI Output
    • 2* Antenna Interfaces (RP-SMA Male)
    • DC Input 2.0mm
    • USB Type-C OTG
    • Supply Interfaces DC Power Input: 6-16V
    • USB Type-C Power Supply: 5V/2A
    • Battery Power Supply: 6-16V DC
    • Power Consumption <5W
    • Weight 223g (without antenna)
    • Dimension (L*W*H): 115*65*32mm
    • Input / OutputVideo Format HDMI:
    • 720p50/60
    • 1080i50/60
    • 1080p24/25/30
    • 1080p50/60
    • 3840*2160 24/25/30
      SDI:
    • 1080p60/59.94/50(Level A)
    • 1080i60/59.94/50
    • 1080p30/29.97/25/24/23.98
    • 1080psf24/23.98
    • 720p60/59.94/50.
    • Frequency 5GHz
    • Modulation Mode 802.11n
    • Transmission Power /
    • Receiver Sensitive -90dBm
    • Transmission Latency 0.06s
    • Bandwidth 20MHz

  • Item Includes:

    • Receiver x1
    • Antenna x3
    • DC Adapter x1
    • User Guide x1

  • GTIN:

    0191460002915
