Hollyland Mars M1 Enhanced 5.5-Inch Wireless Transceiving Monitor

ITEM #: HL-MARSM1ENANCED MFG #: MARS M1 ENHANCED

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Hollyland
Free Shipping with $49 Minimum Order

List Price:

$499.00

Our Price:

$429.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

MARS M1 ENHANCED - Overview

The Hollyland Mars M1 Enhanced is a versatile wireless monitor that integrates transmitter, receiver, and monitoring functions into one solution. The 5.5" touch screen with groundbreaking advantages such as accurate color calibration and Rec.709 color gamut, delivers a pleasant monitoring experience with professional image analysis functions. The device supports an impressive LOS range of up to 450ft (150m) and boasts a low latency of only 0.08 seconds, allowing for more flexibility in device deployment and ensuring seamless monitoring without noticeable lag.

TX, RX, and Monitor All in One
The Mars M1 Enhanced wireless transmission monitor is a powerful and comprehensive solution for all your monitoring needs. Because it is an all-in-one device integrating the functionalities of a transmitter, receiver, and monitor into a single solution, you can effortlessly switch between the transmitter and receiver modes on its settings interface. Furthermore, a single Mars M1 Enhanced transmitter can seamlessly connect with up to two receivers or four mobile device apps.

Revolutionary HollyOS
Powered by Hollyland's groundbreaking operating system - HollyOS, the Mars M1 Enhanced offers a comprehensive suite of advanced monitoring tools. Each of these tools provides you with complete control over your image, offering an opportunity to fine-tune every shot to your specific preferences.

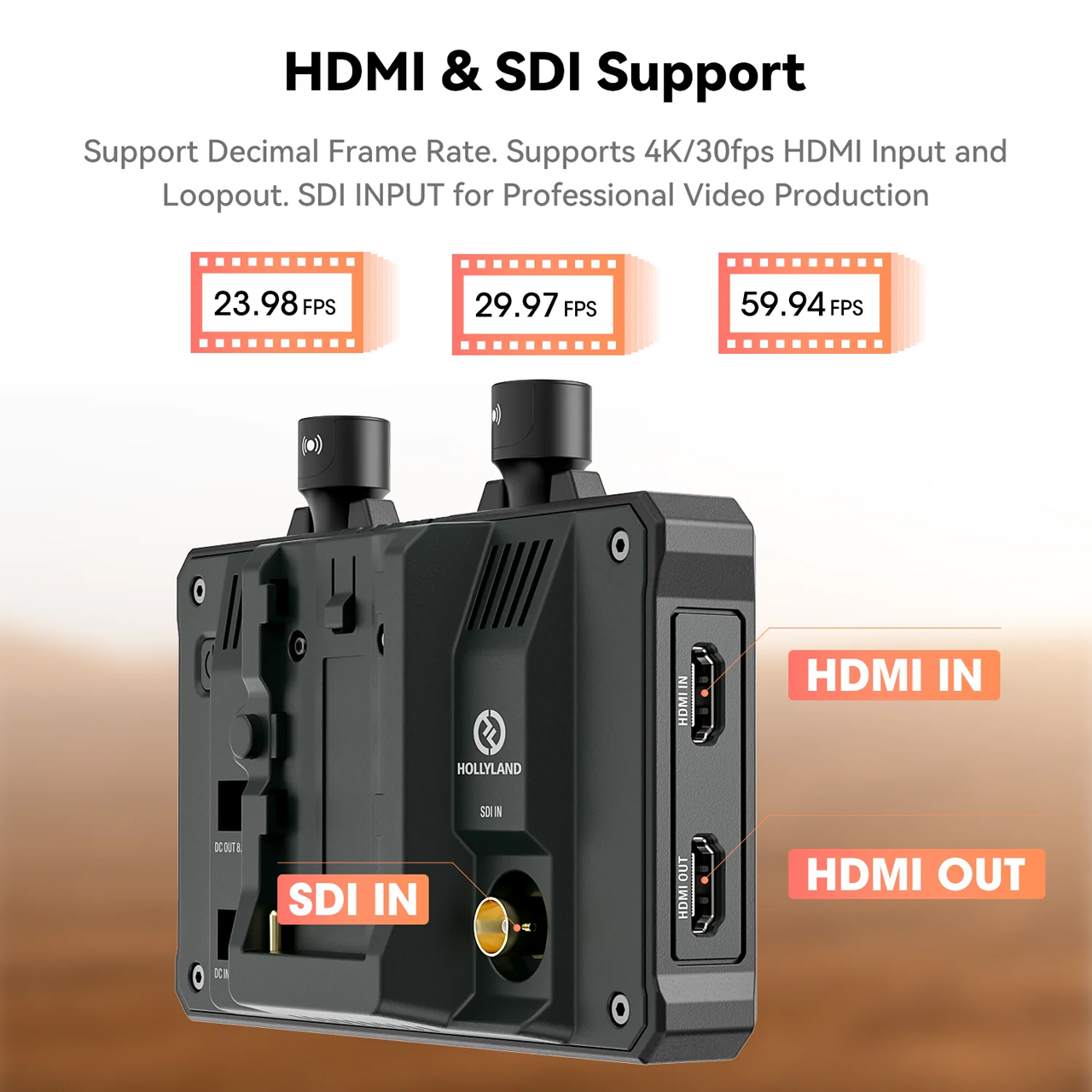

HDMI & SDI Support
Featuring decimal frame rate support, the Mars M1 Enhanced also supports 4K/30fps HDMI input and loopout for expanded connectivity and compatibility. Its SDI input also provides extensive connectivity options to accommodate an ever-widening range of professional video production needs.

Flexible Power Supply Solutions
The Mars M1 Enhanced supports a wide range of power supply solutions - DC power (7V to 16V), NP-F battery, and D-Tap battery. For a more secure connection, our device also features locking nut support for the DC output and input interfaces, and it can also serve as a power source for the camera via the DC output interface.

  • Features:

    • Transmitter, Receiver, and Monitor All-in-One
    • Responsive 5.5" Full HD LCD Touch Screen
    • User Friendly HollyOS Operating System
    • 450ft Stable Transmission, 0.08s Ultra-Low Latency
    • Support HDMI & SDI Dual Port
    • Flexible Power Supply Options


  • Specifications:

    • Transmitter Video Input Interface:
      - HDMI 1.4b IN (Type-A female)
      - 3G-SDI IN (BNC female)
    • Transmitter Video Output Interface: HDMI 1.4b LOOPOUT (Type-A female)
    • Receiver Video Output Interface: HDMI 1.4b OUT (Type-A female)
    • Antenna Interface: Two RP-SMA male interfaces
    • Power Input Interface: DC IN (2.0mm core socket)
    • Power Output Interface: DC OUT (2.0mm core socket)
    • Headphone Jack: 3.5mm
    • Upgrade Interface: USB-C (USB-2.0 OTG)
    • Screen Size: 5.5" touchscreen
    • Screen Resolution: 1920x1080 pixels
    • Pixel Density: 403 PPI
    • Aspect Ratio: 16:9
    • Screen Brightness: 1,000 nits
    • Contrast Ratio: 1000:1
    • Power Input Voltage:
      - DC IN: 7-16V 2.5A (nominal 12V)
      - NP-F battery: 6.8V-8.4V
    • DC Output Voltage: 8.4V±5%
    • Transmitter Power Consumption: <16W
    • Receiver Power Consumption: <13.6W
    • Net Weight: 14.1oz (400g) with external antennas excluded
    • Dimensions: 5.98" x 3.78" x 1.57" (152mm x 96mm x 40mm) with external antennas excluded
    • Transmitter Input Video Resolution:
      - HDMI IN: 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29.97/30/50/59.94/60 Hz, 3840x2160p23.98/24/25/29.97/30 Hz, 4096x2160p23.98/24/25/29.97/30 Hz
      - SDI IN: 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29.97/30, 1080p50/59.94/60 Hz (3G-SDI level A), 1080p50/59.94/60 Hz (3G-SDI level B)
    • Transmitter Output Video Resolution:
      - HDMI LOOPOUT (HDMI IN): 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29.97/30/50/59.94/60 Hz, 3840x2160p23.98/24/25/29.97/30 Hz, 4096x2160p23.98/24/25/29.97/30 Hz
      - HDMI LOOPOUT (SDI IN): 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29.97/30/50/59.94/60 Hz
    • Receiver Output Video Resolution:
      - HDMI OUT: 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29.97/30/50/59.94/60 Hz, 1080p50/59.94/60 Hz
      - HDMI OUT: 720p50/59.94/60 Hz, 1080i50/59.94/60 Hz, 1080p23.98/24/25/29.97/30/50/59.94/60 Hz
    • Transmitter Display Latency: <0.05s (test data when 1080p60 signals are transmitted in a laboratory environment. The display latency varies by video resolution.)
    • Operating Frequency:
      - 5.150-5.250GHz
      - 5.250-5.350GHz
      - 5.470-5.725GHz
      - 5.725-5.850GHz
    • Codec Technology: H.264
    • Bit Rate: 12Mbps
    • TX Power: ≤ 21±1.5dBm
    • Transmission Latency: ~0.08s (test data when 1080p60 signals are transmitted in a laboratory environment)
    • LOS Range: Up to 450ft (150m) (test data in an unobstructed outdoor environment free of interference)
    • Bandwidth: 20MHz
    • Audio Format: Eight audio channels for the HDMI 1.4b
    • Operating Temperature: 14°F - 140°F (-10°C - 60°C)
    • Storage Temperature: -40°F - 140°F (-40°C - 60°C)

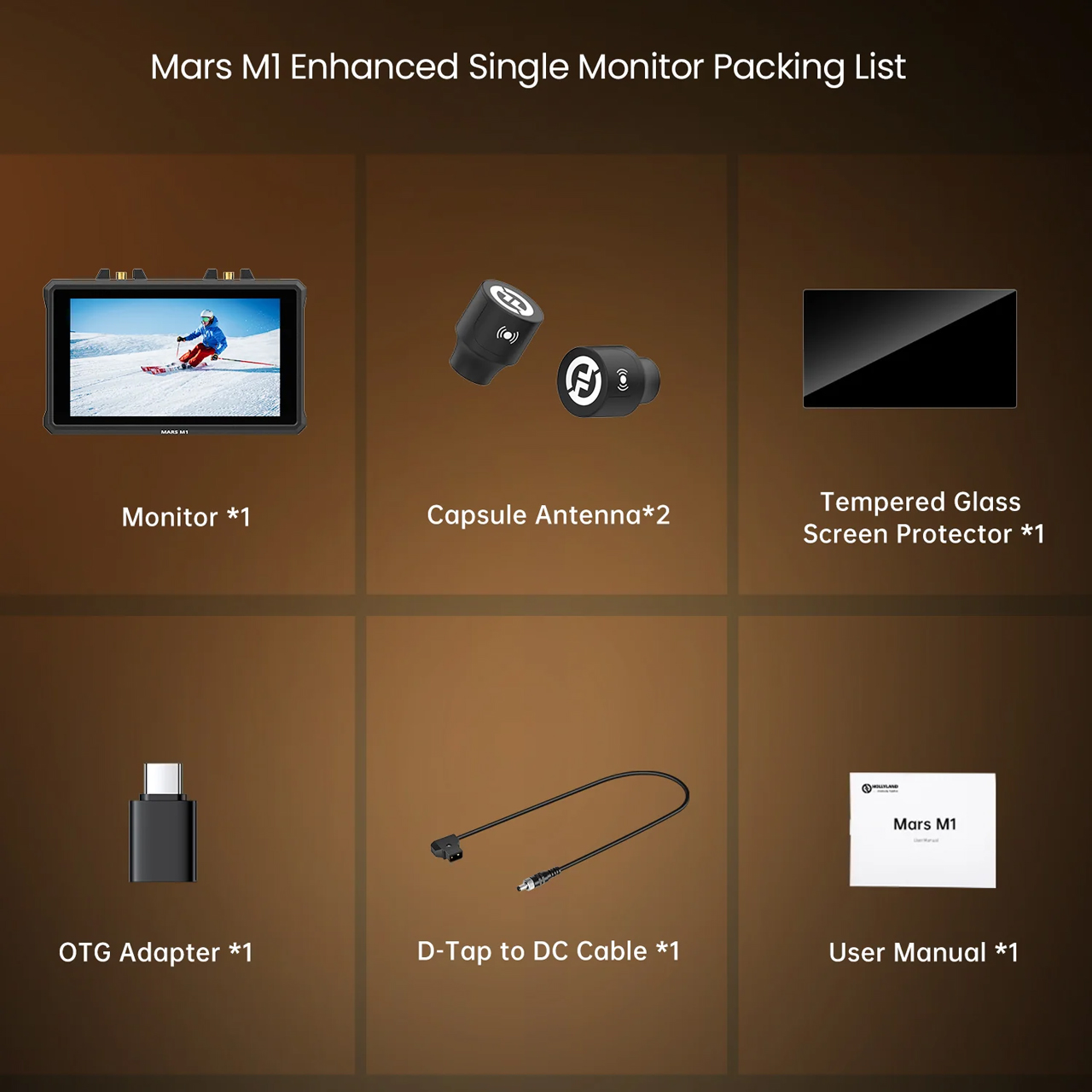

  • Item Includes:

    • 1x 5.5" Wireless Transcieving Monitor
    • 2x Capsule Antenna
    • 1x Tempered Glass Screen Protector
    • 1x OTG Adapter
    • 1x D-Tap to DC Cable
    • 1x User Manual


  • GTIN:

    0191460003714
