Hollyland Pyro 7 2.4GHz/5GHz Dual Band 7 Inch Wireless Transceiving Video Monitor Kit - HDMI 1.4b/3G-SDI - 1300ft/400m

ITEM #: HL-PYRO-7-KIT MFG #: HL-PYRO 7 KIT

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Hollyland
Free Shipping with $49 Minimum Order

Our Price:

$999.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

HL-PYRO 7 KIT - Overview

With Auto Dual-Band Hopping (ADH) technology, Hollyland's Pyro 7 is a 7-inch wireless monitor that supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. It has a remarkable transmission range of up to 1,300ft (400m) and an incredibly low latency of only 60ms. The cutting-edge hardware design enables Pyro 7 to support one transmitter connecting to four receivers simultaneously, and it also offers the convenience of dual-camera monitoring through customizable shortcut keys. In addition, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card.

  • Features:

    • 1TX & 4RX
    • 1300ft (400m) & 60ms Latency
    • 2.4GHz & 5GHz Dual Band
    • Auto Frequency Hopping
    • TX, RX, and Monitor — All in One
    • Dual-View Quick Monitoring Switch
    • 7 Inch & 1200 nits
    • Precise Image Analysis
    • SDI & HDMI Loopout
    • RTMP Streaming


  • Specifications:

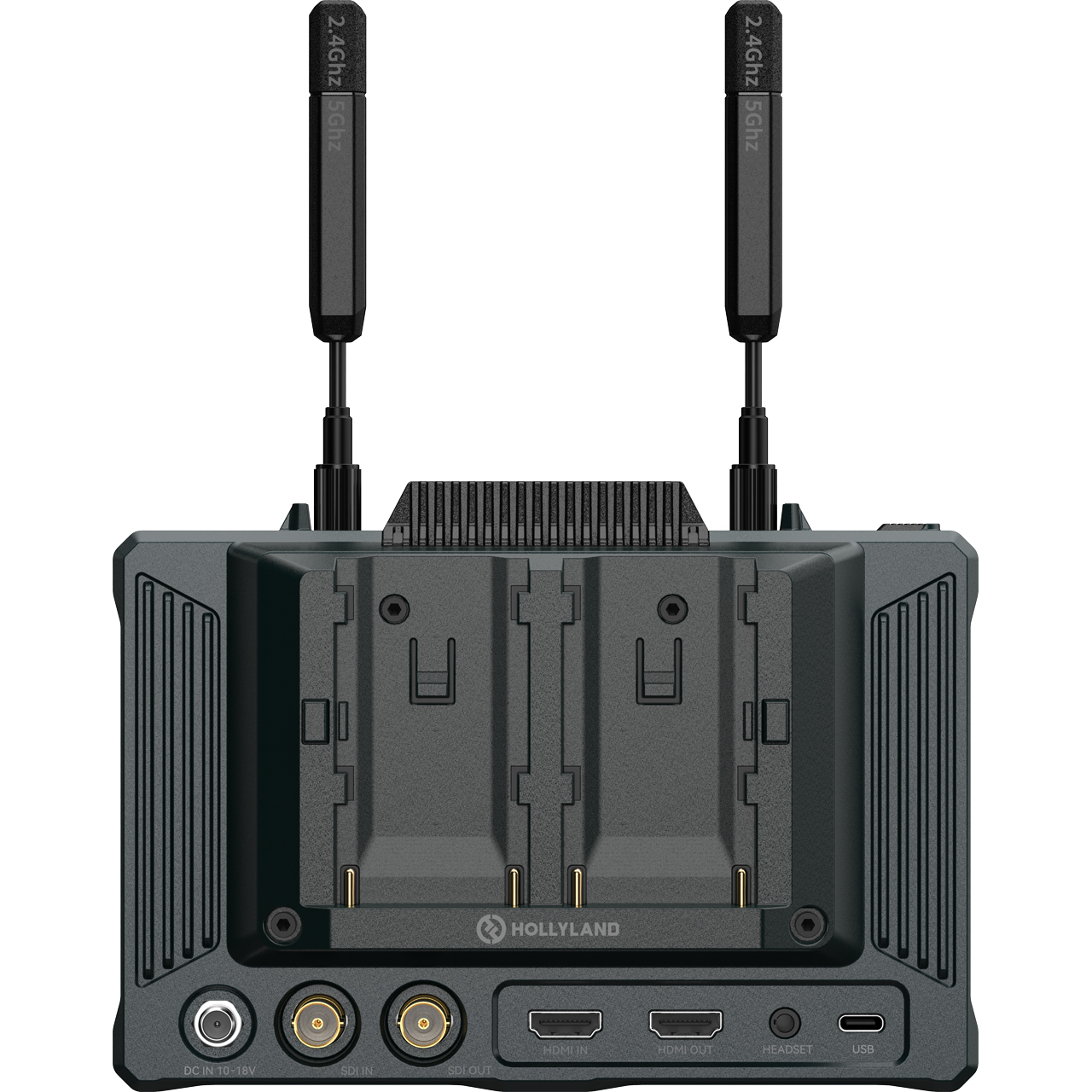

    • Input Port: HDMI 1.4b + 3G SDI
    • Output Port: HDMI 1.4b + 3G SDI
    • Antenna: RP-SMA Male x2
    • Power Input: DC Input (2.0mm core socket)
    • Headphone Jack: 3.5mm
    • Upgrade Port: USB-C (USB 2.0 OTG); SD Card Slot
    • Screen Size: 7" Touchscreen
    • Screen Resolution: 1920 x 1200 pixels
    • Pixel Density: 323 PPI
    • Aspect Ratio: 16:9
    • Contrast Ratio: 1000:1
    • Power Input Voltage: 10 - 18V/2.5A DC Input (nominal 12V)
    • Power Consumption: < 22W
    • Net Weight: ≈ 19.2oz (545g) with battery plate included and external antennas excluded
    • Dimensions: 7.1" x 5" x 1.25" (180mm x 127mm x 31.8mm) with battery plate and external antennas excluded
    • Operating Frequency: 5.1 - 5.8 GHz; 2.412 - 2.484 GHz
    • Transmit Power: ≤ 23 dBm
    • Receiver Sensitivity: -80 dBm
    • Display Latency: < 50ms
    • Transmission Latency: ≈ 60ms (test data when 1080p60 signals are transmitted in a laboratory)
    • LOS Range: 1,300ft (400m); 650ft (200m) in Broadcast mode (Connection to the monitoring app may affect the range)
    • Bandwidth: 20 MHz; 40 MHz (in Broadcast mode)
    • Audio Format: HDMI 1.4b 8-Channel
    • Operating Temperature: 14°F - 113°F (-10°C - 45°C)
    • Storage Temperature: -40°F - 140°F (-40°C - 60°C)
    • HDMI Input:
      - 720p 50/59.94/60
      - 1080i 50/59.94/60
      - 1080p 23.98/24/25/29.97/30
      - 1080p 50/59.94/60
      - 3840*2160 23.98/24/25/29.97/30
    • HDMI Loopout:
      - 720p 50/59.94/60
      - 1080i 50/59.94/60
      - 1080p 23.98/24/25/29.97/30
      - 1080p 50/59.94/60
      - 3840*2160 23.98/24/25/29.97/30
    • SDI Input:
      - 1080p 50/59.94/60 (Level A)
      - 1080p 50/59.94/60 (Level B)
      - 1080i 50/59.94/60
      - 1080psf 23.98/24
      - 1080p 23.98/24/25/29.97/30
      - 1080psf 25/29.97/30
      - 720p 50/59.94/60
    • SDI Loopout:
      - 720p 50/60
      - 1080i 50/60
      - 1080p 24/25/30
      - 1080p 50/60
      - 1920*1080 24/25/30
    • HDMI/SDI Output:
      - 720p 50/60
      - 1080i 50/60
      - 1080p 24/25/30
      - 1080p 50/60
      - 1920*1080 24/25/30
    • SDI/HDMI Loopout:
      - 1080p 50/59.94/60 (Level A)
      - 1080i 50/59.94/60
      - 1080p 23.98/24/25/29.97/30
      - 1080p 23.98/24
      - 1080i 50/59.94/60
      - 720p 50/59.94/60
    • SDI/HDMI Output:
      - 1080p 50/59.94/60 (Level A)
      - 1080i 50/59.94/60
      - 1080p 23.98/24/25/29.97/30
      - 1080p 23.98/24
      - 1080i 50/59.94/60
      - 720p 50/59.94/60


  • Item Includes:

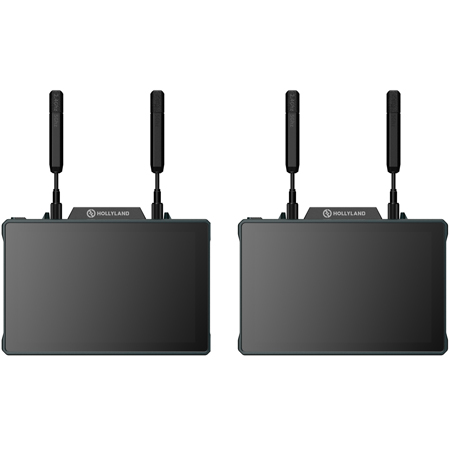

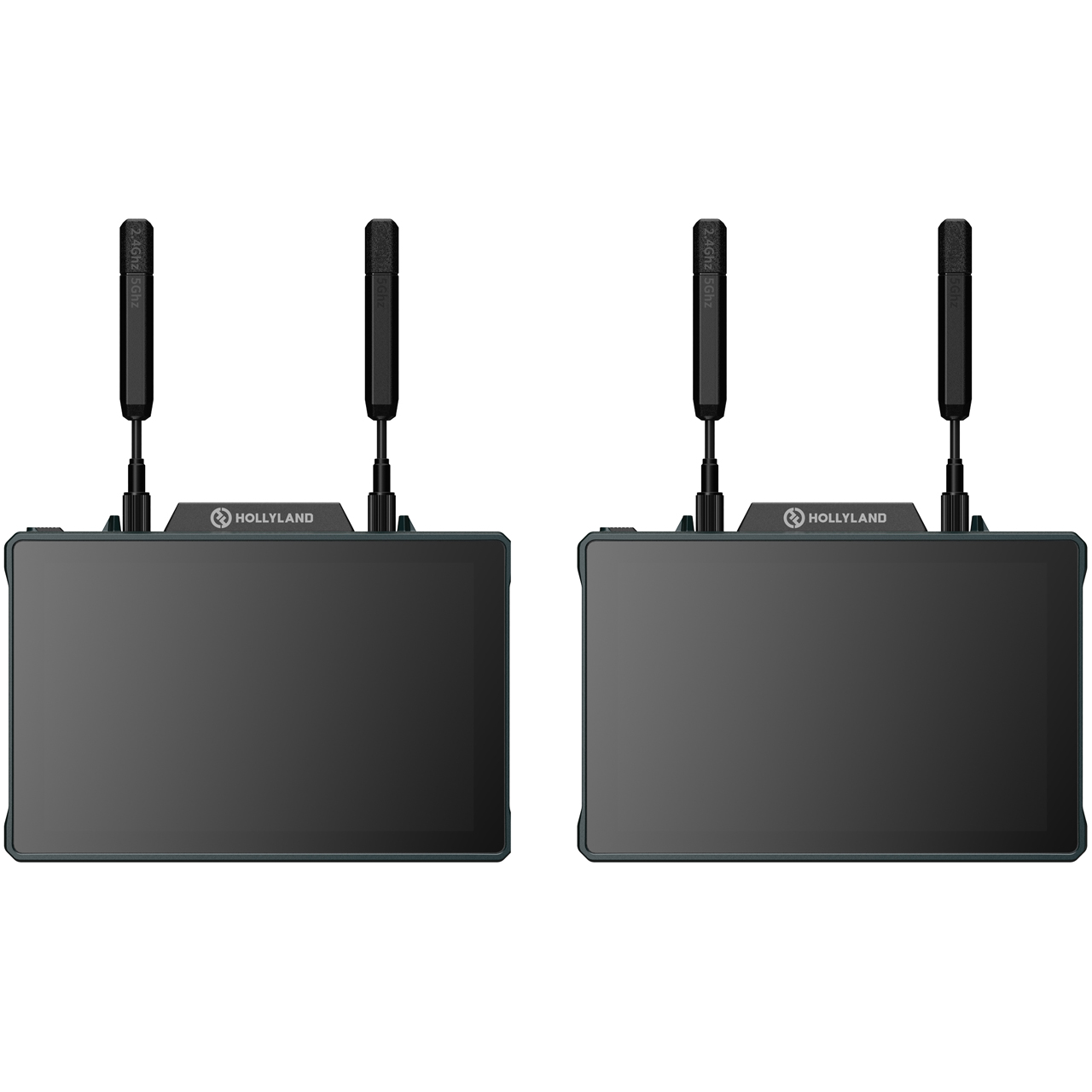

    • 2x Pyro 7 Wireless Transceiving Monitor
    • 5x Paddle Antenna (2.4 GHz & 5 GHz)
    • 1x User Manual
    • 1x Warranty Card
    • 2x D-Tap to Locking DC Power Adapter Cable
    • 2x Secure Digital Memory Card (32G)
    • 1x USB-C OTG Adapter
    • 1x Hollyland Ecosystem Leaflet


  • GTIN:

    0191460007026
