Hollyland Pyro 7 2.4GHz/5GHz Video Transmission and Monitoring Kit with 7-inch Wireless Monitor/Transmitter/Receiver

ITEM #: HL-PYRO-VTMK7IN MFG #: HL-PYRO VTMK7IN

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$899.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    HL-PYRO VTMK7IN - Overview

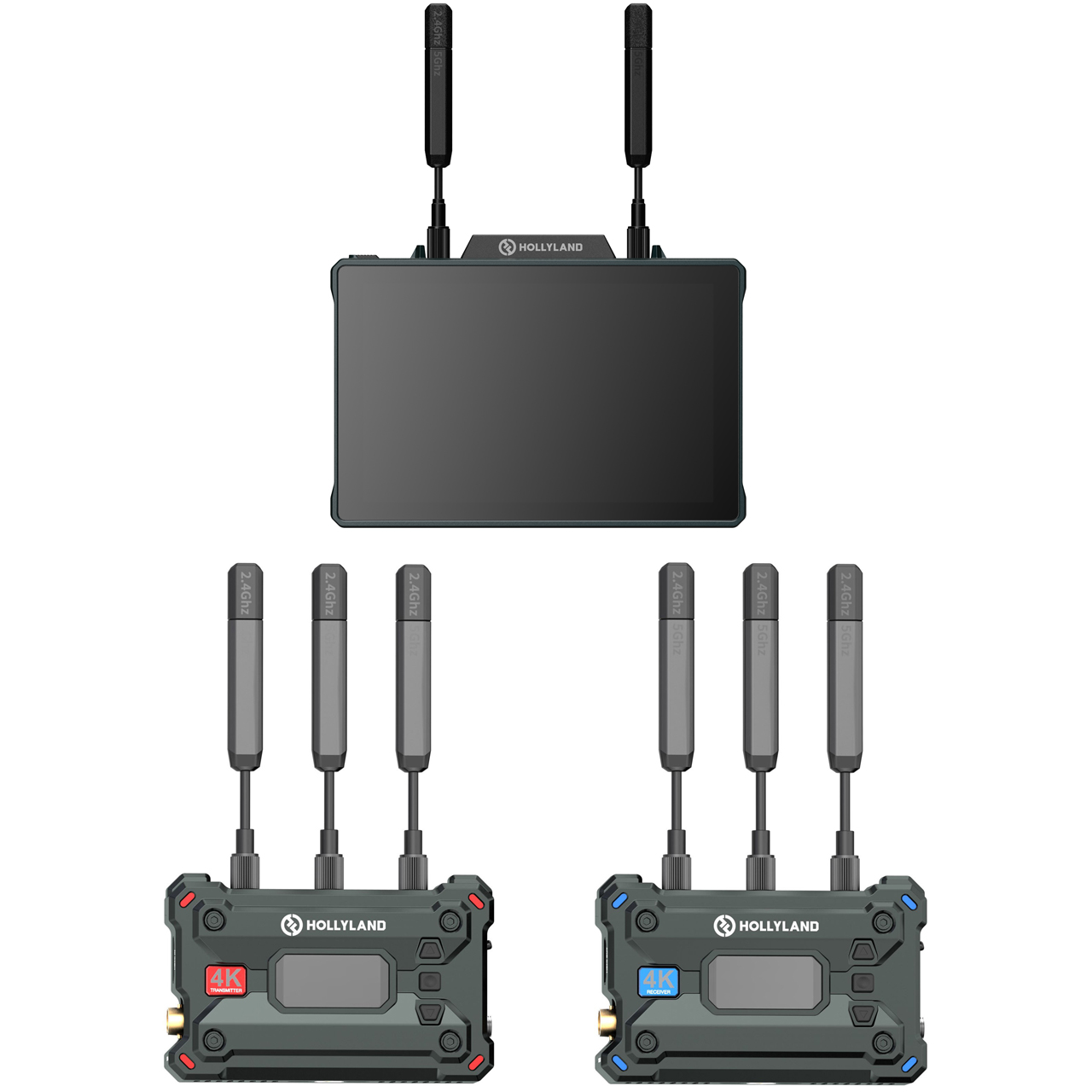

    The Hollyland Pyro Video Transmission & Monitoring Kit comes with the Pyro 7 Transceiver as well as both the Pyro S Transmitter and Receiver.

    With Auto Dual-Band Hopping (ADH) technology, the Pyro 7 is a 7-inch wireless monitor that supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. It has a remarkable transmission range of up to 1,300ft (400m) and an incredibly low latency of only 60ms. The cutting-edge hardware design enables Pyro 7 to support one transmitter connecting to four receivers simultaneously, and it also offers the convenience of dual-camera monitoring through customizable shortcut keys. In addition, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card.

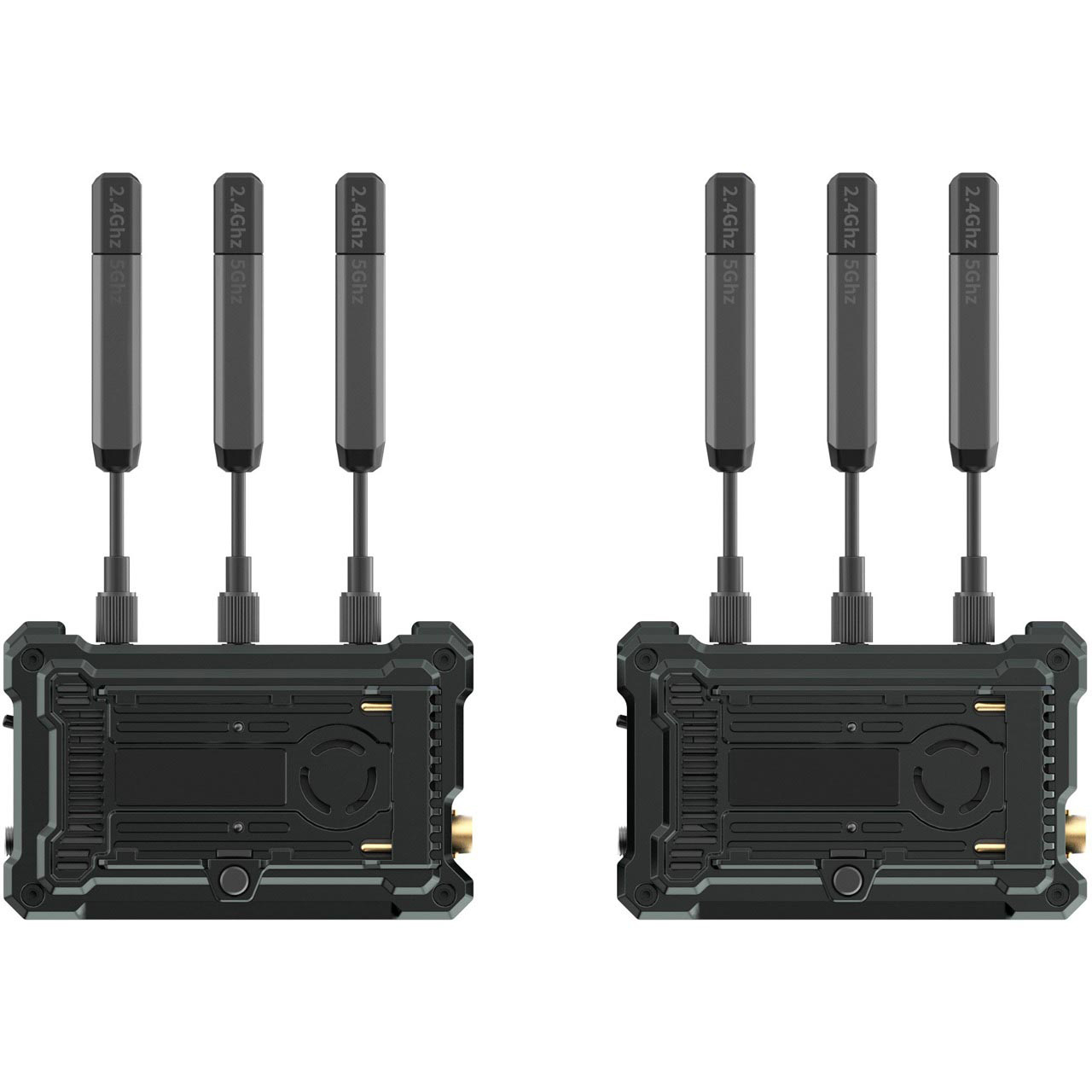

    The Pyro S is a groundbreaking addition to the Hollyland Pyro series lineup, which redefines wireless video transmission. Pyro S supports HDMI and SDI input/output and can transmit to up to four receivers simultaneously, with a range of up to 1,300ft (400m) and minimal latency of just 50ms. Pyro S uses advanced ADH technology to ensure reliable transmission and features selectable modes for your real-world shooting needs. Light and durable, Pyro S's magnesium alloy shell makes it easy to carry and handle. It's ideal for multi-user monitoring in dynamic shooting scenarios, such as film production, live events, and ENG/EFP applications.

    4 Receivers. Not an Issue.
    Pyro S's Wifi Broadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.

    *When Broadcast mode is activated, the transmitter can transmit signals to a max of four receivers. When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices.

    Faster. Longer. Stronger.
    With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro S features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 50ms thanks to upgraded chips and optimized video encoding/decoding algorithms.

    • Features:

      • 1TX & 4RX
      • 1300' & 60ms Latency
      • 2.4GHz & 5GHz Dual Band
      • Auto Frequency Hopping
      • TX, RX, and Monitor - All in One
      • Dual-View Quick Monitoring Switch
      • 7" & 1200 nits
      • Precise Image Analysis
      • SDI & HDMI Loopout
      • RTMP Streaming

    • Specifications:

      • Pyro S
      • Transmitter
        - DC Input: 2.0mm Core Socket
        - HDMI Input: HDMI 1.4b
        - SDI Input: 3G-SDI
        - USB-C: USB 2.0 OTG
        - Antenna: SMA Male
      • Receiver
        - DC Input: 2.0mm Core Socket
        - HDMI Output: HDMI 1.4b
        - SDI Output: 3G-SDI
        - USB-C: USB 2.0 OTG
        - Antenna: SMA Male

        Power
      • Battery Voltage Range: 6.8 - 8.4V
      • DC Voltage Range: 6 - 16V
      • Power Consumption: TX <11W / RX <8W

        Operating Frequencies
      • 5 GHz Frequency Band TX: 5.150 - 5.250 GHz, 5.250 - 5.350 GHz, 5.470 - 5.725 GHz, 5.725 - 5.850 GHz
      • 2.4 GHz Frequency Band RX: 2.412 - 2.484 GHz

      • Transmit Power: <23 dBm
      • Receiver Sensitivity: -85 dBm (Broadcast: -80 dBm)
      • Latency: 50ms
      • Bandwidth: 20 MHz (Broadcast: 40 MHz)

        Resolutions
      • HDMI Input: 720p 50/59.94/60, 1080i 50/59.94/60, 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 3840*2160 30/25/24/29.97/23.98
      • HDMI Output: 720p 50/59.94/60, 1080i 50/59.94/60, 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 3840*2160 30/25/24/29.97/23.98, 1080p 50/59.94/60, 1080i 50/59.94/60, 1080p 23.98/24/25/29.97/30, 720p 50/59.94/60, 1080p 23.98/24, 1080i 50/59.94/60
      • SDI Input: 1080p 60/59.94/50, 1080i 60/59.94/50, 1080p 30/29.97/25/24/23.98, 720p 60/59.94/50, 1080psf 23.98/24, 1080psf 25/29.97/30
      • SDI Output: 1080p 50/59.94/60, 1080i 50/59.94/60, 1080p 23.98/24/25/29.97/30, 720p 50/59.94/60, 1080p 23.98/24, 1080i 50/59.94/60, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p 23.98/24/25/29.97/30, 1080p 50/59.94/60, 1080p 30/25/24/29.97/23.98

        Physical
      • Weight: 0.45lbs
      • Dimensions: 4.4" x 2.8" x 1.3"
      • Temperature:
        -Working: 14 - 113°F
        -Storage: -40 - 140°F

        Pyro 7
      • Input Port: HDMI 1.4b, 3G-SDI
      • Output Port: HDMI 1.4b, 3G-SDI
      • Antenna: 2x RP-SMA Male
      • Power Input: DC Input
      • Headphone Jack: 3.5mm
      • Upgrade Port: USB-C; SD Card Slot
      • Touchscreen Size: 7"
      • Screen Resolution: 1920x1200
      • Pixel Density: 323 PPI
      • Aspect Ratio: 16:9
      • Contrast Ratio: 1000:1
      • Power Input Voltage: 10 - 18V/2.5A DC Input (nominal 12V)
      • Power Consumption: < 22W
      • Net Weight: 19.2oz w/ battery plate, w/o external antennas
      • Dimensions: 7.1" x 5" x 1.25" w/o battery plate/external antennas
      • Operating Frequency: 5.1 - 5.8 GHz; 2.412 - 2.484 GHz
      • Transmit Power: ≤ 23 dBm
      • Receiver Sensitivity: -80 dBm
      • Display Latency: < 50ms
      • Transmission Latency: 60ms
      • LOS Range: 1,300'; 650' in Broadcast mode
      • Bandwidth: 20 MHz; 40 MHz (in Broadcast mode)
      • Audio Format: HDMI 1.4b 8-Channel
      • Operating Temp: 14 - 113°F
      • Storage Temp: -40 - 140°F
      • HDMI Input & HDMI Loopout:
        - 720p 50/59.94/60
        - 1080i 50/59.94/60
        - 1080p 23.98/24/25/29.97/30
        - 1080p 50/59.94/60
        - 3840*2160 23.98/24/25/29.97/30
      • SDI Input:
        - 1080p 50/59.94/60 (Level A)
        - 1080p 50/59.94/60 (Level B)
        - 1080i 50/59.94/60
        - 1080psf 23.98/24
        - 1080p 23.98/24/25/29.97/30
        - 1080psf 25/29.97/30
        - 720p 50/59.94/60
      • SDI Loopout & HDMI/SDI Output:
        - 720p 50/60
        - 1080i 50/60
        - 1080p 24/25/30
        - 1080p 50/60
        - 1920*1080 24/25/30
      • SDI/HDMI Loopout & SDI/HDMI Output:
        - 1080p 50/59.94/60 (Level A)
        - 1080i 50/59.94/60
        - 1080p 23.98/24/25/29.97/30
        - 1080p 23.98/24
        - 1080i 50/59.94/60
        - 720p 50/59.94/60

    • Item Includes:

      • 1x Pyro S Transmitter
      • 1x Pyro S Receiver
      • 1x Pyro 7 Transceiver
      • 9x Paddle Antenna (2.4 & 5 GHz)
      • 2x Side & Bottom Mounted Aluminum Handle
      • 1x 7" Monitor Hood
      • 1x Secure Digital Memory Card (32G)
      • 1x Shoulder Strap 01
      • 1x Rotatable Cold Shoe Mount
      • 1x USB-C OTG Adapter
      • 1x 12V 2A DC 2.1 Power Adapter
      • 1x D-Tap to Locking DC Power Adapter Cable
      • 1x Pyro Ecosystem Hard-Shell Case

    • GTIN:

      0191460007002
